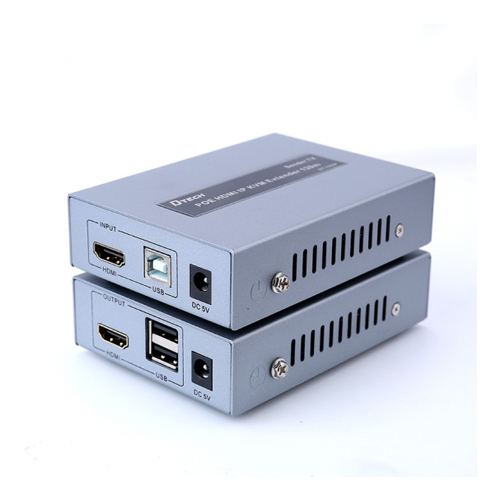

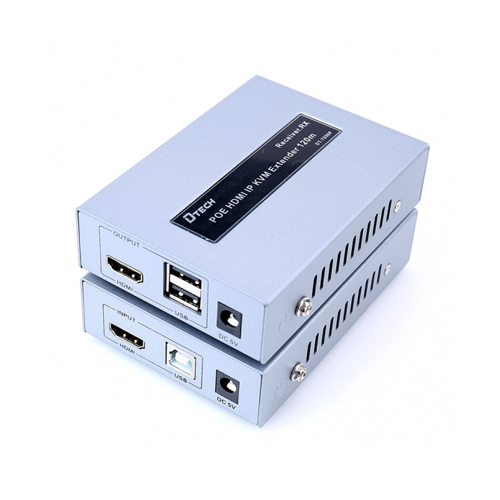

DTECH HDMI IP KVM EXTENDER 150M(DT-7050)

DTECH HDMI IP KVM EXTENDER 150M(DT-7050)

This DTECH  DT-7050 HDMI IP KVM Extender transmit HD signal up to 120m via single CAT 5e/6, resolution up to 1080P.  Not only breaks the transmission distance limitation of HDMI cable, but also save cost for you. besides, it is more convenient and flexible.

It extends audio & video signals up to 120m via LAN cable, can achieve cascading connection by the virtue of switch. It can also support one to many connection ( one transmitter can connect 253 receivers maximum). Meanwhile it is easy to to transmit HDMI high-definition signals by point to point, one to many, cascading connection.

It is widely used for computer teaching system, high quality multimedia display, video conference, computer, LCD plasma high-definition display hall, digital home theater, exhibitions, education, financial, scientific research and meteorology etc.

Product parameters

• support resolution up to 1080P@60HZ, backward compatible
•  support USB1.1 function
•  support IR return function, convenient to control the device remotely
•  transmission distance up to 120m via CAT 5e/6.

•  can achieve cascading connection by the virtue of switch or router.

Product function and parameters

1. Using broadcast bandwidth balance transmission mode, good anti-interference capability, transmission distance up to 120m via CAT6e cable.
2.  Support CAT5e/CAT6e/ single shielded/ non-shielded UTP real time point to point, point to multi-point transmit video and audio signals.
3.  Support HDMI 1.3, 1080P@60HZ, backward compatible.
4. Support keyboard and mouse remote control.
5.  Support IR return function.
6.   With signal 3DB gain or additive compensation, to make sure the signal’s high definition and true revivification.
7.   Lightning protection, anti-dust, anti-static, prolong the service life.
8.  Can realize cascading connection and amplifying transmission via switch/routers or other repeater device, achieve extending up to 240m.

Electrical specifications

• Rated input voltage: DC 5V
• Rated input current: external power supply 1000mA

Volume and weight

• product dimension
• The transmitter: 105mm*75mm*25mm
• The receiver: 105mm*75mm*25mm
• product weight: 654g±10g

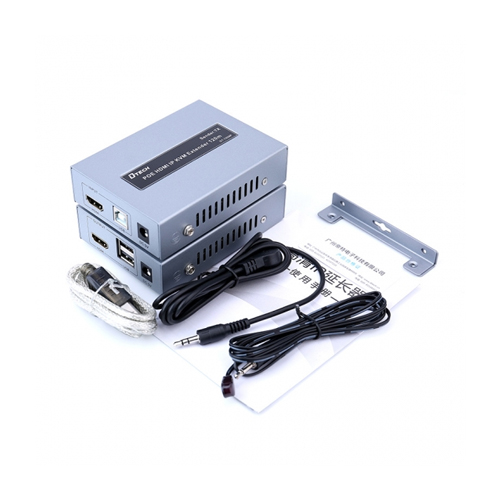

Product packing list

1.  DT-7050 transmitter *1pc
2. Receiver *1pc

3.  IR line *2pcs

4.  USB AM-BM cable 0.8m *1pc

5.  power adapter *2pcs

6.  user manual *1pc

DTECH HDMI EXTENDER PRICE IN BD

A DTECH HDMI extender is a device that allows you to extend the distance between two HDMI devices, such as a computer and a monitor. It does this by converting the HDMI signals from the source device into a format that can be transmitted over a longer distance, such as Ethernet cable or fiber optic cable. The converted signals are then received by the HDMI extender on the other end, which converts them back into HDMI format and sends them to the display device. This allows you to place the display device farther away from the source device, making it easier to access and use. DTECH HDMI extenders are typically used in situations where a longer cable run is required, or where the placement of the devices makes it difficult to use a regular HDMI cable.
