| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI Video Capture Card |
| Video Input | HDMI |
| Maximum Input Resolution | 4K 60Hz |
| Maximum Recording Resolution | 4K 30fps |
| HDMI Passthrough | Up to 4K 60Hz |
| Host Connection | USB-C |
| USB Interface | USB 3.0 / USB 3.2 Class |
| HDR | Supported Input / Passthrough |
| Video Processing | FPGA |
| Capture Formats | YUY2, NV12, RGB24 |
| Audio | HDMI Audio, 3.5mm Audio Connectivity |
| Compatibility | Windows, macOS, Linux; supported mobile systems |
| Compatible Video Sources | HDMI Consoles, Cameras, Computers |
| Housing | Metal |
| Power Source | USB Powered |
| Product Code | 65518 |
| Warranty Information | |
| Warranty | N/A |
Looking for the UGREEN XG501 (65518) 4K HDMI Capture Card price in Bangladesh? This advanced video capture device is designed for gamers, streamers, content creators and professionals who want to record high-quality video from compatible HDMI devices.
The UGREEN XG501 supports up to 4K 60Hz HDMI input, 4K 60Hz passthrough and 4K 30fps recording. It features high-speed USB-C connectivity, FPGA processing, HDR-compatible video passthrough and audio connectivity for flexible recording and streaming setups.
Whether you want to capture PlayStation gameplay, stream Xbox sessions, record Nintendo Switch content or use a compatible camera as a video source, the UGREEN XG501 provides a convenient solution. Check the latest price and availability at IT Source Bangladesh.
The UGREEN XG501 is an external HDMI video capture card developed for high-resolution video recording and live streaming.
It receives HDMI signals from compatible gaming consoles, cameras and computers, then sends captured video to a connected host device.
The device supports HDMI input resolutions up to 3840 x 2160 at 60Hz.
Its maximum advertised recording capability is 4K at 30 frames per second, providing detailed video for supported recording workflows.
A separate HDMI passthrough output allows users to connect a monitor or television while capturing the video on a computer.
The passthrough function supports up to 4K 60Hz, allowing users to view compatible high-resolution content without relying entirely on a software preview window.
The capture card uses USB-C connectivity to transfer video to compatible host systems.
FPGA-based processing is designed to support stable video handling during recording and streaming sessions.
The XG501 also supports compatible audio input and HDMI audio capture for multimedia production.
Its metal enclosure offers a durable design suitable for desktop recording environments.
For customers looking for a 4K capture card in Bangladesh, the UGREEN XG501 provides a useful combination of UHD recording, HDMI passthrough and flexible gaming compatibility.
The UGREEN XG501 accepts HDMI input signals up to 4K at 60Hz.
This enables it to receive high-resolution video from compatible gaming consoles, cameras and computers.
The feature is useful when working with modern UHD video sources.
Users can preserve a high-quality input signal for supported recording and monitoring workflows.
The connected device must provide a compatible HDMI output format.
HDMI input capability should not be confused with the device's maximum recording frame rate.
The UGREEN XG501 supports video recording up to 4K at 30 frames per second.
This allows compatible software to capture detailed Ultra HD footage.
It is useful for gameplay videos, tutorials, product demonstrations and camera recording.
Recording in 4K provides additional visual detail compared with standard Full HD video.
Actual supported recording modes depend on the host system, USB bandwidth and capture software.
The XG501 should not be described as a 4K 60fps recording device.

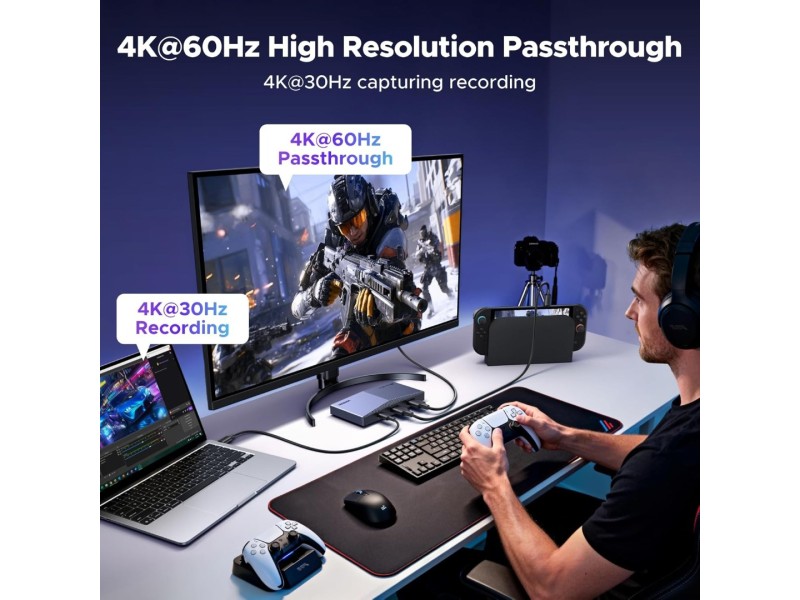

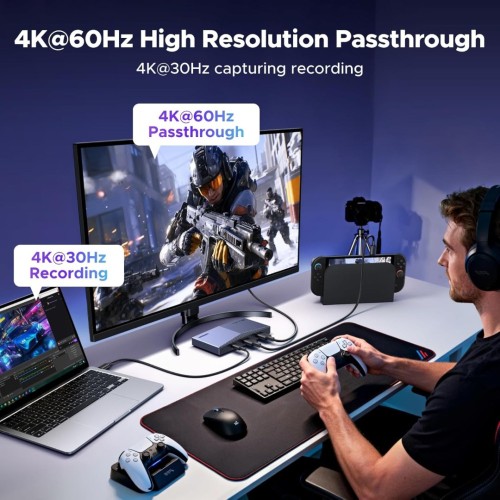

The XG501 includes an HDMI passthrough output supporting up to 4K at 60Hz.
Users can connect a compatible monitor or television directly to this output.
This allows gameplay or video monitoring while the host computer records the incoming signal.
It is particularly useful for gaming because users do not need to play through a software preview window.
The passthrough path is designed for responsive viewing.
Actual performance depends on the source, display and selected video settings.
Model-specific product information also lists compatibility with selected high-refresh-rate video modes.
These include 1440p at 120Hz and 1080p at 144Hz in suitable configurations.
Such modes can be useful for gaming displays that prioritize smooth motion.
Support depends on the connected console or computer, monitor and HDMI signal format.
These figures refer to compatible passthrough modes rather than guaranteed recording frame rates.
Users should verify their complete gaming setup before selecting a high-refresh-rate configuration.

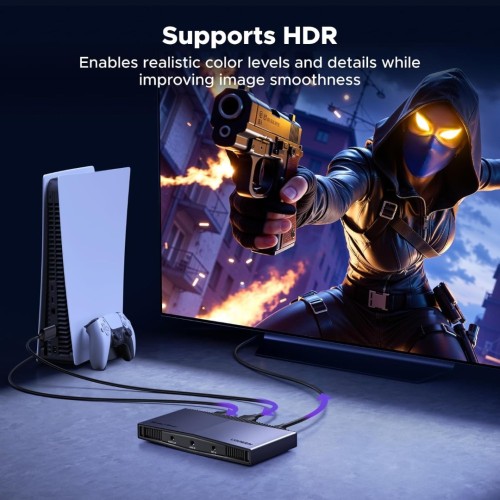

The UGREEN XG501 supports HDR functionality for compatible HDMI input and passthrough setups.
HDR can provide a wider range of brightness and color information when supported by the source and display.
This is useful for modern gaming consoles and HDR-capable monitors.
The actual HDR experience depends on the connected equipment and video settings.
HDR passthrough does not automatically guarantee HDR recording in every application.
Users should confirm their software's supported recording format when HDR capture is required.

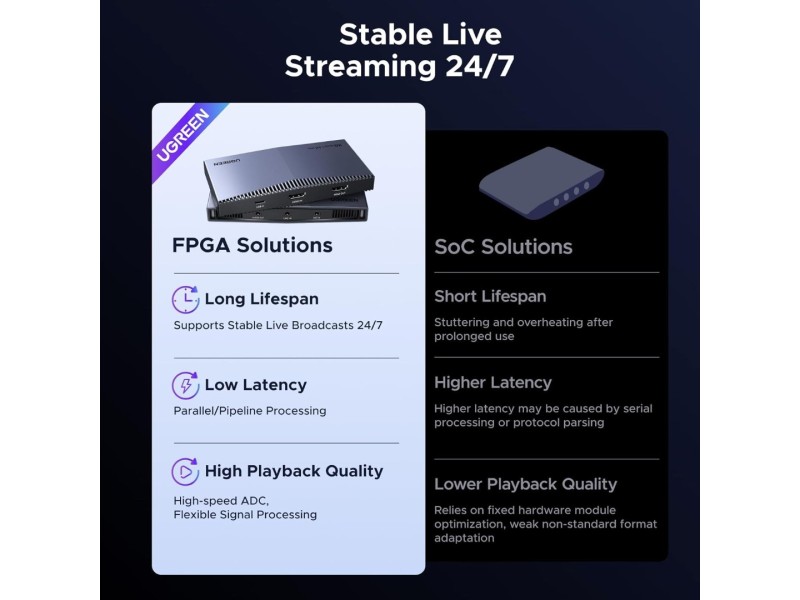

The XG501 uses FPGA-based processing technology.
This architecture is designed to support stable handling of video signals during capture operations.
It can be useful for extended streaming sessions and high-resolution recording workflows.
The capture card processes the incoming signal before transferring supported video data to the host.
Overall performance still depends on the computer, software and USB connection.
Proper system configuration is important for reliable recording.
The UGREEN XG501 connects to a compatible computer through USB-C.
Its high-speed USB interface supports transferring captured video to recording or streaming software.
Product specifications identify USB 3.0 or USB 3.2-class connectivity.
Using a suitable high-speed USB port is recommended for high-resolution capture.
Actual transfer performance depends on the host computer and connected cable.
For the best supported 4K recording experience, avoid relying on a slow USB connection.

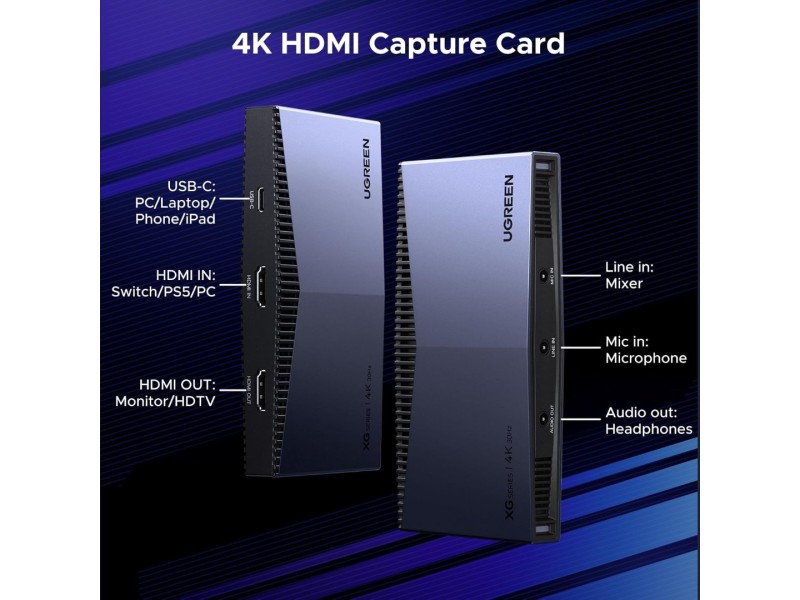

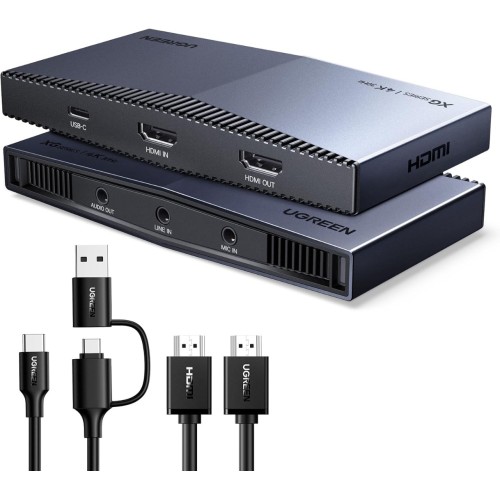

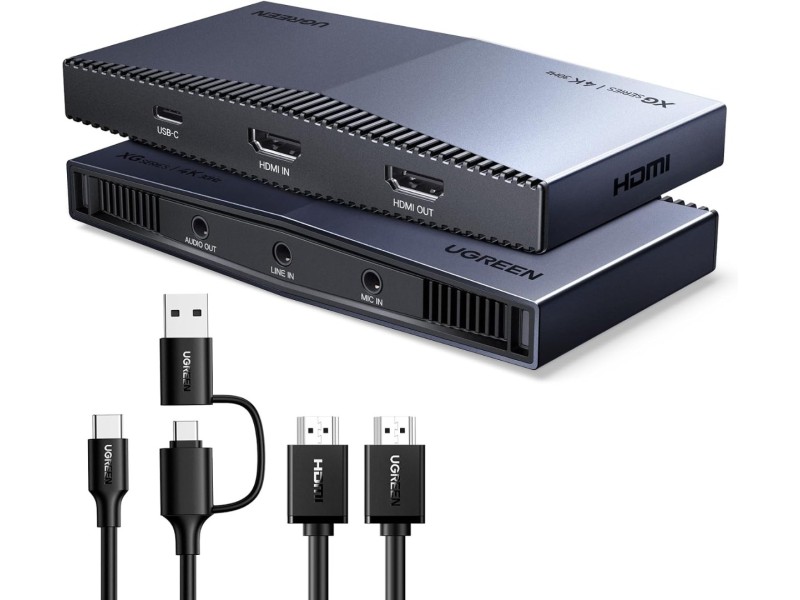

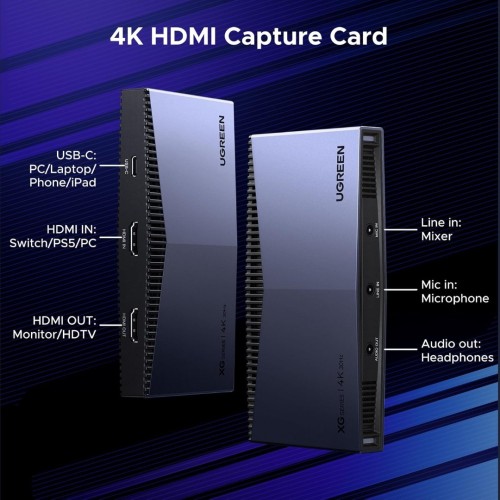

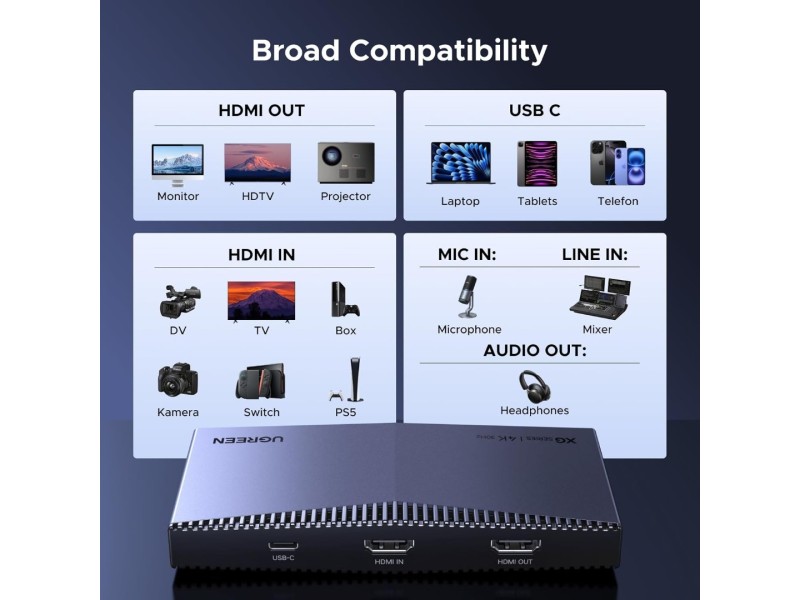

The capture card provides separate HDMI input and HDMI passthrough connections.
The HDMI input receives video from a supported external source.
The HDMI output sends the source signal to a compatible monitor or television.
Meanwhile, the USB-C host connection transfers captured video to the computer.
This arrangement is useful for recording gameplay without disconnecting the main gaming display.
Suitable HDMI cables are required for the selected resolution and refresh rate.
The UGREEN XG501 can capture supported HDMI gameplay output from PlayStation 5 and PlayStation 4 consoles.
Users can connect the console to the capture card's HDMI input.
The passthrough output can then connect to a monitor or television.
A compatible computer can record or stream the gameplay through supported software.
HDCP-protected content cannot be captured.
Users may need to disable HDCP in the console's settings for supported gameplay capture.
The XG501 is suitable for supported HDMI capture from Xbox Series X and Series S consoles.
It can also work with compatible earlier Xbox systems.
Gamers can use it to record gameplay and create streaming content.
The HDMI passthrough output helps maintain a separate gaming display.
Available resolutions depend on the console's video settings and the connected monitor.
Protected content may not be available for capture.
The UGREEN XG501 can capture HDMI output from compatible Nintendo Switch setups.
For the original Nintendo Switch, an appropriate dock is required to provide HDMI output.
Users can record gameplay through compatible software on a connected computer.
The passthrough output allows the game to remain visible on an external display.
Support for other Switch models depends on their available HDMI output modes.
The capture card cannot obtain HDMI video directly from a console that is not outputting a compatible signal.
The UGREEN XG501 can also receive video from compatible cameras with HDMI output.
This makes it useful for live presentations, online teaching and video production.
Supported cameras can send a video signal to the capture card for use in compatible software.
For a clean video image, the camera may need a clean HDMI output setting.
Some cameras display menus or overlays through HDMI unless configured otherwise.
Camera output format and capture compatibility should be checked before purchasing.

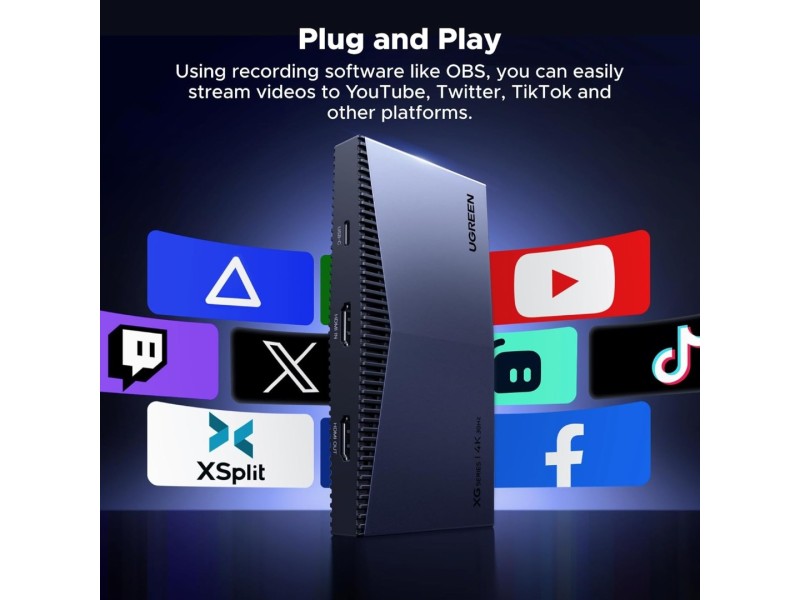

The XG501 can be used with compatible versions of OBS Studio.
OBS allows users to add the capture card as a video capture source.
Users can create scenes, add overlays and configure video recording or live streaming.
The capture card is suitable for supported gaming, camera and presentation workflows.
Recording resolution and frame rate must be selected according to the available device modes.
Streaming quality also depends on the host computer and internet connection.
Product information lists support for common capture applications such as OBS Studio, XSplit and PotPlayer.
These programs can display or record supported video input from the capture card.
Different applications provide different recording controls and output formats.
Some video formats may be available only in certain software configurations.
Users should check the capture device settings within their preferred application.
For important recordings, test video and audio before starting the session.
Available model-specific specifications identify support for video formats including YUY2, NV12 and RGB24.
These formats are used by compatible applications to receive or process captured video.
NV12 is associated with supported high-resolution capture modes, including 4K 30fps.
The format selected can affect bandwidth usage and software compatibility.
Not every format is available at every resolution and frame rate.
Users should select the capture mode supported by their host system and software.
The UGREEN XG501 supports audio capture from compatible HDMI sources.
This allows supported gameplay or camera audio to accompany the captured video.
Users can configure the audio source in their recording or streaming application.
Proper audio settings help keep video and sound together during production.
Some software may require the audio device to be selected separately.
Audio behavior depends on the HDMI source and application configuration.
Model-specific product listings describe 3.5mm microphone and audio connectivity.
These connections can be useful when building a streaming setup with external audio accessories.
Users may be able to combine supported voice input with captured video.
Exact audio routing depends on the capture card and recording application.
Check the physical audio connectors and software options before relying on a particular setup.
Microphones and other audio accessories are not automatically included.
The XG501 is designed for low-latency video handling in compatible capture setups.
Its HDMI passthrough output is particularly useful for responsive gameplay viewing.
Users can play on a connected monitor while their computer records the video.
This is generally preferable to playing through a software capture preview.
Software previews can introduce additional delay depending on the computer and application.
Actual latency is affected by the complete signal chain.

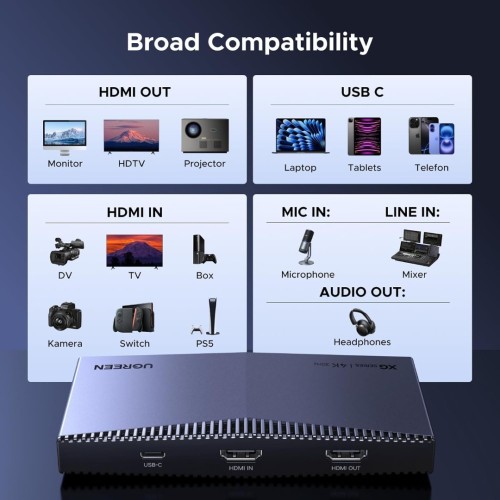

The UGREEN XG501 supports compatible Windows and macOS host systems.
These platforms provide access to a variety of recording and streaming applications.
Windows users can configure the device in supported software such as OBS Studio.
Mac users should verify their preferred application's supported video modes.
Available resolutions and frame rates may vary between operating systems.
A sufficiently capable USB connection and computer are required for high-resolution recording.
Available product information also lists support for Linux, Android and selected iPadOS devices.
Compatibility depends on USB video capture support and the software available on each platform.
Some mobile devices may be limited to lower recording resolutions.
Supported tablets may require a dedicated capture application.
Operating system compatibility does not guarantee every capture mode will be available.
Confirm the exact device and application before purchasing.
The UGREEN XG501 features a metal enclosure designed for regular desktop use.
The housing provides a solid structure for its HDMI, USB and audio connections.
Its construction is suitable for gaming desks and content creation workstations.
Metal housing can also help distribute heat generated during operation.
The device should be positioned in a reasonably ventilated area.
Avoid covering it during extended recording sessions.
The XG501 is designed for straightforward connection to compatible host systems.
Users can connect the HDMI source, passthrough monitor and USB host cable.
Supported capture applications can then be configured to receive the video signal.
Many compatible systems recognize USB video capture devices without proprietary driver installation.
Application permissions and recording settings may still require configuration.
Test the complete setup before beginning a live broadcast.
The UGREEN XG501 cannot capture HDCP-protected HDMI content.
This restriction affects many protected streaming services and some media devices.
Supported gameplay capture may require changing the source device's HDCP settings.
The capture card also does not guarantee 4K 30fps recording on every host platform.
Recording performance depends on USB bandwidth, video format, software and computer capabilities.
Check the requirements of your intended setup before purchasing.
The UGREEN XG501 is ideal for gamers who want to capture PlayStation, Xbox or Nintendo Switch gameplay while continuing to play on a separate monitor.
Live streamers can use the capture card with supported broadcasting software to create gameplay and camera-based streams.
Content creators can record high-resolution video for tutorials, reviews, demonstrations and online videos.
Educators and professionals can capture supported camera or computer HDMI output for presentations and instructional content.
Users seeking a 4K 30fps recording solution with 4K 60Hz passthrough can benefit from the XG501's combination of video input, monitoring and USB connectivity.
The package includes the UGREEN XG501 (65518) HDMI Video Capture Card.
USB host cables, HDMI cables, adapters and printed documentation may vary by region and retail bundle. Confirm the accessories supplied with the available IT Source stock before ordering.
IT Source offers video capture cards, gaming accessories and computer connectivity products for customers in Bangladesh.
Customers can confirm their gaming console, camera, computer and capture software compatibility before choosing a recording solution.
Contact IT Source to check the latest price, availability, included accessories and applicable warranty coverage.
No. The XG501 supports HDMI input and passthrough up to 4K 60Hz, while its maximum advertised recording capability is 4K 30fps. Actual recording modes depend on the host and software.
Yes. It can capture compatible HDMI gameplay from supported PlayStation and Xbox consoles. HDCP-protected video cannot be recorded, and suitable console settings may be required.
Check IT Source for the latest UGREEN XG501 (65518) 4K HDMI Video Capture Card price and stock availability in Bangladesh. Confirm package contents, compatibility and warranty before purchasing.
Check the latest price and availability at IT Source.
Record detailed 4K video, enjoy 4K 60Hz HDMI passthrough and build a flexible gaming or content creation setup with the UGREEN XG501.
Get specific details about this product from customers who own it.
