| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI KVM Switch |
| KVM Configuration | 8 Computers to 1 Monitor |
| HDMI Input | 8 × HDMI |
| HDMI Output | 1 × HDMI |
| HDMI Version | HDMI 1.4 |
| Maximum Resolution | 4K UHD 3840 × 2160 at 30Hz |
| USB Interface | USB 2.0 |
| USB Peripheral Ports | 6 × USB-A 2.0 |
| Keyboard & Mouse Sharing | Supported |
| Switching Methods | Physical Button, Remote, Desktop Controller |
| Housing | Metal |
| Power Input | DC 12V/2A |
| Protection | ESD / TVS |
| Product Code | 35987 |
| Warranty Information | |
| Warranty | N/A |
Looking for the UGREEN AK501 (35987) 8-Port HDMI KVM Switch price in Bangladesh? This multi-computer switching device allows users to manage up to eight HDMI computers through one monitor, keyboard and mouse.
Featuring HDMI 1.4 connectivity, 4K 30Hz resolution, USB 2.0 peripheral sharing and multiple switching options, the UGREEN AK501 provides a practical solution for offices, IT workstations, server rooms and professional computer environments.
Instead of using separate monitors and keyboards for multiple computers, users can select the required computer through the KVM switch. Check the latest UGREEN AK501 price and availability at IT Source Bangladesh.

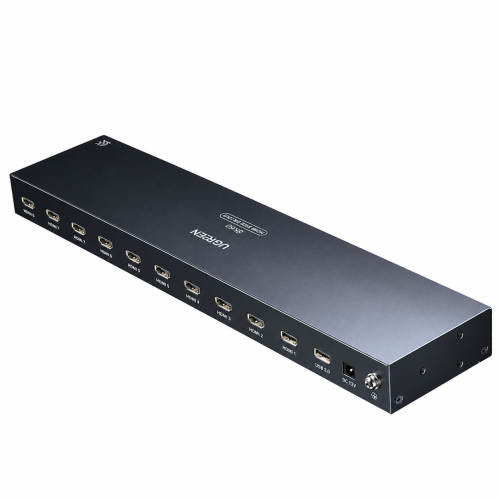

The UGREEN AK501 is an HDMI KVM switch designed for efficient management of multiple computers.
KVM stands for Keyboard, Video and Mouse, describing the ability to share these essential peripherals between connected computers.
The AK501 supports eight HDMI source inputs and one HDMI display output.
Users can connect up to eight compatible computers and choose which computer appears on the connected monitor.
The standard model supports 4K UHD resolution at 30Hz through its HDMI 1.4 interface.
USB 2.0 connectivity allows supported keyboards, mice and additional peripherals to be shared across connected computers.
Multiple switching methods provide convenient computer selection in different working environments.
The durable metal housing makes the device suitable for regular office and technical use.
ESD and TVS protection features help protect the device against specified electrical disturbances.
For businesses and professionals in Bangladesh, the UGREEN AK501 offers an organized solution for managing several computers without requiring a dedicated monitor and keyboard for each system.
The UGREEN AK501 supports up to eight computers through its eight HDMI inputs.
Each computer can be connected to the KVM switch for video selection and USB peripheral control.
Users can operate the selected computer using one shared keyboard and mouse.
This arrangement is particularly useful for technical workstations and environments where multiple computers must be accessed regularly.
Only one computer's HDMI video is displayed through the single HDMI output at a time.
The standard UGREEN AK501 (35987) supports display resolution up to 3840 x 2160 at 30Hz.
This provides clear visuals for compatible office applications, system administration and technical work.
The HDMI 1.4 interface is designed for supported high-definition video signals.
Actual output resolution depends on the connected computer, HDMI cables and monitor.
UGREEN mentions a separate upgraded 4K 60Hz version, but 4K 30Hz is the appropriate specification for the standard model.
The AK501 provides eight HDMI input connections for compatible source computers.
A single HDMI output connects to the shared monitor or display.
Users can switch between connected computers without repeatedly disconnecting HDMI cables.
The switch is designed for one active display source at a time.
It is not an HDMI splitter or an eight-screen video wall controller.
The KVM switch supports USB 2.0 connections for shared keyboard and mouse operation.
Users can control the selected computer using compatible USB input devices.
This reduces the need for multiple keyboards and mice across a multi-computer workstation.
Switching the active computer also changes which connected system receives the shared USB peripheral connection.
Each computer must have the appropriate USB host connection to enable KVM control.
The UGREEN AK501 also provides USB 2.0 connectivity for supported peripheral devices.
UGREEN lists connections for compatible USB storage devices and other accessories.
This can be useful when working with several computers that need access to common USB peripherals.
USB 2.0 is intended for compatible devices and does not provide USB 3.0 transfer speeds.
Actual compatibility depends on the connected peripheral and operating system.
The AK501 supports physical button switching.
Users can select the required computer directly from the KVM device.
This provides a straightforward way to move between connected systems.
Button switching is especially convenient when the switch is placed within easy reach.
No repeated cable reconnection is needed during normal switching.
UGREEN lists remote control as one of the supported switching methods for the AK501.
This can be convenient when the KVM switch is positioned away from the user's main workstation.
Remote selection helps users manage connected computers without reaching the device directly.
Remote-control availability and accessories should be confirmed against the actual retail package.
Supported switching functions depend on the supplied controller.
The AK501 also supports desktop controller switching.
This provides another convenient option for selecting the active computer.
A desktop controller can be useful when the main KVM unit is installed under a desk or near other equipment.
Users can keep their workspace organized while maintaining access to computer selection controls.
Confirm the included controller and connection method with the actual product package.
The UGREEN AK501 is useful for offices that operate several computers from one workstation.
Employees can select different systems using one monitor and shared input devices.
This helps reduce the number of peripherals required for everyday computer management.
The setup is suitable for supported administrative, testing and technical workflows.
Users should verify compatibility with their computers before installation.
IT professionals often need to access several computers for installation, troubleshooting and maintenance.
The AK501 allows compatible systems to be connected to one KVM workstation.
Technicians can switch between connected computers when performing supported maintenance tasks.
This reduces repeated monitor, keyboard and mouse cable changes.
It is particularly useful in computer testing and system administration environments.
The UGREEN AK501 can be used with compatible HDMI-equipped systems in server rooms and technical environments.
It provides a centralized display and control arrangement for multiple connected computers.
This may help simplify access to local equipment that requires periodic monitoring or configuration.
Connected systems must provide compatible HDMI and USB interfaces.
For rack installation, verify physical mounting accessories and available space separately.
The AK501 is useful for computer laboratories and hardware testing environments.
Users can connect several systems to one display and input setup.
This is convenient for checking configurations, performing installations and troubleshooting computers.
The eight-input design supports larger multi-computer arrangements than standard two-port or four-port KVM switches.
Only the selected computer is actively displayed through the HDMI output.
The UGREEN AK501 features a metal enclosure.
This provides a sturdy exterior for regular use in office and technical environments.
The housing is suitable for placement on a desk or within an appropriately arranged equipment area.
Proper ventilation should be maintained during operation.
Avoid exposure to moisture, excessive heat or physical impact.
The AK501 includes ESD anti-static and TVS surge-protection features according to UGREEN.
These features are intended to help protect the switching hardware against specified electrical disturbances.
They provide additional protection within the device's supported operating conditions.
The KVM switch is not a replacement for a dedicated surge protector or uninterruptible power supply.
Follow the manufacturer's installation and power recommendations.
The UGREEN AK501 uses an external DC power connection.
The manufacturer's specification lists DC 12V/2A through a 5.5mm power connector.
Use the appropriate power adapter specified for the product.
Do not substitute an adapter with an incompatible voltage or connector.
Confirm the included power adapter and local plug type before purchasing.
Connect each compatible computer's HDMI output to one of the KVM switch's HDMI input ports.
Connect the required USB host link from each computer to the KVM switch for keyboard, mouse and peripheral sharing.
Connect the shared monitor to the HDMI output.
Attach compatible keyboard, mouse and other supported USB devices to the designated USB ports.
Connect the appropriate power supply and select the desired computer using a supported switching method.
The AK501 is an HDMI 1.4 and USB 2.0 KVM switch.
It is intended for eight computers and one active HDMI display.
Computers must have suitable HDMI outputs and USB host connectivity.
It does not provide independent simultaneous video from multiple computers on one screen.
Users requiring 4K 60Hz should verify whether they are purchasing the upgraded hardware version rather than the standard 35987 model.
The UGREEN AK501 is suitable for IT administrators who regularly manage several computers from one workstation.
Office users can reduce desk clutter by sharing a monitor, keyboard and mouse across compatible systems.
Computer laboratories and repair technicians can use it for hardware testing, configuration and troubleshooting.
Businesses with multiple HDMI computers can benefit from centralized local access.
Users who need an eight-computer, single-monitor KVM solution with USB 2.0 peripheral sharing can consider the AK501.
1 x UGREEN AK501 (35987) 8-Port HDMI KVM Switch
Additional accessories, including the power adapter, remote controller, desktop controller and connection cables, should be verified against the actual retail package before publishing a complete package list.
IT Source offers computer connectivity accessories, KVM switches and related equipment for customers in Bangladesh.
Customers can review the number of supported computers, HDMI resolution, USB connectivity and switching requirements before purchasing.
Contact IT Source to confirm current pricing, stock availability, package contents and applicable warranty terms.
The UGREEN AK501 supports up to eight compatible HDMI computers through one monitor and shared USB keyboard and mouse setup. Only one computer is selected for display at a time.
The standard AK501 (35987) supports 4K 30Hz through HDMI 1.4. UGREEN also mentions an upgraded 4K 60Hz version, which should be verified separately before advertising.
Contact IT Source for the latest UGREEN AK501 8-Port HDMI KVM Switch price and availability in Bangladesh. Confirm the product version, included accessories and local warranty before ordering.
Check the latest UGREEN AK501 price and availability at IT Source.
Manage eight HDMI computers using one monitor, shared USB peripherals and convenient switching controls.
