| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI Matrix Switcher & Splitter |
| HDMI Input | 4 × HDMI |
| HDMI Output | 2 × HDMI |
| HDMI Version | HDMI 1.4 |
| Maximum Resolution | 4K 30Hz |
| Full HD Support | 1080p 60Hz |
| Audio Outputs | 1 × S/PDIF 1 × 3.5mm |
| Modes | Independent Source Selection Same Source on Two Displays |
| ARC | Supported |
| Remote Control | Infrared |
| Power Input | DC 5V/1A |
| Housing Material | ABS |
| Dimensions | 210 × 68 × 20mm |
| Color | Black |
| Warranty Information | |
| Warranty | N/A |
Looking for the UGREEN CM288 (40216) HDMI Matrix Switch Box price in Bangladesh? This 4-input, 2-output HDMI matrix is designed to connect multiple HDMI devices to two televisions, monitors or projectors without repeatedly changing cables.
The UGREEN 40216 supports up to 4K 30Hz video, Full HD 1080p 60Hz, optical S/PDIF audio output, 3.5mm stereo audio output and convenient infrared remote control. Its matrix switching function allows each display to receive a selected HDMI source.
Ideal for home entertainment, offices, conference rooms and educational environments, this HDMI switcher and splitter offers flexible display management in one compact device. Check the latest price and availability at IT Source Bangladesh.

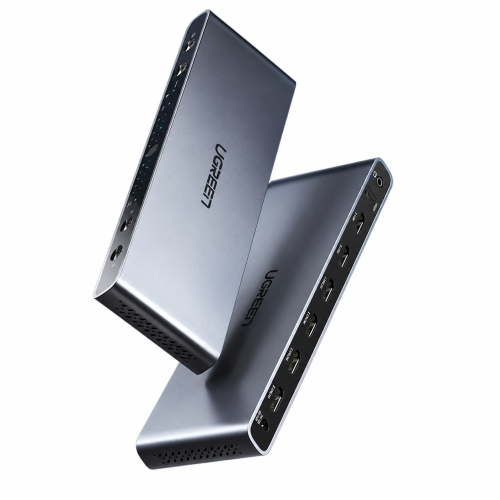

The UGREEN CM288 (40216) is an HDMI matrix switch box designed for flexible management of multiple video sources and displays.
It provides four HDMI input ports for connecting compatible computers, gaming consoles, media players and other HDMI devices.
Two HDMI output ports allow connection to compatible televisions, monitors or projectors.
Unlike a basic HDMI switch, the matrix can route selected sources to either of the two displays.
Users can display two different source devices or send the same source to both screens.
The product supports HDMI 1.4 video with resolution up to 4K at 30Hz.
It also supports Full HD 1080p at 60Hz for compatible displays.
Optical S/PDIF and 3.5mm audio outputs provide additional audio connection options.
An infrared remote control allows convenient switching without directly accessing the device.
The compact ABS housing and external 5V power connection make it suitable for permanent desk and entertainment installations.
The UGREEN 40216 includes four HDMI input connections.
Users can connect multiple compatible devices to the same matrix switch.
These may include desktop computers, laptops with HDMI output, gaming consoles, media players and TV boxes.
Keeping the sources connected reduces the need to repeatedly unplug HDMI cables.
The desired input can be selected for either connected display.
The matrix provides two HDMI outputs for compatible displays.
Users can connect two televisions, monitors or projectors.
Each output can receive a selected HDMI source.
This is useful when different users need to view different devices.
Both displays must support the selected signal resolution and refresh rate.
The UGREEN CM288 (40216) supports matrix switching between its four inputs and two outputs.
Display A can show one connected source while Display B shows another.
For example, one monitor can display a computer while the other displays a media player.
Users can change the selected source without physically moving HDMI cables.
This functionality makes the device suitable for multi-source AV installations.
The matrix can also send the same selected HDMI source to both outputs.
This provides a useful splitter-style display arrangement.
It is suitable for presentations, demonstrations and shared video viewing.
Both connected displays can show the same source signal.
The output format must be compatible with the displays and connected equipment.
The UGREEN 40216 supports video output up to 4K at 30Hz.
This provides high-resolution viewing with compatible HDMI sources and displays.
It is suitable for supported UHD video presentations and entertainment content.
Appropriate HDMI cables are required for reliable signal transmission.
This specific product code should not be advertised as supporting 4K 60Hz.
The matrix also supports Full HD video at 60Hz.
This is useful for common office monitors, televisions and projectors.
Full HD provides a practical resolution for presentations, video playback and everyday computer use.
The connected source and display must support the selected mode.
Actual results depend on cable quality and signal compatibility.
The UGREEN 40216 is specified as an HDMI 1.4 matrix switch.
It is designed for compatible HDMI audio and video signals.
HDMI 1.4 supports the model's advertised 4K 30Hz and Full HD modes.
The product also supports compatible 3D video formats.
Advanced HDMI 2.0 and HDMI 2.1 functions should not be assumed for this model.
The matrix includes one optical S/PDIF audio output.
This allows connection to compatible soundbars, AV receivers and audio systems.
It is useful when audio needs to be routed separately from the HDMI display.
Supported audio formats depend on the source and receiving audio equipment.
An appropriate optical audio cable is required.
The UGREEN 40216 features one 3.5mm audio output.
It can connect to compatible powered speakers and other stereo audio equipment.
This provides an alternative to HDMI audio and optical audio output.
The analog connection is intended for supported stereo audio signals.
Suitable audio cables and speakers are required.
The product is listed with Audio Return Channel, or ARC, support.
ARC allows compatible equipment to return audio through a supported HDMI connection.
This can be useful in home entertainment installations.
Successful operation requires compatible connected equipment and appropriate configuration.
Enhanced Audio Return Channel, or eARC, is not specified for this model.
The matrix includes an infrared remote control for source selection.
Users can switch HDMI inputs without reaching the device directly.
This is convenient for meeting rooms, classrooms and home entertainment systems.
The remote requires an appropriate line of sight to the infrared receiver.
Operating distance depends on the surrounding environment and remote battery condition.
The UGREEN 40216 also provides controls on the device itself.
These allow users to select connected HDMI sources.
Physical controls are useful when the remote is unavailable.
They provide a straightforward way to manage the connected displays.
Input indicators help identify the selected source.
The matrix supports compatible 3D HDMI video signals.
This may be useful with supported 3D media players and displays.
The video source and display must both support the required 3D format.
Compatibility depends on the complete HDMI signal path.
Ordinary non-3D displays will not gain 3D functionality from the matrix.
Published specifications list total HDMI cable lengths up to 24 meters for 4K 30Hz under suitable conditions.
For Full HD 1080p 60Hz, the listed maximum combined length is up to 40 meters.
These figures depend on cable construction, signal quality and connected equipment.
Long HDMI cable runs can reduce signal reliability.
Use quality HDMI cables and test the installation before permanent setup.
The UGREEN 40216 requires an external DC 5V/1A power connection.
This provides power for matrix switching and signal processing.
The standard package lists a USB-to-DC power cable.
Users should connect the device to a suitable 5V power source.
Do not use an incompatible voltage or power adapter.
The HDMI matrix features an ABS plastic enclosure.
Its approximate dimensions are 210 x 68 x 20mm.
The compact design is suitable for desks, AV shelves and entertainment cabinets.
Its black appearance fits naturally into common home and office installations.
Leave sufficient space around the connectors for HDMI and power cables.
The UGREEN 40216 is suitable for connecting multiple home entertainment devices.
Users can attach compatible gaming consoles, media players and TV boxes.
Two televisions or monitors can then display selected sources.
This helps simplify a setup with multiple HDMI devices.
The infrared remote makes source changes convenient from a normal viewing position.
The matrix can help manage video connections in meeting rooms.
Several HDMI-output computers or presentation devices can remain connected.
Two displays can show the same presentation or different selected sources.
This provides flexibility for meetings and demonstrations.
Source selection can be changed using the remote or physical controls.
Teachers and trainers can connect multiple compatible presentation devices.
The matrix allows the selected video to appear on connected displays or projectors.
Users can switch between computers and media equipment during a session.
The two-output design is useful for rooms with more than one display.
Supported resolution and cable requirements should be considered during installation.
The UGREEN CM288 (40216) is an HDMI matrix switch, not a video capture card.
It routes HDMI signals between connected source devices and displays.
It does not record video or provide USB capture functionality.
The specified maximum resolution for product code 40216 is 4K 30Hz.
Some other UGREEN HDMI matrix models support 4K 60Hz, but their specifications should not be applied to this SKU.
Always check the product code printed on the packaging before purchasing.
The UGREEN 40216 is suitable for home users who want to connect several HDMI devices to two televisions or monitors.
Office professionals can use it to manage multiple computers and displays in a shared workspace.
Conference room operators can switch between presentation sources without reconnecting cables.
Teachers and trainers can use it for flexible classroom display arrangements.
AV installers can incorporate it into compatible HDMI systems requiring four inputs and two independently selectable outputs.
The standard retail package lists the UGREEN 40216 HDMI Matrix Switch Box, infrared remote control and USB-to-DC 5V power cable.
Additional accessories and packaging may vary by region. Confirm whether a separate USB power adapter and HDMI cables are included with the available stock.
IT Source offers HDMI switches, splitters, matrix devices and computer connectivity accessories for customers in Bangladesh.
Customers can confirm the required number of HDMI inputs and outputs, supported resolution and audio connection options before purchasing.
Contact IT Source to check the latest price, stock availability, package contents and applicable warranty coverage.
Yes. Its 4x2 HDMI matrix function allows two displays to show different selected HDMI sources. It can also send the same source to both displays.
No. Product code 40216 is specified for up to 4K 30Hz and Full HD 1080p 60Hz. Do not confuse it with the UGREEN 70435 HDMI 2.0 matrix, which has different specifications.
Check IT Source for the latest UGREEN 40216 4x2 HDMI Matrix Switch Box price and availability in Bangladesh. Confirm the product code, included accessories and warranty before ordering.
Check the latest price and availability at IT Source.
Connect four HDMI devices to two displays with flexible matrix switching, 4K 30Hz support, audio extraction and convenient remote control.
