UGREEN CM428 (10941) USB 2.0 Network Print Server

UGREEN CM428 (10941) USB 2.0 Network Print Server

In Stock Brand: UGREEN Model: CM428 (10941) Product code: 1715
6,650৳ Cash Discount Price
Online / Cash Payment
  • RJ45 LAN – Share a USB printer
  • RAW Protocol – Compatible printer support
  • USB 2.0 – Dedicated printer connection
  • Multi-User Access – Network printing
  • View more info

Specification

Product Specifications
Tech Specs
Product TypeUSB Network Print Server
Network Interface1 × RJ45 Ethernet
Printer Interface1 × USB-A 2.0
Power InputMicro-USB, 5V/1A
USB StandardUSB 2.0
USB Data RateUp to 480Mbps
Printing ProtocolRAW
Network ConnectionWired LAN
Printer Capacity1 Compatible USB Printer
Printer SharingMultiple LAN Computers
Initial ConfigurationWindows Print Server Config Tool
IP ConfigurationFixed Local IP
Compatible PrintersRAW Protocol USB Printers
Wi-FiNo
Scanning SupportNo
Dimensions69 × 55 × 20mm
ColorBlack
Warranty Information
WarrantyN/A

Description

UGREEN CM428 (10941) USB Network Print Server Price in Bangladesh

The UGREEN CM428 (10941) USB Network Print Server provides a practical way to share a compatible USB printer across a wired local area network. Instead of connecting the printer directly to one computer, users can connect it to the print server and allow authorized computers on the network to submit print jobs through a shared printer connection.

Featuring an RJ45 LAN port, USB 2.0 printer interface and Micro-USB power input, this compact print server is suitable for supported RAW-protocol printers in offices, schools and home workspaces. Check the latest UGREEN CM428 price in Bangladesh at IT Source.

Top Highlights

  • RJ45 Wired LANConnect a compatible USB printer to a local Ethernet network.
  • RAW Printing ProtocolShare printers that support RAW network printing.
  • USB 2.0 Printer PortConnect one supported USB printer to the print server.
  • Multi-Computer PrintingAllow authorized LAN users to send jobs to a shared printer.

About the UGREEN CM428 (10941)

The UGREEN CM428 (10941) is a compact wired USB print server designed to make a compatible RAW-protocol USB printer accessible to multiple computers through a local Ethernet network. It uses an RJ45 connection for network access, a USB-A 2.0 port for the printer and a Micro-USB connection for external power. The device is configured through a Windows-based Print Server Config Tool, which allows users to assign a fixed local IP address for network printing. Once correctly configured, supported computers can submit print jobs through the printer's compatible driver. The CM428 is intended specifically for shared printing rather than general USB device sharing, and its functionality depends on the connected printer's RAW protocol support.

Design & Performance

Share One USB Printer Across a Local Network

The UGREEN CM428 allows a compatible USB printer to be connected to a wired network so multiple authorized computers can use it. This is especially helpful in offices where several employees need access to one centrally located printer without moving USB cables between workstations.

Users can submit print jobs from their computers through the configured network printer connection. The physical printer processes those jobs according to its normal printing capabilities, so multiple network users do not mean that the printer can physically print several documents at the same instant.

RJ45 Ethernet Connectivity for Wired Printing

The print server includes an RJ45 Ethernet port for connecting to a compatible router or network switch. This creates a wired network connection between the print server and other devices on the same local area network.

A wired connection can be useful in fixed office printing installations where the printer remains in one location. The CM428 itself does not include a Wi-Fi radio, although computers connected through the same router's Wi-Fi network may be able to access the shared printer when the network configuration permits.

RAW Protocol Support for Compatible Printers

The UGREEN CM428 is specifically intended for USB printers that support RAW printing. This requirement is essential because the print server forwards compatible print jobs through the printer connection rather than providing universal compatibility with every USB printer model.

Printers that rely on unsupported host-based or GDI printing methods may not work. Examples of unsupported models listed in the product documentation include Canon LBP2900, LBP2900+, LBP3000, HP P1008, HP M403D and Epson 1390. Buyers should confirm their exact printer model and driver support before ordering.

USB 2.0 Printer Connection and Dedicated Power

The CM428 provides a USB-A 2.0 host port for connecting one compatible USB printer. USB 2.0 has a theoretical maximum signaling rate of 480Mbps, although this figure should not be interpreted as the print server's Ethernet speed or the printer's printing performance.

A separate Micro-USB input supplies power to the print server. The existing IT Source product specification lists a 5V/1A power requirement. The printer connection, Ethernet interface and power input each serve a different purpose and should be connected according to the device instructions.

Windows-Based Setup and Fixed IP Configuration

Initial configuration of the UGREEN CM428 uses the Windows Print Server Config Tool. The setup process involves connecting the device, assigning an appropriate fixed local IP address and configuring the network printer connection so supported computers can locate the print server.

Each client computer requires a compatible driver for the connected printer. The configuration process is not equivalent to universal driver-free plug-and-play installation, and successful printing depends on the printer model, network addressing and operating-system support.

Compact Design for Office and Workgroup Printing

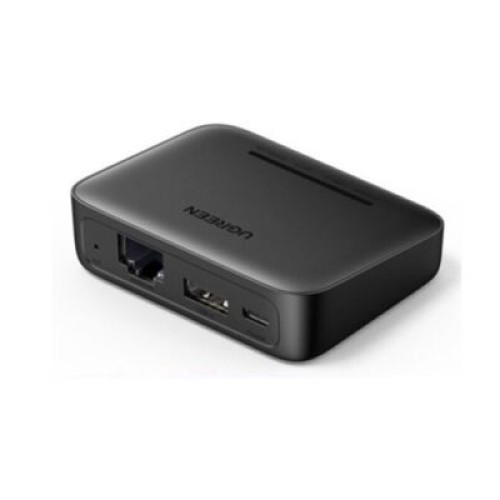

The UGREEN CM428 features a compact black enclosure measuring approximately 69 × 55 × 20mm. Its small footprint makes it suitable for placement near a printer, on an office desk or in another convenient location with access to Ethernet and power connections.

Its status indicators help users observe device activity during installation and troubleshooting, while a recessed reset control is provided for configuration recovery. The CM428 is intended for network printing only; scanner functions, general USB storage sharing, cloud printing and direct internet printing are not guaranteed or supported as product features.

Who It's For

The UGREEN CM428 (10941) is suitable for small offices, educational institutions, home offices and business workgroups that want to share one compatible USB printer over an existing wired LAN. It can be useful for administrative departments, reception desks and shared workspaces where several computers need access to a centrally located printer. IT technicians and network administrators may also use it when adding network printing functionality to an eligible USB printer.

Before purchasing, users should verify that their printer supports the RAW printing protocol, that suitable printer drivers are available and that their network supports the required configuration. The CM428 is not suitable for printers requiring unsupported GDI or host-based printing, and it does not provide built-in Wi-Fi or multifunction scanning support.

Why Buy From IT Source?

IT Source offers UGREEN networking accessories and connectivity solutions for customers in Bangladesh. The UGREEN CM428 (10941) provides a practical option for sharing a compatible RAW-protocol USB printer over a local network. Customers can review the product specifications, verify their printer compatibility and check the latest price, availability and applicable warranty information with IT Source before ordering.

Buy UGREEN CM428 (10941) USB Network Print Server from IT Source Bangladesh

Share one compatible RAW-protocol USB printer across a wired LAN using a compact RJ45 and USB 2.0 print server.
