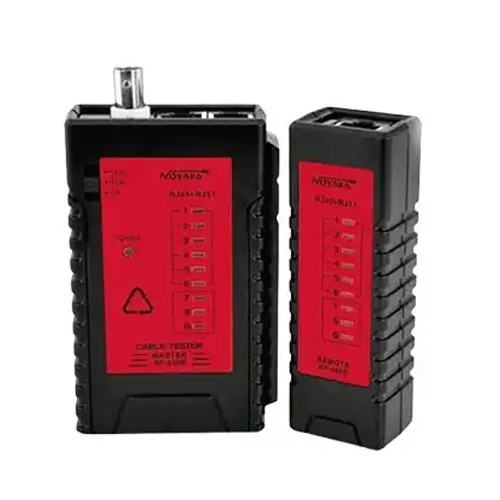

NOYAFA NF-468B RJ45 RJ11 BNC Network Cable Tester

NOYAFA NF-468B Network Cable Tester Price in Bangladesh

Top Highlights

• 3-in-1 Cable TestingRJ45, RJ11 and BNC support.
• Wire Fault DetectionIdentify open, short and crossed wires.
• LED Status DisplayRead wiring sequence visually.
• Detachable RemoteTest cable ends separately.

About the NOYAFA NF-468B

The NOYAFA NF-468B is a battery-powered cable tester designed to verify the continuity and wiring connections of Ethernet, telephone and coaxial cables. Its main and remote testing units allow users to examine cables with connectors at opposite ends, while LED indicators show the corresponding wire sequence. With automatic scanning and selectable normal or slow test modes, it supports routine cable termination checks and fault identification.

Design & Performance

RJ45 Ethernet Cable Continuity Testing

The NF-468B supports RJ45 network cable testing for common Ethernet cabling, including compatible Cat5e and Cat6 twisted-pair cables. It checks conductors numbered 1 through 8 and the ground/shield indication where applicable.

By comparing the LED sequence on the main and remote units, users can inspect whether the conductors are correctly connected. This is useful when checking newly crimped Ethernet connectors, patch cables and installed network cable runs.

RJ11 Telephone and BNC Coaxial Cable Support

Unlike the standard NF-468 model, the NF-468B also supports BNC coaxial cable continuity testing alongside RJ45 and RJ11 connections. This makes it useful for technicians working with telephone wiring and compatible coaxial CCTV cabling.

Its multi-connector design reduces the need for separate basic continuity testers when inspecting different cable types. It verifies physical electrical connections rather than video signal quality or network data performance.

Open Circuit, Short Circuit and Crossed Wire Detection

The NF-468B identifies common wiring faults such as broken or disconnected conductors, shorted wires and incorrect conductor order. Its automatic scanning function helps users identify problems without checking each conductor manually.

This is particularly helpful after installing modular connectors or troubleshooting a cable that fails to establish a reliable connection. The tester does not measure cable bandwidth, network speed or detailed signal attenuation.

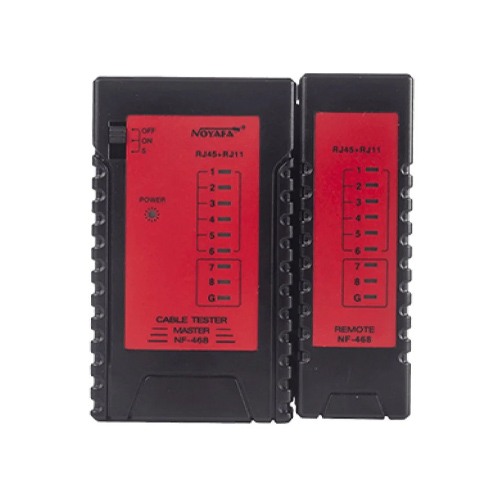

Sequential LED Wire Status Indicators

The main and remote units use sequential LED indicators to display the tested conductor connections. For RJ45 cables, the numbered LEDs help users compare wiring positions and identify missing or incorrectly mapped conductors.

When a connection is open or the wiring order is incorrect, the indicator sequence changes accordingly. This visual method provides straightforward cable inspection without requiring a digital display or complicated menu system.

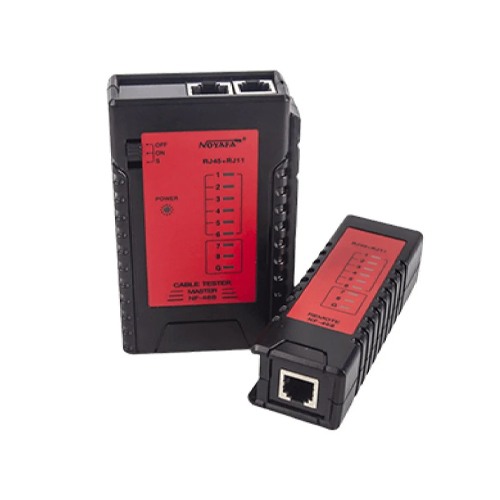

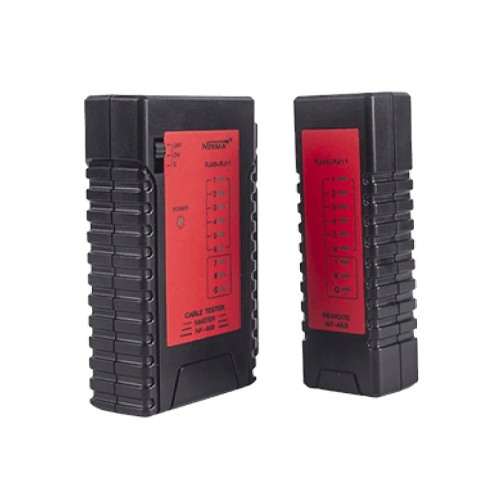

Detachable Main and Remote Testing Units

The tester uses a separable main unit and remote unit, allowing the two ends of a cable to be connected independently. This design is useful when inspecting cable runs where the connectors are located at different positions.

For example, a technician can connect the main tester at a network cabinet and the remote tester at the corresponding cable endpoint. Both ends must remain disconnected from powered network equipment during testing.

Automatic Scanning and Adjustable Test Speed

The NF-468B provides automatic cable scanning with normal and slow testing modes. Users can select the slower mode when they need additional time to observe the LED sequence and inspect conductor connections.

The tester operates using a 9V battery and is suitable for portable cable inspection tasks. It is intended for unpowered cables only and should not be connected to energized telephone lines, PoE ports or other live circuits.

Who It's For

Network Technicians: Verify RJ45 cable wiring and termination. CCTV Installers: Check compatible BNC coaxial cable continuity. Telecom Technicians: Inspect RJ11 telephone cables. IT Support Teams: Troubleshoot faulty network patch leads. Electricians and Installers: Perform basic low-voltage cable continuity checks. Home Network Users: Test newly assembled Ethernet cables before connecting equipment.
