| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Multifunction Network Cable Tester & Wire Tracer |
| Supported Cables | CAT5, CAT6, STP and UTP |
| Testing Functions | Wiremap, Continuity, Length, Cable Tracing, PoE, Port Flash, QC, NCV |
| Wiremap Fault Detection | Open Circuit, Short Circuit, Crossed Wiring |
| Wiremap Maximum Range | 600 Meters |
| Cable Length Measurement | 2.5–200 Meters |
| Cable Tracing Modes | Normal and Anti-Interference |
| Tracing Signal Frequency | 455kHz |
| PoE Voltage Test | DC 5–60V |
| PoE Standards | IEEE 802.3af/at and Non-Standard PSE Detection |
| Port Flash Support | 10/100/1000Mbps Switches |
| NCV Detection | AC 70–1000V, 50/60Hz |
| LCD Display | 128 × 64 Backlit Display |
| QC Test | 8-Core Cable Termination Check |
| Battery | 3.7V 1400mAh Rechargeable Lithium Battery (Each Unit) |
| Charging Interface | USB-C |
| Transmitter Dimensions | 125 × 70 × 32mm |
| Receiver Dimensions | 198 × 50 × 30mm |
| Transmitter Auto-Off | 15/30/60 Minutes or Off |
| Warranty Information | |
| Warranty | N/A |

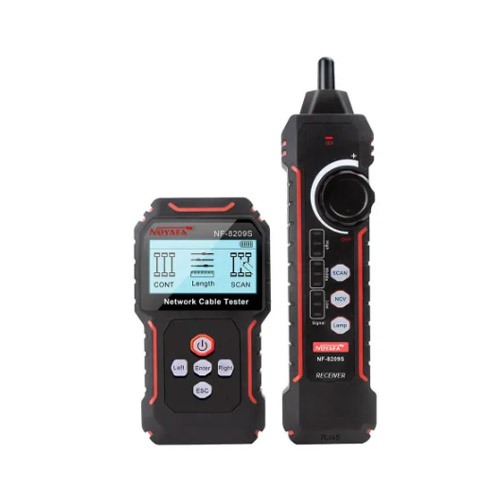

The NOYAFA NF-8209S Network Cable Tester and Wire Tracer helps technicians test CAT5/CAT6 cables, trace network wiring, measure cable length and diagnose Ethernet connection faults. It combines wiremap testing, PoE detection, port flashing and NCV detection with anti-interference cable tracing.
Its backlit LCD transmitter, adjustable receiver and rechargeable design support practical network installation and maintenance. Check the latest NOYAFA NF-8209S price in Bangladesh at IT Source.
The NOYAFA NF-8209S is a multifunction cable tester for network installation and maintenance. It supports CAT5/CAT6 wiremap testing, cable tracing, length measurement and crimping quality checks.
Its dual-mode tracing system helps identify cables in complex wiring environments. PoE testing, switch port flashing and non-contact voltage detection provide additional diagnostic functions.

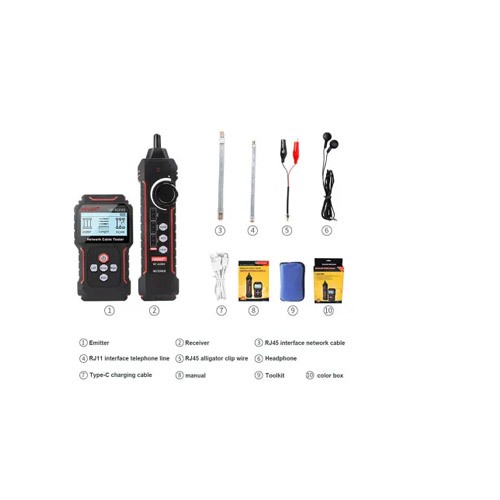

The kit features a backlit LCD transmitter, adjustable receiver and rechargeable lithium batteries. It is suitable for network technicians, installers and IT maintenance professionals.
The NF-8209S checks CAT5/CAT6 Ethernet cable connections for normal wiring, open circuits, short circuits and crossed conductors. It supports both shielded and unshielded twisted-pair network cables.
Its wiremap function helps technicians identify connection faults before deploying network equipment. The separate crimping quality test checks eight-core termination conditions, helping verify cable preparation.
The tester combines a signal transmitter with an adjustable receiver for locating network cables. Normal and anti-interference scanning modes help identify cable routes in environments containing multiple nearby wires.
The scanning signal operates at a specified 455kHz frequency, with cable tracing support for compatible CAT5/CAT6 connections. Receiver sensitivity adjustment helps technicians distinguish the intended cable from surrounding wiring.
The NF-8209S measures the approximate length of supported CAT5/CAT6 network cables. Its documented length measurement range is 2.5 to 200 meters, making it useful for installation checks and cable troubleshooting.
Length readings help technicians estimate cable runs and investigate connection problems. Measurement accuracy varies with cable length and the characteristics of the tested wiring.
The built-in PoE test measures DC voltage from 5V to 60V and identifies supported IEEE 802.3af/at and non-standard power sourcing arrangements. It can also indicate which conductor pairs carry power.
The port flashing function helps locate the corresponding port on a connected Ethernet switch. It supports identification of 10Mbps, 100Mbps and 1000Mbps switch connections, along with duplex and negotiation information.
The receiver includes an NCV function for detecting the presence of AC voltage in the specified 70V to 1000V range at 50/60Hz. This provides an additional electrical awareness feature during cable investigation.
NCV detection is an indication function rather than a certified verification that a circuit is safe or de-energized. Electrical safety checks should always use appropriate rated instruments and procedures.

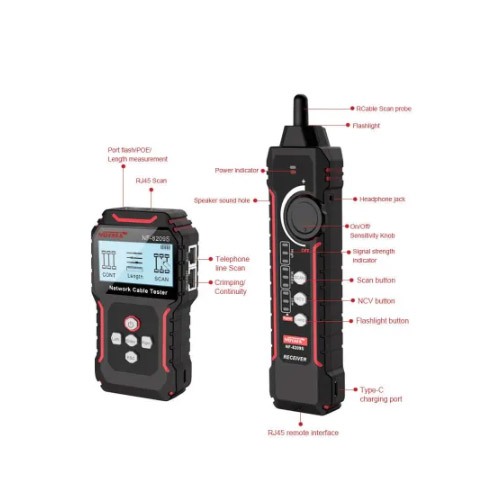

The transmitter features a 128 × 64 backlit LCD for viewing testing modes and results. The handheld receiver includes adjustable sensitivity, status indicators, an illumination function and an audible tracing signal.
Both units use rechargeable 3.7V 1400mAh lithium batteries, with USB-C charging support. Their portable construction is practical for field installation, maintenance visits and network troubleshooting.
Network Technicians: Trace LAN cables and diagnose connection faults. IT Support Teams: Check Ethernet ports and PoE connections. CCTV Installers: Investigate compatible network cabling and PoE infrastructure. Office Network Administrators: Maintain structured cabling and identify switch ports. Cable Installers: Test wiring continuity, cable length and termination quality.
The NF-8209S is designed for practical cable troubleshooting and installation checks rather than certifying Ethernet cabling to formal performance standards.
IT Source offers networking tools, cable testers and computer accessories for customers in Bangladesh. Check the latest NOYAFA NF-8209S price, availability and applicable local warranty terms before ordering. Review the supported cable types, test functions and measurement limits to ensure the device meets your installation requirements.
Buy NOYAFA NF-8209S Network Cable Tester from IT Source Bangladesh
Test Ethernet cables, trace wiring and troubleshoot PoE network connections with one multifunction testing kit.
