| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI Video Capture Card |
| HDMI Input | 1 × HDMI, up to 4K 60Hz |
| HDMI Passthrough | 1 × HDMI, up to 4K 60Hz |
| Maximum Capture Resolution | 4K 60fps (MJPEG) |
| High-Frame-Rate Capture | 2K 144fps / 1080p 240fps (MJPEG) |
| Host Interface | USB-C 3.0 / USB 3.2 Gen 1 |
| USB Speed | Up to 5Gbps |
| Video Formats | MJPEG, YUY2, NV12, I420, RGB24 |
| VRR / HDR | Supported Passthrough |
| Audio Connections | 3.5mm Mic-In, Line-In, Audio Out |
| Audio Sampling | Up to 24-bit / 48kHz |
| RGB Lighting | 7 Modes |
| Housing | Aluminum Alloy |
| Power | 5V/1A |
| Compatible Systems | Windows, macOS, Linux, Supported Android/iOS Devices |
| Product Code | 25173 |
| Warranty Information | |
| Warranty | N/A |
Looking for the UGREEN CM700 (25173) HDMI Capture Card price in Bangladesh? This advanced 4K video capture device is designed for gamers, streamers and content creators who want high-resolution video recording, smooth gameplay monitoring and flexible audio connections.
The UGREEN CM700 supports 4K 60Hz HDMI input, up to 4K 60fps capture in MJPEG format and 4K 60Hz HDMI passthrough. It also supports selected high-frame-rate capture modes, VRR and HDR passthrough, USB 3.0 connectivity and three 3.5mm audio connections.
Whether you are recording PlayStation gameplay, streaming Xbox sessions, creating Nintendo Switch videos or capturing footage from a compatible camera, the UGREEN CM700 offers a practical solution. Check the latest price and availability at IT Source Bangladesh.

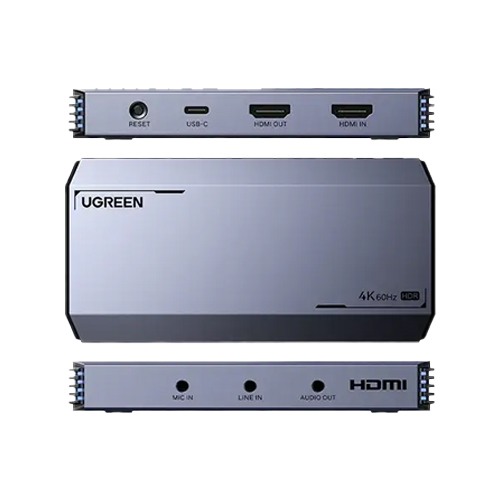

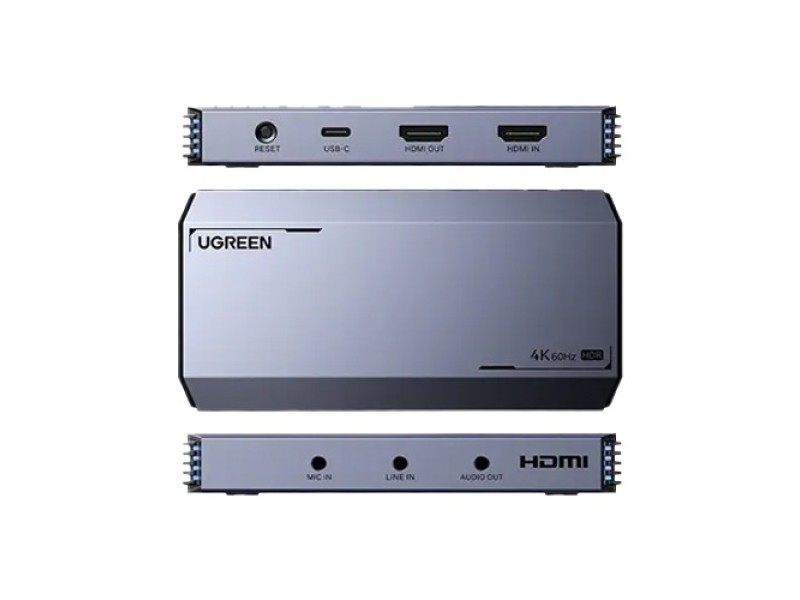

The UGREEN CM700 is an external HDMI video capture card developed for high-resolution gaming, streaming and video production.
It receives an HDMI video signal from a compatible gaming console, camera or computer and sends captured video to a USB host.
The HDMI input supports resolutions up to 3840 x 2160 at 60Hz.
Its USB capture capability reaches 4K 60fps in MJPEG format on supported systems.
For users prioritizing higher frame rates, the capture card also supports selected 2K 144fps and Full HD 240fps MJPEG modes.
A separate HDMI output allows video passthrough to a compatible monitor or television.
VRR and HDR passthrough help preserve supported gaming display features.
The USB-C host connection uses USB 3.0 or USB 3.2 Gen 1 technology with theoretical bandwidth up to 5Gbps.
Three 3.5mm audio connections provide additional flexibility for microphones, line-level audio equipment and headphones.
The aluminum alloy enclosure includes ventilation features for heat dissipation during operation.
Decorative RGB lighting provides seven selectable lighting modes.
For customers searching for a 4K 60fps capture card in Bangladesh, the UGREEN CM700 combines high-resolution recording, high-frame-rate options and versatile audio connectivity.
The UGREEN CM700 supports video capture up to 4K at 60 frames per second in MJPEG format.
This allows supported computers and recording applications to receive detailed Ultra HD video.
It is useful for high-resolution gameplay recordings, camera footage and video demonstrations.
The 4K 60fps capture mode requires a compatible host connection and suitable software settings.
Not every video format supports 4K 60fps, so users should select the appropriate MJPEG capture mode.
The CM700 accepts HDMI video signals up to 4K at 60Hz.
This makes it suitable for compatible modern gaming consoles, cameras and computers.
High-resolution HDMI input allows detailed source video to enter the capture device.
The HDMI source must support the selected resolution and refresh rate.
Suitable HDMI cables are important for maintaining reliable 4K signal transmission.
The UGREEN CM700 features a dedicated HDMI passthrough output supporting up to 4K 60Hz.
Users can connect a television or monitor directly to the capture card.
This allows gameplay to remain visible on the main display while video is recorded on a computer.
The passthrough design avoids the need to play entirely through a software preview window.
Actual display performance depends on the HDMI source, monitor and signal settings.
The CM700 supports selected 2K video capture modes up to 144 frames per second using MJPEG.
This is useful for compatible gaming workflows where smooth motion is important.
Higher frame rates can provide more temporal detail in recorded gameplay.
The connected video source must supply a compatible signal.
Recording software and computer hardware must also support the selected capture mode.
The UGREEN CM700 supports Full HD capture up to 240 frames per second in MJPEG format.
This high-frame-rate capability is useful for recording fast-moving gameplay from compatible sources.
It can provide additional flexibility for supported high-refresh-rate recording workflows.
Actual recording performance depends on USB bandwidth, software and system resources.
Users should verify the available frame rates in their capture application.
The CM700 supports Variable Refresh Rate, commonly called VRR, for compatible passthrough configurations.
VRR allows supported gaming sources and displays to coordinate refresh timing.
This can help reduce visible screen tearing and improve perceived smoothness during gameplay.
Both the video source and monitor must support compatible VRR operation.
VRR passthrough does not mean every recorded video file uses a variable frame rate.
The capture card supports HDR passthrough for compatible HDMI video signals.
HDR can provide improved brightness range and color presentation on supported displays.
This is useful for modern gaming consoles and HDR-capable televisions.
The source, display and HDMI settings must all support the selected HDR format.
HDR passthrough should not be confused with guaranteed HDR recording in every capture application.
The UGREEN CM700 uses a USB-C connection to transfer captured video to a compatible computer or tablet.
The interface supports USB 3.0 or USB 3.2 Gen 1 speeds up to a theoretical 5Gbps.
This bandwidth is important for high-resolution and high-frame-rate video capture.
Users should connect the capture card to a suitable high-speed USB port.
A USB 2.0-only connection may prevent the use of advanced capture modes.
The CM700 supports capture formats including MJPEG, YUY2, NV12, I420 and RGB24.
Different formats provide different resolution, frame-rate and processing options.
MJPEG enables the advertised 4K 60fps, 2K 144fps and 1080p 240fps capture modes.
YUY2 and RGB24 are listed for supported lower-resolution capture configurations.
NV12 supports selected modes up to 2K 60fps.
Available formats depend on the operating system and recording application.
The UGREEN CM700 is designed for responsive video capture and monitoring.
Its HDMI passthrough path is useful for playing games while recording.
Users can monitor gameplay directly on a connected display instead of relying on software preview latency.
Actual delay depends on the video source, monitor, capture settings and host system.
For competitive gaming, the direct HDMI passthrough connection is generally the preferred viewing method.
The CM700 includes a 3.5mm microphone input.
This provides an option for connecting a compatible external microphone during streaming or recording.
It can be useful for adding commentary to gameplay or live presentations.
Microphone behavior and audio routing depend on the connected accessory and recording software.
Users should test their microphone settings before starting a live session.
The capture card provides a separate 3.5mm line-level audio input.
This can be used with compatible external audio sources or mixing equipment.
It offers additional flexibility for content creators managing more than one audio source.
Proper input levels are important for avoiding distortion.
The supported recording application determines how incoming audio is handled.
The UGREEN CM700 also includes a 3.5mm audio output for compatible headphones or speakers.
This provides an additional option for monitoring audio during a recording session.
It is useful in streaming setups where external audio monitoring is required.
Exact monitoring and microphone functions depend on the connected headset and software configuration.
Check connector compatibility before connecting specialized audio equipment.
The CM700 supports digital audio sampling up to 24-bit at 48kHz.
This provides a suitable audio format for many recording and streaming applications.
Compatible HDMI audio can be captured alongside video.
External microphone and line input connections provide further audio flexibility.
Final audio quality depends on the source, recording settings and connected equipment.
The UGREEN CM700 can capture supported HDMI gameplay from PlayStation 5 and PlayStation 4 consoles.

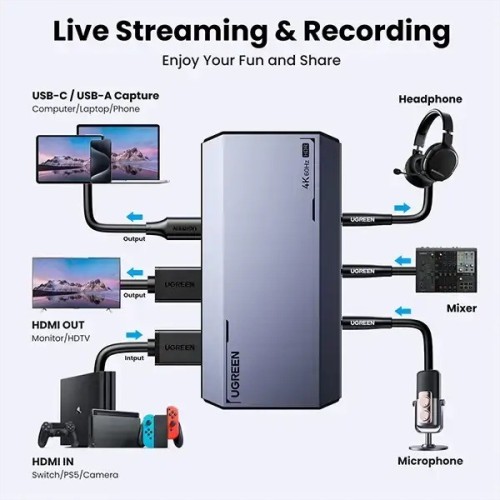

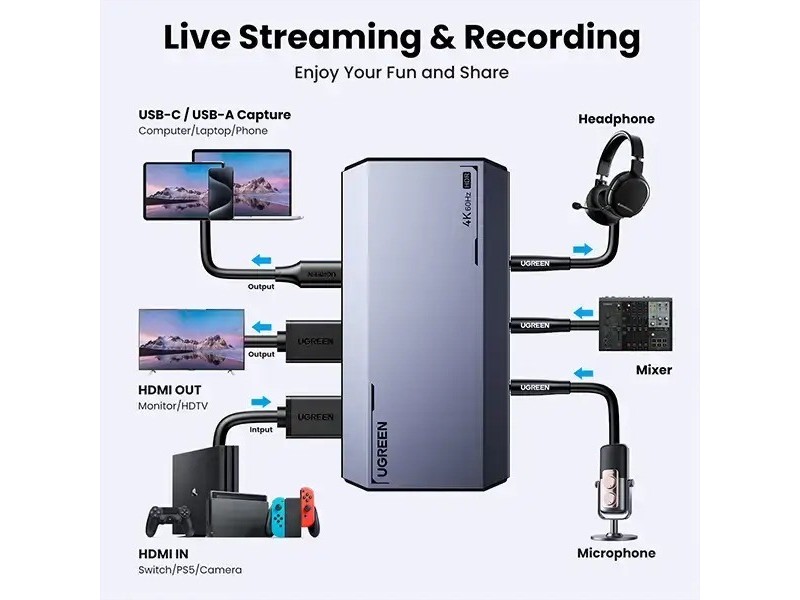

Connect the console to the HDMI input and a monitor to the HDMI passthrough output.
Then connect the capture card to a compatible computer through USB.
Supported recording software can capture the gameplay video.
HDCP-protected content cannot be recorded, and HDCP may need to be disabled for permitted gameplay capture.
The CM700 is suitable for supported HDMI capture from Xbox consoles.
Its high-resolution and high-frame-rate capabilities are useful for gaming content creation.
Users can record gameplay while viewing the video through the HDMI passthrough display.
Available video modes depend on the console and connected monitor.
Copy-protected content may not be captured.
The UGREEN CM700 can receive supported HDMI gameplay from Nintendo Switch systems.
For a standard Nintendo Switch, the console's compatible HDMI-output dock is required.
The capture card can then send the video signal to a computer for recording or streaming.
Its HDMI passthrough output allows gameplay to remain visible on a monitor.
Actual video resolution depends on the console's supported output modes.
The CM700 can also capture compatible HDMI output from digital cameras.
This is useful for live streaming, online teaching, product demonstrations and video production.
Compatible cameras can provide a video signal to the capture card through HDMI.
A clean HDMI output mode is recommended when users want to avoid camera menu overlays.
Camera video output compatibility should be verified before purchasing.
The UGREEN CM700 works with compatible versions of OBS Studio.
Users can add the capture card as a video input and configure supported capture settings.
OBS Studio can combine the captured video with overlays, microphones and other sources.
This makes the device useful for gaming broadcasts, tutorials and camera-based streaming.
Recording quality depends on the selected capture format, encoder and computer performance.
The capture card is also suitable for supported applications such as XSplit, PotPlayer and QuickTime Player.
These programs offer different ways to view, record or process external video.
Available video and audio settings vary by application.
Users should check that their preferred software supports the intended capture resolution and frame rate.
For important sessions, test both video and audio before recording.

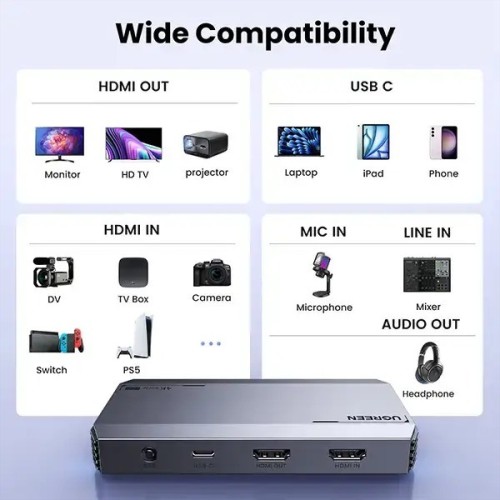

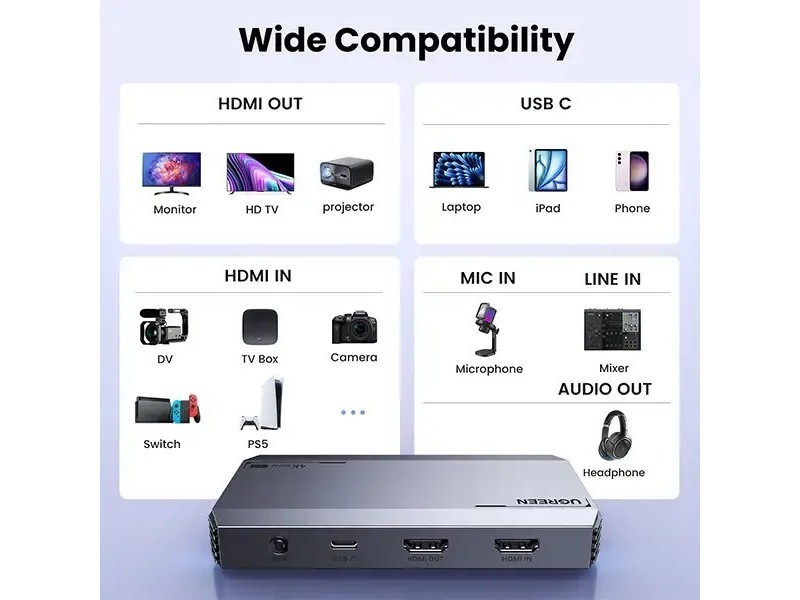

The UGREEN CM700 supports compatible Windows, macOS, Linux and Android systems.
UGREEN also lists support for selected iOS and iPadOS devices with suitable USB capture functionality.
Mobile device compatibility depends on the hardware, operating system and capture application.
Not every host device supports 4K 60fps recording.
Check the receiving device's USB interface and software capabilities before purchasing.
The UGREEN CM700 features a durable aluminum alloy enclosure.
Its metallic construction is suitable for regular desktop and gaming use.
The housing incorporates ventilation features to help manage heat during operation.
Proper ventilation is useful during long recording and streaming sessions.
Avoid covering the capture card or placing it near excessive heat sources.
The CM700 includes decorative RGB lighting with seven lighting modes.
This adds a visual accent to gaming desks and streaming setups.
Users can select a preferred lighting effect according to the device's controls.
The lighting is decorative and does not affect the maximum supported capture resolution.
The overall design is suitable for gaming and content creation environments.
The capture card is designed for convenient plug-and-play setup on supported operating systems.
Users can connect an HDMI source, a passthrough display and the USB host cable.
A compatible recording application can then receive the video signal.
Dedicated proprietary driver installation is generally unnecessary on supported systems.
Operating system permissions and capture software configuration may still be required.
The UGREEN CM700 is specified for 5V/1A operating power through its USB connection.
A suitable USB host connection is required for video transfer and device operation.
The product does not advertise 100W USB-C PD laptop charging.
High-speed USB connectivity is recommended for advanced capture modes.
Use suitable HDMI and USB cables to maintain stable operation.
The CM700 cannot capture HDCP-protected video content.
It is not intended to bypass copy protection on streaming services or protected media devices.
The product also does not support HDMI CEC or 3D functionality according to published specifications.
The selected USB capture resolution must not exceed the incoming HDMI video resolution.
High-frame-rate capture modes require compatible video formats and suitable host performance.
The UGREEN CM700 is ideal for gamers who want to capture high-quality PlayStation, Xbox or Nintendo Switch gameplay.
Live streamers can use its HDMI passthrough, USB video capture and external audio connections for flexible streaming setups.
YouTube creators and video editors can record high-resolution gameplay, camera footage and demonstrations.
Teachers and professionals can capture compatible camera or computer HDMI output for online presentations and training.
Users who need 4K 60fps capture or high-frame-rate Full HD recording can benefit from its MJPEG capture capabilities.

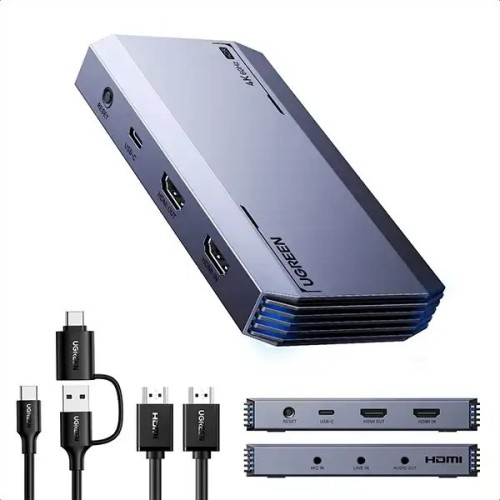

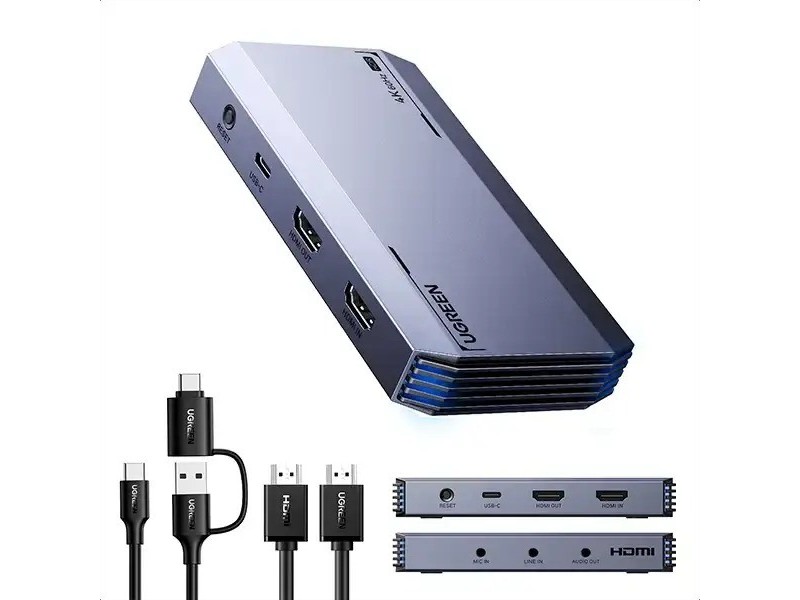

The manufacturer's listed package includes the UGREEN CM700 (25173) HDMI Video Capture Card, a 1.5-meter HDMI cable, a 0.5-meter USB cable, user documentation and warranty information.
Package contents may vary by region or retail batch. Confirm the supplied cables and accessories with IT Source before ordering.
IT Source offers video capture cards, gaming accessories and computer connectivity products for customers in Bangladesh.
Customers can confirm their gaming console, camera, computer and recording software compatibility before selecting a capture card.
Contact IT Source to check current price, stock availability, package contents and applicable local warranty terms.
Yes. The CM700 supports up to 4K 60fps capture in MJPEG format on compatible systems. Other capture formats may have lower resolution and frame-rate limits.
Yes. The CM700 supports up to Full HD 1080p 240fps in MJPEG mode when the HDMI source, USB host and capture software support the required configuration.
Contact IT Source for the latest UGREEN CM700 (25173) HDMI Video Capture Card price and availability in Bangladesh. Confirm the included accessories and local warranty before purchasing.
Check the latest price and availability at IT Source.
Capture stunning 4K 60fps video, enjoy high-frame-rate recording and create professional gaming streams with the UGREEN CM700.
Get specific details about this product from customers who own it.
