UGREEN CM630 (15390) 4K 60Hz HDMI Video Capture Card

UGREEN CM630 (15390) HDMI Capture Card Price in Bangladesh

Top Highlights

• 4K 60Hz HDMI InputReceive compatible Ultra HD video signals in YCbCr 4:2:0 format.
• 1080p 60fps CaptureRecord smooth Full HD gameplay, tutorials and camera footage.
• 4K 60Hz HDMI PassthroughMonitor video on a separate television or display while recording.
• Microphone and Headset PortsConnect compatible audio accessories for recording and monitoring.

About the UGREEN CM630 (15390)

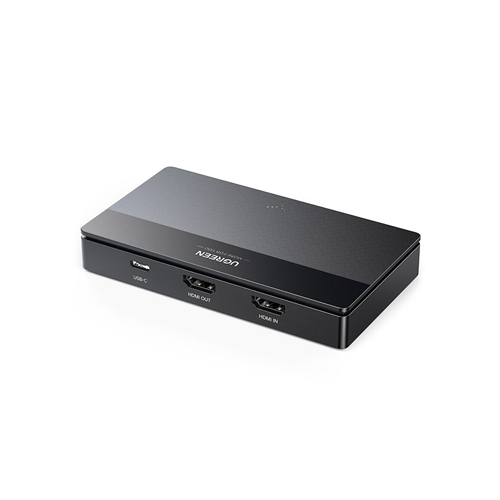

The UGREEN CM630 is an external HDMI video capture card developed for gaming, streaming, recording and online communication.

It connects an HDMI source device to a compatible computer through a USB capture connection.

The HDMI input supports video signals up to 3840 x 2160 at 60Hz using YCbCr 4:2:0 color sampling.

A separate HDMI output provides passthrough at up to the same 4K 60Hz signal mode.

Video recording through USB is supported at up to 1920 x 1080 resolution and 60 frames per second.

The dedicated HDMI passthrough connection is useful for gaming because users can continue viewing the source on an external monitor.

The capture card also includes a microphone input and a headset connection for supported audio accessories.

Compatible recording software can receive the video and audio for streaming or local recording.

The device supports popular applications such as OBS Studio, XSplit, PotPlayer and QuickTime Player.

Its compact design makes it practical for home gaming stations, classrooms, small studios and portable recording setups.

Design & Performance

4K 60Hz HDMI Video Input

The UGREEN CM630 supports incoming HDMI video at up to 4K resolution and 60Hz refresh rate.

This enables compatible gaming consoles, cameras and computers to supply a high-resolution signal.

The manufacturer's specified 4K 60Hz mode uses YCbCr 4:2:0 color sampling.

Both the HDMI source and connected cables must support the selected signal format.

The HDMI input resolution is different from the maximum USB recording resolution.

Full HD 1080p 60fps Video Recording

The CM630 captures video at up to 1920 x 1080 resolution and 60 frames per second.

This is suitable for gameplay recordings, streaming videos, tutorials and presentations.

Full HD 60fps provides smooth motion when recording compatible sources.

Users can configure supported capture modes within their recording application.

The device is not designed to record 4K video through USB.

4K 60Hz HDMI Passthrough

The capture card includes an HDMI OUT connection for video passthrough.

It supports passthrough up to 4K 60Hz in the specified YCbCr 4:2:0 mode.

Users can connect a television or monitor to view their source while recording on a computer.

This is particularly helpful for gaming because the display can receive video independently of the recording software preview.

Actual display compatibility depends on the source device, HDMI cables and monitor.

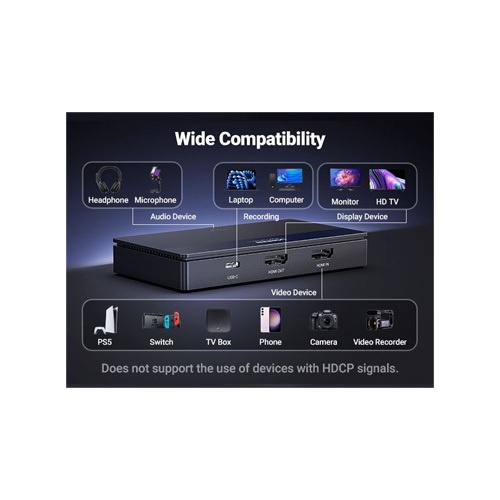

Play While Recording

The HDMI loop-out function lets gamers continue playing on their preferred display.

The gaming console sends video to the capture card's HDMI input.

The HDMI output connects to a television or gaming monitor.

Meanwhile, the USB connection sends the captured video to a compatible computer.

This arrangement is useful for gameplay recording and live broadcasting.

USB 3.0 Type-C Connectivity

The UGREEN CM630 uses a USB-C capture connection for transferring video and audio to a host device.

The USB 3.0 interface offers theoretical bandwidth up to 5Gbps.

This supports the high-speed data connection needed for Full HD video capture.

A suitable USB data cable and compatible computer port are recommended.

Actual capture performance depends on the host hardware and selected software settings.

MJPEG and YUY2 Video Formats

The capture card supports MJPEG and YUY2 video recording formats.

MJPEG is a compressed frame-based format commonly supported by USB capture applications.

YUY2 provides an additional video format option for compatible software.

Available resolutions and frame rates may differ depending on the selected format.

Users should choose a supported mode that matches their recording requirements.

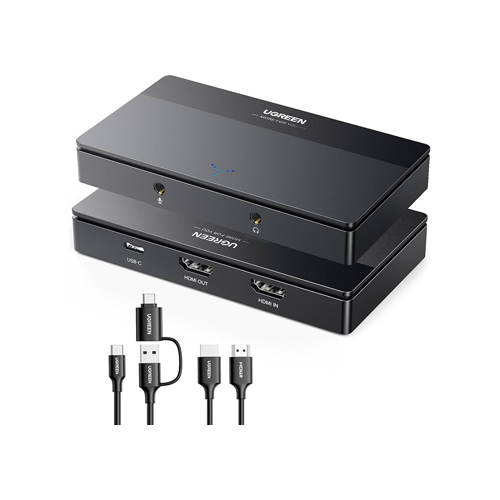

Dedicated 3.5mm Microphone Input

The CM630 features a dedicated 3.5mm microphone input.

This allows a compatible external microphone to be connected for voice commentary.

It is useful for gaming streams, recorded tutorials and online presentations.

The microphone input is intended for compatible 3.5mm microphone accessories.

Recording software may require audio source selection or microphone configuration.

3.5mm Headset Connection

The capture card also includes a 3.5mm headset connection.

According to the manufacturer's manual, this connection supports compatible three-pole and four-pole headsets, including headset microphone functionality.

This provides an additional option for audio monitoring and communication.

Headset compatibility depends on the connector wiring and accessory design.

Users should check audio routing in their recording software before live streaming.

HDMI Audio Capture

The UGREEN CM630 can capture compatible audio embedded in an HDMI signal.

This makes it suitable for recording gameplay sound alongside video.

Audio from supported cameras and computers can also be captured.

The manufacturer's specifications list audio sampling support up to 24-bit at 48kHz.

Audio quality and synchronization depend on the source and recording configuration.

OBS Studio Compatibility

The CM630 supports OBS Studio on compatible host systems.

Users can add the capture card as a video capture source within OBS.

The application can combine the incoming video with overlays, microphones and other sources.

OBS Studio can be used for both local recording and live streaming.

Capture resolution, frame rate and audio settings should be configured before broadcasting.

Other Recording Software Support

UGREEN lists XSplit, PotPlayer and QuickTime Player among compatible applications.

These programs offer different options for viewing and recording captured HDMI video.

Supported features depend on the application and operating system.

Some software may require manual selection of the video format or audio source.

Testing the setup before an important recording is recommended.

PlayStation 5 and PlayStation 4 Capture

The UGREEN CM630 can capture supported gameplay from PlayStation 5 and PlayStation 4 consoles.

Connect the console to HDMI IN, a monitor to HDMI OUT and the capture card to a computer through USB.

Compatible recording software can then receive the gameplay video.

HDCP-protected content cannot be captured.

For permitted gameplay capture, users may need to disable HDCP in the PlayStation system settings.

Xbox Gameplay Recording

The CM630 can receive compatible HDMI video from Xbox gaming consoles.

It is suitable for creating gameplay highlights, tutorials and live streaming content.

The HDMI passthrough output allows players to continue viewing the game on a separate display.

The USB connection sends captured video to the recording computer.

Selected video modes must be compatible with the capture card.

Nintendo Switch Compatibility

The capture card supports compatible HDMI gameplay capture from Nintendo Switch systems.

A Nintendo Switch model with HDMI output through a suitable dock is required.

The console's HDMI signal connects to the capture card's HDMI input.

The HDMI passthrough output can connect to a television or monitor.

The computer records or streams the gameplay using supported capture software.

DSLR and Mirrorless Camera Capture

The UGREEN CM630 can capture HDMI output from compatible DSLR and mirrorless cameras.

This makes it useful for product demonstrations, online classes and live presentations.

A camera with clean HDMI output can provide video without on-screen camera menus.

Users can record or stream the camera signal through compatible software.

Camera output format and resolution should be checked for compatibility.

Windows, macOS and Linux Support

The manufacturer's manual lists compatibility with Windows 8.1, Windows 10, Windows 11, macOS and Linux.

Compatible systems can recognize the device through supported USB video capture functionality.

Recording applications determine which video formats and settings are available.

Operating system permissions may be required for video and audio access.

For best results, use an appropriate USB 3.0 port and updated recording software.

Android Device Compatibility

The UGREEN CM630 is also listed as compatible with Android 5.0 or later.

A compatible Android device must support USB video capture functionality.

A suitable capture application may be required to display or record incoming HDMI video.

Supported resolutions and audio features can vary between Android devices.

Compatibility should be verified before purchasing for mobile use.

Plug-and-Play Operation

The CM630 is designed for convenient installation on supported systems.

Connect an HDMI source to HDMI IN and a compatible computer to the USB-C capture connection.

Optionally connect a television or monitor to HDMI OUT for passthrough.

Open the recording application and select the capture device.

Configure the desired resolution, frame rate and audio settings before recording.

Online Teaching and Video Conferencing

The capture card can help teachers and professionals use compatible HDMI cameras as video sources.

This is useful for online lessons, product presentations and training sessions.

Supported conferencing applications may recognize the USB video capture device.

External microphone connectivity offers additional audio flexibility.

Application compatibility should be checked before important online meetings.

Suitable for Live Streaming

The UGREEN CM630 provides a practical way to send external HDMI video to a streaming computer.

Users can create gaming streams, camera-based broadcasts and demonstration videos.

The HDMI passthrough output allows local viewing during streaming.

Microphone and headset connections provide options for compatible audio accessories.

Stream quality depends on the capture settings, computer encoder and internet connection.

Important HDCP Limitations

The CM630 cannot capture HDCP-protected HDMI signals.

Protected content from Blu-ray players, streaming services and certain media devices may therefore be unavailable for recording.

For supported PlayStation gameplay capture, HDCP may need to be disabled.

The device is not intended to bypass content protection.

Always use an unprotected HDMI signal supported by the capture card.

Important Recording Resolution Difference

The UGREEN CM630 supports 4K 60Hz HDMI input and passthrough using YCbCr 4:2:0.

However, its maximum USB video recording resolution is 1080p at 60fps.

The HDMI input and passthrough capabilities should not be advertised as 4K recording.

Users requiring native 4K video capture should choose a capture card that explicitly supports 4K USB recording.

Actual results depend on the complete recording setup.

Who It's For

The UGREEN CM630 is suitable for gamers who want to record compatible PlayStation, Xbox and Nintendo Switch gameplay in Full HD.

Live streamers can use its HDMI passthrough, microphone input and headset connection to build flexible streaming setups.

YouTube creators can capture footage from compatible gaming consoles, cameras and computers for tutorials and demonstrations.

Teachers and professionals can use it with compatible HDMI cameras for online classes, meetings and presentations.

Users who want 4K HDMI passthrough with smooth 1080p 60fps recording can benefit from its practical feature set.

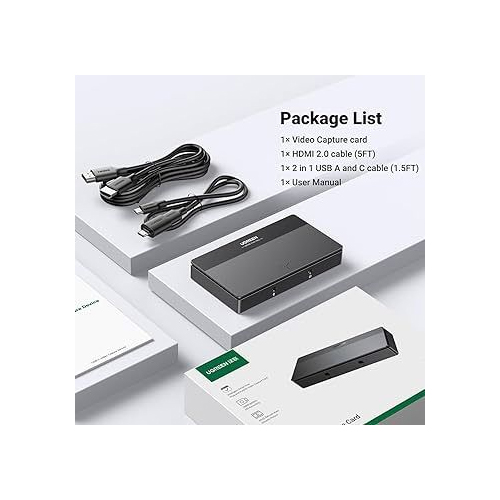

What's in the Box

The manufacturer's CM630 (15390) documentation lists the following package contents:

1 x UGREEN CM630 HDMI Video Capture Card

1 x HDMI Cable

1 x USB-C Cable

1 x User Manual

1 x Warranty Card

Some CM630 retail revisions also list an OBS Studio Quick Start Guide. Exact accessories may vary by product code and retail batch.
