| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI Video Capture Card |
| Capture Chipset | MacroSilicon MS2131 |
| Host Interface | USB 3.0 |
| Host Connection | USB-C (USB 3.0 data) |
| Video Input | HDMI |
| Video Loop-Out | HDMI |
| Maximum HDMI Input | 4K (supported signal-dependent) |
| Maximum HDMI Loop-Out | 4K (supported signal-dependent) |
| Maximum Recording Resolution | 1920 × 1080 |
| Maximum Capture Frame Rate | 60fps |
| Video Capture Formats | YUY2 / MJPEG |
| Audio Support | HDMI Embedded Audio |
| Audio Port | 3.5mm |
| Software Compatibility | OBS Studio and compatible USB capture software |
| Driver Requirement | No dedicated capture driver on supported hosts |
| Material | Aluminum Alloy |
| Color | Grey |
| Dimensions | Approximately 65 × 65 × 19mm |
| Compatible Devices | Supported HDMI cameras, PS4/PS5, Xbox, Nintendo Switch and HDMI video sources |
| Warranty Information | |
| Warranty | N/A |

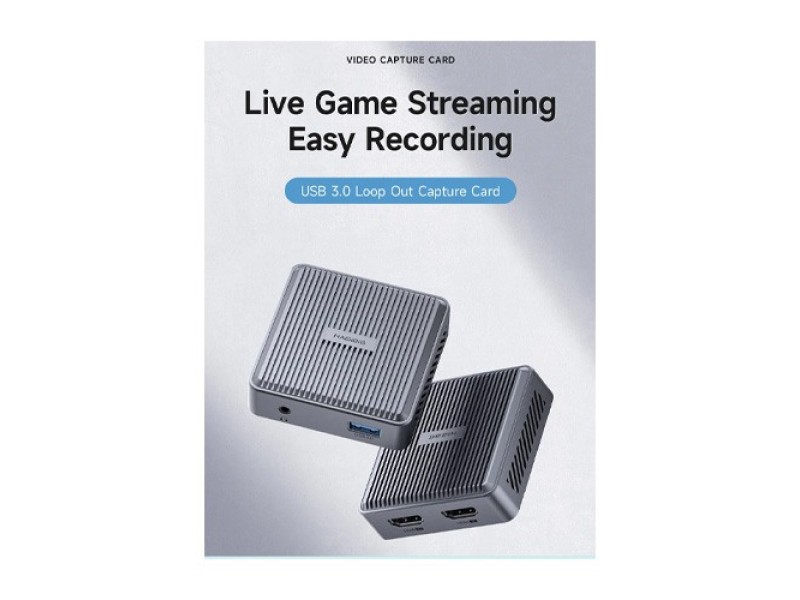

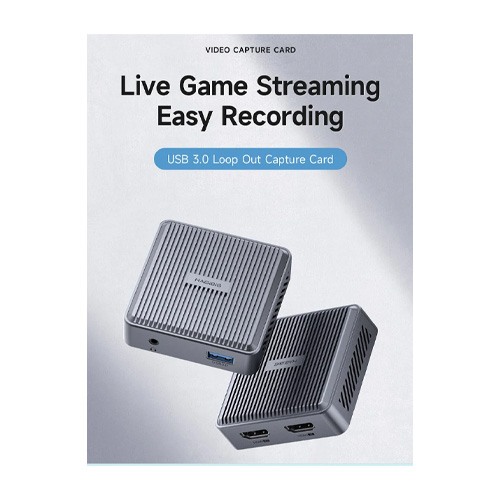

The HAGIBIS MS2131 4K HDMI Video Capture Card is designed for gamers, streamers, content creators and professionals who want to record or broadcast HDMI video through a computer. It accepts video from compatible gaming consoles, cameras and other HDMI sources and transfers the captured signal through USB 3.0.
With 4K HDMI input and loop-out support, the capture card can send the original video signal to a separate monitor while delivering up to 1080p at 60fps to compatible recording software. This arrangement is useful for gaming, live presentations and video production.
The compact aluminum housing, 3.5mm audio connection and plug-and-play USB video support make the MS2131 practical for desktop and portable recording setups. Explore the HAGIBIS MS2131 price in Bangladesh at IT Source.

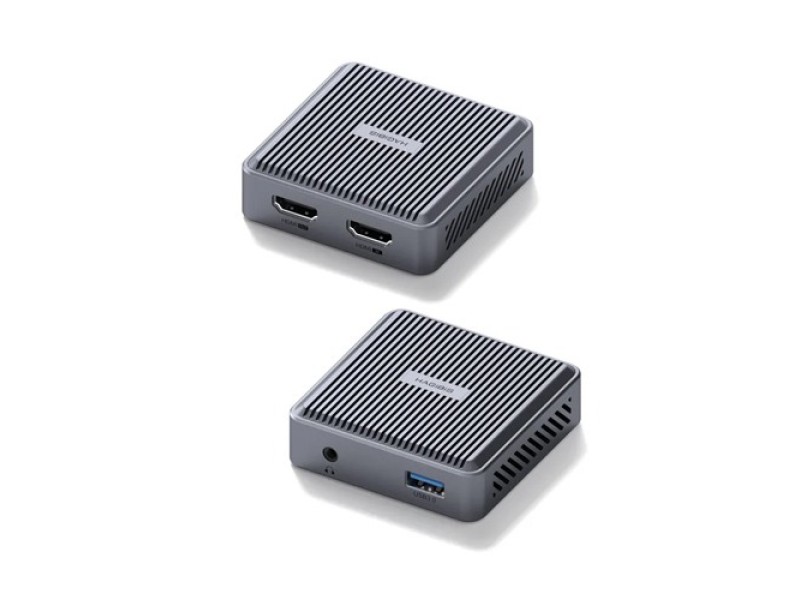

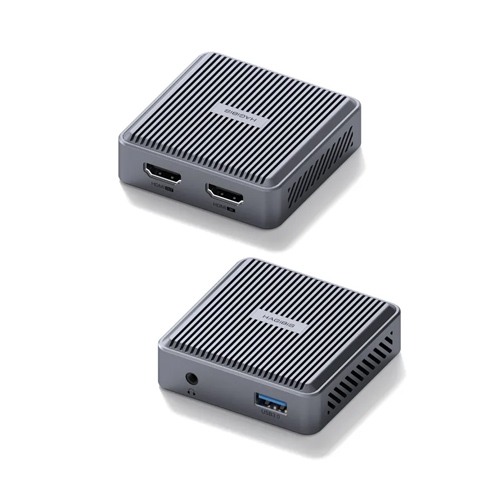

The HAGIBIS MS2131 is a USB 3.0 HDMI capture device for recording and streaming video from compatible consoles, cameras and other HDMI sources. It supports 4K HDMI input and loop-out, while the maximum USB recording resolution is 1920 × 1080 at 60fps. The capture card includes HDMI input and output connections, a USB-C host connection and a 3.5mm audio port. Its aluminum housing helps dissipate heat during operation. The device supports standard USB video capture and works with compatible software such as OBS Studio, making it suitable for gaming streams, tutorials, presentations and camera recording.
The MS2131 accepts a compatible 4K HDMI video signal from a gaming console, camera or other source. This allows users to connect high-resolution equipment without requiring the source to be limited to Full HD output.
The 4K specification refers to HDMI signal input and pass-through, not 4K recording. Supported frame rates depend on the source signal and hardware configuration.
The USB 3.0 MS2131 variant records video at up to 1920 × 1080 resolution and 60 frames per second. This is useful for smoother gameplay recordings, instructional videos and live broadcasts.
Actual recording quality depends on the connected USB port, software settings, video format and computer performance.
The dedicated HDMI output passes the incoming video signal to a compatible external monitor or television while the capture card sends video to a computer through USB.
This allows users to watch the source on a separate display instead of relying entirely on the delayed preview inside recording software.
The MS2131 uses a USB 3.0 host connection to transfer captured video and audio to a compatible computer. The capture card itself has a USB-C connection for the supplied or suitable USB data cable.
For the best supported recording performance, use a compatible USB 3.0 connection rather than a slower USB 2.0 port.
The capture card can be selected as a video capture source in OBS Studio. Users can configure the resolution, frame rate and audio source before recording or broadcasting.
It is suitable for compatible streaming workflows on platforms such as YouTube, Facebook and Twitch through the user's chosen broadcasting software.
The MS2131 can capture video from compatible PlayStation, Xbox and Nintendo Switch HDMI outputs. Users can connect the console to HDMI IN, the display to HDMI OUT and the computer through USB.
Protected HDMI content may not be capturable. On some consoles, HDCP settings must be adjusted for permitted gameplay capture.
Compatible cameras with HDMI output can be connected to the MS2131 for video recording, live demonstrations and online content creation.
The camera must provide a suitable HDMI output signal. For a clean recording, check whether the camera can remove menus and on-screen overlays from its HDMI feed.
The capture card supports capturing audio embedded in the HDMI video signal, allowing video and sound to be transferred together to compatible recording software.
Users should select the correct USB audio source in their recording application and check synchronization before beginning a live stream.
A 3.5mm audio connection provides an additional option for compatible microphone or headset arrangements. Audio behavior depends on the connected equipment and software configuration.
For OBS Studio, the appropriate audio capture and monitoring settings may need to be configured manually.
The MS2131 is designed for plug-and-play use through standard USB video capture support, without requiring a dedicated proprietary capture driver on compatible computers.
Recording or streaming software, such as OBS Studio, is still required to preview, save or broadcast the video signal.
The compact aluminum alloy housing and ventilated design help transfer heat away from the capture electronics during operation.
Place the capture card in a well-ventilated area and avoid covering its cooling openings during long recording sessions.
With a compact body measuring approximately 65 × 65 × 19mm, the MS2131 can fit into a portable streaming or video production setup.
Its small footprint makes it useful for users who record from different computers, cameras or gaming locations.
The HAGIBIS MS2131 is suitable for gamers, YouTube creators, live streamers, teachers, online presenters, camera operators and small production teams. It is particularly useful for users who want to capture HDMI video at up to 1080p 60fps while maintaining an external HDMI display connection.
Choose the HAGIBIS MS2131 if you need USB 3.0 Full HD 60fps recording with 4K HDMI input and loop-out. Check that your video source provides a compatible, unprotected HDMI signal and that your computer has a suitable USB 3.0 connection. If you only need 1080p 30fps recording, the lower-bandwidth MS2109 variant may be sufficient; for true 4K recording, choose a capture card that explicitly supports 4K USB capture.
Confirm the HAGIBIS MS2131 USB 3.0 variant, 1080p 60fps recording specification, HDMI input and loop-out connections, USB-C host port and 3.5mm audio connection. Verify compatibility with your camera or game console and intended recording software. Contact IT Source Bangladesh for current stock, pricing and warranty details.
Explore the HAGIBIS MS2131 4K HDMI Video Capture Card at IT Source Bangladesh for game recording, live streaming and professional video capture. Its USB 3.0 interface, Full HD 60fps recording and HDMI loop-out make it a practical option for compatible recording setups. Contact IT Source to confirm availability, the latest price and warranty information.
No. It accepts and passes through compatible 4K HDMI signals, but its maximum USB recording resolution is 1080p at 60fps.
Yes. It can be selected as a USB video capture device in compatible OBS Studio installations. Configure the video and audio sources before recording or streaming.

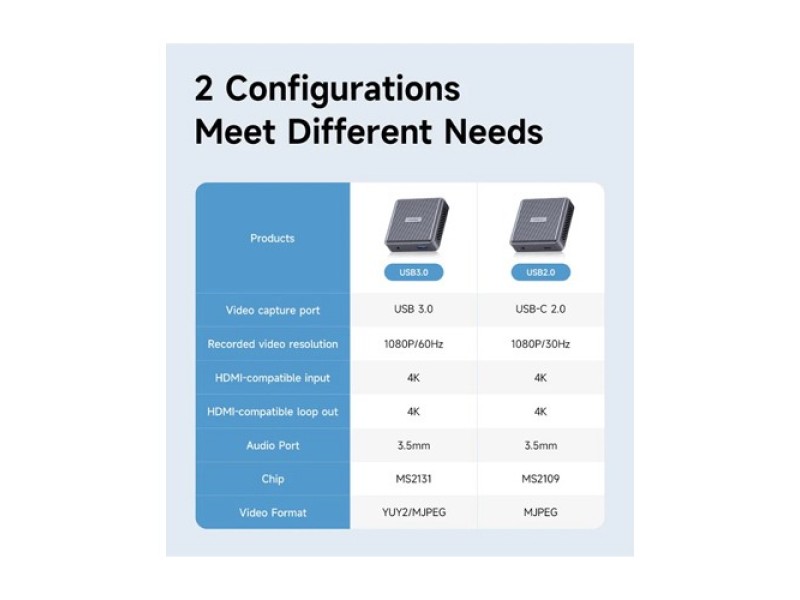

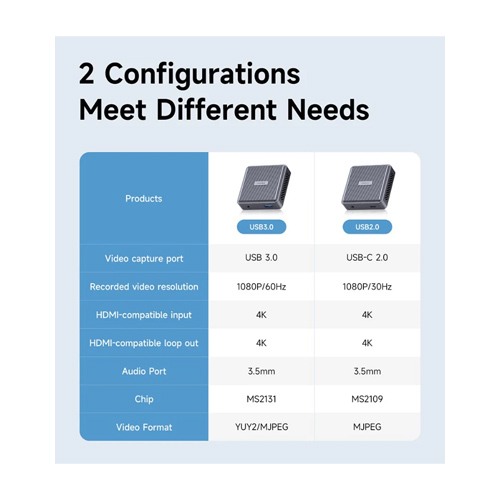

The MS2131 is the USB 3.0 version with recording up to 1080p 60fps. The MS2109 is the USB 2.0 version, typically limited to 1080p 30fps.
