| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | USB 2.0 Video & Audio Capture Card |
| Computer Interface | USB 2.0 Type-A |
| Video Input | 1 × Composite RCA 1 × S-Video |
| Audio Input | 2 × RCA Stereo (Left/Right) |
| Supported Video Standards | PAL, NTSC |
| PAL Capture Resolution | Up to 720 × 576 @ 25fps |
| NTSC Capture Resolution | Up to 720 × 480 @ 30fps |
| Power Source | USB Bus Powered |
| Video Capture | Standard Definition |
| Recording Format | Depends on capture software |
| Operating System | Driver and chipset dependent |
| Dimensions | Approximately 88 × 28 × 18mm (classic version) |
| Warranty Information | |
| Warranty | N/A |
The EasyCAP USB 2.0 Video and Audio Capture Card is designed to transfer analog video and stereo audio from compatible playback devices to a computer. With composite RCA and S-Video inputs, it provides a practical solution for digitizing VHS recordings, older camcorder footage and other standard-definition analog video sources.
Its USB 2.0 connection allows video capture using suitable computer software and drivers. Check the EasyCAP USB Video Capture Card price in Bangladesh at IT Source.
Older videotapes and analog cameras often contain recordings that cannot be transferred directly to modern computers. The EasyCAP USB 2.0 Video and Audio Capture Card provides an interface between compatible analog video equipment and a computer's USB port.
It accepts composite RCA or S-Video signals along with stereo RCA audio. Compatible capture software can then preview and record the incoming footage as a digital file.
This makes EasyCAP useful for preserving family videos, transferring recordings from older camcorders and archiving standard-definition analog footage.
EasyCAP adapters are available with different internal chipsets. Before purchasing, confirm that the supplied version has drivers compatible with your operating system.
The EasyCAP capture adapter provides a convenient connection between compatible analog playback devices and a computer.
Users can connect the video output of a VHS player, camcorder or similar device and record the incoming signal through compatible capture software.
This is useful for preserving older home videos and creating digital copies for personal archiving, subject to applicable copyright and copy-protection restrictions.
The final video quality depends on the original recording, playback equipment, cables, capture hardware and software settings.

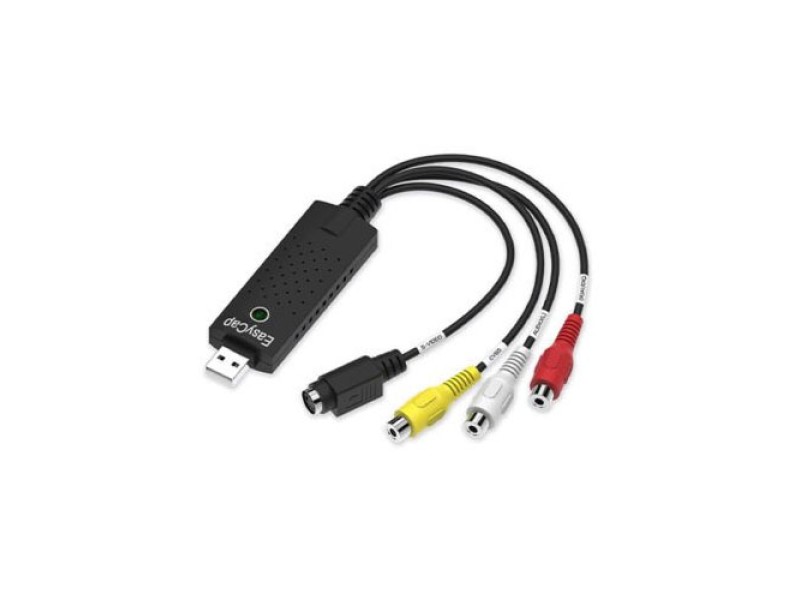

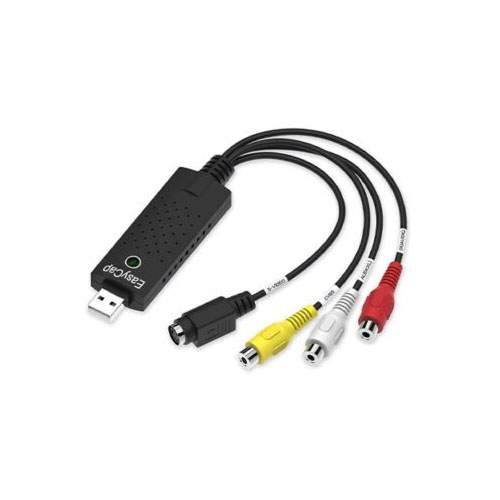

The classic EasyCAP USB 2.0 adapter includes a yellow composite RCA video input and a separate S-Video input.
These connections support common standard-definition analog video sources, allowing users to choose the output available on their playback device.
S-Video separates brightness and color information and may produce a cleaner image than composite video when both the source and capture device support it.
Composite RCA and S-Video are alternative video inputs. Select the correct input in the capture software rather than attempting to capture both video sources simultaneously.
In addition to video capture, the adapter provides red and white RCA audio inputs for left and right stereo channels.
This allows compatible software to record audio alongside the video signal, helping preserve dialogue, music and other sound from older recordings.
For correct connections, match the red and white audio outputs of the playback device to the corresponding capture inputs.
Audio availability and synchronization depend on the actual EasyCAP chipset, installed driver and recording software.
The classic EasyCAP USB 2.0 capture design supports common PAL and NTSC analog video standards.
Documented capture modes include 720 x 576 at 25fps for PAL and 720 x 480 at approximately 30fps for NTSC.
These formats are suitable for transferring standard-definition video from compatible older equipment.
The adapter is not an HDMI capture device and should not be advertised as supporting native 1080p or 4K video input. The appropriate PAL or NTSC setting must match the connected source.
The EasyCAP adapter connects to a computer using a USB 2.0 Type-A interface.
The classic version draws operating power from the computer's USB port, so a separate external power adapter is not normally required.
Its compact dongle-style design makes it convenient to store alongside analog AV cables and other computer accessories.
For reliable capture, use a functioning USB port and avoid unstable connections. Recording performance also depends on the computer and capture software.
EasyCAP operates with compatible video capture software that can recognize the installed USB capture hardware.
Depending on the chipset and operating system, supported software may provide live preview, recording, video input selection and basic image adjustments.
Some EasyCAP variants require dedicated drivers, while others may work with standard USB video drivers. There is no universal driver guaranteed to support every EasyCAP adapter.
Before recording important footage, verify that the computer recognizes both video and audio, select the correct analog video standard and perform a short test recording.
The EasyCAP USB 2.0 Video and Audio Capture Card is suitable for users who want to preserve VHS tapes, digitize older camcorder footage or record compatible analog video sources on a computer.
It is useful for home video archiving, educational projects, basic analog video recording and technicians working with legacy AV equipment.
Users who need HDMI capture, modern gaming capture or high-definition recording should choose a dedicated HDMI capture device instead.
IT Source offers computer accessories and connectivity solutions for customers in Bangladesh. The EasyCAP USB 2.0 Video and Audio Capture Card provides a practical option for buyers working with older analog video equipment.
Contact IT Source to confirm the supplied hardware version, driver compatibility, latest price, availability and applicable warranty before ordering.
Yes. Connect a compatible VHS player using composite RCA or S-Video and stereo audio cables, then use supported computer software to record the incoming video.
No. The classic EasyCAP model uses analog composite RCA and S-Video inputs. It does not provide an HDMI input.
Compatibility depends on the exact hardware chipset and available drivers. Support for a particular Windows version should be verified before purchase.
