| Product Specifications | |
|---|---|
| Tech Specs | |
| Part Number | 70440 |
| Product Type | VGA USB KVM Switch |
| KVM Configuration | 8 Computers to 1 Monitor |
| VGA Inputs | 8 × VGA Female |
| USB Host Inputs | 8 × USB 2.0 Type-B Female |
| VGA Output | 1 × VGA Female |
| Shared USB Ports | 2 × USB 2.0 Type-A + 2 × USB 1.1 Type-A |
| Display Resolution | 1920 × 1080 @ 60Hz 1920 × 1440 @ 60Hz |
| USB 2.0 Speed | Up to 480Mbps |
| Switching Methods | Physical Button / Keyboard Hotkey |
| Power Input | DC 5V/1A |
| Dimensions | 440 × 130 × 42mm |
| Compatible Systems | Windows, Linux, macOS |
| Warranty Information | |
| Warranty | N/A |
The UGREEN 70440 VGA KVM 8-in-1 USB Switch allows eight computers to share one VGA monitor, keyboard, mouse and compatible USB accessories. It combines eight VGA computer inputs, eight USB-B host ports and four shared USB-A connections in one centralized switching device.
With Full HD 1080p@60Hz VGA support and convenient computer selection, it is particularly useful for IT maintenance benches, computer laboratories and business environments using VGA-equipped systems. Explore the UGREEN 70440 VGA KVM Switch price in Bangladesh at IT Source.
Managing several computers does not always require a separate monitor and keyboard for every system. The UGREEN 70440 brings eight VGA-based computers into one shared control station, allowing an operator to select and manage each connected machine when needed.

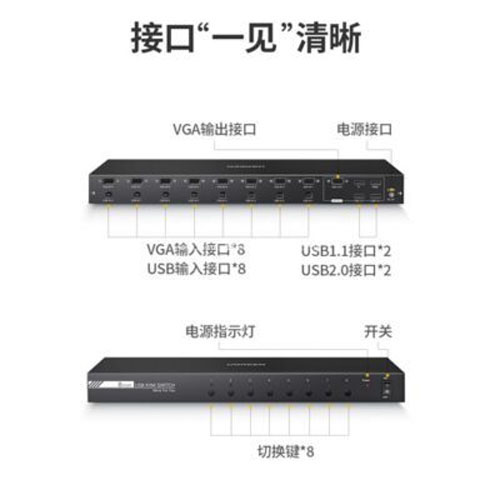

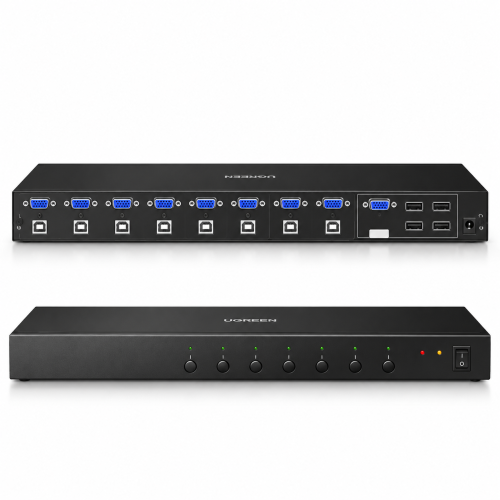

Each computer connects through a VGA video input and a USB-B host port. One VGA output connects to the shared monitor, while four USB-A peripheral ports accommodate a keyboard, mouse and other compatible devices.
This arrangement is useful for technicians who configure multiple PCs, administrators maintaining office systems and organizations continuing to use VGA-equipped computer hardware.
The switch is designed to display and control one selected computer at a time. It does not combine eight computer screens into a single multiview display.
The UGREEN 70440 features eight VGA input connections and eight USB 2.0 Type-B host ports, allowing up to eight compatible computers to remain connected to one KVM device.
Instead of moving a keyboard, mouse and VGA cable between different machines, users can select the system they need and operate it through the shared peripherals. This is particularly practical when installing operating systems, checking hardware or managing computers that require occasional local access.
The selected computer supplies the video signal to the shared monitor and receives control of the connected USB devices. The other computers remain connected but are not displayed simultaneously.
The switch supports VGA video output at 1920 × 1080 resolution and 60Hz refresh rate, making it suitable for desktop applications, system configuration screens, spreadsheets and other everyday computer tasks.
A product-specific supplier also lists support for 1920 × 1440 at 60Hz. Buyers who require this higher display mode should confirm compatibility with their particular monitor and the supplied unit.
VGA is an analogue video interface, so picture quality depends on the computer output, monitor and cable condition. The UGREEN 70440 does not provide a native HDMI or DisplayPort output.
The UGREEN 70440 includes four shared USB-A ports: two USB 2.0 ports and two USB 1.1 ports. The USB 1.1 connections are suitable for compatible keyboards and mice, while the USB 2.0 ports can accommodate additional peripherals such as flash drives and supported printers.
USB 2.0 supports a theoretical maximum signaling speed of 480Mbps, while USB 1.1 supports up to 12Mbps. These interfaces are appropriate for common control peripherals and basic data access rather than high-speed USB 3.0 storage performance.
Connected accessories are assigned to the currently selected computer, helping reduce repeated cable changes during system maintenance and office work.
The UGREEN 70440 supports computer selection through the physical switching controls and compatible keyboard hotkeys. These methods let users move between connected PCs while leaving the shared monitor and USB accessories connected to the KVM.
Physical switching is useful when the unit is within reach, while keyboard hotkeys offer convenient control from the operator's working position.
Hotkey functionality depends on the keyboard connection and the supported key sequence. Users should follow the product's operating instructions for the exact switching commands.
The UGREEN 70440 is listed with a DC 5V/1A external power adapter, providing dedicated power for its switching circuitry and supported peripheral connections.
Product-specific supplier documentation lists VGA cable distances of up to 20 meters for both computer input and monitor output connections when suitable 28AWG VGA cables are used. Actual performance depends on cable quality, signal conditions and display resolution.
For installations involving long cable runs, high-quality shielded VGA cables and careful cable routing can help maintain a reliable image. The KVM is not intended to supply high-power charging through its USB ports.
Measuring approximately 440 × 130 × 42mm, the UGREEN 70440 provides a wide desktop-style enclosure that accommodates the connections needed for eight computers.
Its centralized layout is useful for computer repair counters, equipment rooms, training facilities and other environments where multiple VGA-based systems need to be controlled individually.
The switch is listed as compatible with Windows, Linux and macOS computers equipped with suitable VGA video output and USB host connections. Standard KVM operation does not require a network connection or remote desktop application.
The UGREEN 70440 is particularly suitable for IT technicians maintaining multiple desktop computers, computer laboratories using VGA-equipped systems and businesses that need centralized local access to several PCs.
It is also useful for hardware testing and system configuration tasks where only one computer needs to be viewed and controlled at a time. Buyers using HDMI-only computers should check whether appropriate active video conversion equipment is required.
IT Source offers computer accessories and KVM switching solutions for customers in Bangladesh. The UGREEN 70440 is a practical option for organizations and professionals looking to manage multiple VGA computers without maintaining separate monitors and keyboards for every system.
Contact IT Source to confirm current pricing, availability, warranty coverage and compatibility before ordering.
It can connect up to eight compatible computers to one VGA monitor and shared USB peripherals. Only the selected computer is displayed and controlled at a time.
Yes. Product specifications list support for 1920 × 1080 at 60Hz through the VGA interface. Display quality depends on the connected equipment and cables.
It provides a native VGA output rather than HDMI. An HDMI-only monitor would require suitable active VGA-to-HDMI conversion equipment, and compatibility should be checked before purchase.
