| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 14-in-1 USB-C Docking Station |
| Number of Ports | 14 |
| Host Interface | USB-C |
| HDMI Outputs | 2 × HDMI, up to 4K@60Hz |
| DisplayPort Output | 1 × DP, up to 8K@30Hz / 4K@120Hz |
| USB-C Data Ports | 2 × USB-C 3.2 Gen 2, 10Gbps |
| USB-A Data Ports | 1 × 10Gbps + 2 × 5Gbps |
| Ethernet | Gigabit RJ45, 10/100/1000Mbps |
| Card Reader | SD + TF/microSD (Up to 170MB/s) |
| Audio | 3.5mm Headset/Microphone |
| Laptop Charging | Up to 100W PD |
| Peripheral Charging | USB-C PD Output, up to 27W |
| Power Input | DC 24V |
| Power Adapter | 140W |
| Host Cable Length | 1 Meter |
| Special Features | Triple Display Support: Yes Windows MST: Supported macOS Multi-Display: External display mirroring limitation Compatible Host: Full-featured USB-C with DP Alt Mode, compatible Thunderbolt/USB4 Color: Black |
| Warranty Information | |
| Warranty | 06 Month |

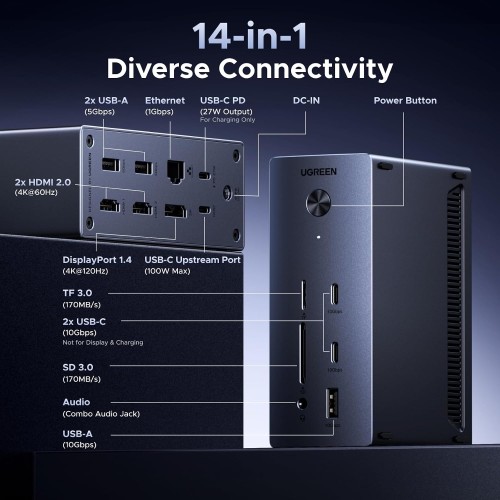

The UGREEN Revodok Pro CM843 (55892) is a 14-in-1 USB-C docking station built for laptop users who need multiple displays, faster peripheral connections and organized desktop connectivity. It features two HDMI ports, one DisplayPort, five USB data ports, Gigabit Ethernet, SD/TF card readers, audio and dedicated charging connections.
With up to 10Gbps USB data transfer, 100W laptop charging and a 140W external power supply, the CM843 supports productive workstation setups through a compatible full-featured USB-C connection.
The UGREEN Revodok Pro CM843 (55892) combines video connectivity, USB expansion, wired networking, card reading and power delivery in a desktop docking station. It supports up to three external displays on compatible Windows systems, while USB-C and USB-A ports connect storage drives and other peripherals. A dedicated 140W power supply supports the dock's operation and laptop charging, making it useful for professional desks and multi-device workspaces.
The CM843 provides two HDMI outputs supporting up to 4K at 60Hz each and one DisplayPort output supporting up to 8K at 30Hz or 4K at 120Hz in supported single-display configurations. These options help connect high-resolution monitors for productivity, editing and presentation work.
Compatible Windows computers can use MST to extend content across multiple external monitors. macOS systems have an important limitation: connected external displays mirror one another rather than functioning as independently extended screens through this dock. Maximum resolution depends on the host USB-C video capabilities, connected monitors, cables and display configuration.
Two USB-C 3.2 Gen 2 data ports and one USB-A 3.2 Gen 2 port support transfer rates up to 10Gbps. These are useful for compatible external SSDs, USB storage devices and other high-speed peripherals. Two additional USB-A 3.2 Gen 1 ports provide up to 5Gbps connectivity for everyday accessories.
The USB-C data ports are intended for data transfer and do not provide video output. Actual file transfer performance depends on the connected storage device, host computer and shared connection bandwidth.

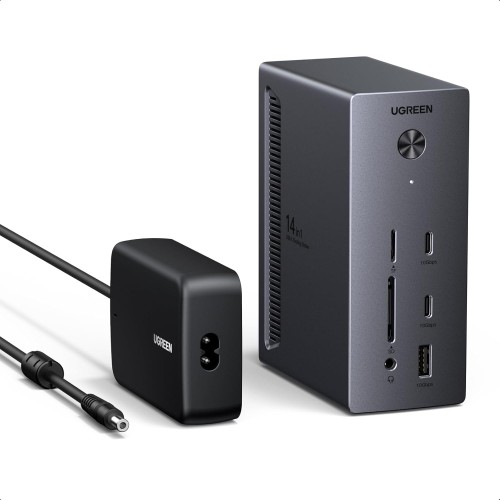

The docking station supports up to 100W power delivery to a compatible host laptop and includes a dedicated USB-C PD output rated up to 27W for charging supported accessories. Its external DC 24V power connection uses a 140W power supply to operate the dock.
The 100W laptop charging and 27W peripheral charging functions share a combined power budget. Charging both simultaneously may reduce the maximum available power at either connection. The 27W USB-C charging port does not transmit data or video.
A built-in RJ45 Ethernet port supports 10/100/1000Mbps wired networking for compatible computers. This provides a practical alternative to wireless networking when a wired connection is preferred for office tasks, file access and video meetings.
The 3.5mm audio connection supports compatible headsets and microphones, bringing essential audio connectivity into the same desktop docking setup.
Integrated SD and TF/microSD card slots provide convenient access to supported memory cards without requiring a separate USB card reader. UGREEN specifies transfer speeds up to 170MB/s under compatible conditions.
The card readers are useful for transferring photos, documents and media from compatible cameras and storage cards. Actual speed depends on card performance, computer capabilities and operating conditions.
The CM843 is designed for a permanent or semi-permanent desktop setup, connecting multiple accessories through a single compatible laptop USB-C connection. Its 1-meter host cable offers practical reach, while the external power supply supports operation of the dock and connected peripherals.
For video output, the laptop's USB-C port must support DisplayPort Alt Mode or a compatible Thunderbolt/USB4 video connection. Full functionality also depends on supported data transfer and USB Power Delivery capabilities. Check the host computer's specifications before connecting multiple displays or relying on laptop charging.
Office Professionals: Connect monitors, Ethernet and USB peripherals to a laptop. Remote Workers: Build an organized desktop workstation. Designers and Editors: Use high-resolution external displays and fast storage connections. IT Professionals: Connect networking, audio and multiple accessories. Photographers: Transfer files through SD and TF card readers. Windows Multitaskers: Extend their workspace across supported external monitors.
IT Source offers UGREEN docking stations and computer connectivity accessories for customers in Bangladesh. Check the latest CM843 (55892) price, availability and applicable warranty before ordering. Confirm your laptop's USB-C video output, charging capabilities and operating system display limitations to select the right docking station.
Buy UGREEN Revodok Pro CM843 (55892) from IT Source Bangladesh
Expand your compatible laptop with triple video outputs, 10Gbps USB connectivity, Gigabit Ethernet and powered desktop docking.
