| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | M.2 NVMe SSD Enclosure |
| Display | Built-in E-Ink Screen |
| SSD Interface | M.2 NVMe PCIe |
| Supported SSD Sizes | 2230 / 2242 / 2260 / 2280 |
| SSD Key Compatibility | M-Key / Compatible B+M-Key NVMe |
| Maximum SSD Capacity | Up to 4TB |
| Host Interface | USB-C |
| USB Standard | USB 3.2 Gen 2 |
| Maximum Interface Speed | 10Gbps |
| Controller | Realtek RTL9210CN |
| Power-Loss Protection | Built-in Supercapacitor |
| Backup Power Duration | Approximately 10 Seconds, Under Specified Conditions |
| Housing | Aluminum Alloy |
| M.2 SATA SSD Support | No |
| SSD Included | No |
| Warranty Information | |
| Warranty | N/A |
Looking for the HAGIBIS DL10 E-Ink Display SSD Enclosure price in Bangladesh? This innovative external SSD enclosure combines high-speed NVMe storage with a built-in digital information screen and supercapacitor power-loss protection.
The HAGIBIS DL10 supports USB 3.2 Gen 2 transfer speeds up to 10Gbps, M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 sizes, and storage capacities up to 4TB. Its E-Ink display makes it easy to identify the installed drive and view important SSD information without opening a separate monitoring application.
Designed for content creators, IT professionals, photographers and everyday computer users, the DL10 offers a practical combination of portability, performance and storage monitoring. Explore the latest HAGIBIS DL10 price and availability at IT Source Bangladesh.
The HAGIBIS DL10 is an advanced M.2 NVMe SSD enclosure designed for users who want more than a conventional external storage case.
It combines a fast USB-C interface with an integrated E-Ink screen that displays useful drive information.
The display helps users identify their installed SSD and monitor supported information such as drive capacity, health and temperature.
Unlike traditional LCD screens, E-Ink technology can retain the last displayed information without continuous power.

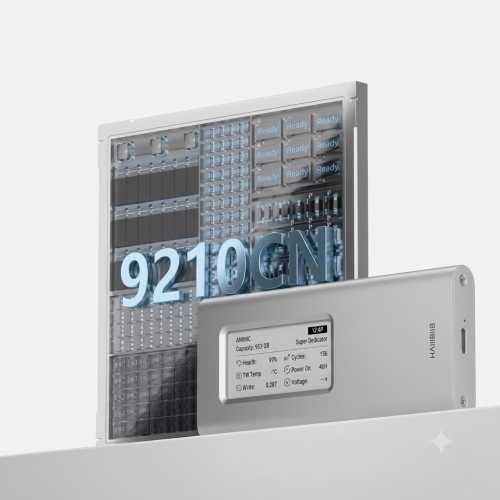

The DL10 uses a Realtek RTL9210CN controller to connect compatible NVMe storage to USB devices.
Its USB 3.2 Gen 2 interface supports theoretical transfer speeds up to 10Gbps.
The enclosure accepts four common M.2 SSD lengths, making it suitable for a range of NVMe storage upgrades.
Its built-in supercapacitor provides an additional layer of protection during unexpected power interruptions.
The aluminum alloy enclosure helps dissipate heat generated during large file transfers.
These features make the DL10 suitable for portable backups, large media libraries, creative projects and professional data management.

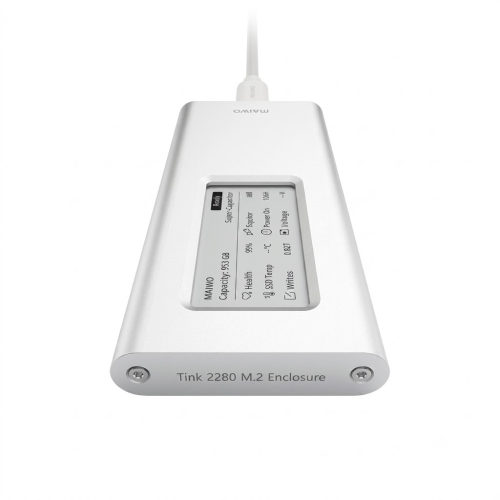

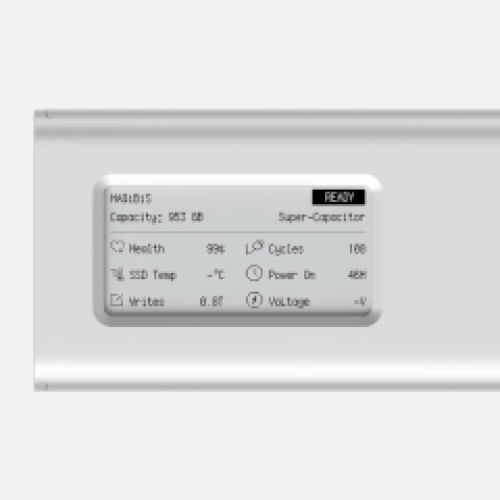

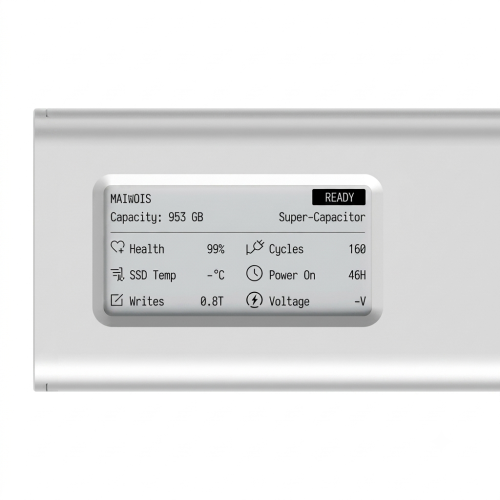

The HAGIBIS DL10 features a built-in E-Ink information screen on its exterior.
This screen allows users to view supported SSD information directly on the enclosure.
It is particularly useful when managing multiple portable drives because users can identify a drive without relying only on external labels.
The display can show information such as drive name, capacity, health and temperature.
Available readings depend on the installed SSD and supported monitoring information.
The DL10 provides convenient access to supported SSD health information.
Users can check the drive's reported health percentage and temperature directly on the enclosure.
These readings can help users understand the operating condition of their portable storage.
Temperature information is especially useful during large file transfers or sustained workloads.
The display is an informational tool and does not replace proper backups or professional drive diagnostics.
The E-Ink display can show the installed SSD's capacity and supported usage information.
This helps users identify storage devices when several external SSDs are used.
Additional supported information includes total written data and power-on statistics.
These details are useful for organizing backup drives, project storage and portable work files.
Actual reported values depend on the SSD controller and available monitoring data.
One of the DL10's distinctive features is the E-Ink screen's ability to retain its last displayed content after power is removed.
This makes it easier to recognize an unplugged external SSD.
Users do not need to connect the enclosure simply to see the previously displayed information.
However, the displayed values do not update while the enclosure is disconnected.
Fresh drive statistics are obtained during supported powered operation.
The HAGIBIS DL10 supports customization of the displayed SSD name.
This is helpful for users who maintain several portable storage drives.
For example, separate drives can be identified for project files, video editing, work documents or backups.
Published product information describes an English-language naming limit of up to ten characters.
Users should follow the supplied instructions for supported naming methods.
The DL10 uses USB 3.2 Gen 2 technology with a theoretical interface bandwidth of 10Gbps.
This provides a fast connection for compatible NVMe SSDs and computers.
It is suitable for transferring large videos, photos, project files and backup archives.
Actual transfer speeds depend on the SSD, USB port, cable, file sizes and operating conditions.
For best performance, connect the enclosure to a compatible 10Gbps USB port.
The HAGIBIS DL10 is designed for external NVMe storage performance approaching the practical limits of a 10Gbps USB interface.
Compatible configurations may deliver sequential transfer speeds around 1,000MB/s.
This can reduce the time needed to transfer large files compared with slower USB storage devices.
Performance can decrease during sustained transfers because of SSD cache limits, temperature and host conditions.
Theoretical interface bandwidth should not be confused with guaranteed real-world file transfer speed.
The enclosure uses the Realtek RTL9210CN USB-to-NVMe bridge controller.
This controller manages communication between the installed NVMe SSD and the USB host.
It is part of the DL10's high-speed storage architecture.
The controller also works alongside the enclosure's power-management features.
Actual functionality depends on firmware, SSD compatibility and the connected system.
The HAGIBIS DL10 includes a built-in supercapacitor designed to help protect storage operations during unexpected power interruption.
When sufficiently charged, the supercapacitor can provide approximately ten seconds of additional power under specified conditions.
This allows the controller additional time to perform supported shutdown-related operations.
The feature is intended to reduce certain risks associated with sudden disconnection or power loss.
It does not guarantee that all unsaved files or interrupted transfers will be preserved.
Sudden power loss can interrupt storage controller operations and potentially affect data integrity.
The DL10's supercapacitor provides a short power reserve for supported controller and SSD operations.
This can help with internal metadata updates and cache-related shutdown processes.
The protection is most effective under the conditions specified by the manufacturer.
Users should still safely eject the drive and maintain separate backups of important files.
The HAGIBIS DL10 supports M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 form factors.
These sizes refer to the width and length of the SSD module.
The compatibility range makes the enclosure useful for repurposing suitable internal NVMe SSDs.
Users can install a compatible drive according to the manufacturer's instructions.
The enclosure is designed for NVMe SSDs rather than M.2 SATA-only drives.
The DL10 supports compatible M.2 NVMe SSD capacities up to 4TB according to published specifications.
This provides substantial storage space for photos, videos, backups and work documents.
Users can choose an SSD capacity according to their requirements and budget.
Higher-capacity SSDs may require careful attention to physical compatibility and thermal performance.
The NVMe SSD is purchased separately from the enclosure.
The HAGIBIS DL10 supports compatible M-Key NVMe SSDs and certain B+M-Key NVMe SSDs.
The key shape alone does not determine protocol compatibility.
Some B+M-Key drives use SATA rather than NVMe and are not suitable for an NVMe-only enclosure.
Before installation, verify that the selected SSD uses the NVMe protocol.
This helps prevent purchasing an incompatible storage drive.

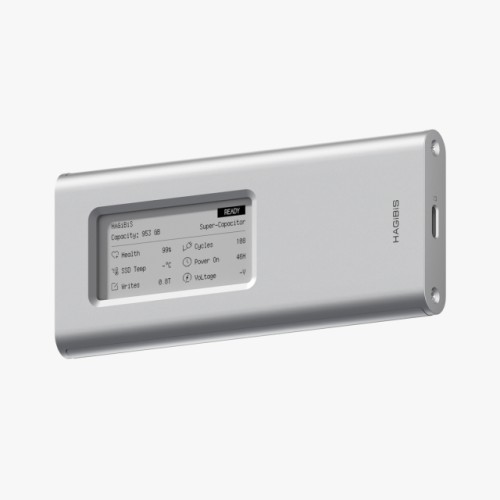

The DL10 features an aluminum alloy exterior designed for portability and heat dissipation.
The metal body provides a durable structure for regular use.
It helps transfer heat away from the installed NVMe SSD during operation.
This can contribute to more stable performance during sustained file transfers.
Actual operating temperature depends on the installed SSD and surrounding environment.
High-performance NVMe SSDs can generate heat when transferring large amounts of data.
The DL10's aluminum housing helps manage heat through passive dissipation.
Effective thermal contact is important for maintaining reliable operation.
Users should follow the installation instructions for any included thermal interface materials.
For demanding workloads, allow adequate ventilation around the enclosure.
The HAGIBIS DL10 can turn a compatible internal NVMe SSD into a portable backup drive.
This is useful for storing documents, photos, project files and other important data.
Its USB-C interface makes it convenient to connect to supported computers.
The E-Ink screen can help identify different backup drives.
For important data, maintain multiple independent backups rather than relying on one external SSD.
Content creators often work with large video files, photos and project assets.
The DL10 provides a fast portable storage option for moving these files between compatible workstations.
Its 10Gbps interface is useful for supported media workflows.
The E-Ink display can help identify project drives and check supported drive information.
Actual editing performance depends on the installed SSD, video format and host computer.
IT professionals can use the DL10 for compatible NVMe drive testing, portable storage and data transfer tasks.
The display provides convenient access to supported drive health and usage information.
Multiple SSD form-factor support makes it useful for working with different NVMe modules.
The enclosure can also help repurpose suitable SSDs removed from upgraded computers.
It is not a substitute for dedicated diagnostic equipment or professional data recovery tools.
The DL10 can operate as an external USB storage device with compatible Windows, macOS and Linux systems.
The installed SSD may need partitioning and formatting before first use.
Users should choose a file system suitable for their intended operating systems.
For example, exFAT is commonly used for file sharing between Windows and macOS.
Formatting a drive erases existing data, so back up important files before making changes.
The DL10 can also be used with supported USB-C mobile devices that recognize external storage.
This may include compatible Android phones, tablets and selected USB-C iPads.
The host must support USB storage access and provide sufficient power.
Some mobile devices may require a particular file system for external storage.
Compatibility and transfer speeds vary by device.
The HAGIBIS DL10 receives normal operating power through its USB-C connection.
A separate external power adapter is generally not required with a compatible host.
The integrated supercapacitor charges during powered operation.
The supercapacitor is intended for brief power-loss protection, not for running the enclosure as a battery-powered wireless drive.
Use a suitable USB data cable and host connection for reliable performance.

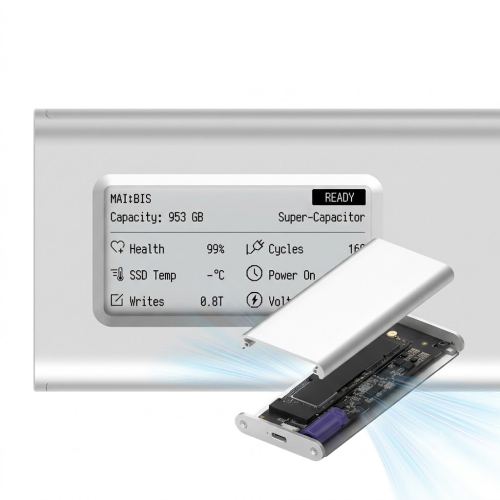

Users can install a compatible M.2 NVMe SSD inside the enclosure according to the supplied instructions.
Before installation, disconnect the enclosure from the computer.
Position the SSD correctly and secure it using the appropriate mounting arrangement.
Reassemble the enclosure and connect it to a compatible USB host.
If the SSD is new and unformatted, initialize and format it using the operating system's storage management tools.
The 10Gbps rating describes the maximum theoretical USB interface speed, not a guaranteed sustained file transfer rate.
The DL10 supports NVMe SSDs; M.2 SATA-only SSDs should not be advertised as compatible.
The supercapacitor offers limited backup power under specified conditions and cannot replace safe ejection or regular backups.
E-Ink information retention does not mean the display continues actively monitoring the SSD while disconnected.
For best results, use a compatible NVMe SSD, suitable USB cable and adequately powered host device.
The HAGIBIS DL10 is suitable for content creators who need fast portable storage for video projects, photos and large media files.
IT professionals can use it to access compatible NVMe SSDs and monitor supported drive information.
Office users can turn a spare NVMe SSD into external storage for documents, presentations and backups.
Photographers can use it for portable project storage and file transfers between supported devices.
Users managing several external drives can benefit from the E-Ink identification screen and customizable drive name.
1 x HAGIBIS DL10 E-Ink Display M.2 NVMe SSD Enclosure
Retail listings also identify a USB-C data cable. Confirm the exact cable and any thermal pads, mounting accessories or documentation against the supplied package before publishing a complete box contents list.
Note: The M.2 NVMe SSD is not included and must be purchased separately.
IT Source offers storage accessories, SSD enclosures and computer connectivity products for customers in Bangladesh.
Customers can confirm supported SSD sizes, NVMe compatibility, storage capacity and USB requirements before purchasing.
Contact IT Source for the latest HAGIBIS DL10 price, stock availability and applicable warranty terms.
No. The DL10 is designed for compatible M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 sizes. SATA-only M.2 SSDs are not supported.
The display can show supported SSD information including drive name, capacity, health status, temperature, written data, power-on time and other usage statistics. The last displayed information remains visible after disconnection.
