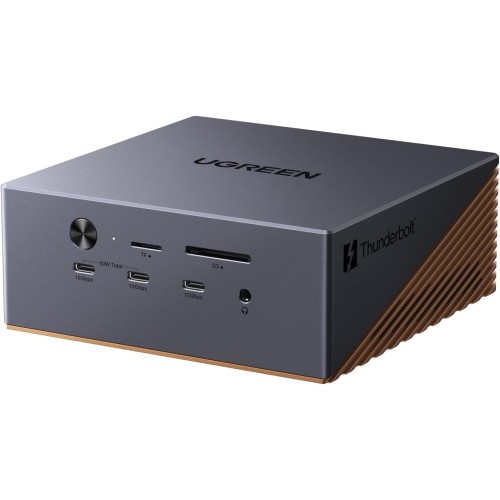

UGREEN Revodok Maxidok (85590) 17-in-1 Thunderbolt 5 Docking Station

UGREEN Revodok Maxidok (85590) Thunderbolt 5 Docking Station Price in Bangladesh

Top Highlights

• Thunderbolt 5 PerformanceUp to 120Gbps bandwidth boosting on supported systems.
• Advanced Display ExpansionUp to 8K@60Hz single-display and dual 6K@60Hz configurations.
• 140W Laptop ChargingHigh-power host delivery with a 240W dock power adapter.
• 8TB NVMe SSD ExpansionIntegrated M.2 slot plus 2.5GbE networking and card readers.

About the UGREEN Revodok Maxidok (85590)

The UGREEN Revodok Maxidok (85590) is a high-performance Thunderbolt 5 docking station for users who need more than ordinary USB-C port expansion. It brings together display connectivity, storage expansion, wired networking, peripheral connections and laptop charging in one desktop device.

Thunderbolt 5 provides a high-bandwidth connection for demanding workloads. On compatible equipment, bandwidth boosting can increase available bandwidth in the display direction up to 120Gbps. This is particularly relevant to high-resolution monitor configurations and advanced workstation requirements.

The docking station includes two downstream Thunderbolt 5 ports and a DisplayPort connection for compatible external displays. Supported configurations can reach up to 8K at 60Hz for a single display or dual 6K at 60Hz, subject to the host computer and display capabilities.

Its integrated M.2 NVMe SSD slot supports storage expansion up to 8TB. This allows users to add high-capacity SSD storage directly to the dock instead of relying entirely on separate external enclosures.

Additional connections include USB-A and USB-C data ports, 2.5 Gigabit Ethernet, SD and microSD card readers, and dedicated audio interfaces. A 240W power adapter supplies the docking station, which can provide up to 140W charging to a compatible host laptop.

The Maxidok is particularly suited to creative professionals, engineers and advanced office users who want a powerful, centralized workstation.

Design & Performance

Premium 17-in-1 Desktop Docking Design

The UGREEN Revodok Maxidok combines seventeen connectivity functions in a desktop docking station designed for professional workspaces.

Its distinctive metal-finished housing brings together front-access connections for frequently used devices and rear connections for more permanent desk equipment.

Users can keep monitors, Ethernet networking, storage and audio equipment connected to the dock rather than repeatedly connecting each device directly to their laptop.

This can help organize complex desk setups, especially when multiple external drives, monitors and peripherals are involved.

The dock uses a dedicated 240W power adapter to support its connected functions and high-power laptop charging capabilities.

For users who move a compatible laptop between locations, a single host connection can simplify returning to a fully connected desktop workspace.

Thunderbolt 5 Connectivity with Up to 120Gbps Bandwidth Boosting

The Maxidok uses Thunderbolt 5 technology to support demanding combinations of data transfer and display connectivity.

Thunderbolt 5 provides bidirectional bandwidth up to 80Gbps, with bandwidth boosting up to 120Gbps in one direction for supported display-intensive configurations.

This distinction is important: 120Gbps is a bandwidth-boosting capability, not a guaranteed continuous 120Gbps file transfer speed for every connected device.

The docking station provides two downstream Thunderbolt 5 ports for compatible Thunderbolt devices and displays.

These ports can support high-performance peripherals and display connections, subject to the capabilities of the host system and connected equipment.

Actual performance depends on the computer's Thunderbolt generation, cable specifications, connected devices and how available bandwidth is allocated.

For the full advertised Thunderbolt 5 feature set, a compatible Thunderbolt 5 computer is recommended.

8K Display Output and High-Resolution Multi-Monitor Workstations

The UGREEN Maxidok provides external display connectivity through two downstream Thunderbolt 5 ports and a dedicated DisplayPort output.

Supported high-end configurations include a single display up to 8K at 60Hz and dual displays up to 6K at 60Hz.

These capabilities are useful for video editing, large design canvases, detailed visual work and productivity setups that benefit from high-resolution screens.

Multiple external displays can allow users to separate timelines, documents, reference material and communication applications across different screens.

Display support depends on the host computer, graphics hardware, operating system and monitor configuration. Not every compatible computer can operate the same number of independent displays.

In particular, macOS display limitations vary by Mac model and chip. Users should verify their computer's supported external display count before purchasing for a multi-monitor setup.

The docking station does not have a built-in HDMI output. HDMI-only monitors may require an appropriate compatible adapter or cable.

Integrated M.2 NVMe SSD Expansion up to 8TB

One of the Maxidok's distinctive features is its built-in M.2 NVMe SSD expansion slot.

The slot supports compatible PCIe Gen4 x4 NVMe SSD storage with capacities up to 8TB, providing substantial space for project files, media libraries and other data.

This can be especially useful for content creators who work with large video files, RAW photographs and extensive project folders.

Instead of occupying a separate USB port with an external SSD enclosure, users can integrate supported NVMe storage into the docking station itself.

The M.2 interface is designed for NVMe storage. Compatibility with SATA-based M.2 SSDs should not be assumed.

Actual storage transfer speeds depend on the installed SSD, host interface, temperature, workload and available Thunderbolt bandwidth.

Check the supported SSD dimensions and installation instructions before selecting an SSD. The maximum supported capacity does not mean that an 8TB SSD is included.

140W Host Charging and 240W Dock Power System

The UGREEN Revodok Maxidok uses a 240W power adapter to support the docking station and its connected devices.

It can deliver up to 140W charging power to a compatible laptop through its Thunderbolt host connection.

This is useful for higher-power laptops that support USB-C Power Delivery charging at the required voltage and power level.

In addition to host charging, the docking station provides downstream power capabilities for compatible connected devices.

The manufacturer's specifications identify up to 60W total charging output shared by designated USB-C ports, subject to the dock's power allocation.

It is important to distinguish the 240W power adapter rating from the maximum power supplied to the laptop. The host charging limit is up to 140W, not 240W.

Actual laptop charging power depends on the host computer, USB-C Power Delivery support, cable and operating conditions.

10Gbps USB, 2.5GbE Networking, Card Readers and Audio

The Maxidok provides three USB-A data ports and three USB-C data ports, with supported USB transfer speeds up to 10Gbps.

These connections are useful for external drives, USB accessories and other compatible devices that need convenient access to the host computer.

The docking station also includes a 2.5 Gigabit Ethernet port for wired networking up to 2500Mbps when connected to compatible network equipment.

This offers a faster local networking option than standard Gigabit Ethernet for users with suitable routers, switches and network infrastructure.

SD and microSD card readers support high-speed card access, with the manufacturer's specifications advertising transfer rates up to 312MB/s using compatible media.

Dedicated 3.5mm audio connections provide additional options for supported audio input and output equipment.

Together, these interfaces make the Maxidok useful for demanding workstations that need storage, networking, card access and multiple everyday peripherals available at once.

Who It's For

The UGREEN Revodok Maxidok (85590) is designed for professionals using compatible Thunderbolt laptops who need extensive desktop connectivity.

Video editors and photographers can benefit from high-resolution display support, built-in NVMe SSD expansion and fast memory card access.

Designers, engineers and advanced office users may appreciate the ability to connect multiple monitors and high-speed peripherals through one docking station.

Users working with large local files or fast network storage can benefit from Thunderbolt 5 connectivity and 2.5 Gigabit Ethernet when their equipment supports these capabilities.

The Maxidok is most suitable for buyers who need its advanced functions. Users with basic USB-C laptops should confirm compatibility carefully because not every computer supports the full Thunderbolt 5 feature set.
