| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI KVM Switch |
| KVM Configuration | 2 Computers to 1 Monitor |
| Computer Inputs | 2 × HDMI + USB-A Host |
| HDMI Output | 1 × HDMI |
| Shared USB Ports | 3 × USB-A 3.0 + 1 × USB-C 3.0 |
| USB Transfer Speed | Up to 5Gbps |
| Maximum Resolution | 4K UHD (3840 × 2160) @ 60Hz |
| HDMI Version | HDMI 2.0 |
| HDCP | HDCP 2.2 (Backward Compatible) |
| HDR Support | HDR10 / HDR10+ |
| Switching Method | Physical Button / Wired Desktop Controller |
| Power Input | DC 5V/2A Max |
| OS Compatibility | Windows, macOS, Linux |
| Dimensions | 114 × 63 × 19mm |
| Material | ABS + PC |
| Part Number | 75246 |
| Warranty Information | |
| Warranty | N/A |

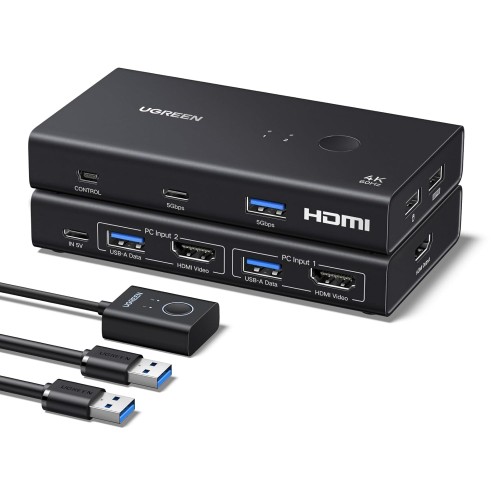

The UGREEN AK502 (75246) is a 4K@60Hz HDMI KVM Switch designed to control two computers using one HDMI monitor, keyboard and mouse. With HDMI 2.0 connectivity, four USB 3.0 ports and up to 5Gbps USB data transfer, it provides an efficient solution for dual-computer workstations.
Featuring one-button switching and a wired desktop controller, the UGREEN AK502 allows users to change between connected computers without repeatedly disconnecting cables. It is ideal for offices, home workstations and IT maintenance setups. Explore the UGREEN AK502 HDMI KVM Switch price in Bangladesh at IT Source.
The UGREEN AK502 is a 2-in-1-out HDMI KVM switch that enables two computers to share a single HDMI monitor and compatible USB accessories. Its two computer inputs combine HDMI video and USB host connections, while the selected computer is routed to one HDMI display output.
The switch includes three USB-A 3.0 ports and one USB-C 3.0 port for peripherals such as keyboards, mice, USB flash drives, printers, webcams and compatible external storage devices. These ports support USB data transfer speeds up to 5Gbps.
The AK502 supports video output up to 4K@60Hz, HDMI 2.0, HDCP 2.2 and compatible HDR formats. Users can switch between computers through the physical button or the wired desktop controller.
Its compact design and driver-free operation make it a practical choice for users who regularly work with two computers but prefer one monitor and a shared set of accessories.
The UGREEN AK502 supports HDMI video resolutions up to 3840 × 2160 at 60Hz, delivering detailed images and smooth desktop performance on compatible 4K displays. It also supports lower resolutions and refresh-rate combinations according to the capabilities of the connected equipment.
Its HDMI 2.0 interface supports HDCP 2.2 backward compatibility, HDR10, HDR10+, 3D video and variable refresh rate (VRR) as documented in the manufacturer manual. These capabilities make it useful for high-resolution office work, creative applications and compatible multimedia setups.
To achieve 4K@60Hz, the computer, HDMI cables and monitor must all support the required video bandwidth.

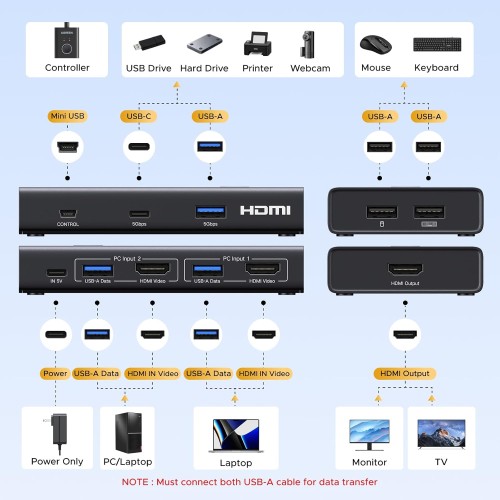

The AK502 allows two HDMI-equipped computers to connect to one display. Each computer connects through an HDMI input and a USB-A host connection, allowing both video and USB peripherals to switch together.
This is useful for people who use a desktop PC and a laptop, two office computers or separate personal and professional systems. Instead of keeping two monitors and duplicate input devices on the desk, users can work through one shared setup.
The switch displays only the selected computer at a time. It does not combine two computer images on one screen or provide independent dual-monitor output.
The UGREEN AK502 provides four USB 3.0 peripheral ports, consisting of three USB-A ports and one USB-C port. These connections support compatible keyboards, mice, USB storage devices, printers, webcams and other accessories.
With USB data transfer speeds up to 5Gbps, the switch can accommodate compatible external SSDs and USB flash drives for everyday file access and transfer. Actual speed depends on the connected storage device, computer interface and shared USB bandwidth.
The USB-C port is a downstream peripheral connection. It is not a USB-C video input, laptop charging port or USB-C computer host connection.

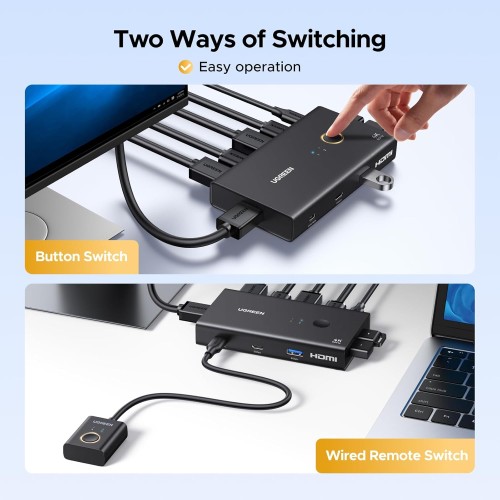

The AK502 provides two convenient switching methods: a physical button on the main unit and a wired desktop controller. Users can change the active computer without manually reconnecting the HDMI monitor or shared USB accessories.
The wired controller is especially useful when the KVM switch is placed behind a monitor or away from the main working area. It allows the main unit to remain neatly positioned while the switching control stays accessible.
The AK502 does not support keyboard hotkey switching. Computer selection is performed through the button or wired controller.
The manufacturer manual documents support for HDMI audio formats including LPCM, DTS and DSD, with compatible 2.0, 2.1, 5.1 and 7.1-channel configurations. Audio is transmitted through the HDMI connection according to the selected source and connected display or audio equipment.
HDR10 and HDR10+ support helps maintain compatible high-dynamic-range video signals when the computer, content and display support the required format.
The AK502 is compatible with Windows, macOS and Linux systems using suitable HDMI and USB connections. Its standard KVM functions are designed for plug-and-play operation without dedicated driver installation.
Measuring approximately 114 × 63 × 19mm, the UGREEN AK502 features a compact desktop-friendly design. Its housing is specified as ABS and PC material, making it suitable for placement near a monitor, laptop or desktop workstation.
The KVM switch uses a dedicated DC 5V/2A maximum power input. This external power arrangement supports operation of the switch and its connected USB peripherals within the supported electrical limits.
For proper installation, connect each computer's HDMI and USB host cables, attach the shared HDMI monitor and USB accessories, and supply the required power. Then select the desired computer using the physical button or wired controller.
The UGREEN AK502 is suitable for office professionals managing two computers, home users sharing a monitor between work and personal systems, and IT technicians who regularly switch between test computers.
It is also useful for designers, content creators and other users who need a 4K@60Hz display connection alongside shared USB 3.0 peripherals. The AK502 helps maintain a more organized workstation while reducing repeated cable changes.
IT Source offers computer accessories, HDMI connectivity solutions and KVM switches for customers in Bangladesh. The UGREEN AK502 (75246) is a practical choice for users seeking high-resolution HDMI switching and shared USB connectivity.
Contact IT Source to confirm the latest price, availability and applicable warranty before purchasing.
Yes. The UGREEN AK502 supports HDMI video up to 4K UHD at 60Hz. The connected computer, HDMI cables and monitor must also support this resolution and refresh rate.
Yes. It provides three USB-A 3.0 ports and one USB-C 3.0 peripheral port, supporting up to 5Gbps USB data transfer. Connected peripherals are shared with the currently selected computer.
No. The AK502 uses its physical switching button or wired desktop controller to change between computers. Keyboard hotkey switching is not supported.
