| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Dual-Monitor HDMI KVM Switch |
| KVM Configuration | 2 Computers to 2 Monitors |
| HDMI Inputs | 4 × HDMI |
| HDMI Outputs | 2 × HDMI |
| USB Host Inputs | 2 × USB-A |
| Shared USB Ports | 3 × USB-A 3.0 + 1 × USB-C |
| Maximum Resolution | 4K UHD (3840 × 2160) @ 60Hz |
| Additional Display Modes | 2K@144Hz, 1080p@240Hz |
| Display Modes | Extend / Mirror |
| USB Standard | USB 3.0 |
| USB Data Speed | Up to 5Gbps |
| Switching | Physical Button; Wired Controller |
| Power Input | DC 5.5mm; 12V/2A |
| Housing Material | Aluminum Alloy + PC + ABS |
| Warranty Information | |
| Warranty | N/A |

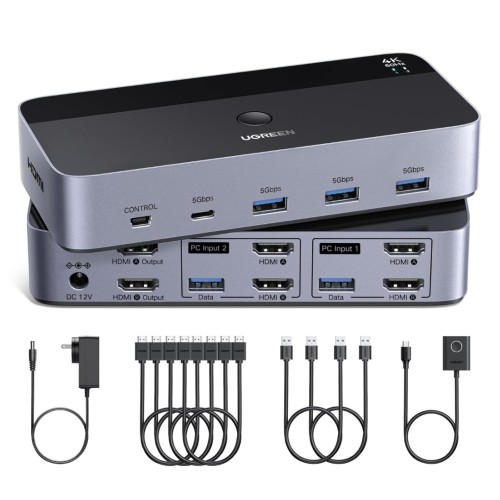

The UGREEN AK500 (85719) is a dual-monitor HDMI KVM switch designed to operate two computers through two shared HDMI monitors, one keyboard and one mouse. Supporting up to 4K@60Hz, extended and mirrored display modes, and USB 3.0 peripheral sharing, it simplifies workstations where multiple computers are used regularly.
With convenient computer selection and four shared USB 3.0 ports, the AK500 helps reduce repeated cable changes while keeping two displays available for the selected PC. Explore the UGREEN AK500 (85719) HDMI KVM Switch price in Bangladesh at IT Source.

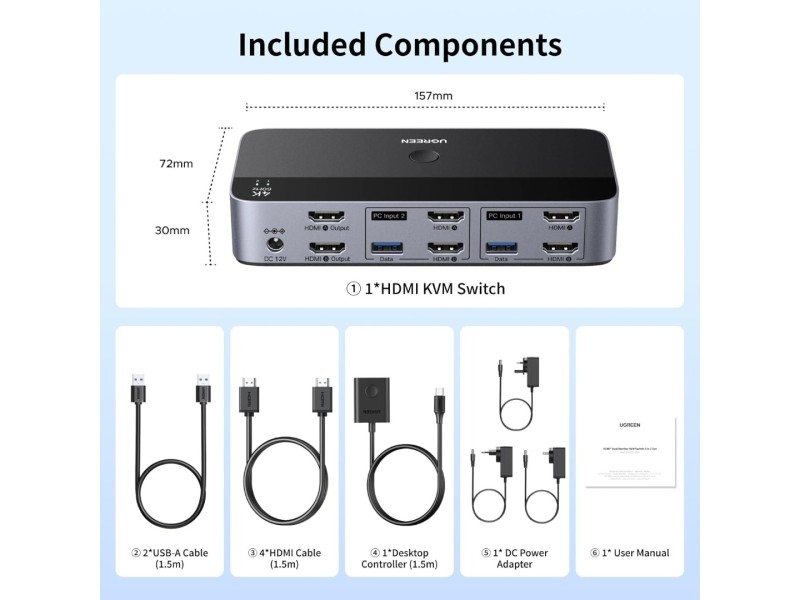

The UGREEN AK500 is a dual-monitor HDMI KVM switch for users who need two computers to share the same pair of displays and USB peripherals. It features four HDMI inputs, two HDMI outputs and dedicated USB host connections for both computers.
Unlike a single-monitor KVM switch, the AK500 supports two screens for the selected computer. When the computer provides two independent display signals, the monitors can be used in extended desktop mode. Mirrored display operation is also supported.
The device includes three USB-A 3.0 ports and one USB-C peripheral port for compatible accessories. Its external DC power connection supports operation with multiple connected devices.
The AK500 is designed for users who value dual-screen productivity, convenient peripheral sharing and organized cable connections.

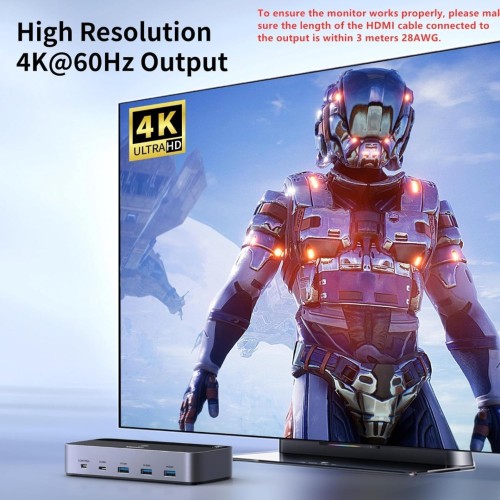

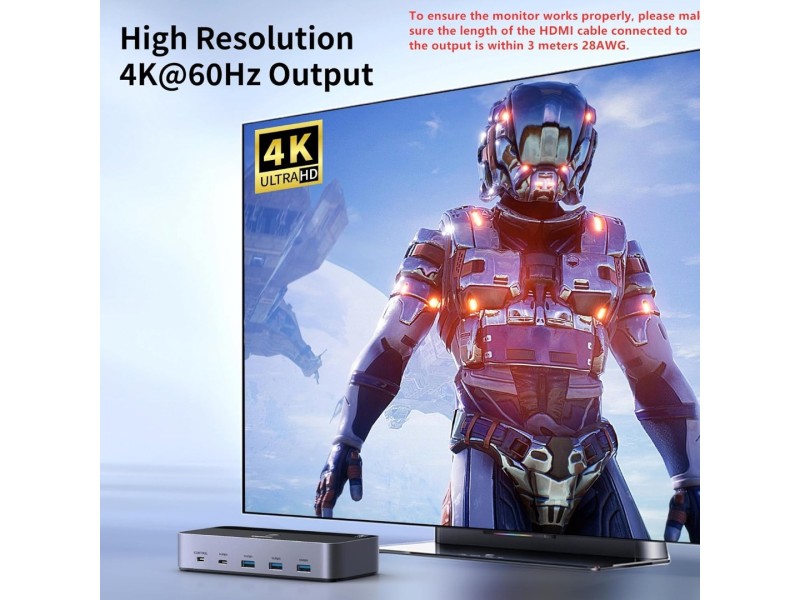

The UGREEN AK500 supports HDMI output up to 3840 × 2160 at 60Hz on compatible displays. This provides detailed visuals and smooth everyday desktop interaction for professional applications, office software, web browsing and multimedia use.
UGREEN also lists support for 2K@144Hz and 1080p@240Hz display modes. Actual resolution and refresh rate depend on the connected computer, graphics hardware, HDMI cables and monitors.
For users who work with detailed documents, design interfaces or multiple application windows, dual high-resolution displays can provide a more flexible working environment.

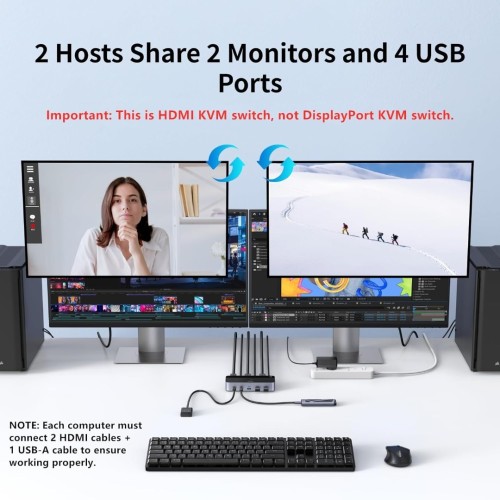

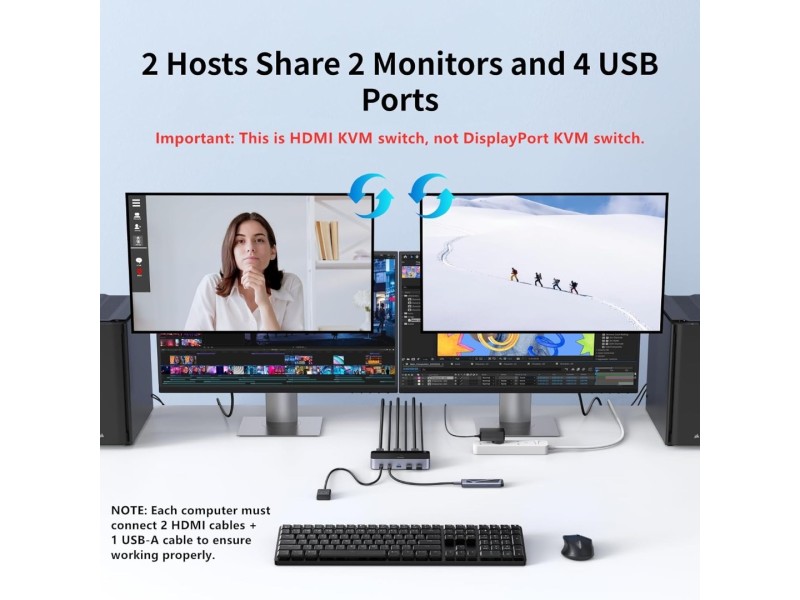

The AK500 is designed to share two monitors between two computers. Each computer connects through two HDMI video inputs and a USB host connection, allowing the selected system to use both displays and the shared peripherals.

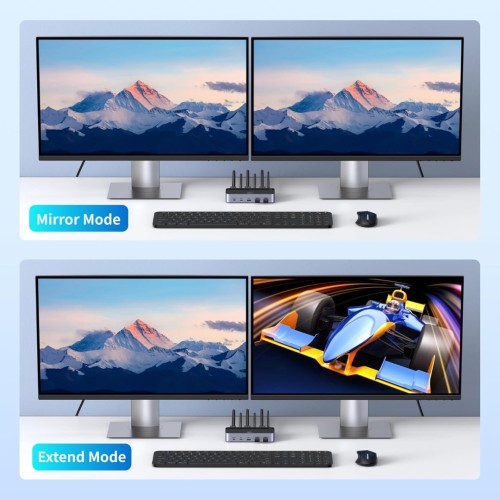

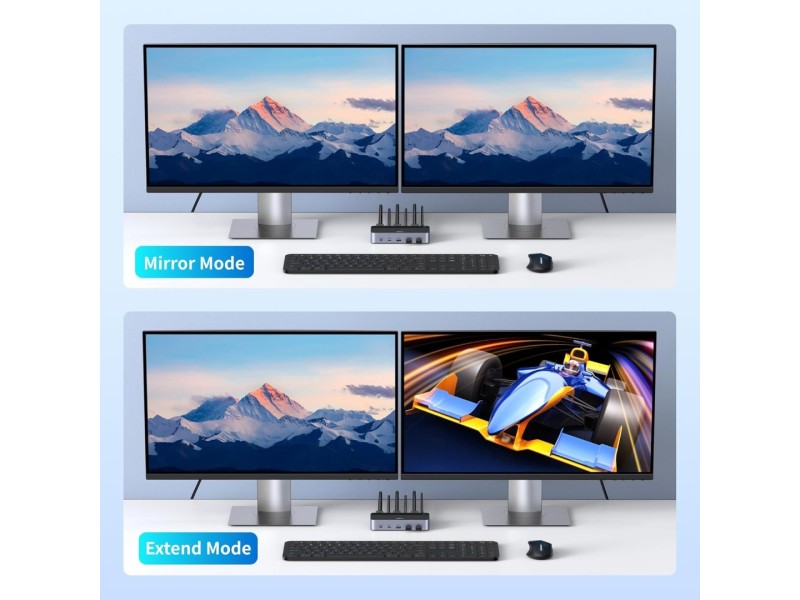

Extended display mode allows the selected computer to use two screens as separate desktop areas, provided that the computer supports two independent video outputs. Mirrored mode can show the same content on both screens.
This is particularly useful for programmers, financial analysts, designers and office professionals who prefer a dual-monitor layout. The switch selects one computer at a time; it does not display PC1 on one monitor and PC2 on the other simultaneously.

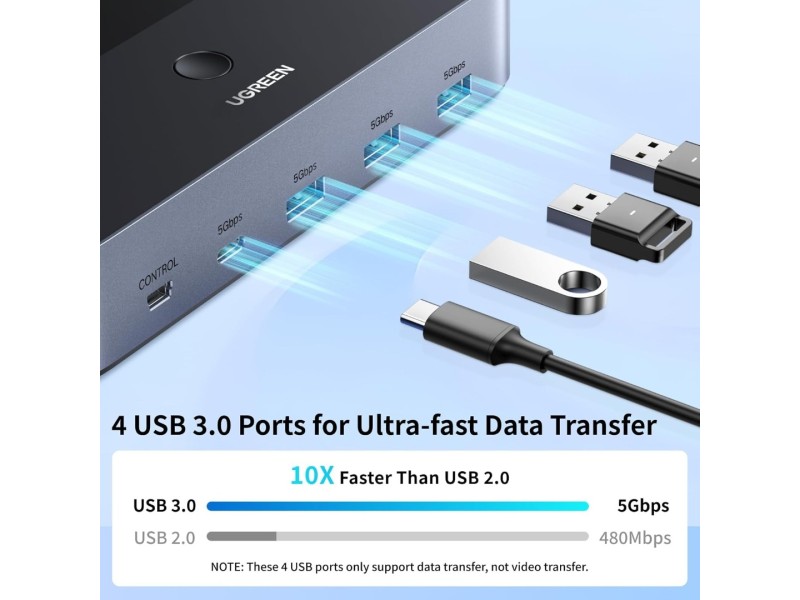

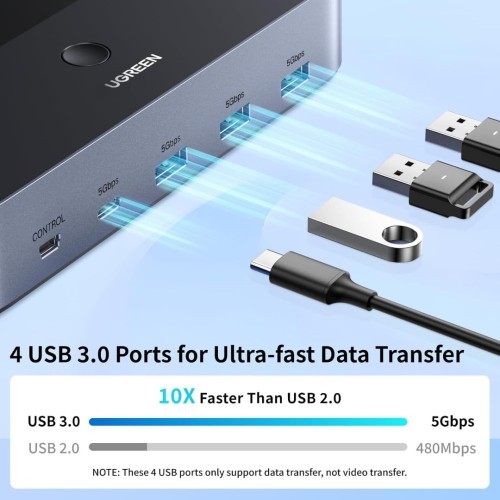

The UGREEN AK500 provides three USB-A 3.0 peripheral ports and one USB-C peripheral port. These connections can be used with compatible keyboards, mice, USB flash drives, printers and external storage devices.
USB 3.0 supports data transfer speeds up to 5Gbps under suitable conditions. This makes the hub functionality useful for accessing files on compatible USB storage without moving devices between computers.
All connected USB peripherals are assigned to the currently selected computer. Actual transfer speeds depend on the host connection, peripheral performance and shared USB bandwidth.

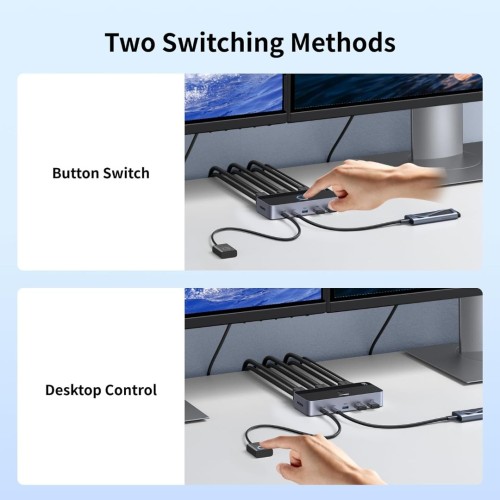

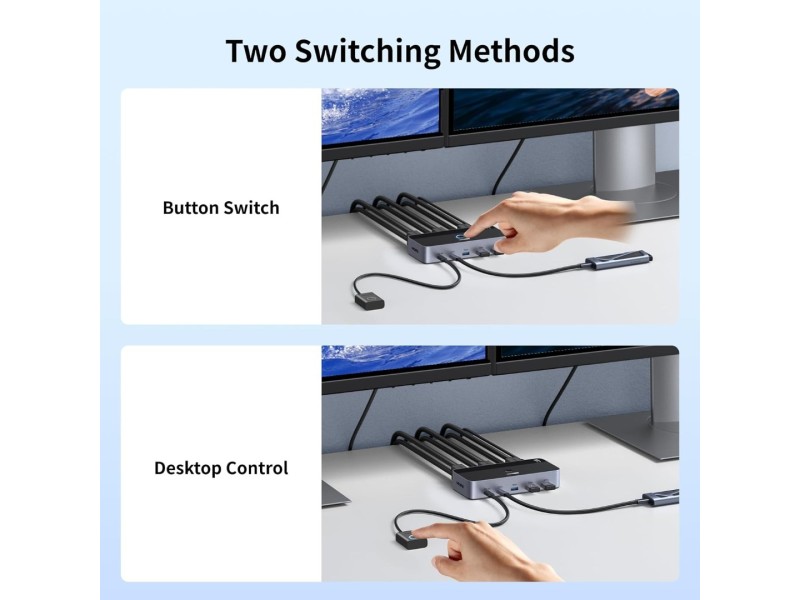

The AK500 allows users to change the active computer through its physical selection button. A compatible wired desktop controller also provides a convenient switching option, allowing the main KVM unit to be positioned away from the immediate working area.
When the active computer changes, the KVM redirects the shared displays and supported USB peripherals to the selected system. This helps avoid repeated HDMI and USB cable reconnections during the working day.
The device is suitable for workstations where users frequently move between separate office, development or personal computers. Keyboard hotkey switching should not be assumed for this model.

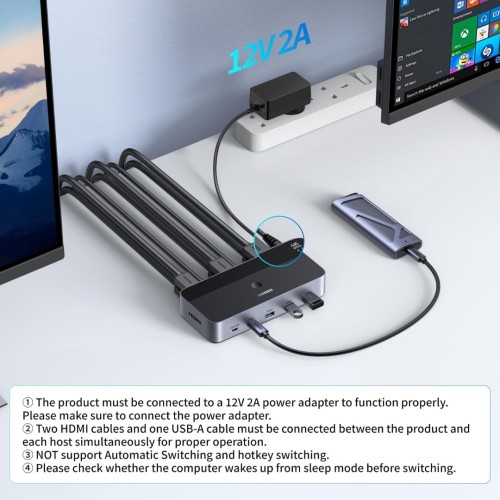

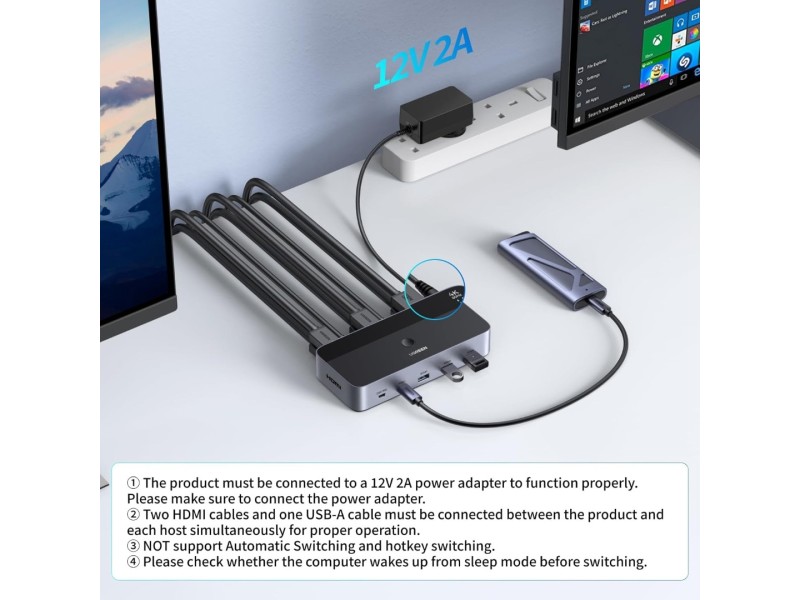

The UGREEN AK500 uses a dedicated DC 5.5mm power input rather than relying exclusively on USB host power. External power helps support the KVM electronics and connected peripherals during normal operation.
The manufacturer specifies an aluminum alloy, PC and ABS housing. These materials provide a practical enclosure for desktop use while accommodating the HDMI and USB connections required for a dual-monitor workstation.
UGREEN also documents USB-C Power Delivery charging support up to 30W for compatible applications. This feature is subject to the product's supported connection arrangement and should not be interpreted as a universal laptop charging capability.

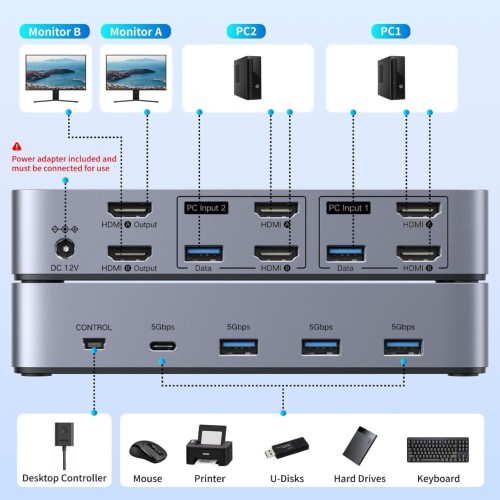

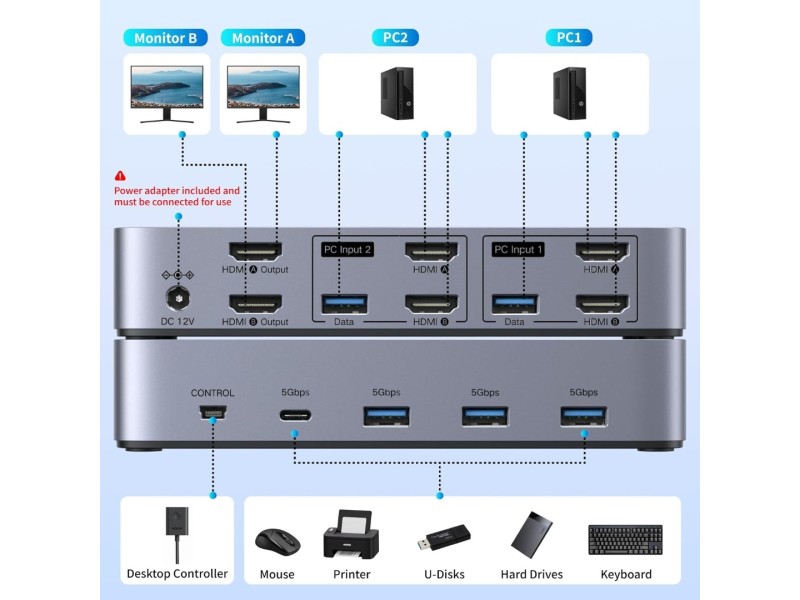

To use the AK500, each computer must provide two suitable video outputs for dual-display operation. Connect both computers to the corresponding HDMI input pairs and USB host connections, then attach the two monitors to the HDMI outputs.
Connect the shared keyboard, mouse and other compatible USB accessories, and provide power through the designated DC input. The switch can then select which computer controls the complete shared workstation.
This setup is useful for office environments, IT testing benches, home workstations and creative desks. Computers with fewer than two HDMI outputs may require compatible video adapters or docking equipment capable of providing two independent display signals.
The UGREEN AK500 (85719) is suitable for professionals who work with two computers and need a dual-monitor setup. Programmers can keep coding and reference windows on separate screens, while office users can work with spreadsheets, reports and business applications across both displays.
Designers, IT technicians and home office users can also benefit from sharing two monitors, a keyboard, a mouse and USB accessories without duplicating their workstation equipment.
Before purchasing, confirm that both computers support two external HDMI display signals and that the monitors support the intended resolution and refresh rate.
IT Source offers UGREEN computer accessories and connectivity solutions for customers in Bangladesh. The UGREEN AK500 (85719) is an option for users who require dual-monitor HDMI switching with shared USB peripherals.
Check IT Source for the latest product price, availability and applicable warranty information before placing an order.
Yes. It allows two computers to share two HDMI monitors and USB peripherals. The selected computer can use extended or mirrored display mode when supported by its graphics hardware.
Yes. UGREEN specifies support for 4K UHD at 60Hz, as well as compatible 2K@144Hz and 1080p@240Hz modes. Actual performance depends on the computers, monitors and cables.
No. Both monitors receive video from the selected computer. The AK500 does not independently show PC1 on one monitor and PC2 on the other at the same time.
