| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Smart VGA USB KVM Switch |
| KVM Configuration | 8 Computers to 1 Monitor |
| Computer Connections | 8 |
| Shared Monitor Connections | 1 |
| Video Interface | VGA |
| Keyboard & Mouse Interface | USB |
| Display Mode | One selected computer at a time |
| Special Features | Maximum Resolution: Not verified for exact MT-801UK Switching Method: Exact controls require confirmation Additional USB Ports: Not verified for exact MT-801UK Housing: Not verified for exact MT-801UK Power Requirement: Confirm from product label |
| Warranty Information | |
| Warranty | N/A |

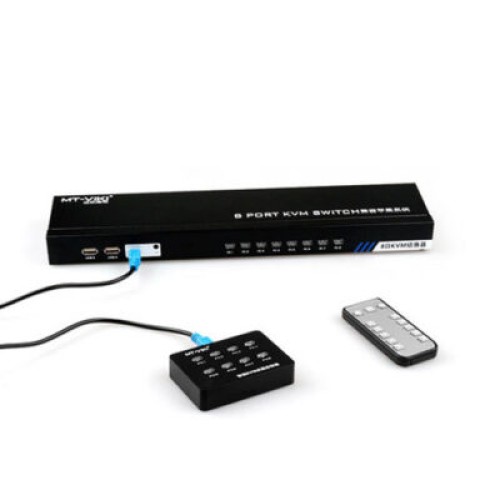

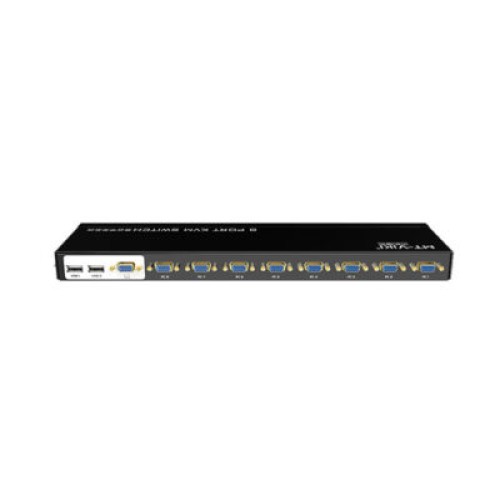

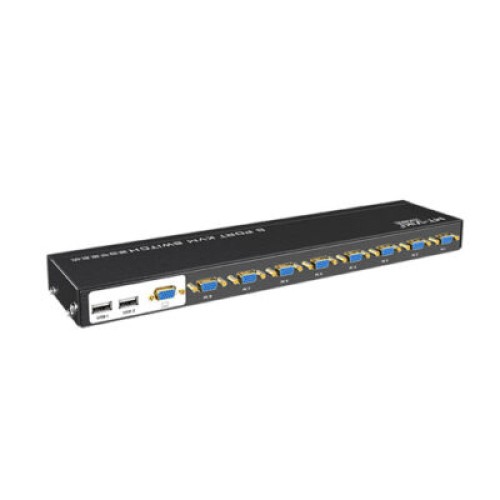

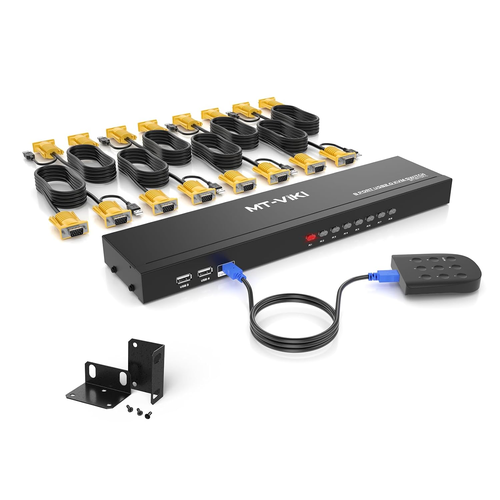

The MT-VIKI MT-801UK is an 8-port VGA USB KVM switch designed to control eight computers from a single workstation. It allows users to share one VGA monitor, keyboard and mouse, making multi-computer administration more convenient.
Designed for IT maintenance, office equipment management and computer testing, this switch reduces repeated cable changes and the need for separate input devices. Explore the MT-VIKI MT-801UK price in Bangladesh at IT Source.
Operating several computers from the same location can require multiple monitors, keyboards and mice. The MT-VIKI MT-801UK offers a centralized alternative by bringing eight computer connections into one VGA KVM switching system.
The shared monitor displays the selected computer, while the keyboard and mouse provide control of that system. This arrangement helps technicians and administrators work across multiple computers without manually transferring input devices between them.
The MT-801UK belongs to MT-VIKI's Smart VGA KVM family. It is designed for single-console operation rather than simultaneous viewing of eight computer screens.
The MT-VIKI MT-801UK provides an eight-computer KVM configuration, allowing multiple systems to share one local monitor and set of input devices.
This is especially useful in IT environments where computers must remain connected for maintenance, configuration and troubleshooting. An operator can access the required system without keeping eight complete desktop workstations.
Only one selected computer is displayed and controlled at a time. The KVM does not merge the video output from all eight systems into one screen.
The MT-801UK uses VGA video connectivity, making it relevant for desktop computers, workstations and other equipment equipped with VGA display outputs.
A shared VGA monitor can display the video signal from the selected computer. This is useful for technical tasks such as BIOS configuration, operating-system installation and routine computer diagnostics.
Because VGA is an analogue interface, picture quality depends on the computer, monitor, cables and selected resolution. The closely related MT-801UK-L supports up to 1920 × 1440, but that exact maximum has not been independently confirmed for the MT-801UK.
The MT-801UK uses USB-based keyboard and mouse connectivity to provide local control of the selected computer.
Instead of maintaining a separate keyboard and mouse for every PC, users can operate multiple systems through a common input setup. This reduces the number of devices occupying the workstation.
The exact number of additional USB peripheral ports on the MT-801UK should be confirmed from the product label or manual before advertising printer or USB storage sharing.
The MT-801UK is designed to select one of eight connected computer channels for local operation. This simplifies movement between systems during maintenance and testing.
Technicians can keep their workstation connected while changing which computer appears on the shared display.
MT-VIKI documents physical button and wired desktop-controller switching for the related MT-801UK-L. However, the exact MT-801UK switching methods, including keyboard hotkeys or remote control, require confirmation from the specific model's documentation.
An eight-port VGA KVM switch is useful in locations where several computers require occasional direct access rather than continuous individual monitoring.
Computer laboratories can use centralized control for maintenance and system checks. IT support teams can work through several connected machines without moving a keyboard, mouse and monitor between them.
Direct VGA and USB connectivity can also be helpful when remote desktop software is unavailable, such as during startup configuration or operating-system installation.
Each computer must provide compatible video and USB connections for the intended KVM arrangement.
By bringing eight computer connections together, the MT-801UK can reduce the number of monitors and input devices required for routine administration.
Clear cable labeling helps identify individual computers and makes future troubleshooting easier. Suitable VGA cables are important for maintaining image quality, particularly in installations with longer cable runs.
The related MT-801UK-L has a metal housing and rack-installation support, but those construction details should not automatically be assumed for every MT-801UK revision.
Before installation, confirm the exact model, available controls, power requirements and connector layout on the supplied unit.
The MT-VIKI MT-801UK is suitable for IT technicians, computer repair professionals, office administrators, laboratory supervisors and organizations managing several VGA-equipped computers.
It is especially relevant for equipment testing, local system maintenance and computer environments where one shared display and input setup are sufficient.
Users requiring HDMI video, simultaneous multiview monitoring or remote network access should consider a different type of KVM solution.
IT Source offers computer connectivity products and KVM switching solutions for customers in Bangladesh. The MT-VIKI MT-801UK is an option for buyers who need centralized VGA-based access to eight computers.
Contact IT Source for current pricing, stock availability, local warranty coverage and confirmation of the exact product revision before ordering.
The MT-801UK is an 8-in-1-out VGA KVM switch designed to control up to eight computers using one shared monitor, keyboard and mouse.
It uses VGA video connectivity. An HDMI-only monitor would require a suitable active VGA-to-HDMI converter, with compatibility verified before purchase.
No. MT-VIKI lists MT-801UK and MT-801UK-L as separate models. The MT-801UK-L has separately documented desktop-controller switching and other specifications that should not automatically be assigned to MT-801UK.
