| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI USB KVM Switch |
| KVM Configuration | 8 Computers to 1 Monitor |
| HDMI Inputs | 8 × HDMI |
| HDMI Output | 1 × HDMI |
| Computer USB Connections | 8 × USB host connections |
| Shared USB Interface | USB 2.0 |
| Maximum Resolution | 4096 × 2160 @ 60Hz |
| UHD Resolution | 3840 × 2160 @ 60Hz |
| HDCP | HDCP 2.0 |
| Switching Methods | Panel Button, Keyboard Hotkey, IR Remote, Auto Switching |
| EDID Management | Supported |
| Audio Output | 3.5mm |
| Hot-Swap | Supported |
| Power Input | DC 12V |
| Installation | 1U Rackmount |
| Housing | Metal |
| Dimensions | Approx. 432 × 167 × 45mm |
| Compatible Systems | Windows, macOS, Linux |
| Warranty Information | |
| Warranty | N/A |

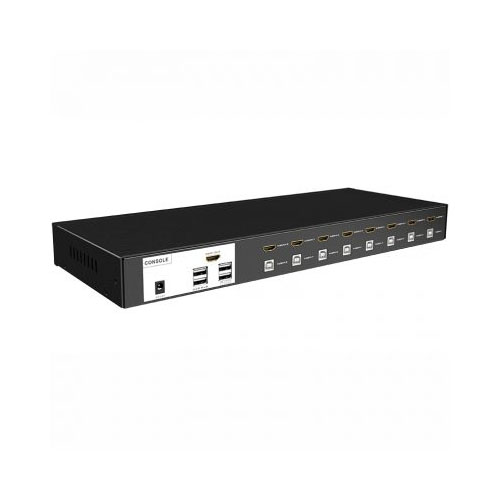

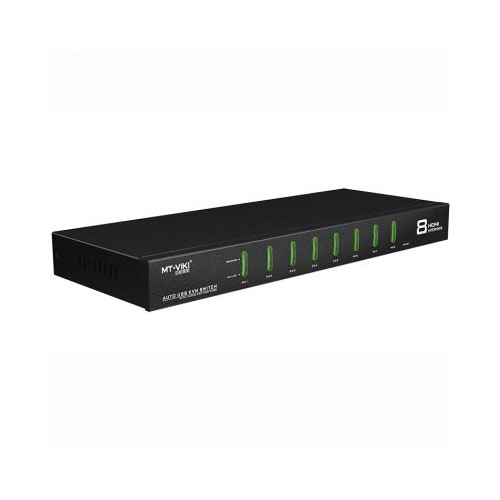

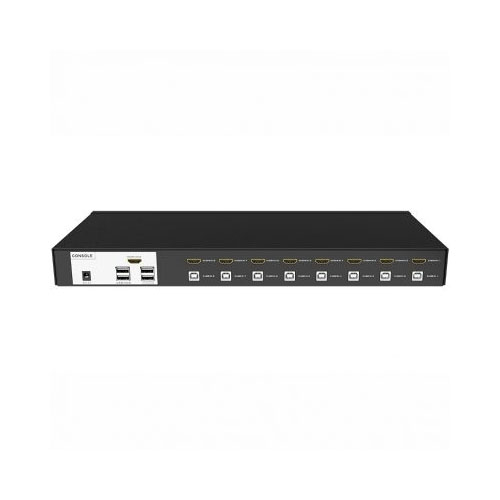

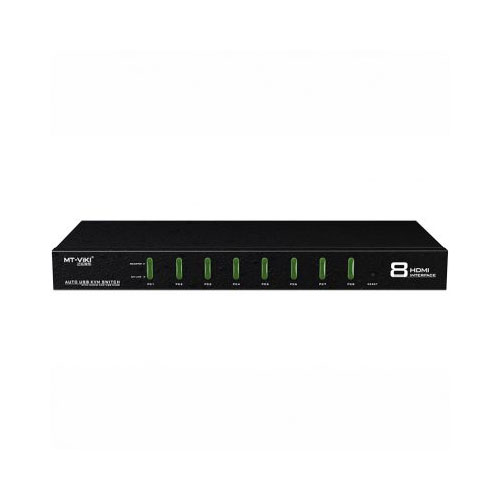

The MT-VIKI MT-0801HK is an 8-port HDMI USB KVM switch designed to control eight computers through a single HDMI monitor, keyboard and mouse. With 4K UHD video support at 60Hz, USB 2.0 connectivity and multiple switching options, it simplifies access to several computer systems from one location.
Its 1U rack-mountable metal design makes it especially useful for server maintenance, computer laboratories and professional IT environments. Explore the MT-VIKI MT-0801HK HDMI KVM Switch price in Bangladesh at IT Source.
Managing multiple computers becomes more complicated when each system requires its own display and input devices. The MT-VIKI MT-0801HK provides a centralized solution by allowing eight HDMI-equipped computers to share one monitor, keyboard and mouse.
Each computer connects to the KVM through HDMI video and USB host connections. The selected computer sends its display signal to the shared monitor while the connected USB peripherals become available to that system.
The MT-0801HK combines 4K@60Hz HDMI output, USB 2.0 peripheral connectivity, smart EDID management and multiple switching methods in a rack-mountable enclosure. It is intended for environments where computers must remain connected and accessible for maintenance or administration.
The device operates as a single-monitor KVM switch. It displays one selected computer at a time rather than showing all eight computer screens simultaneously.
The MT-VIKI MT-0801HK supports eight HDMI computer inputs and one HDMI monitor output, enabling an operator to manage up to eight computers through one control station.
This arrangement is useful for IT departments, system administrators and technicians who regularly switch between computers for maintenance, troubleshooting or configuration.
Instead of disconnecting the monitor, keyboard and mouse from one system and reconnecting them to another, users can keep all eight computers attached to the KVM and select the required machine.
The switch is intended for local computer management and does not provide independent simultaneous access to all eight systems.
The MT-0801HK supports HDMI video resolutions up to 3840 × 2160 at 60Hz, with the manufacturer also listing 4096 × 2160 at 60Hz for compatible equipment.
This high-resolution capability helps users view detailed operating-system interfaces, technical applications, spreadsheets and monitoring information on a suitable 4K display.
The manufacturer's current product listing also specifies HDCP 2.0 compatibility, which is relevant when using compatible protected HDMI content.
Actual output resolution and refresh rate depend on the computer graphics hardware, HDMI cables, monitor and selected video format. Users should verify the required HDMI bandwidth across the complete connection.
USB 2.0 connectivity allows the MT-0801HK to share a keyboard, mouse and compatible USB peripherals between the connected computers.
This can reduce the number of devices required in a server room or technical workstation. Instead of maintaining separate input equipment for each computer, users can operate the selected system through the shared console.
USB 2.0 supports a theoretical maximum signaling speed of 480Mbps, making it suitable for common input devices, compatible printers and basic USB storage operations.
The shared USB devices are assigned to the selected computer. They are not intended for simultaneous use by all eight systems. USB 3.0 transfer speeds are not supported by the documented USB 2.0 interface.
The MT-VIKI MT-0801HK provides four computer-selection methods: front-panel button switching, keyboard hotkeys, wireless IR remote control and automatic switching.
Front-panel buttons provide direct access when the KVM is within reach. Keyboard hotkeys allow an operator to select computers from the shared keyboard without moving away from the workstation.
The IR remote provides an additional control option, while automatic switching can cycle through connected computer channels when that operating mode is enabled.
For keyboard hotkey operation, MT-VIKI instructs users to connect the keyboard and mouse to the designated ports marked with their corresponding symbols. Exact shortcut commands and auto-switch settings should be taken from the supplied user manual.
The MT-0801HK includes smart EDID management to help maintain display identification information as users switch between computers. This can reduce unwanted changes in display resolution or desktop window arrangement when the active computer changes.
The manufacturer also documents a 3.5mm audio output, allowing compatible audio from the selected computer to be routed to suitable external audio equipment.
Hot-swap support allows compatible computer connections to be added or removed without routinely shutting down the entire KVM installation. Users should still follow safe procedures for connected storage and other peripherals.
These functions make the MT-0801HK practical for equipment rooms where multiple computers need to remain accessible throughout daily operation.
The MT-VIKI MT-0801HK features a metal enclosure designed for professional workstation and equipment-rack installations. Its 1U rack-mountable format helps organize the connections for eight computers within a standard equipment cabinet.
The manufacturer lists approximate dimensions of 432 × 167 × 45mm, making it suitable for installations that require an organized, rack-oriented KVM arrangement.
A dedicated DC 12V power supply is required for the eight-port model. This differs from some smaller USB-powered KVM switches and should be considered when planning installation.
For reliable operation, keep HDMI and USB cables clearly labeled, use compatible cables for the required display resolution and ensure adequate clearance for cable connections and ventilation.
The MT-VIKI MT-0801HK is suitable for IT technicians, system administrators, computer laboratories, server maintenance teams and organizations that need centralized access to multiple HDMI-equipped computers.
It is particularly useful for operating-system installation, hardware diagnostics, software testing and routine system administration where one monitor and a shared set of peripherals are sufficient.
Users who require simultaneous viewing of several computer screens or remote access over a network should consider a multiview or KVM-over-IP solution instead.
IT Source offers computer connectivity products and KVM switching solutions for customers in Bangladesh. The MT-VIKI MT-0801HK is an option for buyers looking for an eight-computer HDMI KVM with 4K@60Hz output, USB peripheral sharing and rack-mountable construction.
Contact IT Source to confirm current pricing, stock availability, local warranty terms and the exact hardware revision before ordering.
It supports up to eight HDMI-equipped computers using one HDMI monitor, keyboard and mouse. Only the selected computer appears on the monitor.
Yes. The current MT-VIKI manufacturer specification lists 4K UHD at 60Hz for model MT-0801HK. The separate MT-801HK-C model is rated for 4K@30Hz.
Yes. The MT-0801HK supports front-panel buttons, keyboard hotkeys, IR remote control and automatic switching. Follow the supplied manual for the exact operating instructions.
