| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | HDMI Fiber Optic KVM Extender |
| Configuration | Transmitter & Receiver |
| Transmission Distance | Up to 20km |
| Resolution | 1920 × 1080 @ 60Hz |
| Transmission Medium | Fiber Optic Cable |
| Video Interface | HDMI |
| USB Interface | USB-A K/M connection |
| Audio Interface | 3.5mm Audio port |
| Infrared Interface | IR RX port |
| Optical Interface | Fiber port |
| Power Interface | DC 5V |
| Housing | Silver Metal Enclosure |
| Compatibility | HDMI source, compatible display and supported USB input devices |
| Warranty Information | |
| Warranty | N/A |

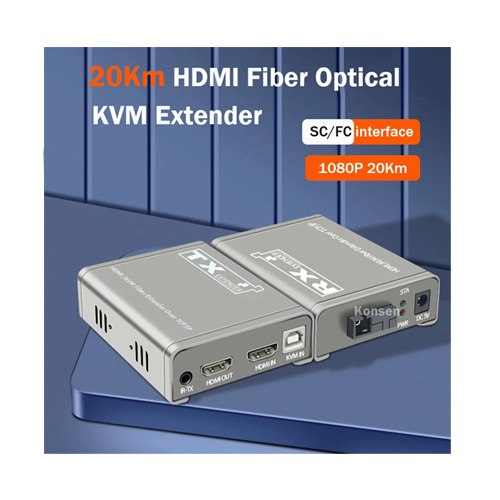

The 20KM HDMI Fiber Optic KVM Extender is a long-distance HDMI video and computer-control solution for professional installations. Using a compatible optical fiber connection between its transmitter and receiver, it is designed to extend Full HD video, audio and supported keyboard/mouse control to a remote workstation.
Its compact metal enclosures feature HDMI, optical fiber, USB and control interfaces. The system is suitable for CCTV monitoring rooms, industrial facilities, office control centers and installations where source equipment must remain far from the display. Check the HDMI Fiber Optic KVM Extender price in Bangladesh at IT Source.
Many professional computer installations require the display and operator workstation to be located far from the computer itself. Conventional HDMI and USB cables are not practical for every long-distance installation, especially across large buildings or between separate equipment areas.
The HDMI Fiber Optic KVM Extender provides a dedicated transmitter-and-receiver arrangement for carrying supported video and control signals through optical fiber.

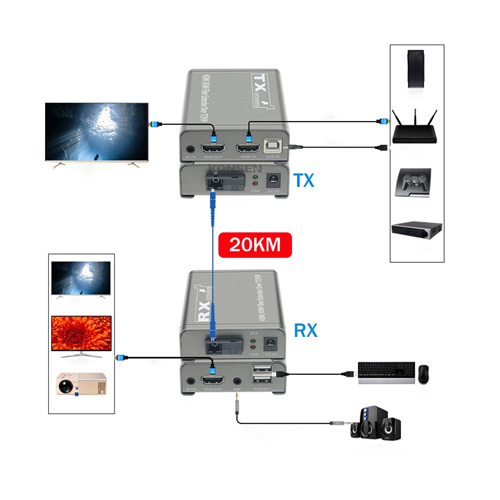

The source computer connects to the transmitter, while the remote display and compatible keyboard/mouse devices connect to the receiver. This allows the operator to work from a separate location while the computer remains in an equipment room.
The system is intended for wired optical transmission. It is not a wireless HDMI device, an ordinary HDMI cable converter or a general-purpose Ethernet adapter.
The extender is marketed for optical transmission distances of up to 20 kilometers, making it suitable for installations where conventional HDMI cables cannot cover the required distance.
A compatible fiber-optic link connects the transmitting and receiving equipment, allowing supported HDMI video to reach a distant display.
This design is useful for connecting monitoring stations, factory control areas, remote equipment rooms and other geographically separated installation points.
The achievable range depends on the optical transceiver, fiber type, connector quality and optical power budget. Confirm the exact 20km rating and required fiber specification before installation.
The product is advertised with video resolution support up to 1920 × 1080 pixels at 60Hz, providing a practical display format for professional monitoring and computer applications.
Full HD resolution is suitable for viewing desktop applications, monitoring dashboards, security camera interfaces and presentation content on compatible HDMI displays.
The HDMI connection can also carry supported embedded audio alongside the video signal.
Native 4K transmission is not confirmed for this exact product. Buyers requiring 4K should choose an extender with a verified 4K specification.
The extender includes KVM-related USB connections for operating a source computer from a remote workstation.

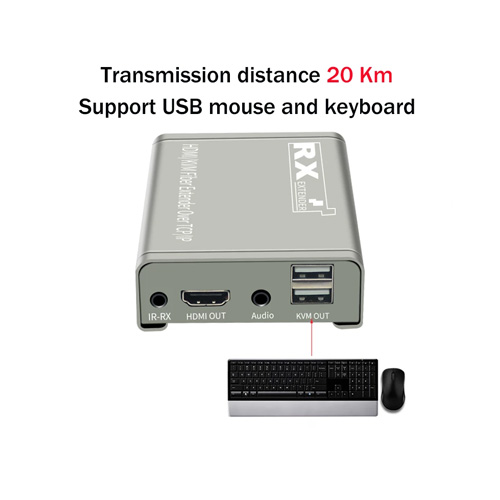

The pictured receiver features a USB-A connection labeled K/M OUT, indicating an interface intended for keyboard and mouse connectivity.
This arrangement helps keep the computer in a secure or centralized equipment area while providing convenient operator access at the remote display.
Support for USB storage, webcams and other high-bandwidth peripherals is not established. The USB interface should primarily be treated as a keyboard/mouse control connection unless additional compatibility is confirmed.
The pictured equipment uses a dedicated optical connector arrangement for linking the transmitter and receiver.
This optical connection is designed to replace the long copper video connection between source and display locations.
Fiber-optic cabling is particularly useful in environments with significant electrical interference or where long transmission distances are required.
The exact optical connector, fiber mode and supported network topology must match the supplied hardware. Do not assume that the extender operates through an ordinary RJ45 Ethernet switch or supports multiple receivers without explicit manufacturer confirmation.
The pictured unit includes a 3.5mm AUDIO connection and an IR RX port, providing physical interfaces for audio and infrared-related functions.
These connections can be useful in audiovisual installations where the operator needs access to sound or compatible remote-control equipment.
The actual audio direction, infrared signal compatibility and required accessories depend on the product's internal design.
Confirm these functions against the supplier manual before planning an installation. The presence of a labeled port alone does not establish universal audio or remote-control compatibility.

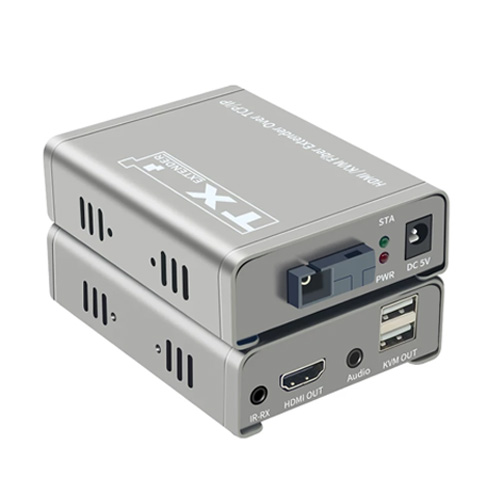

The extender features compact silver-colored metal enclosures with ventilation openings, suitable for placement near computer equipment and display installations.
The metal construction provides a durable exterior for professional environments, while the ventilation openings help support normal equipment cooling.
A DC 5V power connection is visible in the supplied product image. The exact required current rating should be checked on the product label or power adapter.
For reliable operation, use the correct power supplies, properly terminated optical cables and suitable ventilation. Avoid disconnecting active fiber connections unnecessarily or looking directly into optical ports.
The HDMI Fiber Optic KVM Extender is suitable for CCTV monitoring operators, IT technicians, system integrators, industrial facilities, control-room operators and businesses requiring long-distance HDMI and computer-control connectivity.
It can be considered for remote workstations, centralized computer systems, equipment rooms, monitoring centers and other professional installations with suitable optical fiber infrastructure.
Before purchasing, confirm the required distance, resolution, fiber connector, keyboard/mouse compatibility and power specifications.
IT Source provides computer connectivity accessories and professional display solutions for customers in Bangladesh. This HDMI Fiber Optic KVM Extender offers a practical approach to remote video and computer-control installations.
Contact IT Source to confirm the latest price, stock availability, exact technical specifications and applicable warranty before ordering.
The product is advertised for transmission distances up to 20km. Actual performance depends on the optical modules, fiber type and installation quality. Verify the supplied hardware's optical specification before deployment.
The existing product listing specifies Full HD 1080p at 60Hz. Native 4K transmission has not been verified for the pictured model.
The product is designed for KVM operation using compatible keyboard and mouse connections. The exact USB configuration and supported devices should be checked against the supplier instructions.
