ACASIS M001 Mac mini M4 Docking Station Price in Bangladesh
The ACASIS M001 10Gbps Mac mini M4 Docking Station combines a desktop stand, dual M.2 NVMe SSD storage and multiple connectivity ports in one compact accessory. Designed for the Apple Mac mini M4 and M4 Pro, it helps users expand their storage and connect essential desktop peripherals.
With two NVMe SSD slots supporting up to 16TB combined capacity, the M001 is useful for managing large files, media projects and backups. Its USB-C host interface supports up to 10Gbps data transfer, while four 10Gbps USB-A ports provide convenient peripheral connections.
The dock also features 4K 60Hz HDMI output, SD/TF 3.0 card readers, dual cooling fans and a 30W PD power input. Explore the ACASIS M001 price in Bangladesh at IT Source for a practical Mac mini storage and connectivity upgrade.
Top Highlights
- 10Gbps USB-C ConnectivityFast data access through a compatible Mac mini connection.
- Dual NVMe SSD EnclosureTwo M.2 slots with up to 16TB combined storage capacity.
- 4K 60Hz HDMI OutputConnect a supported UHD monitor for desktop expansion.
- USB & Card ExpansionFour 10Gbps USB-A ports and SD/TF 3.0 readers.

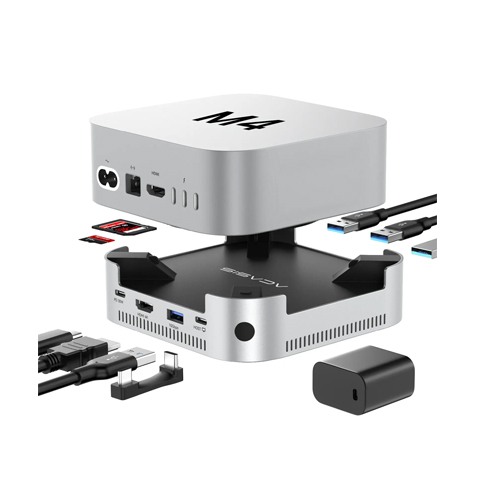

About the ACASIS M001 Mac mini M4 Dock

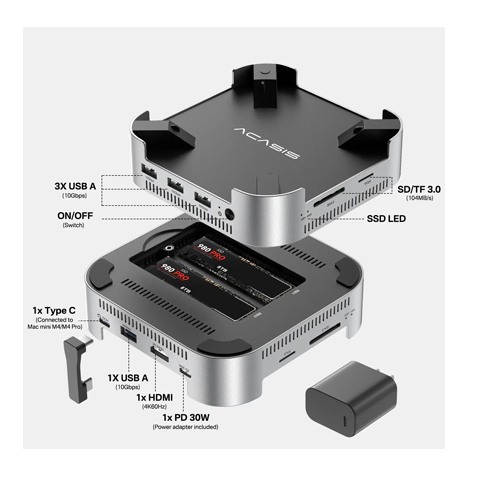

The ACASIS M001 is a 10Gbps docking station and dual-bay NVMe SSD enclosure designed for Apple Mac mini M4 and M4 Pro computers. It supports two M.2 NVMe SSDs in 2230, 2242, 2260 or 2280 sizes, with up to 16TB total storage capacity. The dock provides one HDMI output supporting 4K 60Hz, four 10Gbps USB-A ports, SD/TF 3.0 card readers and a 30W PD input. Its aluminum alloy body and dual cooling fans help manage heat during extended use.
Design & Performance
10Gbps USB-C Host Connection
The M001 connects to a compatible Mac mini through its USB-C host interface, providing up to 10Gbps theoretical data bandwidth for the connected SSDs and USB peripherals.
Actual speeds depend on the installed drives, host connection and simultaneous use of other dock functions.

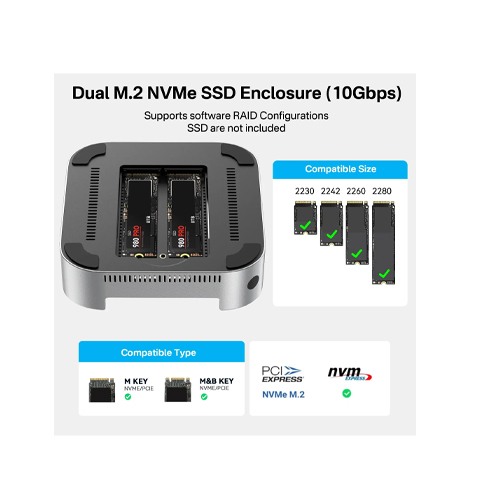

Dual M.2 NVMe SSD Storage
Two integrated SSD slots allow users to install compatible M.2 NVMe drives without requiring separate external enclosures. Supported SSD sizes include 2230, 2242, 2260 and 2280.
The dock supports NVMe/PCIe drives with compatible key configurations. M.2 SATA SSDs are not supported.
Up to 16TB Combined Capacity
The ACASIS M001 supports up to 8TB per SSD slot, providing up to 16TB combined raw storage when two compatible drives are installed.
This makes it useful for storing video footage, photo libraries, work files and backups. SSDs are sold separately.
Software RAID Support
The dual SSD design allows compatible software-based RAID configurations using macOS disk management tools. Users can configure storage based on their preferred workflow.
RAID 0 may improve some storage workloads, but performance remains limited by the dock's 10Gbps host interface. Always back up data before configuring RAID.
4K 60Hz HDMI Display Output
The integrated HDMI port supports up to 3840 × 2160 resolution at 60Hz with a compatible Mac mini, monitor and cable.
This provides a convenient additional monitor connection for office work, design and entertainment.
Four 10Gbps USB-A Ports
Four USB-A data ports support up to 10Gbps per port for compatible external drives, keyboards, mice and other USB accessories.
These ports reduce the need for separate USB hubs and adapters around the Mac mini.
SD 3.0 and TF 3.0 Card Readers
Built-in SD and microSD/TF 3.0 readers provide convenient access to compatible memory cards, with advertised transfer rates up to 104MB/s.
They are useful for transferring files from cameras and other devices that use removable memory cards.
Dual Built-In Cooling Fans
The dock includes two cooling fans and an aluminum alloy housing to help dissipate heat generated by the installed NVMe SSDs.
Keep the ventilation areas unobstructed for effective cooling during extended file transfers.
30W Power Delivery Input
The M001 includes a 30W PD power input for the docking station and connected accessories, helping maintain stable operation when multiple devices are attached.
The Mac mini continues to use its own power connection; the dock's PD input does not power the computer.

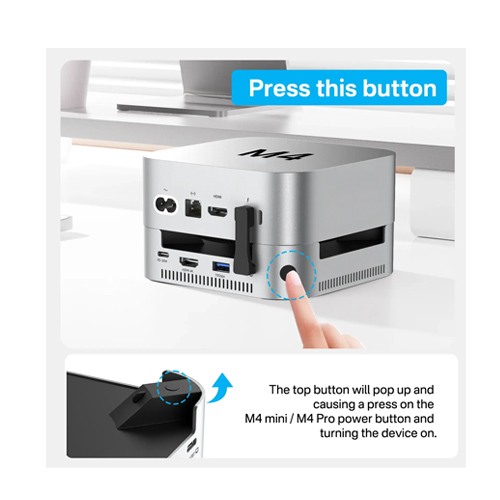

Dedicated Mac mini Stand Design
The dock is designed to fit the Mac mini M4 and M4 Pro, creating an integrated desktop setup with convenient access to additional ports.
Its compact stand design helps organise connected drives, cables and accessories.
Who It's For
The ACASIS M001 is suitable for Mac mini M4 and M4 Pro users who need additional SSD storage, USB connectivity and external display support. It is especially useful for photographers, video editors, designers, office professionals and home users building a compact desktop workstation.
Simple Buying Guide
Choose the M001 if you need a 10Gbps Mac mini dock with two NVMe SSD slots and one 4K HDMI output. Confirm that your Mac mini is an M4 or M4 Pro model, and select compatible M.2 NVMe SSDs in the supported sizes. If you require 40Gbps storage bandwidth or DisplayPort outputs, compare the specifications of the M001Pro or M002Pro instead.
Easy Steps to Check Before You Order
Verify the ACASIS M001 model, 10Gbps USB-C interface, dual NVMe SSD slots, 4K 60Hz HDMI output, four USB-A ports, SD/TF card readers and 30W PD input. Confirm SSD compatibility and check the current price, stock availability and warranty terms with IT Source Bangladesh.
Why Buy From IT Source?
Explore the ACASIS M001 Mac mini M4 Docking Station at IT Source Bangladesh for convenient storage and desktop expansion. Its dual NVMe SSD slots, HDMI output, USB-A connections and integrated cooling make it a practical accessory for compatible Mac mini workstations. Contact IT Source to confirm pricing, availability and warranty coverage.
Frequently Asked Questions
How many SSDs does the ACASIS M001 support?
It supports two compatible M.2 NVMe SSDs, up to 8TB each, for a combined capacity of up to 16TB.
Does ACASIS M001 support a 4K monitor?
Yes. Its HDMI output supports up to 4K at 60Hz with a compatible Mac mini, monitor and cable.
Is the ACASIS M001 compatible with Mac mini M4 Pro?
Yes. The M001 is designed for both Apple Mac mini M4 and Mac mini M4 Pro models.
