| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 15-in-1 USB-C Docking Station |
| Host Interface | Full-Featured USB-C |
| Video Outputs | 2 × HDMI, 1 × DisplayPort |
| Maximum Resolution | 4K@60Hz (Single Display) |
| Display Support | Dual: Up to 4K@30Hz + 2K@60Hz (Windows Extended) Triple: Up to 4K@30Hz + 2 × 1080P@60Hz (Windows Extended) macOS: Mirrored External Displays |
| Data Ports | 2 × USB-C (10Gbps) 3 × USB-A (5Gbps) |
| Ethernet | 10/100/1000Mbps |
| Card Reader | SD 3.0 + TF/microSD 3.0, UHS-I (80–90MB/s) |
| Audio | 3.5mm Audio/Microphone |
| Power | PD Input: Up to 100W USB-C Output: Up to 24W |
| Compatibility | Windows, macOS, Linux |
| Special Features | Material: Aluminum Alloy Color: Space Gray Dimensions: 121 × 85 × 36mm Weight: 527g Placement: Vertical / Horizontal |
| Warranty Information | |
| Warranty | N/A |

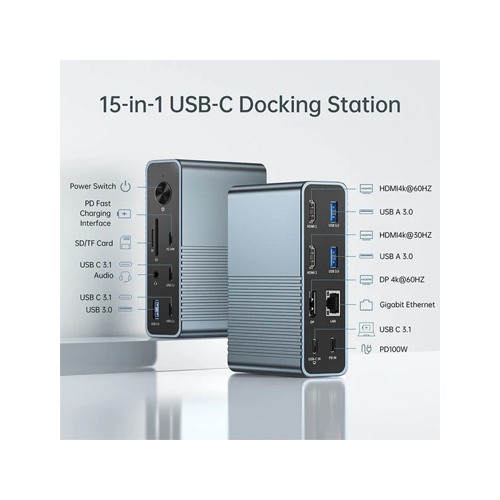

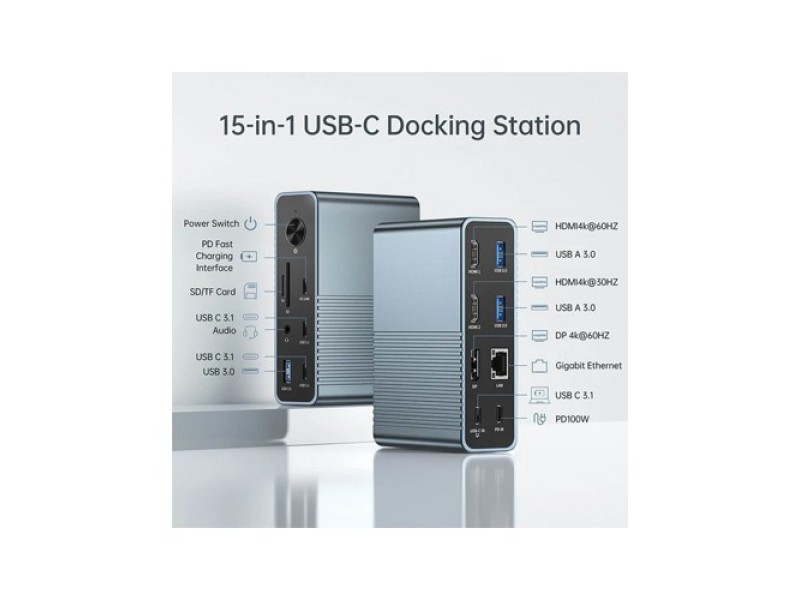

The ACASIS DS-7A15 is a 15-in-1 USB-C docking station designed for laptop users who need multiple displays, high-speed data connections and convenient desktop expansion. It combines dual HDMI outputs, DisplayPort, USB-A and USB-C data ports, Gigabit Ethernet, SD/TF card readers and audio connectivity.
With up to 4K@60Hz video, 10Gbps USB data transfer and 100W PD input support, this docking station provides a practical solution for compatible Windows, macOS and Linux computers.
The ACASIS DS-7A15 brings multiple desktop connections together in one USB-C docking station. Its combination of HDMI, DisplayPort, USB data, wired Ethernet, memory card readers and audio connectivity makes it suitable for productive laptop workstations. With flexible desktop placement and support for compatible multi-monitor configurations, it helps reduce the need for separate adapters.
The DS-7A15 features two HDMI ports and one DisplayPort for connecting external monitors, televisions and projectors. A compatible Windows laptop can use one external display at up to 4K@60Hz. Supported dual-display configurations reach up to 4K@30Hz plus 2K@60Hz, while triple-display configurations support up to 4K@30Hz plus two 1080p@60Hz displays.
Display configurations differ on macOS, where multiple external screens connected through the dock mirror rather than operate as independently extended displays. Resolution and refresh rate depend on the host computer, connected displays and cables.

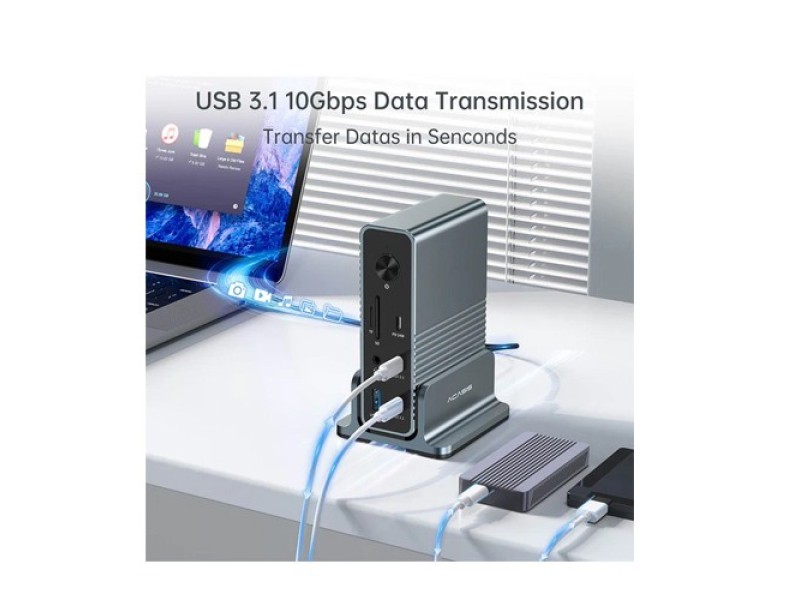

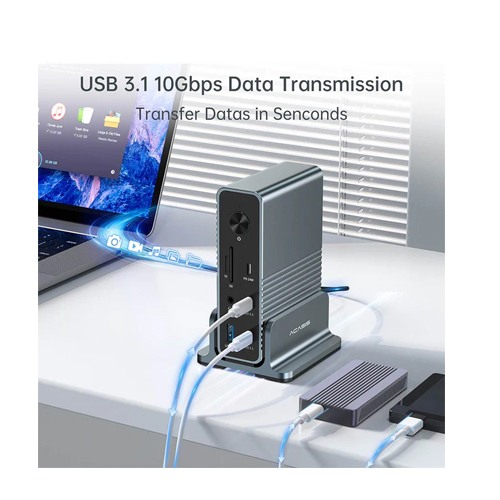

Two USB-C data ports support transfer speeds up to 10Gbps for compatible external SSDs, storage devices and USB accessories. Three USB-A ports provide up to 5Gbps connectivity for flash drives, keyboards, mice and other peripherals.
These ports help organize multiple devices around a laptop workstation. Actual data speeds depend on the connected equipment, host capabilities and available bandwidth.

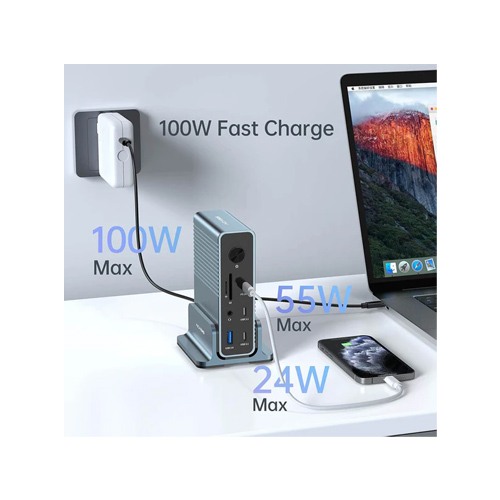

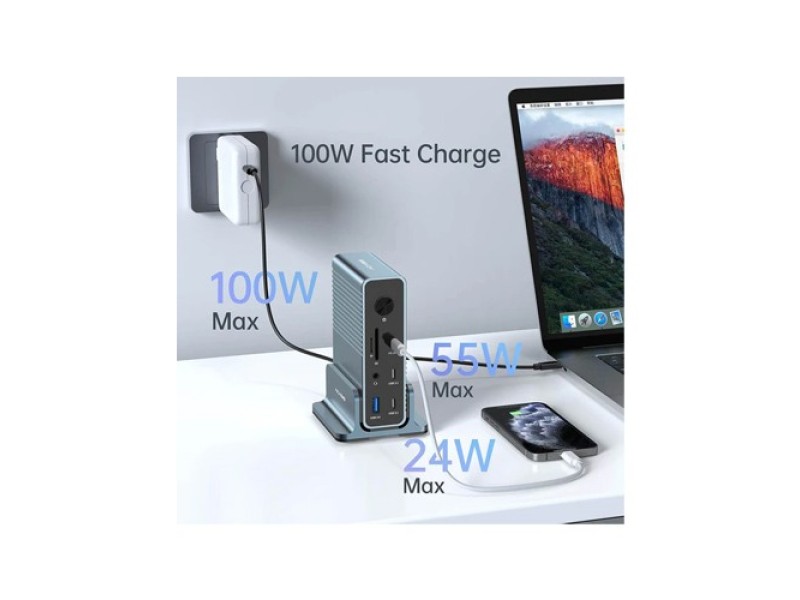

The docking station supports USB-C Power Delivery input up to 100W for compatible laptop charging arrangements. A separate USB-C charging output supports up to 24W for suitable devices.
To use laptop charging, connect an appropriate external USB-C PD power adapter to the docking station's PD input. The charging power available to the laptop depends on the adapter rating, docking station power consumption and host charging requirements.
The integrated RJ45 Ethernet connection supports 10/100/1000Mbps wired networking. This provides a useful alternative to Wi-Fi for compatible workstations requiring a wired connection for file transfers, meetings and everyday office tasks.
A 3.5mm audio connection allows compatible headphones, headsets and microphones to be connected through the docking station, reducing the need to access laptop ports directly.
Built-in SD and TF/microSD card readers provide convenient access to compatible memory cards. The card reader interface supports UHS-I media, with ACASIS reporting approximately 80–90MB/s transfer speeds under its laboratory conditions.
The card slots are useful for transferring photographs, documents and media from supported storage cards. Actual performance depends on the memory card and connected computer.

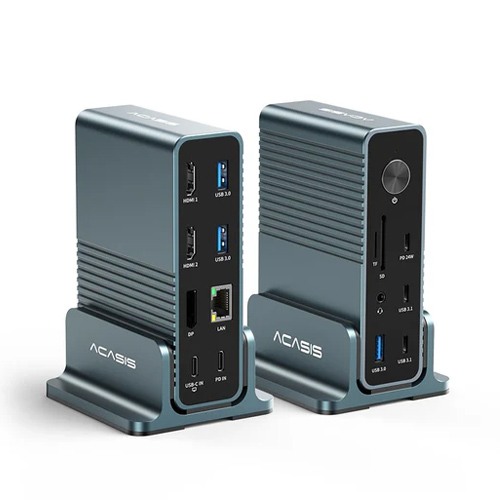

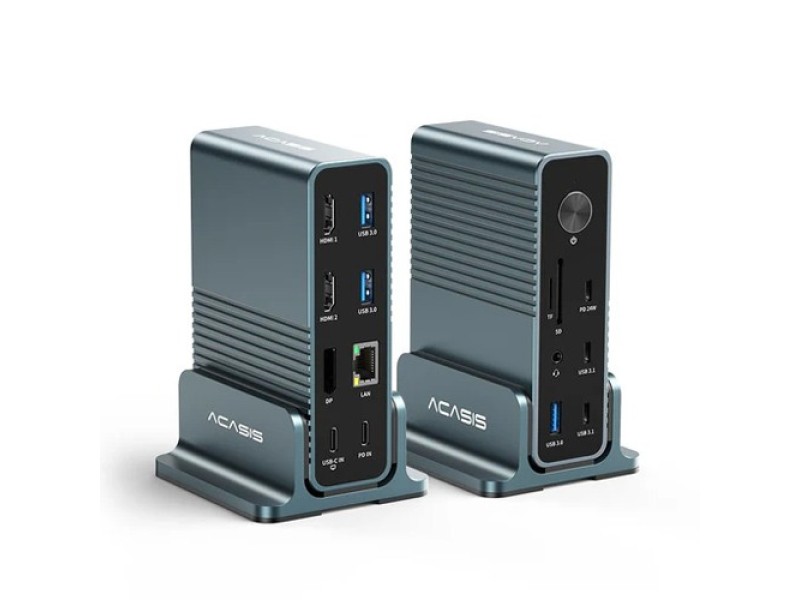

The DS-7A15 measures approximately 121 × 85 × 36mm and weighs around 527g. Its space-gray housing supports vertical and horizontal placement, making it suitable for desktop workstations where space and cable organization matter.
The host computer requires a full-featured USB-C connection supporting the necessary video, data and power functions. ACASIS lists compatibility with supported Windows, macOS and Linux systems. Check the laptop's USB-C specifications before using multiple external displays or Power Delivery charging.
Office Professionals: Connect monitors, Ethernet and everyday peripherals. Remote Workers: Build an organized laptop workstation. Designers and Editors: Use compatible high-resolution displays and external storage. IT Professionals: Access USB devices, wired networking and multiple connections. Photographers: Transfer files using SD and microSD cards. Windows Multitaskers: Expand their workspace across supported external monitors.
IT Source offers ACASIS docking stations and computer connectivity accessories for customers in Bangladesh. Check the latest DS-7A15 price, availability and applicable warranty before ordering. Confirm your laptop's USB-C video capabilities, charging requirements and operating system display limitations to ensure the docking station suits your setup.
Buy ACASIS DS-7A15 15-in-1 USB-C Docking Station from IT Source Bangladesh
Expand your workstation with multiple displays, 10Gbps USB data, Gigabit Ethernet and Power Delivery connectivity.
