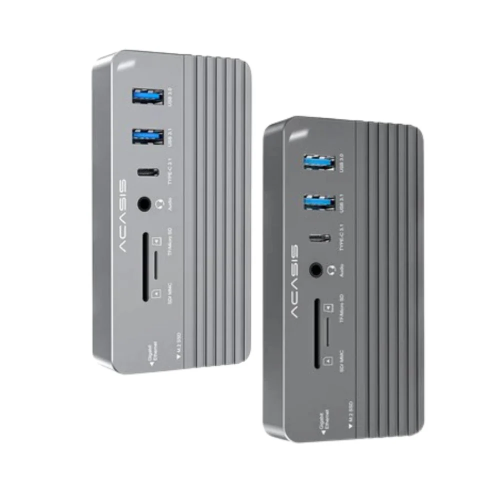

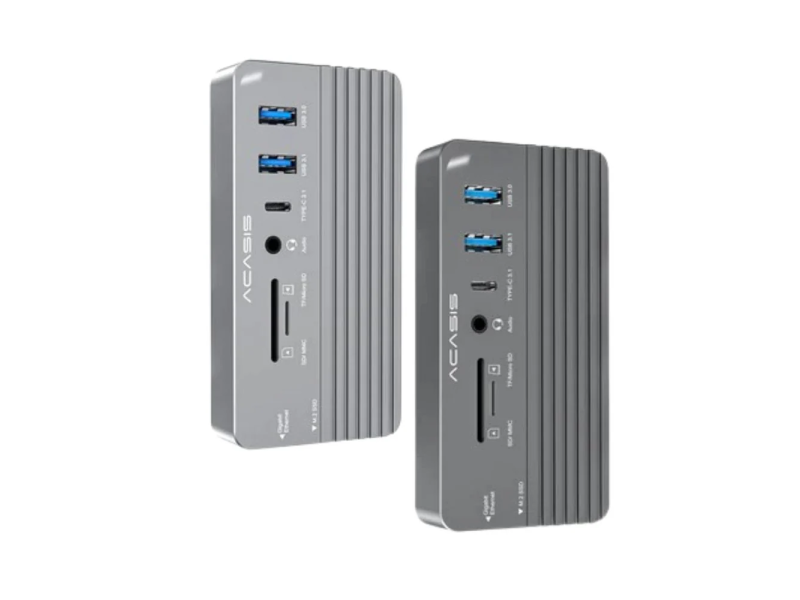

ACASIS CM073 10-in-1 USB-C Hub with M.2 SSD Enclosure

ACASIS CM073 10-in-1 USB-C Hub Price in Bangladesh

Top Highlights

• 10-in-1 USB-C ExpansionConnect displays, USB peripherals, network, memory cards and audio.
• 4K 60Hz HDMI DisplaySupports high-resolution external monitors with compatible hosts.
• Integrated 10Gbps SSD StorageSupports M.2 NVMe and SATA SSDs up to 8TB.
• 100W PD & Gigabit EthernetCharging passthrough and reliable wired networking.

About the ACASIS CM073 10-in-1 USB-C Hub

The ACASIS CM073 is a multifunctional USB-C expansion hub designed to combine desktop connectivity and external SSD storage in one compact accessory. Many modern laptops provide a limited selection of ports, which can make it difficult to connect a monitor, wired network, storage devices, memory cards and other peripherals simultaneously. The CM073 addresses this challenge through its 10-in-1 design, offering a practical combination of video output, USB data connections, charging passthrough, wired networking, card readers, audio and integrated M.2 SSD storage. Its HDMI output supports up to 4K resolution at 60Hz when the connected computer and display support the required video mode. This makes the hub useful for connecting a larger monitor for spreadsheets, documents, presentations, photo editing and general multitasking. The USB-C data port and USB-A 3.1 Gen 2 port support up to 10Gbps theoretical data transfer, while the additional USB-A 3.0 port supports up to 5Gbps. A Gigabit Ethernet connection offers wired networking at 10/100/1000Mbps, making it useful when Wi-Fi is unreliable or when a stable wired connection is preferred. The SD and microSD card readers support speeds up to 104MB/s according to the product documentation, allowing convenient access to compatible camera and mobile-device memory cards. A combined 3.5mm audio and microphone jack adds a useful connection for compatible wired headsets. The USB-C Power Delivery input supports chargers up to 100W, although the actual power passed to the laptop is lower than the input rating and depends on the charger, host and power requirements of connected devices. One of the most distinctive features is the built-in M.2 SSD enclosure, which supports compatible NVMe M-key and SATA B/B+M-key SSDs. The enclosure accommodates 2230, 2242, 2260 and 2280 SSD sizes and supports capacities up to 8TB. This enables users to create convenient external storage for documents, project files, media libraries and backups without carrying a separate SSD case. The aluminum alloy housing helps conduct heat away from internal components, while the SSD installation arrangement supports practical drive access and maintenance. The CM073 measures approximately 113 x 56 x 19mm and weighs around 145g, making it portable enough for regular commuting and business travel. It supports Windows, macOS and Linux according to the user manual, while additional compatibility with certain tablets and mobile devices depends on the device's USB-C capabilities. For customers in Bangladesh seeking an all-in-one USB-C hub that also provides external SSD storage, the ACASIS CM073 offers a useful combination of connectivity, portability and convenience.

Design & Performance

10-in-1 Multifunction USB-C Expansion

The ACASIS CM073 combines multiple essential connections into a single USB-C hub. It provides access to HDMI video, USB data, wired networking, memory cards, audio, charging input and an internal SSD enclosure.

This integrated approach helps reduce the number of separate adapters required for a laptop workstation. Individual features depend on the capabilities of the connected computer and the available USB-C bandwidth.

4K 60Hz HDMI Display Output

The HDMI port supports external display output up to 3840 x 2160 resolution at 60Hz. It can be used with compatible monitors, projectors and other HDMI displays for work, presentations and entertainment.

The host computer's USB-C port must support DisplayPort Alternate Mode or another compatible video-output capability. A USB-C data-only port cannot provide HDMI output through this hub.

High-Speed 10Gbps USB Data Ports

The CM073 includes a USB-C 3.1 data port and a USB-A 3.1 Gen 2 port, each supporting up to 10Gbps theoretical interface bandwidth. These connections are useful for compatible external drives and other high-speed USB devices.

The additional USB-A 3.0 port supports up to 5Gbps and can be used for compatible peripherals. Actual transfer speeds depend on the host, connected devices and shared bandwidth.

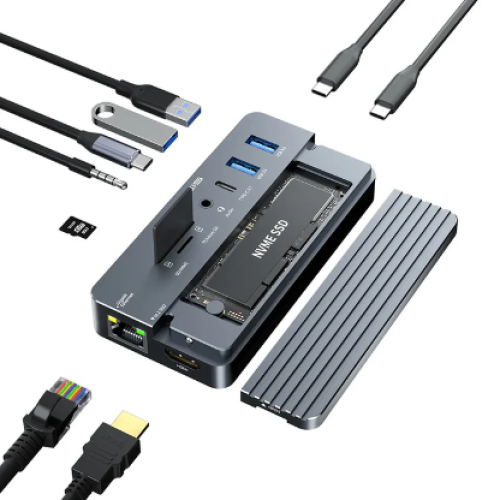

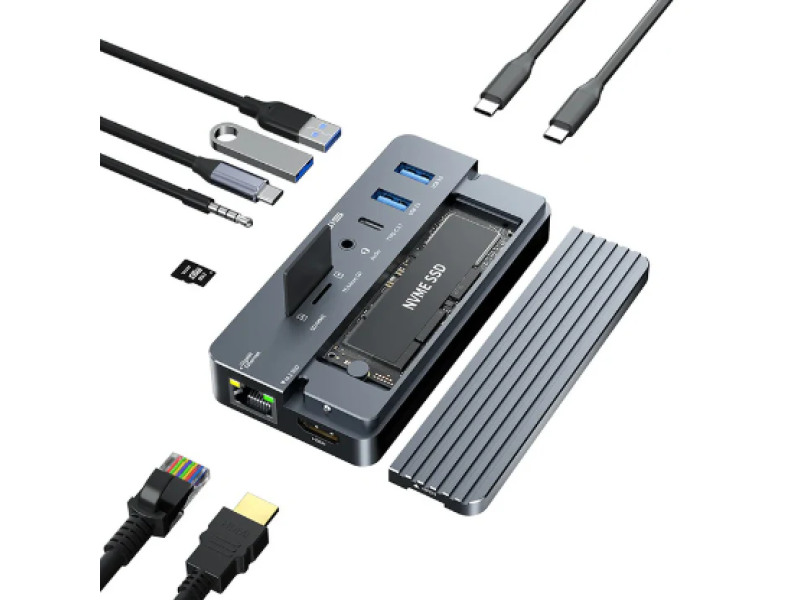

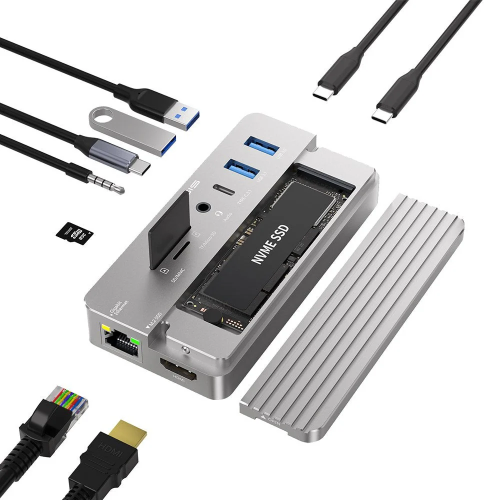

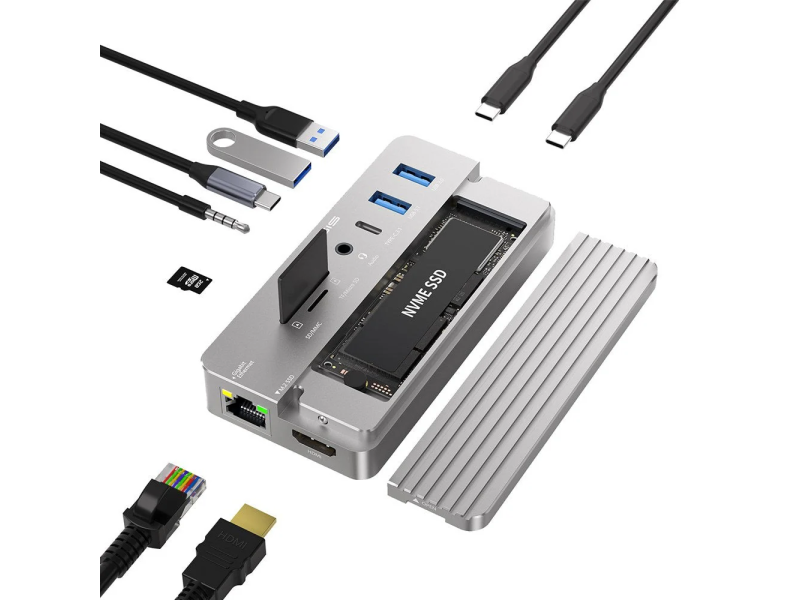

Built-In M.2 NVMe and SATA SSD Enclosure

Unlike many conventional USB-C hubs, the CM073 includes an internal M.2 SSD slot. The official user manual confirms support for compatible NVMe M-key SSDs and SATA B/B+M-key SSDs.

The integrated enclosure allows users to build portable external storage from a compatible drive. The SSD must be installed correctly, and a new drive may need to be initialised and formatted before use.

Up to 8TB SSD Capacity

The ACASIS CM073 supports compatible M.2 SSD capacities up to 8TB. This provides flexible storage for documents, large photo collections, video projects and backup files.

Storage capacity is determined by the installed SSD, not the hub itself. Check the selected drive's interface, dimensions and power requirements before installation.

Supports M.2 2230, 2242, 2260 and 2280

The internal SSD enclosure accommodates four common M.2 lengths: 2230, 2242, 2260 and 2280. This makes the hub suitable for a range of compatible NVMe and SATA storage drives.

SSD interface and keying must match the supported specifications. Drives with oversized factory-installed heatsinks may not fit inside the compact enclosure.

Up to 100W USB-C Power Delivery Input

The dedicated USB-C PD input supports up to 100W from a compatible USB-C Power Delivery charger. This enables the hub to supply charging power to a supported laptop while other hub functions are in use.

The actual charging power delivered to the laptop will be lower than the input rating because the hub consumes some power. Use a suitable charger and cable, particularly when connecting multiple peripherals or a high-capacity SSD.

Gigabit Ethernet Wired Networking

The RJ45 Ethernet port supports 10/100/1000Mbps networking, allowing a compatible laptop to connect to a wired local network. This is useful for office desks, workstations and locations where wired access is preferred.

Actual network speed depends on the router, network switch, cable, internet service and connected computer. Gigabit Ethernet capability does not guarantee a 1000Mbps internet connection.

SD and MicroSD Memory Card Readers

The hub includes dedicated SD and TF/microSD card readers, each rated up to 104MB/s according to the product documentation. These slots are useful for transferring photographs, videos and documents from compatible memory cards.

Actual speeds depend on the memory card's performance and the host connection. Safely eject removable storage before removing cards during active file operations.

3.5mm Audio and Microphone Connectivity

A combined 3.5mm audio and microphone connection allows compatible wired headsets or audio accessories to be connected through the hub. This adds convenience for online meetings, calls and everyday listening.

Audio and microphone functionality depends on the headset wiring standard, operating system and device settings. Confirm compatibility when using specialised audio equipment.

Compact Aluminum Alloy Construction

The ACASIS CM073 uses an aluminum alloy housing with approximate dimensions of 113 x 56 x 19mm and a published weight of around 145g. Its compact size makes it practical for desk setups, laptop bags and business travel.

The metal housing helps conduct heat away from internal components. It may become warm during extended use, especially when an SSD and multiple connected devices are operating simultaneously.

Practical for Windows, Mac and Linux

The CM073 supports Windows, macOS and Linux according to its official user manual. It is useful for expanding compatible laptops and desktop computers with additional connections and external storage.

Support for video output, charging and peripheral functions depends on the host hardware and operating system. Tablets and smartphones may offer only some functions, depending on their USB-C capabilities.

Who It's For

The ACASIS CM073 10-in-1 USB-C Hub with M.2 SSD Enclosure is ideal for office professionals, university students, freelancers, photographers, video editors, IT technicians, business travellers and users of compatible USB-C laptops. It is particularly useful for people who need external monitor connectivity, high-speed USB storage, wired Ethernet, memory card access and laptop charging from a single compact accessory. Photographers and content creators can benefit from the integrated card readers and SSD enclosure, while office users may appreciate the 4K HDMI output, Gigabit LAN and USB peripheral connections. The compact aluminum design also makes it convenient for portable workstation setups.

Simple Buying Guide

Before purchasing the ACASIS CM073, check the specifications of your laptop's USB-C port. For HDMI display output, the host must support a compatible video mode such as DisplayPort Alternate Mode. For charging passthrough, the computer must support USB-C Power Delivery input. If you intend to use the internal SSD enclosure, choose a compatible M.2 NVMe M-key or SATA B/B+M-key SSD in the 2230, 2242, 2260 or 2280 form factor, with capacity up to 8TB. Remember that 100W is the maximum PD input rating rather than guaranteed charging output to the laptop. For stable operation with several peripherals, use a suitable power adapter and cable.

Easy Steps to Check Before You Order

Confirm the model number ACASIS CM073 and verify that you need the 10-in-1 USB-C hub with an integrated M.2 SSD enclosure. Check the 4K 60Hz HDMI output, 10Gbps USB-C and USB-A data ports, 5Gbps USB-A port, 100W PD input, Gigabit Ethernet, SD/microSD card readers and 3.5mm audio connection. Measure your SSD and confirm its interface and form factor. Check the hub dimensions of approximately 113 x 56 x 19mm and confirm that your laptop supports the required USB-C features. Finally, verify the latest price, stock availability and applicable warranty terms with IT Source Bangladesh.

Why Buy From IT Source?

Explore the ACASIS CM073 10-in-1 USB-C Hub with M.2 NVMe/SATA SSD Enclosure at IT Source Bangladesh and simplify your laptop workstation with a versatile all-in-one accessory. Its combination of 4K HDMI output, USB data ports, integrated SSD storage, Power Delivery input, wired networking, memory card readers and audio connectivity makes it useful for work, study and travel. Before ordering, confirm compatibility with your laptop and SSD, and check the latest price, stock availability and applicable warranty terms with IT Source.
