| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 5-in-1 USB-C Hub |
| Dimensions | 115 × 35 × 12.5mm |
| Weight | Approximately 76g |
| Material | Aluminum Alloy |
| Number of Ports | 5 |
| Port & Slot | 3× USB-A 3.0, 1× HDMI, 1× USB-C PD Input |
| Video Outputs | 1× HDMI |
| Maximum Resolution | 4K (3840 × 2160) |
| Maximum Refresh Rate | 60Hz at 4K |
| Data Transmission | USB 3.0 / USB 3.2 Gen 1 |
| USB Data Speed | Up to 5Gbps (Shared Bandwidth) |
| Power Delivery (PD) | Up to 100W Input |
| Maximum Host Charging | Approximately 95W |
| Host Connection | USB-C Male |
| Cable Length | 15cm |
| Cable Type | Integrated Braided USB-C Cable |
| Compatible Devices | USB-C Laptops and Tablets with Supported Host Functions |
| Compatible Operating Systems | Windows, macOS, Linux, ChromeOS; compatible iPadOS/Android devices |
| Special Features | Supported Display: Single External HDMI Display HDMI Requirement: Host USB-C Video Output / DP Alt Mode Color: Gray Product Code: 15597 |
| Warranty Information | |
| Warranty | N/A |

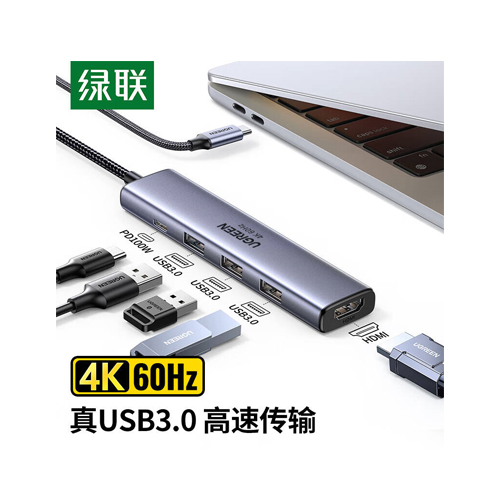

The UGREEN CM511 (15597) is a 5-in-1 USB-C hub featuring a 4K@60Hz HDMI output, three USB-A 3.0 data ports and a 100W USB-C PD charging input. It helps connect a compatible laptop or tablet to an external display, USB accessories and a charging source through one USB-C connection.
Its aluminum housing and 15cm braided cable make it suitable for office desks, home workstations and portable setups. Check the latest UGREEN CM511 (15597) price in Bangladesh at IT Source.
The UGREEN CM511 (15597) expands a compatible USB-C connection into five interfaces. Its HDMI, USB-A and USB-C PD ports help create a practical workstation using one laptop connection.
The HDMI output supports up to 4K at 60Hz, while three USB-A 3.0 ports offer up to 5Gbps data transfer. A dedicated USB-C PD input accepts up to 100W from a compatible charger.
Its aluminum enclosure and integrated 15cm braided cable provide a compact design for desk and travel use. The hub works through the host device's native USB-C capabilities.
The CM511 provides one HDMI output supporting resolutions up to 3840 × 2160 at 60Hz. It is useful for connecting compatible laptops to external monitors, televisions and projectors.
The host USB-C port must support DisplayPort Alt Mode or equivalent native video output. Actual resolution depends on the source device, display and HDMI cable.
Three USB-A ports allow users to connect flash drives, external storage, keyboards, mice and other compatible USB peripherals.
Each port supports USB 3.0 data transmission up to 5Gbps. The ports share the host connection's available bandwidth, so simultaneous transfers may reduce individual speeds.

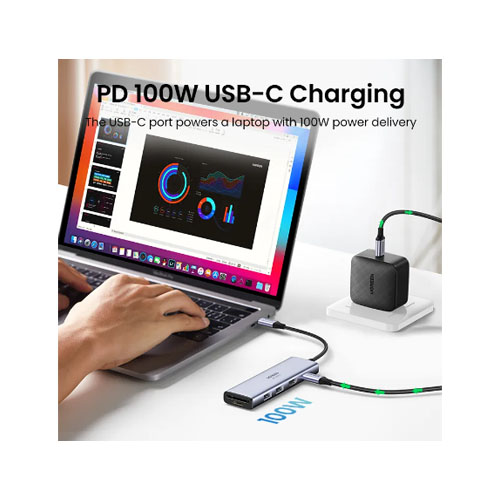

The dedicated USB-C PD port accepts up to 100W from a compatible USB-C charger. It allows supported laptops to receive charging power while using the hub.
Approximately 95W is the maximum advertised power available to the host after hub allocation. Actual charging depends on the charger, cable, laptop and connected peripherals.
The hub combines one HDMI output, three USB-A data ports and one USB-C PD input. These connections support common display, storage and charging requirements.
The USB-C female port is intended for charging input, not USB-C data or video output. This model does not include Ethernet, SD card readers or a second HDMI port.
An integrated approximately 15cm braided USB-C cable connects the hub to a compatible host device. The short cable helps keep a laptop workstation organized.
Its compact design is suitable for carrying with a laptop or tablet. Avoid pulling or sharply bending the cable near the connector.
The CM511 features an aluminum housing measuring approximately 115 × 35 × 12.5mm. Its lightweight construction is practical for desktop and mobile use.
Standard hub functions operate without a dedicated DisplayLink driver. USB data, HDMI video and PD charging remain dependent on the capabilities of the connected host device.
Laptop Users: Add HDMI, USB-A connectivity and charging through one USB-C port. Office Professionals: Connect monitors, keyboards and storage devices. Students: Build a convenient desk setup for study and presentations. Content Creators: Transfer files from USB storage and connect an external display. Travelers: Carry a compact multiport adapter for compatible laptops and tablets.
IT Source offers UGREEN USB-C hubs and computer connectivity accessories for customers in Bangladesh. Check the latest UGREEN CM511 (15597) price, stock availability and applicable warranty before ordering. Confirm that your laptop supports USB-C video output and Power Delivery input if you intend to use HDMI and charging together.
Buy UGREEN CM511 (15597) 5-in-1 USB-C Hub from IT Source Bangladesh
Expand your workstation with 4K@60Hz HDMI, three 5Gbps USB-A ports and 100W PD charging input.
