| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 10-in-1 USB-C Docking Station with NVMe Enclosure |
| Color | Grey |
| Host Interface | USB-C |
| HDMI Output | 1 × HDMI 2.0 3840 × 2160 @ 60Hz |
| USB Ports | 1 × USB-A 10Gbps 2 × USB-A 5Gbps 1 × USB-C 10Gbps |
| Power Delivery | 100W Input 85W Laptop Charging |
| Ethernet | 1 × Gigabit RJ45 (10/100/1000Mbps) |
| Card Reader | SD + microSD/TF (Up to 170MB/s) |
| SSD Enclosure | Built-in M.2 NVMe Up to 10Gbps Sizes: 2230 / 2242 / 2260 / 2280 M-Key or B+M-key NVMe No M.2 SATA Support SSD Not Included |
| Material | Aluminum |
| Special Features | External Monitor Support: One HDMI display HDMI Host Requirement: USB-C with video output capability |
| Warranty Information | |
| Warranty | N/A |
Looking for the UGREEN Revodok Pro CM923 (55735) price in Bangladesh? This 10-in-1 USB-C docking station combines an integrated M.2 NVMe SSD enclosure, 4K@60Hz HDMI output, four USB data ports, Gigabit Ethernet, SD/TF card readers and up to 100W Power Delivery input.
Designed for compatible USB-C laptops and tablets, the Revodok Pro 55735 offers a practical way to expand storage and connect essential desktop accessories through one hub. Check the latest UGREEN CM923 price and availability at IT Source Bangladesh.

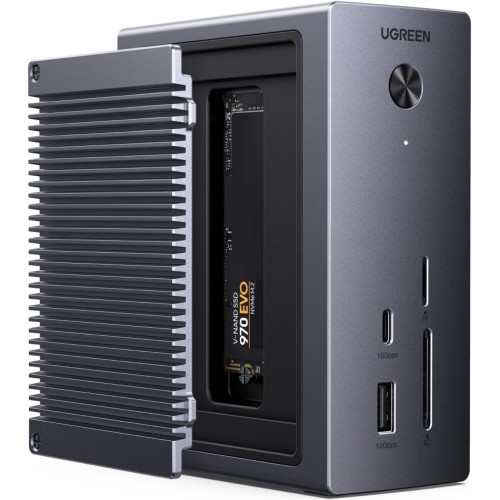

The UGREEN Revodok Pro CM923 (55735) is a multifunctional USB-C docking station designed for users who want both external connectivity and additional SSD storage in one device.
Unlike an ordinary USB-C hub, this model includes an integrated M.2 NVMe enclosure. Users can install a compatible NVMe SSD directly into the hub, creating convenient external storage for documents, photographs, video files and project data.
The docking station supports one external display through its HDMI 2.0 output, with resolutions up to 3840 × 2160 at 60Hz on compatible USB-C video hosts.
Its four USB data connections include one USB-A 10Gbps port, one USB-C 10Gbps port and two USB-A 5Gbps ports. This combination supports modern storage accessories alongside common USB peripherals.
A Gigabit RJ45 Ethernet connection provides wired networking, while separate SD and microSD/TF slots allow convenient access to compatible memory cards.
The dedicated USB-C Power Delivery input accepts up to 100W, providing approximately up to 85W charging passthrough to a supported laptop.
With its compact aluminum construction and broad range of connections, the CM923 is suitable for home offices, business travel, creative workflows and portable workstations.
The UGREEN Revodok Pro 55735 combines ten connectivity functions in a compact aluminum docking station.
Its connections include HDMI, three USB-A data ports, one USB-C data port, Gigabit Ethernet, SD and microSD card readers, a dedicated USB-C PD input and an M.2 NVMe SSD enclosure.
This arrangement allows users to connect an external monitor, storage accessories, wired networking and memory cards without carrying several separate adapters.
The aluminum enclosure provides a durable outer structure and helps dissipate heat produced during normal operation.
Because the SSD compartment is integrated into the dock, users can add external storage without occupying one of the separate USB data ports.
The CM923 also includes a power button for controlled hub and storage operation, making it convenient to manage the connected setup.
Its combined design is particularly useful for laptops with limited built-in USB, HDMI or Ethernet connectivity.
The CM923 includes an M.2 SSD compartment supporting compatible NVMe solid-state drives through an interface rated up to 10Gbps.
It accepts M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 form factors, allowing users to select a drive size that matches their storage requirements.
The enclosure supports M-Key and B+M-key NVMe drives. M.2 SATA SSDs are not supported, even if their physical connector appears similar.
Users can install a suitable NVMe SSD for storing project files, creating backups or transferring data between compatible computers.
This is useful for photographers, designers and other users who regularly handle large files and want storage integrated into their docking station.
The 10Gbps figure represents the maximum interface rate rather than guaranteed SSD read or write performance. Actual transfer speeds depend on the SSD, host connection, temperature and workload.
The SSD must be purchased separately. Users should confirm the SSD type and dimensions before installation.
The UGREEN CM923 provides one HDMI 2.0 output supporting resolutions up to 3840 × 2160 at 60Hz.
With a compatible laptop and monitor, this allows users to create a larger workspace for documents, spreadsheets, presentations and multimedia.
A 60Hz display mode offers smoother desktop movement than 30Hz when the connected equipment supports the full advertised resolution and refresh rate.
The HDMI connection requires a host USB-C port capable of video output, such as DisplayPort Alternate Mode, compatible USB4 or Thunderbolt video support.
A USB-C port that supports data transfer only cannot provide an HDMI picture through this dock.
The maximum available display mode depends on the laptop's graphics capabilities, USB-C video output, HDMI cable and connected monitor.
The CM923 has one HDMI output and is not designed to operate two independent external monitors directly from the hub.
The UGREEN Revodok Pro 55735 provides four downstream USB data ports with different speed ratings.
One USB-A 3.2 Gen 2 port supports up to 10Gbps, making it suitable for compatible high-speed external SSDs and other storage devices.
One USB-C data port also supports up to 10Gbps for compatible USB-C storage enclosures and peripherals.
Two additional USB-A ports support up to 5Gbps and are useful for flash drives, keyboards, mice and other everyday USB accessories.
This arrangement allows users to connect both modern USB-C devices and existing USB-A accessories through the same hub.
The downstream USB-C data port is designed for data transfer only. It does not provide an additional video output or laptop charging connection.
Actual file transfer speeds depend on the connected devices, cables and shared bandwidth of the host USB connection.
The CM923 features a dedicated USB-C Power Delivery input supporting up to 100W from a compatible charger.
When a suitable USB-C PD charger is connected, the docking station can provide approximately up to 85W charging passthrough to a supported laptop.
This allows users to keep their computer powered while connecting HDMI, USB storage, Ethernet and memory cards through the dock.
The distinction between 100W input and approximately 85W host output is important. Some of the incoming power is reserved for the hub and its connected functions.
The charging connection uses USB-C Power Delivery negotiation, so actual laptop charging power depends on the computer, charger and cable.
Users whose laptops require higher charging power should confirm whether the available passthrough output is sufficient.
The PD input is not an additional USB data port or video connection. A suitable PD charger is required for charging functionality.
The UGREEN CM923 includes an RJ45 Gigabit Ethernet port supporting network speeds up to 1000Mbps.
This provides a wired connection option for compatible office networks, routers and network storage devices.
Wired Ethernet can be useful for users who prefer a stable network connection during file transfers, meetings and everyday work.
The dock also includes separate SD and microSD/TF card slots for accessing supported removable storage media.
UGREEN specifies card transfer rates up to 170MB/s with compatible cards and equipment.
These readers are useful for importing photographs, transferring documents and copying files between memory cards and the internal NVMe SSD.
Actual network and card transfer performance depends on the connected equipment, host connection and available bandwidth.
The UGREEN Revodok Pro CM923 (55735) is suitable for laptop users who want to combine a USB-C docking station with an M.2 NVMe SSD enclosure.
Office professionals can connect an external display, USB accessories and wired networking while keeping a compatible laptop charged.
Photographers and content creators can use the SD/microSD card readers and integrated NVMe storage for handling project files.
Students and home users may appreciate the combination of USB-A, USB-C, HDMI and Ethernet connections in one portable accessory.
It is particularly useful for users who need external NVMe storage but prefer not to carry a separate SSD enclosure.
IT Source offers USB-C hubs, docking stations and computer storage accessories for customers in Bangladesh.
Customers can check the latest UGREEN Revodok Pro CM923 (55735) price and availability before ordering.
Because this model includes an NVMe enclosure, it is important to confirm SSD compatibility, USB-C video support and laptop charging requirements before purchasing.
Contact IT Source Bangladesh for current product information and ordering assistance.
No. The dock includes an M.2 NVMe SSD enclosure, but a compatible SSD must be purchased separately.
It supports compatible M.2 NVMe SSDs in 2230, 2242, 2260 and 2280 sizes. SATA-based M.2 SSDs are not supported.
Yes. Its HDMI 2.0 output supports up to 4K@60Hz when connected to a video-capable USB-C host and compatible HDMI display equipment.
It has four USB data ports: one USB-A 10Gbps, one USB-C 10Gbps and two USB-A 5Gbps connections.
Yes. Its USB-C PD input supports up to 100W and provides approximately up to 85W charging passthrough to a compatible laptop when connected to a suitable charger.
Yes. It includes a Gigabit RJ45 Ethernet port supporting 10/100/1000Mbps wired networking.
