UGREEN CM828 (45364) Revodok 6-in-1 USB-C Docking Station

UGREEN CM828 (45364) USB-C Docking Station Price in Bangladesh

Top Highlights

• 4K@60Hz HDMI OutputConnect a compatible high-resolution external monitor.
• 10Gbps USB 3.2 DataTransfer files through supported USB storage devices.
• 100W USB-C PD InputSupports up to 85W charging for compatible laptops.
• 1000Mbps EthernetAdd a wired network connection to your USB-C laptop.

About the UGREEN CM828 (45364)

The UGREEN CM828 is a 6-in-1 USB-C docking station designed for laptops and other compatible USB-C host devices. It brings display output, USB data connections, wired networking and charging support together in a single accessory.

Modern laptops often have fewer built-in ports than desktop computers. This can make it inconvenient to connect an external monitor, keyboard, mouse and network cable at the same time. The CM828 helps solve that problem without requiring several separate adapters.

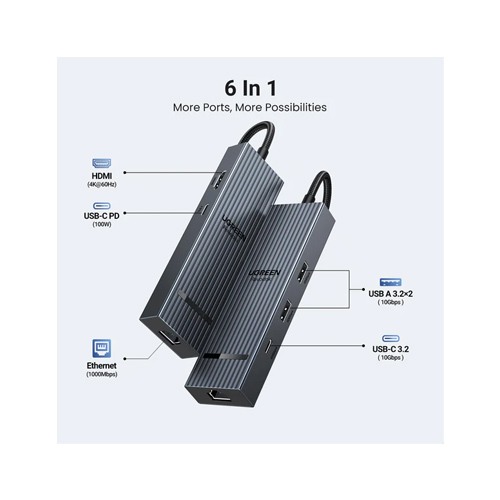

Its six connections include one HDMI output, two USB-A data ports, one USB-C data port, one RJ45 Ethernet port and one USB-C Power Delivery input.

The docking station supports up to 10Gbps USB data transfer with compatible equipment. It also provides HDMI output up to 4K at 60Hz, making it useful for presentations, office documents and high-resolution desktop displays.

For laptops without a built-in Ethernet port, the Gigabit RJ45 connection provides an additional wired networking option. Meanwhile, USB-C Power Delivery allows compatible laptops to receive charging power through the hub.

The CM828 is suitable for users who want a compact USB-C expansion solution for work, study or entertainment without adding unnecessary ports.

Design & Performance

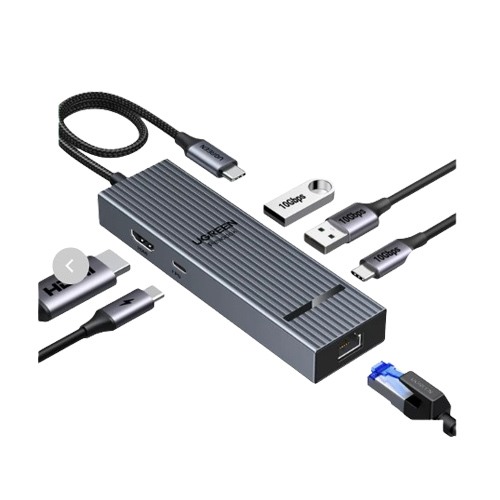

Compact Six-Port Design with Finned Aluminum Housing

The UGREEN CM828 combines six useful connections in a compact, desktop-friendly body. Its integrated USB-C host cable connects the hub to a compatible laptop or tablet.

The aluminum alloy exterior features a finned design that increases the surface area available for heat dissipation. This helps manage the heat produced during operation.

A built-in indicator light provides a visual indication of the device's connection status.

The compact design makes the hub convenient for users who move between different desks or carry their laptop for work and study.

Instead of carrying separate HDMI, Ethernet and USB adapters, users can keep their main connectivity options together in one accessory.

4K@60Hz HDMI 2.0 for External Monitor Connectivity

The UGREEN CM828 includes an HDMI 2.0 output supporting resolutions up to 3840 × 2160 at 60Hz.

This allows a compatible laptop to connect to a 4K monitor or other supported HDMI display. A larger external screen can provide additional viewing space for documents, spreadsheets and creative applications.

The manufacturer also lists support for 2560 × 1440 at 144Hz and 1920 × 1080 at 240Hz when the connected equipment supports these display modes.

Actual resolution and refresh rate depend on the laptop's graphics capabilities, USB-C video output, HDMI cable and monitor.

The laptop must support DisplayPort Alternate Mode through its USB-C connection for HDMI video output. A USB-C port that only supports charging or data cannot provide the required display signal.

The CM828 has one HDMI output and is intended for one external HDMI display, not a dual-HDMI monitor setup.

USB 3.2 Data Transfer Up to 10Gbps

The UGREEN CM828 includes two USB-A 3.2 data ports and one USB-C 3.2 data port, providing convenient connections for compatible USB accessories.

These data ports support transfer rates up to 10Gbps. This is useful for connecting external SSDs, flash drives and other supported USB storage devices.

Users can copy documents, photographs, videos and other files between their laptop and connected storage without relying on slower legacy USB connections.

The USB-A ports also provide connectivity for accessories such as keyboards, mice and USB receivers.

The USB-C data port is separate from the USB-C Power Delivery input. The data port is intended for USB data connections, while the PD input is used for supplying charging power.

Actual transfer speeds depend on the host computer, USB device, cable, storage performance and file workload.

100W Power Delivery with Up to 85W Laptop Charging

The UGREEN CM828 features a dedicated USB-C Power Delivery input supporting up to 100W from a compatible power adapter.

The manufacturer specifies up to 85W pass-through charging for a supported laptop when using a suitable 100W USB-C PD power source.

Part of the incoming power is reserved for the docking station and connected interfaces. Therefore, the maximum charging power delivered to the laptop is lower than the rated PD input.

This arrangement allows users to keep a compatible laptop charging while using the hub's display, USB and Ethernet connections.

The dedicated PD input is not a USB data or video output port. It should be used with a suitable USB-C Power Delivery charger.

Charging power depends on the connected adapter, cable and laptop. Before purchasing, check that the available charging output meets your computer's requirements.

Gigabit Ethernet for Wired Network Access

The UGREEN CM828 includes an RJ45 Gigabit Ethernet connection supporting network speeds up to 1000Mbps.

This provides a wired networking option for laptops that do not have a built-in Ethernet port.

It can be useful for office networks, video meetings, online learning and transferring files through a compatible local network.

Users can connect an Ethernet cable directly to the hub while keeping their USB-C laptop connected through the integrated host cable.

Actual connection speed depends on the router, network switch, Ethernet cable and network service.

The CM828 uses Gigabit Ethernet rather than 2.5GbE. Customers who require network speeds above 1000Mbps should select a suitable higher-speed Ethernet adapter.

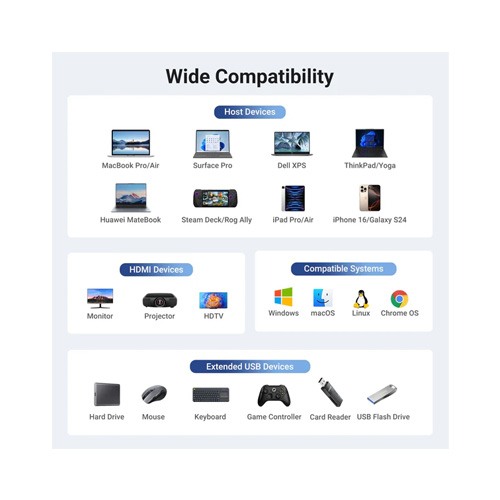

Everyday USB-C Compatibility and Practical Workstation Use

The UGREEN CM828 is designed for compatible USB-C laptops and other supported host devices. It can be used to expand available connections for a workstation without installing an internal expansion card.

Its USB data ports support common accessories, while the HDMI connection adds external display capability where the host supports video output.

The Ethernet port provides a wired network option, and the dedicated PD input supports laptop charging with compatible equipment.

These features are useful for users who regularly connect and disconnect their laptop from a desk setup.

Not every USB-C device supports the same functions. Some ports provide only USB data, while others support video output and USB Power Delivery.

Before buying, verify the host device's USB-C video support, charging requirements and operating system compatibility. The available functions depend on the connected device.

Who It's For

The UGREEN CM828 is suitable for office professionals who need an external monitor, USB accessories and wired Ethernet from a compatible laptop.

Students can use the hub to connect a larger display and USB devices for studying, online classes and assignments.

Home users may find it useful for a laptop-based desk setup, especially when their computer has limited built-in ports.

Users who transfer files from external SSDs or USB flash drives can benefit from its 10Gbps USB data connections.

It is also a practical choice for people who want HDMI, Ethernet and laptop charging support in one compact USB-C accessory.

Why Buy From IT Source?

IT Source offers USB-C hubs, docking stations and computer connectivity accessories for customers in Bangladesh.

Customers can check the current UGREEN CM828 (45364) price, stock availability and product information before ordering.

Choosing a compatible docking station is important, especially when using HDMI output or USB-C laptop charging. Confirm your laptop's connection requirements before purchase.

Contact IT Source Bangladesh for product availability and ordering assistance.
