| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 5-in-1 USB-C Hub |
| Number of Ports | 5 |
| Host Connection | USB-C Male |
| Ports | 1× HDMI 3× USB-A 3.0 1× USB-C PD |
| Video Output | HDMI |
| Maximum Resolution | 3840 × 2160 @ 30Hz |
| USB Data Speed | Up to 5Gbps |
| Power Delivery | Up to 100W PD Input Up to 95W pass-through |
| PD Port Function | Power Input Only |
| Material | Aluminum |
| Color | Gray |
| Dimensions | 115 × 35 × 12.5mm |
| Compatibility | USB-C laptops and tablets with the required data, video and charging support Windows, macOS and other compatible USB-C host systems |
| Warranty Information | |
| Warranty | N/A |

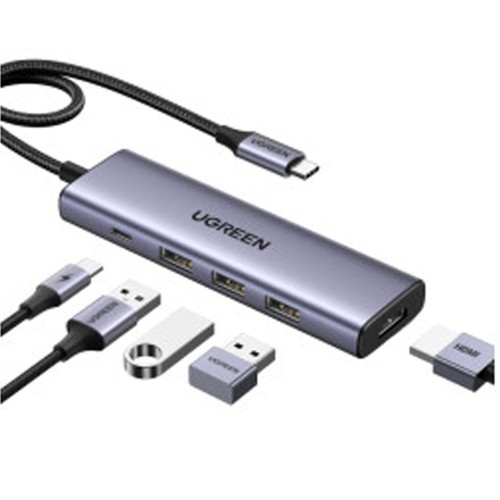

The UGREEN CM511 (15596) Revodok 105 is a 5-in-1 USB-C hub designed to expand the connectivity of compatible laptops and tablets. It combines 4K@30Hz HDMI output, three USB-A 3.0 ports supporting up to 5Gbps and a dedicated 100W USB-C Power Delivery input.
Its compact aluminum design is useful for connecting an external monitor, USB storage and everyday computer accessories. Check the latest UGREEN CM511 (15596) price in Bangladesh at IT Source.
The UGREEN CM511 Revodok 105 expands one compatible USB-C host connection into five interfaces. It combines HDMI video output, three USB-A data connections and USB-C charging input in a compact multifunction adapter.
Its HDMI interface supports up to 3840 × 2160 at 30Hz. All three USB-A 3.0 ports support up to 5Gbps data transfer, making them useful for compatible flash drives, external storage and computer peripherals.
The dedicated USB-C PD input accepts up to 100W from a suitable charger, with up to 95W available for compatible laptop charging. Its aluminum enclosure and integrated cable make it convenient for everyday work.
The CM511 includes an HDMI output supporting up to 3840 × 2160 resolution at 30Hz. It allows compatible USB-C laptops and tablets to connect to an external monitor, television or projector.
The host USB-C port must support video output, such as DisplayPort Alt Mode. Actual resolution depends on the computer, HDMI cable and connected display.
Three USB-A 3.0 ports provide data transfer speeds up to 5Gbps. They support compatible USB flash drives, external storage devices, keyboards, mice and other accessories.
The ports share available host bandwidth, so simultaneous transfers may operate below their individual maximum ratings. Actual performance depends on the connected devices.
The dedicated USB-C PD input supports up to 100W from a compatible USB-C charger. Manufacturer documentation indicates up to 95W pass-through charging for a supported laptop, with approximately 5W reserved for hub operation.
Actual charging power depends on the charger, cable and host device. The USB-C female connector is for Power Delivery input only, not USB data transfer or video output.
The hub combines one HDMI output, three USB-A 3.0 data ports and one USB-C PD input. This configuration allows a compatible laptop to connect to an external display and several USB accessories through one USB-C host port.
The CM511 is designed for a single external HDMI display. It does not include Ethernet, VGA, SD/TF card readers or an additional USB-C data port.
The Revodok 105 features an aluminum enclosure with a slim body measuring approximately 115 × 35 × 12.5mm. Its compact design helps organize everyday desktop connections.
The integrated USB-C cable makes it convenient to carry alongside a laptop or tablet. The metal enclosure also supports passive heat dissipation during operation.
The CM511 uses standard USB-C data and native video functions without a dedicated DisplayLink driver. It works with compatible Windows, macOS and other supported USB-C host systems.
HDMI output requires a video-capable USB-C port, while laptop charging requires USB-C Power Delivery support. Confirm the host device's capabilities before purchase.
Office Professionals: Connect an external monitor and USB peripherals. Laptop Users: Expand limited USB-A connectivity. Students: Use presentation displays, keyboards and USB storage. Content Creators: Transfer files from compatible external drives. Travelers: Carry a compact hub for display, data and charging connections.
IT Source offers UGREEN USB-C hubs and computer connectivity accessories for customers in Bangladesh. Check the latest UGREEN CM511 (15596) price, availability and applicable warranty before ordering. Confirm your host device supports USB-C video output and Power Delivery charging if you plan to use those features.
Buy UGREEN CM511 (15596) Revodok 105 from IT Source Bangladesh
Expand your laptop connectivity with 4K HDMI, three 5Gbps USB-A ports and 100W Power Delivery input.
