Mini PCI-E to PCI Express x16 Extender Riser Card for GPU Mining

Mini PCI-E to PCI Express x16 Extender Riser Card for GPU Mining

In Stock Model: Mini PCI-E to PCI Product code: 1004
700৳ Cash Discount Price
Online / Cash Payment
  • Mini PCI-E – Motherboard connection
  • PCIe x16 Slot – GPU installation
  • 60cm Cable – Flexible GPU placement
  • 6-Pin Power – Auxiliary riser power
  • View more info

Specification

Product Specifications
Tech Specs
Product TypePCI Express GPU Extender Riser Card
Motherboard InterfaceMini PCI-E
Expansion SlotPCI Express x16
Extension CableUSB 3.0-Style Cable
Cable Length60cm
Auxiliary Power Input6-Pin
Power AdapterSATA 15-Pin to 6-Pin
Capacitors4 × Solid Capacitors
ContactsGold-Plated
Board InsulationInsulating Underside
Riser Board DimensionsApproximately 127 × 42 × 16mm
ApplicationCompatible GPU Expansion and Mining Systems
Driver RequirementNo Separate Riser Driver
mSATA CompatibilityNot Supported
Warranty Information
WarrantyN/A

Description

Mini PCI-E to PCIe x16 Riser Card Price in Bangladesh

The Mini PCI-E to PCI Express x16 Extender Riser Card provides a practical connection option for specialized GPU installations using a compatible motherboard Mini PCI-E interface. It connects a graphics card to a separate PCIe x16 riser board through a 60cm extension cable, allowing more flexibility when arranging expansion hardware.

Featuring four solid capacitors, a 6-pin riser power connector and gold-plated contacts, this adapter is intended for supported GPU mining and computer expansion applications. Check the Mini PCI-E to PCIe x16 Riser Card price in Bangladesh at IT Source.

Top Highlights

  • Mini PCI-E to PCIe x16Connect a compatible PCIe graphics card through a Mini PCI-E interface.
  • 60cm Extension CablePosition the riser board away from the motherboard.
  • Four Solid CapacitorsSupport the riser board's local power filtering circuitry.
  • 6-Pin Power ConnectorProvide auxiliary power to the riser through a suitable power connection.

About the Mini PCI-E to PCIe x16 Riser Card

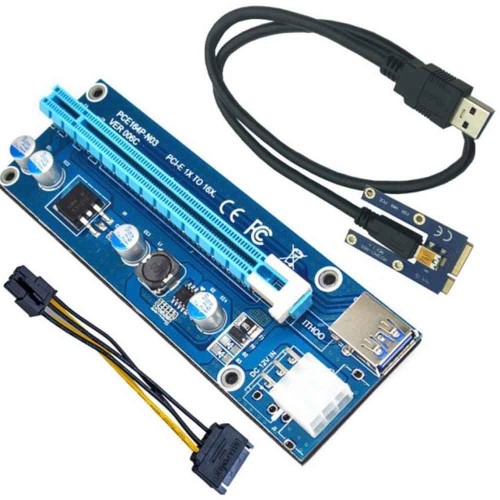

This Mini PCI-E to PCI Express x16 Riser Card is a specialized expansion accessory designed for connecting a PCIe graphics card to a compatible Mini PCI-E motherboard interface. The adapter consists of a motherboard-side Mini PCI-E connection and a separate PCIe x16 expansion board joined through a 60cm USB 3.0-style cable. The riser board includes four solid capacitors, gold-plated contacts and a 6-pin auxiliary power connector. An insulating layer beneath the board helps reduce accidental contact with conductive surfaces. The product is intended for specialized GPU installation and mining configurations where available expansion interfaces, physical clearance and power supply capacity have been checked in advance.

Design & Performance

Mini PCI-E to PCI Express x16 Expansion

The riser uses a Mini PCI-E motherboard-side adapter to provide a connection to a separate PCI Express x16 graphics card slot. This arrangement allows a compatible PCIe graphics card to be positioned outside the motherboard's original expansion interface area.

The x16 connector describes the physical card slot, not the available PCIe bandwidth. The actual connection is limited by the motherboard's Mini PCI-E interface, and not every Mini PCI-E socket provides a usable PCIe connection for a graphics card. An mSATA-only slot is not compatible.

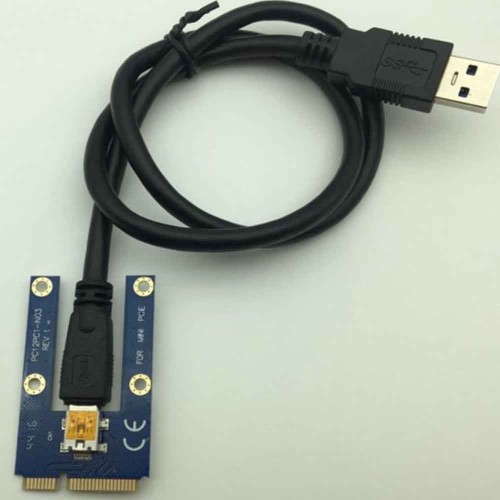

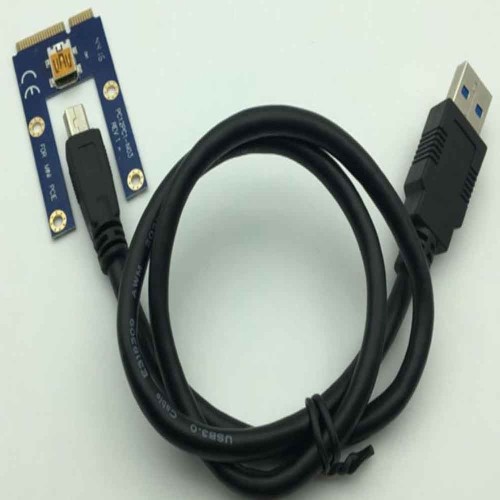

60cm USB 3.0-Style Extension Cable

A 60cm extension cable provides additional placement flexibility between the motherboard-side adapter and the GPU riser board. This is useful in open-frame computer assemblies where a graphics card needs to be mounted separately from the motherboard.

Although the cable uses USB 3.0-style connectors, it carries signals for the riser assembly rather than functioning as a conventional USB peripheral connection. It must not be connected to a standard computer USB port, USB hub or other unrelated USB device.

PCIe x16 Slot for Graphics Card Installation

The riser board provides a physical PCI Express x16 slot for installing a compatible graphics card. This can help builders organize supported GPU configurations when a direct motherboard slot connection is not practical.

Graphics card compatibility depends on the motherboard's firmware, available PCIe lanes, electrical interface and power supply. The riser does not convert a limited-bandwidth Mini PCI-E connection into a full-bandwidth PCIe x16 interface.

Auxiliary Power Through a 6-Pin Connector

The riser board features a 6-pin auxiliary power input. The listed product includes a SATA-to-6-pin power adapter intended to connect the riser to a suitable power source.

GPU installations can draw substantial electrical current. SATA power adapters may be unsuitable for high-load riser applications because connector and cable ratings vary. A correctly rated direct PCIe power connection is preferable where supported, and the power supply must meet the graphics card's requirements.

Four Solid Capacitors and Gold-Plated Contacts

The board incorporates four solid capacitors as part of its power filtering design. These components help smooth electrical variations around the riser circuitry during operation.

The product listing also specifies gold-plated contacts intended to provide a suitable electrical contact surface. These features contribute to the riser's physical construction but do not independently guarantee graphics card stability or compatibility.

Insulated Board Design for Specialized GPU Builds

An insulating layer beneath the riser board helps reduce the possibility of unintended contact between exposed circuitry and nearby conductive surfaces. The separate board arrangement can also assist with component placement in an open-frame system.

The riser is intended for specialized expansion setups rather than general-purpose USB connectivity. Before installation, users should verify Mini PCI-E interface compatibility, graphics card clearance, system power requirements and adequate cooling. Disconnect power before installing or removing expansion hardware.

Who It's For

This Mini PCI-E to PCIe x16 Extender Riser Card is suitable for experienced computer builders, hardware technicians and users assembling specialized GPU mining systems. It may be useful where a compatible motherboard Mini PCI-E interface is available and a PCIe graphics card must be mounted separately from the motherboard. The product is not intended as a universal graphics card adapter for every laptop, desktop or motherboard.

Buyers should confirm that the motherboard provides PCIe signaling through its Mini PCI-E slot, that the firmware supports the intended graphics card and that the power supply can safely handle the complete configuration. It is not compatible with mSATA-only interfaces.

Why Buy From IT Source?

IT Source offers computer expansion accessories, PCIe adapters and hardware connectivity products for customers in Bangladesh. This Mini PCI-E to PCIe x16 Extender Riser Card provides a specialized option for compatible GPU installations requiring an extension cable and auxiliary riser power. Customers can review the connection requirements, verify hardware compatibility and check current price, availability and warranty details with IT Source before purchasing.

Buy Mini PCI-E to PCIe x16 Extender Riser Card from IT Source Bangladesh

Expand a compatible Mini PCI-E interface with a separate PCIe x16 graphics card slot and 60cm extension cable.
