| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Internal Desktop Power Supply |
| Output Power | 240W |
| Power Connectors | 2 × 6-Pin + 1 × 4-Pin |
| AC Input | 100–240V, 50–60Hz |
| Compatible Desktop | Selected HP Compaq 8380 SFF systems |
| Related Part Numbers | 503375-001, 611482-001 |
| Form Factor | Small Form Factor PSU |
| Warranty Information | |
| Warranty | N/A |
Looking for the HP Compaq Pro 8380 Power Supply price in Bangladesh? This internal desktop replacement PSU is intended for compatible HP Compaq business computers requiring the appropriate six-pin and four-pin power connections.
The commonly listed HP Compaq 8380 Small Form Factor replacement PSU is a 240W unit. Compatible 240W assemblies are associated with part numbers such as 503375-001 and 611482-001, although buyers must verify the exact part number against the original power supply.
Whether you are repairing an office computer, replacing a defective PSU or restoring a refurbished desktop, the correct replacement power supply helps return the system to normal operation. Check IT Source Bangladesh for product availability and current pricing.

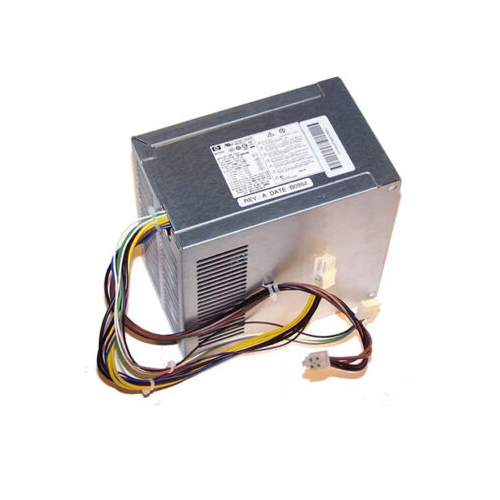

The HP Compaq Pro 8380 Power Supply is an internal replacement component used in compatible HP desktop computers.
Its primary function is to convert incoming AC electricity into regulated DC power required by the motherboard and internal hardware.
A properly functioning PSU is essential for starting the computer and maintaining normal electrical operation.
When the original PSU fails, the desktop may stop powering on or experience intermittent shutdowns.
Replacing a confirmed defective PSU with the correct compatible unit can help restore system functionality.
HP Compaq desktop systems use different power supply designs depending on their chassis and configuration.
For the 8380 SFF family, 240W replacement power supplies are commonly documented with two six-pin connectors and one four-pin connector.
Some retailers also list a 320W replacement under the 8380 name, so the exact supplied unit must be identified before publishing its electrical specifications.
HP's business desktop power architecture uses proprietary connections that should not be confused with standard graphics card power cables.
Buyers should compare the original PSU label, HP spare-part number, connector arrangement and physical dimensions before purchasing.
This PSU is intended for selected HP Compaq desktop configurations.
It serves as a replacement for an original power supply with matching electrical and mechanical specifications.
The correct replacement depends on the exact computer chassis and installed hardware.
Compatibility should be confirmed before ordering.
The commonly documented HP Compaq 8380 SFF replacement power supply has a maximum output rating of 240 watts.
This rating is suitable for desktop configurations designed to operate with that PSU capacity.
It represents the maximum rated output rather than the computer's constant power consumption.
The actual supplied PSU label must confirm the wattage.
HP business desktop power supplies may use a proprietary six-pin motherboard connection.
This connection differs electrically from a standard 24-pin ATX motherboard connector.
The correct pinout is essential for safe operation.
Never connect an incompatible power supply solely because its connector appears to fit.
The documented replacement arrangement includes a four-pin CPU power connection.
This connector supports the motherboard's processor power requirements.
It must be connected according to the computer manufacturer's service instructions.
Incorrect wiring can cause startup problems or hardware damage.
Many compatible HP 240W power supply assemblies include a second six-pin connector.
HP's documented business desktop power architecture uses separate main, control and CPU power connections.
The additional six-pin connector must not be confused with a PCIe graphics power connector.
Check the actual cable arrangement before installation.
Documented HP 240W replacement assemblies support 100–240V AC input.
The rated input frequency is 50–60Hz.
This range accommodates commonly used electrical supply systems.
Always confirm the electrical input rating on the individual PSU label.
HP introduced a different internal power architecture for several business desktop families.
This design uses dedicated motherboard connections rather than the conventional 24-pin ATX interface.
It is important to understand this difference when replacing the original power supply.
Standard consumer desktop PSUs are not automatically interchangeable with these HP units.
A faulty power supply can prevent a desktop computer from turning on.
It can also contribute to intermittent power interruptions.
However, similar symptoms may result from other defective components.
Professional diagnosis is recommended before replacing the PSU.
HP Compaq desktops are commonly used for general business computing.
Typical tasks include document preparation, spreadsheets, web applications and office software.
A compatible replacement PSU supports the computer's original electrical requirements.
It does not independently increase the computer's processing performance.
Replacing defective internal components can help extend the service life of older desktop systems.
A properly matched PSU is useful when refurbishing compatible HP computers.
The replacement should be installed securely and tested after installation.
Technicians should verify stable startup and normal operation.
HP Compaq desktop models are available in different chassis sizes.
Small Form Factor and tower power supplies may have different dimensions and mounting arrangements.
Matching wattage and connector count does not guarantee physical compatibility.
Always compare the replacement with the original PSU.
Internal power supplies generate heat during electrical conversion.
Proper ventilation is necessary for reliable operation.
The PSU should be installed in the intended chassis position.
Keep ventilation openings clear of dust and obstructions.
Compatible 240W SFF replacement listings reference HP part numbers including 503375-001 and 611482-001.
Related PSU model identifiers include D10-240P1A and DPS-240RB.
These references are useful when identifying a potential replacement.
They should not be treated as universally interchangeable without verification.
HP proprietary six-pin motherboard connectors are not standard PCIe graphics power connectors.
They may use different wiring and electrical functions.
Do not connect them to a graphics card.
Graphics upgrades must remain within the computer's approved power requirements.
Disconnect the desktop from mains power before replacing internal components.
Use the correct PSU model and connector arrangement.
Do not open the sealed power supply housing because internal capacitors can retain dangerous electrical charges.
Installation by a qualified computer technician is recommended.
Before purchasing, inspect the original PSU identification label.
Confirm its wattage, manufacturer model and HP spare-part number.
Check all power connectors and physical dimensions.
If the original PSU is rated 320W rather than 240W, verify the appropriate replacement separately.
The HP Compaq Pro 8380 Power Supply is suitable for owners of compatible HP Compaq desktops who need a replacement internal PSU.
Office IT teams can consider it for maintaining existing business computers.
Computer repair technicians may use the correctly matched unit when repairing power-related faults.
Desktop refurbishers can evaluate it when restoring supported HP systems.
Customers should confirm the original PSU specifications before ordering.
IT Source offers desktop replacement components, power supplies and computer accessories for customers in Bangladesh.
Customers can compare the HP Compaq Pro 8380 Power Supply with their existing unit before purchasing.
Contact IT Source to confirm the exact wattage, current price, stock availability and applicable warranty terms.
The commonly documented HP Compaq 8380 SFF replacement PSU is rated at 240W. Some retailer listings identify a 320W version. Check the label on the original and replacement units to confirm the correct rating.
Yes. Compatible 240W replacement assemblies are documented with two six-pin connections and one four-pin connection. The exact connector arrangement must match the original PSU.
Visit IT Source Bangladesh for the current HP Compaq Pro 8380 Power Supply price and availability. Confirm the correct PSU variant and compatibility before purchasing.
Buy HP Compaq Pro 8380 Power Supply from IT Source Bangladesh
Restore your compatible HP desktop with a correctly matched replacement power supply. Verify the wattage, HP spare-part number and connector configuration before ordering.
