| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Internal Desktop Power Supply |
| Maximum Power | 180W |
| AC Input | 100–240V AC |
| Input Current | 3A |
| Frequency | 50/60Hz |
| DC Output | +12V 15A; −12V 0.2A |
| Motherboard Connector | 1 × 10-Pin (Lenovo-specific) |
| CPU Connector | 1 × 4-Pin |
| Efficiency | 80 PLUS compliant |
| Form Factor | Compact internal desktop PSU |
| Dimensions | 150 × 82 × 64mm |
| Related Part Numbers | 00PC745, PA-2181-2, PCG010, FSP180-20TGBAB |
| Compatible Models | Selected ThinkCentre M410, M510, M610, M710s, M710t, M715s, M715t, M910s; Lenovo V520, V520s, V525; IdeaCentre 510-series |
| Warranty Information | |
| Warranty | N/A |

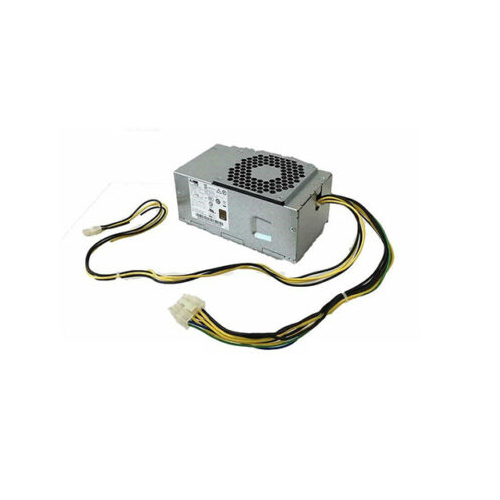

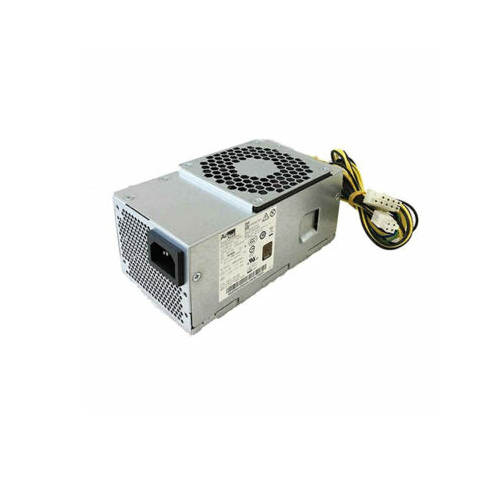

The Lenovo HK280-72PP 180W Desktop Power Supply is an internal replacement power supply designed for selected Lenovo desktop computers that use a matching 180W PSU assembly. It features a Lenovo-specific 10-pin motherboard power connector and a separate 4-pin CPU power connector, making it suitable for compatible systems that require this connection arrangement.
The HK280-72PP operates with a rated AC input of 100–240V, 50/60Hz and 3A. Its 180W output rating and efficiency performance are documented in an independent 80 PLUS verification report. Replacement suppliers also associate the model with Lenovo part number 00PC745 and related PSU models such as PA-2181-2, PCG010 and FSP180-20TGBAB, subject to exact part matching.
Explore the Lenovo HK280-72PP 180W Power Supply price in Bangladesh at IT Source. It is a practical replacement option for selected Lenovo ThinkCentre, V-series and IdeaCentre desktops when the original PSU's part number, electrical ratings, connector pinout and physical mounting design match.
The Lenovo HK280-72PP is a compact internal desktop power supply with a rated maximum output of 180 watts and a Lenovo-specific 10-pin motherboard connector plus a separate 4-pin CPU power connector. Its independently tested electrical specifications include 100–240V AC input, 50/60Hz frequency and 3A input current. Replacement supplier specifications identify a +12V output rated at 15A and a -12V output rated at 0.2A, with the combined PSU output limited to 180W. The model is associated with Lenovo replacement part number 00PC745 and supplier-listed alternatives including PA-2181-2, PCG010 and FSP180-20TGBAB. It uses a compact desktop PSU enclosure, with commonly published dimensions around 150 × 82 × 64mm, although physical measurements may vary between replacement revisions. Supplier compatibility catalogs list selected Lenovo ThinkCentre M410, M510, M610, M710s, M710t, M910s, M715s and M715t systems, along with selected Lenovo V520, V525 and IdeaCentre 510-series desktops. Compatibility is configuration-dependent and should be verified against the original Lenovo FRU, connector wiring, dimensions and mounting arrangement.
The HK280-72PP provides a maximum rated output of 180 watts for Lenovo desktop configurations designed to operate with this PSU. Its output capacity is confirmed by an independent 80 PLUS verification report identifying the exact HK280-72PP model.
This replacement is intended for computers with matching original power requirements. It should not be treated as an upgrade for systems that require a higher-wattage power supply or additional graphics card power connectors.
The HK280-72PP replacement configuration includes one 10-pin main motherboard power connector and one separate 4-pin CPU power connector. These connectors are intended for compatible Lenovo system boards rather than conventional 24-pin ATX motherboard connections.
Supplier listings describe approximately 31cm of cable length for the 10-pin motherboard connection and 60cm for the 4-pin CPU connection on selected versions. Check the original connector pinout, cable length and wiring before installation, because similar-looking connectors do not always guarantee electrical compatibility.
The HK280-72PP is rated for an AC input of 100–240 volts, 50/60Hz and 3A, supporting operation on compatible mains supplies without requiring a manual voltage selector. This input range includes the nominal 230V electrical supply commonly used in Bangladesh.
Published replacement specifications identify +12V at 15A and -12V at 0.2A. The +12V output is limited to 180W, while the -12V rail is rated for up to 2.4W. Always follow the combined 180W maximum and verify the electrical label on the exact supplied PSU.
An 80 PLUS verification report identifies the Lenovo HK280-72PP and confirms that it met the program's efficiency requirements. The published test records approximately 84.39% efficiency at 20% load, 87.04% at 50% load and 83.87% at full load under the specified 115V test conditions.
The report records an average efficiency of approximately 85.10%. These figures describe the tested model and conditions, not a guaranteed efficiency level for every replacement unit or electrical operating environment. Buyers should confirm the certification and revision of the actual product supplied.
The Lenovo HK280-72PP is designed for installation inside selected Lenovo desktop chassis. Replacement suppliers commonly list dimensions around 150 × 82 × 64mm, although alternative listings show small differences in the measured housing size.
Commonly associated references include Lenovo 00PC745 and related models PA-2181-2, PCG010 and FSP180-20TGBAB. These references help technicians search for suitable replacements, but each candidate must be checked for identical mounting points, connector wiring, electrical ratings and cable reach before being considered interchangeable.
Supplier compatibility listings associate the HK280-72PP replacement family with selected ThinkCentre M410, M510, M610, M710s, M710t, M715s, M715t and M910s desktop configurations. Additional supplier-listed applications include selected Lenovo V520, V520s, V525 and IdeaCentre 510-series desktops.
For more precise identification, catalogs list machine types including ThinkCentre M710s 10M7/10M8, M710t 10M9/10MA, M715s 10MB/10MC, M715t 10MD/10ME, M910s 10MK/10ML, V525 10N7/10N8 and V520 10NK/10NL. These are supplier-listed applications, not confirmation that every configuration of those machine types uses the same PSU. Match the original Lenovo FRU and power supply label before ordering.
The Lenovo HK280-72PP 180W Desktop Power Supply is intended for desktop repair technicians, office IT departments, computer service centers, educational institutions and Lenovo desktop owners who need a correctly matched replacement for a faulty internal PSU. It may be suitable for selected Lenovo ThinkCentre M-series, Lenovo V-series and IdeaCentre desktop configurations that originally use a compatible 180W power supply with a 10-pin motherboard connector and separate 4-pin CPU connector. Its documented wide-range AC input, 180W rated output and independently verified efficiency make it relevant for maintaining existing business and everyday desktop computers. Buyers should verify the original Lenovo FRU or part number, physical enclosure dimensions, electrical specifications and connector pinout before installation.
Choose the Lenovo HK280-72PP when your original desktop power supply has a matching 180W output rating, Lenovo-specific 10-pin motherboard connector, 4-pin CPU connector and compatible housing. Compare the original label with model HK280-72PP and related references such as 00PC745, PA-2181-2, PCG010 or FSP180-20TGBAB. Confirm the exact Lenovo machine type and PSU FRU rather than relying only on a broad ThinkCentre or IdeaCentre model name. Do not assume a standard ATX power supply or a higher-wattage alternative can be installed without additional compatibility verification.
Turn off the computer, disconnect it from AC power and locate the label on the original PSU without opening the PSU enclosure. Record the Lenovo FRU, model number, rated wattage and input/output specifications. Confirm that the original power supply uses one 10-pin motherboard connector and one 4-pin CPU connector, and compare the replacement's mounting points, dimensions and cable reach. If the details are unclear, provide IT Source Bangladesh with photographs of the original PSU label and connectors. Verify the available product's exact part number, condition, stock status, price and warranty before placing an order.
Explore the Lenovo HK280-72PP 180W Desktop Power Supply at IT Source Bangladesh for desktop maintenance and compatible replacement needs. IT Source lists the HK280-72PP with a 180W maximum output and a 10-pin motherboard plus 4-pin CPU connector arrangement. This information can help buyers identify the correct replacement category for selected Lenovo desktop systems. Before purchasing, contact IT Source to confirm that the available unit matches your original Lenovo FRU, connector pinout, electrical rating and chassis dimensions. You should also confirm the current selling price, stock availability, product condition and warranty terms to ensure the replacement is suitable for your computer.
Supplier catalogs list selected ThinkCentre M410, M510, M610, M710s, M710t, M715s, M715t and M910s systems, plus selected V520, V525 and IdeaCentre 510-series configurations. Exact compatibility requires matching the original Lenovo FRU, connectors and housing.
Yes. The commonly documented configuration uses one Lenovo-specific 10-pin motherboard connector and a separate 4-pin CPU power connector. It is not a standard 24-pin ATX motherboard connection.
These models are listed as related 180W PSU references by replacement suppliers. They may be suitable for selected systems, but interchangeability must be confirmed using the original Lenovo FRU, connector pinout, electrical specifications and physical mounting design.
