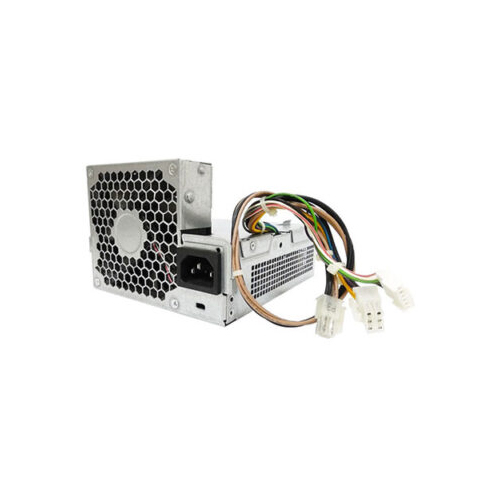

HP Compaq 8200 Elite SFF 240W Power Supply PC9058 (6-Pin/4-Pin)

HP Compaq 8200 SFF 240W PC9058 Power Supply Price in Bangladesh

Top Highlights

• 240W Rated PowerReplacement power capacity for compatible HP 8200 Elite SFF configurations.
• 6-Pin & 4-Pin ConnectionsMatches the required motherboard and CPU power interfaces when the pinout is correct.
• Small Form Factor DesignIntended for the compact internal PSU arrangement of supported HP desktops.
• Desktop Repair SolutionUseful for replacing a diagnosed faulty PSU in an existing office PC.

About the HP Compaq 8200 SFF 240W PC9058 Power Supply

The HP Compaq 8200 SFF 240W PC9058 Power Supply is an internal replacement component intended for compatible HP Compaq 8200 Elite Small Form Factor business desktop computers. Its 240-watt output rating corresponds to the power supply class documented for the HP 8200 Elite SFF platform. The product is marketed with 6-pin and 4-pin motherboard power connections, which are consistent with the proprietary power distribution architecture used in this generation of HP business desktops. HP's technical reference guide identifies separate motherboard power, control and CPU power connections, meaning the complete connector arrangement must be checked rather than relying only on the two connector sizes in the product title. The PC9058 identifier appears in replacement-market listings alongside PSU model references such as PS-4291-9HB and D10-240P1A, but the actual replacement unit should be identified by its label and HP spare number. HP service documentation lists both standard and high-efficiency 240W power supply configurations for the 8200 Elite SFF, so the exact efficiency rating must also be verified from the unit. The compact chassis-specific design helps technicians replace a failed PSU without changing the entire computer, provided that the mounting points, cable routing and electrical outputs match. This makes the product relevant to business desktop repair, office IT maintenance and users keeping compatible HP computers in service.

Design & Performance

240W Power Output for HP 8200 Elite SFF

The power supply is rated for 240 watts. HP documents 240W PSU options for the Compaq 8200 Elite Small Form Factor desktop. This capacity is intended for supported original hardware configurations.

Power rating alone does not confirm compatibility. The output voltages, control signals and connector wiring must match the original PSU. Compare the existing unit before purchasing.

6-Pin Motherboard Power Connection

The product is marketed with a 6-pin motherboard power connector. HP's technical reference documentation identifies a six-pin main power interface on this desktop generation. It supplies the motherboard's required power rails.

HP uses a proprietary electrical arrangement rather than a conventional 24-pin ATX connector. Matching the physical connector is not enough if the pinout differs. Confirm the exact replacement part and wiring.

4-Pin CPU Power Connection

The PSU is also listed with a 4-pin CPU power connection. HP's technical reference guide identifies a four-pin CPU power interface in its power distribution design. This provides the processor power circuitry with the required supply.

Some configurations also have a separate power-control connection. Do not assume that the complete PSU has only two connectors. Inspect every cable on the original unit.

Compact Small Form Factor Construction

The HP Compaq 8200 Elite SFF uses a compact desktop chassis. Its internal power supply must fit a dedicated mounting arrangement. A full-size desktop PSU is not a direct replacement simply because its wattage matches.

HP service instructions describe a rotating PSU assembly secured by a chassis bracket. The mounting and cable routing are important during installation. Check the replacement's physical shape before ordering.

Standard and High-Efficiency PSU Variants

HP documents standard and high-efficiency 240W power supply options for the 8200 Elite SFF. The technical reference guide lists a minimum 70% efficiency at full load for standard units. Optional high-efficiency units are documented with higher efficiency figures.

These specifications apply to different PSU variants. The PC9058 product title alone does not identify the efficiency classification. Confirm the rating on the actual unit rather than assuming 80 PLUS certification.

Power Supply Replacement for Desktop Repair

A faulty power supply can cause a desktop to fail to start or shut down unexpectedly. A compatible replacement can help restore normal operation when the original PSU is confirmed defective. This is useful for maintaining older office computers.

Similar symptoms may also come from other hardware problems. A technician should diagnose the failure before replacing the PSU. Disconnect the computer from AC power before servicing internal components.

Chassis-Specific Mounting and Cable Routing

The 8200 Elite SFF has a serviceable internal power supply assembly. HP's maintenance guide explains how the PSU moves within its mounting bracket during removal. This design differs from many conventional tower computers.

During installation, power cables must be positioned correctly to avoid being trapped by the drive cage or PSU assembly. Incorrect routing may damage cables. Follow the appropriate HP service procedure.

Practical for Office IT Maintenance

The HP Compaq 8200 Elite SFF is a business desktop platform used for everyday computing. Replacing a faulty PSU can extend the useful life of a compatible system. It may be practical for offices, service centers and computer repair workshops.

The replacement must match the original electrical and mechanical specifications. Keep a record of the PSU model and spare number for future maintenance. Verify product condition and warranty terms before ordering.

Who It's For

The HP Compaq 8200 SFF 240W PC9058 Power Supply is intended for desktop repair technicians, office IT teams, computer maintenance providers and owners of compatible HP Compaq 8200 Elite Small Form Factor PCs. It is suitable for replacing a confirmed faulty internal power supply when the existing computer requires a matching 240W unit with the correct proprietary connectors. Businesses maintaining older desktop systems may find a replacement PSU more practical than replacing an otherwise functional computer. Buyers should verify the original PSU label, HP spare number, power connector pinout, physical dimensions and mounting arrangement before purchasing.

Simple Buying Guide

Before buying the HP Compaq 8200 SFF 240W PC9058 Power Supply, confirm that your desktop is the HP Compaq 8200 Elite Small Form Factor model rather than the Microtower or Ultra-Slim version. Open the chassis safely and record the original PSU's manufacturer model, HP spare number and 240W rating. Compare the 6-pin and 4-pin connectors, any additional control connector, cable layout and mounting mechanism. Check the product's condition, warranty terms and latest price before ordering.

Easy Steps to Check Before You Order

First, verify the full desktop model and SFF chassis type. Next, inspect the original power supply label and record its HP spare number and manufacturer model. Then, compare all power connectors, electrical outputs, cable lengths and mounting points with the replacement. Finally, confirm the actual PC9058 unit's condition, availability, warranty and current selling price at IT Source Bangladesh.

Why Buy From IT Source?

Find the HP Compaq 8200 SFF 240W PC9058 Power Supply at IT Source Bangladesh for compatible desktop repair requirements. Review its 240W output rating, 6-pin and 4-pin connector description and Small Form Factor application before ordering. You can confirm the actual PSU model, electrical compatibility, product condition, warranty terms and delivery options with the seller. IT Source offers desktop replacement parts and computer accessories for office maintenance, technical repair and everyday business computing.
