| Product Specifications | |
|---|---|
| Tech Specs | |
| Rated Output Power | 750W |
| PSU Type | Hot-Plug, Redundant |
| AC Input Voltage | 100–240V (Platinum); 200–240V (Titanium) |
| Input Frequency | 50/60Hz |
| Rated Input Current | 10A–5A |
| Efficiency Rating | 80 PLUS Platinum / Titanium |
| Redundancy Configuration | 1+1 with two matching PSUs |
| Single PSU Operation | Supported, non-redundant |
| Compatible Models | PowerEdge R720, R720xd, R520, R620, R820, T320, T420, T620 |
| Part Number References | 5NF18, 6W2PW, D5MW8, W0CTF, 27F3G |
| PSU Model References | D750E-S1, DPS-750AB-2, F750E-S0, E750E-S0 |
| Warranty Information | |
| Warranty | N/A |

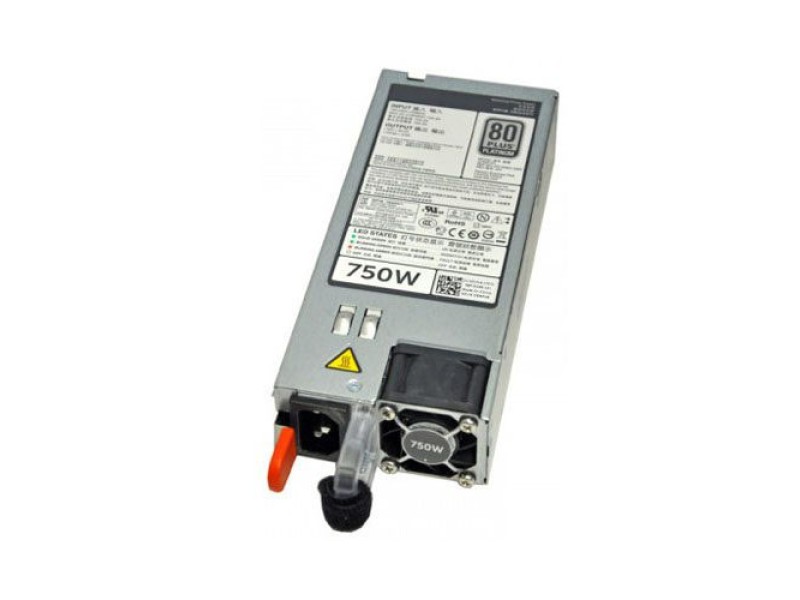

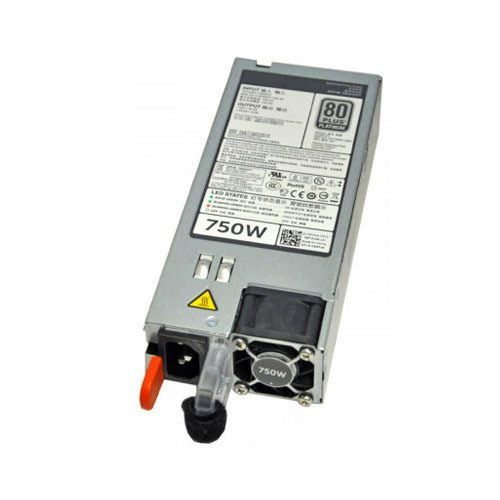

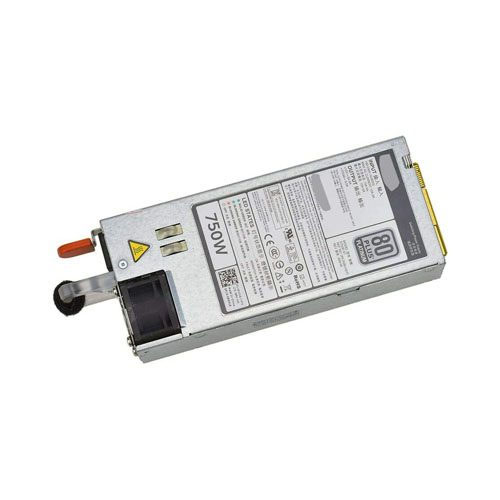

The Dell PowerEdge R720 750W Server Power Supply is a hot-plug replacement PSU designed for compatible Dell PowerEdge rack and tower servers. With a maximum rated output of 750 watts, it provides power for supported server hardware while allowing redundant power configurations where two matching PSU modules are installed.
The Dell PowerEdge R720 and R720xd officially support 750W hot-plug AC power supplies. In a two-PSU configuration, the server can provide 1+1 power redundancy, helping reduce the risk of interruption caused by a single PSU failure. The removable module design also simplifies power supply servicing.
Explore the Dell R720 750W Server Power Supply price in Bangladesh at IT Source. Before purchasing, confirm the original Dell part number, PSU efficiency version and electrical input requirements to ensure the replacement matches your server configuration.
The Dell PowerEdge R720 750W Server Power Supply is an internal hot-plug power module designed for supported Dell PowerEdge server systems. Dell documents both 750W Platinum and 750W Titanium AC PSU configurations for the R720 and R720xd. The Platinum version supports an auto-ranging 100–240V AC input, while the Titanium version is rated for 200–240V AC input only; both operate at 50/60Hz. The server can run with one PSU in non-redundant mode or two matching 750W modules in a 1+1 redundant configuration. Replacement suppliers list part numbers including 5NF18, 6W2PW, D5MW8, W0CTF and 27F3G for selected 750W PSU assemblies. Exact Dell DP/N, efficiency type, electrical rating and compatibility should be checked before installation.
Each compatible PSU module provides a maximum rated output of 750 watts for the Dell server's internal power distribution system.
The actual server's power requirement depends on installed processors, memory, drives, expansion cards and workload. The PSU should match the approved system configuration.
Dell officially documents 750W AC power supply options for the PowerEdge R720 rack server.
A matching replacement helps maintain or restore the original server power configuration when an existing PSU has been diagnosed as defective.
The PowerEdge R720xd also officially supports 750W AC hot-plug power supply modules.
Check the installed PSU label and Dell part number before ordering to ensure the correct electrical and efficiency variant.
The PSU uses a removable hot-plug module design. In a correctly configured redundant server, a failed PSU can be replaced while the remaining healthy unit continues supplying power.
Hot-plug capability does not guarantee uninterrupted operation if the server has only one PSU or if the remaining unit cannot support the required load.
The Dell R720 supports two matching PSU modules in a 1+1 redundant arrangement. This provides an additional power source if one module fails.
Both units must be the same type and have the same maximum output rating, as specified by Dell.
The R720 can also operate with one installed power supply in a 1+0 non-redundant configuration.
In this arrangement, failure or removal of the only active PSU interrupts server power, so a second matching unit is useful when higher availability is required.
Dell documents a 750W Platinum efficiency AC PSU for the R720 and R720xd with a 100–240V AC auto-ranging input and 50/60Hz frequency.
The published input current range is 10A to 5A. Confirm the efficiency marking and electrical rating on the replacement unit's label.
Dell also documents a 750W Titanium efficiency PSU variant for the R720 and R720xd.
Unlike the Platinum version, the Titanium unit is rated for 200–240V AC input only. Do not advertise universal 100–240V input for every 750W R720 PSU.

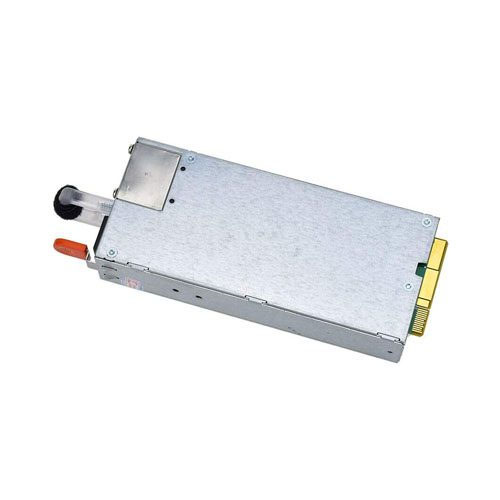

The compatible PSU module slides into the server's power supply bay and locks into position using its release latch.
After connecting AC power, the server recognizes the module and reports its status through the power supply indicator and management system.
The Dell PowerEdge platform provides PSU status monitoring to help administrators identify power supply faults and operating conditions.
When installing a replacement, check the server's PSU indicator and system management alerts to confirm that the new module is recognized and functioning correctly.
The PowerEdge R720 supports a Hot Spare feature that can reduce the power overhead of a redundant PSU configuration.
When enabled, the system may place the redundant module in a lower-power state while the active PSU carries the load, subject to supported operating conditions.
Specialist suppliers list Dell part numbers 5NF18, 6W2PW, D5MW8, W0CTF and 27F3G for selected 750W redundant hot-plug power supply assemblies.
These references help identify potential replacements but should not be treated as proof that every revision is interchangeable. Match the original Dell DP/N and electrical specifications.
Supplier catalogs also reference D750E-S1, DPS-750AB-2, F750E-S0 and E750E-S0 within the 750W Dell server PSU family.
Compare the actual PSU model and Dell part number with the original server module before selecting an alternative.
Replacement suppliers list selected PowerEdge R520, R620, R820, T320, T420 and T620 servers as compatible with certain 750W PSU part numbers.
Compatibility must be verified for each server model and configuration. A matching 750W rating alone does not guarantee that a PSU module will fit or operate correctly.
The PSU module is designed to operate within the supported server chassis cooling and airflow system.
Keep ventilation openings clear and follow Dell's installation guidance to maintain proper operating conditions.
A matching replacement PSU can help restore a server's original power configuration after a failed module has been identified.
In a redundant installation, replacing a defective module can also restore protection against a subsequent single-PSU failure.
Hot-plug redundant power supplies are valuable in business server environments where service interruptions can affect users and applications.
The R720 750W PSU is relevant for IT maintenance, server refurbishment, infrastructure support and replacement-parts management.
Follow Dell's approved server servicing procedures when replacing a PSU. Confirm that the remaining PSU is healthy and has sufficient capacity before attempting a live replacement.
Never open the PSU enclosure, modify electrical contacts or install a module with mismatched input specifications. Use the correct power cable and secure it according to Dell's guidance.
The Dell PowerEdge R720 750W Server Power Supply is suitable for data center technicians, server administrators, IT infrastructure teams, computer service centers and businesses maintaining compatible Dell PowerEdge systems. It is particularly useful when replacing a failed 750W hot-plug module in a PowerEdge R720 or R720xd, restoring a two-PSU redundant configuration or maintaining spare parts for existing server infrastructure. Selected other Dell PowerEdge models may support matching 750W assemblies, but buyers should verify the original Dell DP/N, efficiency variant, input voltage and physical module compatibility before ordering.
Choose this 750W server PSU when the original module is rated at 750W and the replacement matches the server's supported part number and electrical requirements. Check whether the original unit is Platinum or Titanium efficiency, as their supported input voltage ranges differ. For dual-PSU operation, Dell requires both modules to have the same type and maximum output rating. Compare the original Dell DP/N and model label before purchasing.
Locate the model number, Dell DP/N, wattage and input voltage printed on the original PSU label. Confirm the server model and whether it uses one or two power supply modules. Compare the available replacement with the existing PSU's electrical rating, efficiency type and physical design. If the part number is unclear, share a clear photograph of the original PSU label with IT Source Bangladesh. Confirm product condition, stock availability, current price and warranty before ordering.
Explore the Dell PowerEdge R720 750W Server Power Supply at IT Source Bangladesh for compatible server maintenance and replacement needs. Its hot-plug design, 750W rated output and support for matching redundant configurations make it a practical replacement component for existing PowerEdge infrastructure. Contact IT Source to verify the available Dell part number, Platinum or Titanium efficiency version, supported server models, product condition, current selling price and warranty terms before purchasing.
Yes. Dell documents hot-plug PSU modules for the R720. Live replacement is intended for correctly configured redundant systems where the remaining PSU can support the server load.
Yes. The R720 supports two matching 750W power supplies in a 1+1 redundant configuration. Both modules must have the same type and maximum output rating.
Dell specifies 100–240V AC input for the 750W Platinum PSU and 200–240V AC input for the 750W Titanium PSU. Confirm the exact efficiency version and electrical rating before ordering.
