| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Internal Desktop Power Supply |
| Rated Power | 240W |
| AC Input Voltage | 100–240V AC |
| AC Input Current | 4A |
| Input Frequency | 50/60Hz |
| Motherboard Connector | 1 × Dell 6-Pin |
| CPU Power Connector | 1 × 4-Pin |
| Cooling System | Integrated Fan |
| Compatible Models | Dell OptiPlex 3046, 3040, 3050, 5040, 7040, 3650, 3656 |
| PSU Model References | AC240AS-02, H240ES-02, L240ES-00 |
| Dell Part Number | 6F0T1 |
| Warranty Information | |
| Warranty | N/A |

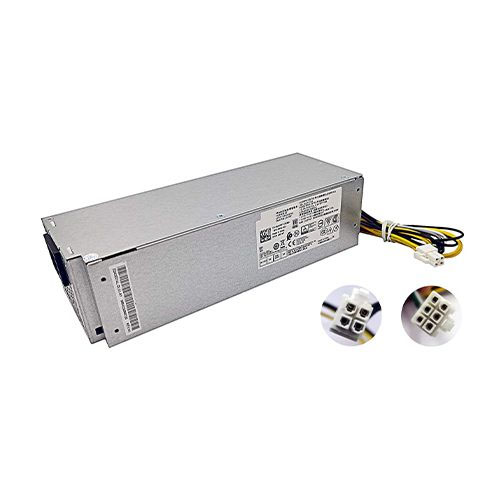

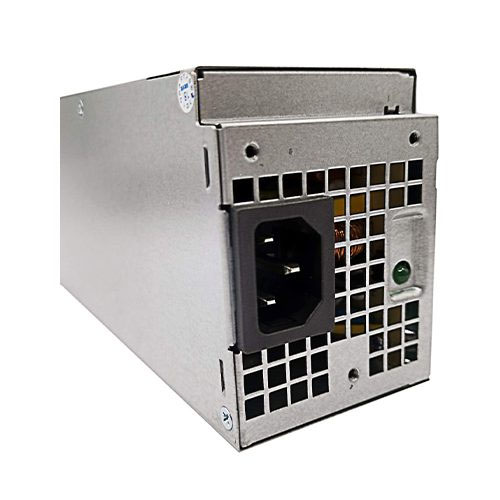

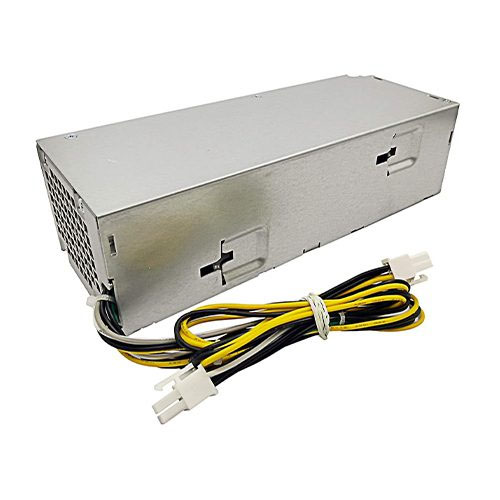

The Dell OptiPlex 3046 240W Power Supply is an internal replacement power supply for selected Dell OptiPlex 3046 desktop configurations. Designed for systems using a matching 6-pin motherboard connector and 4-pin CPU power connector, it delivers up to 240 watts of rated power for normal desktop operation.
This PSU configuration features a 100–240V AC input range at 50/60Hz and a built-in cooling fan. Compatible replacement units are useful when an existing Dell desktop power supply has failed and a correctly matched replacement is required.
Explore the Dell OptiPlex 3046 240W Power Supply price in Bangladesh at IT Source. Before purchasing, verify the original PSU model, Dell part number, connector wiring and chassis dimensions, because other OptiPlex 3046 configurations may use a different power connector arrangement.
The Dell OptiPlex 3046 240W Power Supply is a replacement internal PSU for selected Dell business desktop computers requiring a 240W power supply with separate 6-pin motherboard and 4-pin CPU connections. Supplier listings identify AC240AS-02 as one 240W, 6-pin plus 4-pin replacement model associated with the OptiPlex 3046, while other parts listings reference H240ES-02 and L240ES-00 within the broader Dell 240W PSU family. The AC240AS-02 listing specifies 100–240V AC, 4A and 50/60Hz input. Since Dell OptiPlex 3046 configurations can differ, confirm the exact original PSU model, Dell DP/N, connector pinout and mounting dimensions before choosing a replacement.
This power supply provides a maximum rated output of 240 watts for desktop systems designed to use the corresponding Dell PSU configuration.
The 240W rating describes the power supply's maximum combined output and does not automatically support high-power graphics cards or unrestricted hardware upgrades.
Parts suppliers identify the Dell OptiPlex 3046 as a supported system for selected 240W replacement power supplies.
Check the original unit carefully because the OptiPlex 3046 is also listed with an 8-pin plus 4-pin SFF PSU configuration. The two connector arrangements must not be treated as interchangeable.
The specified replacement configuration uses a Dell-specific 6-pin connector to supply main system power to a compatible motherboard.
This connector is not automatically compatible with a 6-pin PCIe graphics connector or other six-pin plugs. Matching electrical pin assignments are essential.
A separate 4-pin connector provides power to the processor power input on the matching motherboard.
Confirm that both the 6-pin motherboard and 4-pin CPU connectors correspond to the original power supply before installation.
Published specifications for the AC240AS-02 240W replacement identify a 100–240V AC input range at 50/60Hz with a 4A input rating.
These electrical specifications should be verified against the label on the actual replacement PSU, particularly when a different manufacturer model is supplied.
The 240W replacement PSU family includes a built-in cooling fan to help remove heat generated during normal operation.
Install the PSU in its intended position and keep the chassis ventilation openings clear.
This product is an internal desktop PSU rather than an external power adapter. Its metal enclosure must fit the computer's mounting arrangement and available internal space.
Compare the replacement housing, screw positions, AC inlet location and power cable reach with the original unit.
AC240AS-02 is a supplier-listed 240W, 6-pin plus 4-pin PSU model for selected OptiPlex 3046 systems. Other replacement catalogs list H240ES-02 and L240ES-00 within a related Dell 240W PSU family.
Do not assume that every 240W Dell power supply is interchangeable. Use the exact original Dell DP/N and connector wiring to determine the correct replacement.
A specialist supplier identifies Dell part number 6F0T1 for the AC240AS-02 configuration. Other Dell 240W replacement listings reference J61WF, DK87P, F484X, DW3M7 and HT04K.
These are reference numbers from different replacement listings and must not be treated as confirmed equivalents without checking the original hardware.
Parts suppliers list selected OptiPlex 3040, 3050, 5040, 7040, 3650 and 3656 systems as applications for certain 240W Dell PSU revisions.
Compatibility depends on the exact PSU model and system configuration. A matching wattage or computer family name alone is not sufficient.
The 6-pin connector supplies main motherboard power, while the separate 4-pin connector supplies processor power. Internal storage power arrangements depend on the Dell desktop's original design.
Do not assume that every replacement PSU includes identical SATA or peripheral power leads. Compare the original and replacement assemblies before installation.
A correctly matched 240W power supply can help restore an existing Dell OptiPlex desktop after the original PSU has been diagnosed as defective.
This makes it useful for offices, computer repair shops, schools and IT departments maintaining compatible Dell desktop computers.
Failure to start, unexpected shutdowns and other power-related symptoms may indicate a faulty PSU. However, similar symptoms can also result from motherboard faults or other hardware problems.
Professional diagnosis is recommended before purchasing a replacement component.
Disconnect the computer from AC power before replacing the PSU. Installation should be performed by a technician familiar with Dell desktop hardware and proprietary power connections.
Never open the PSU housing, modify power wiring or force incompatible connectors. Internal capacitors can retain dangerous electrical charge even after the power cable is disconnected.
The Dell OptiPlex 3046 240W Power Supply is suitable for desktop repair technicians, office IT departments, maintenance teams and owners of compatible Dell OptiPlex 3046 computers. It is especially useful when a faulty 240W power supply needs replacement in a system with the matching 6-pin motherboard and 4-pin processor power connectors. Selected other Dell OptiPlex systems may also use related 240W PSU models, but the original Dell part number, connector pinout and mounting arrangement must be verified individually before purchase.
Choose this 240W replacement only when your original Dell PSU uses the same 6-pin motherboard connector, 4-pin CPU connector and electrical specifications. Check the PSU model and Dell DP/N printed on the original unit, then compare the replacement's dimensions and mounting points. If your OptiPlex 3046 uses an 8-pin motherboard connector, this 6-pin configuration should not be selected without an independently verified compatible replacement arrangement.
Read the model number and Dell DP/N on your original power supply label. Confirm the computer's exact OptiPlex model and chassis type, then compare the motherboard and CPU connectors, electrical ratings and mounting dimensions. If compatibility is uncertain, share clear photographs of the original PSU label and connectors with IT Source Bangladesh. Confirm the replacement's exact model, product condition, current price and warranty before ordering.
Explore the Dell OptiPlex 3046 240W Power Supply at IT Source Bangladesh for compatible desktop repair and maintenance. The 240W output, Dell-specific motherboard connection and separate processor power connector make this PSU configuration a practical replacement option for matching OptiPlex systems. Contact IT Source to verify the correct Dell part number, confirm connector compatibility and check the available product revision, stock, condition, selling price and warranty terms before purchasing.
Yes. Replacement suppliers list 240W power supplies for selected OptiPlex 3046 configurations. However, connector arrangements differ, so the original PSU must be checked.
Yes. This listing describes a 240W replacement with one 6-pin motherboard power connector and one separate 4-pin CPU power connector.
No direct compatibility should be assumed. If the original PSU has an 8-pin motherboard connector, obtain a replacement matching its original Dell part number and electrical connections.
Check the Dell OptiPlex 3046 240W Power Supply price in Bangladesh at IT Source.
