| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 17-in-1 Universal Docking Station |
| Display Technology | DisplayLink DL6910 |
| Host Interface | USB-C, USB 3.1 Gen 2 |
| Host Data Speed | Up to 10Gbps |
| HDMI Ports | 4 |
| DisplayPort Ports | 4 |
| Maximum Active External Displays | 4 |
| Maximum Quad Display Resolution | 3840 × 2160 @ 60Hz |
| 5K Display Support | 5120 × 2880 @ 60Hz via dual DP |
| USB-A 10Gbps | 1 × USB-A 3.2 Gen 2 |
| USB-A 5Gbps | 3 × USB-A 3.0 |
| USB-C Downstream | 1 × 30W PD Charging |
| Laptop Power Delivery | Up to 100W |
| Ethernet Port | 1 × RJ45 2.5GbE |
| Ethernet Speed | 10/100/1000/2500Mbps |
| Card Reader | SD 4.0 + microSD/TF 4.0 |
| Card Reader Speed | Up to 312MB/s theoretical |
| Audio | 3.5mm TRRS Audio/Mic |
| Power Supply | DC 20V/9A, 180W |
| Material | ABS |
| Color | Black |
| Dimensions | 230 × 85 × 28mm |
| Unit Weight | Approx. 200g |
| Security | Kensington Lock Slot |
| Driver | DisplayLink Software Required |
| Operating Systems | Windows and macOS; verify other systems |
| Warranty Information | |
| Warranty | N/A |
The WAVLINK WL-UG69PD8 Pro is a 17-in-1 universal docking station designed for demanding multi-monitor workstations. It supports up to four simultaneous 4K@60Hz external displays through DisplayLink technology and provides extensive connectivity for USB accessories, wired networking, charging and removable storage.
With 100W laptop Power Delivery, a separate 30W USB-C charging connection, 2.5 Gigabit Ethernet and UHS-II card readers, this dock brings multiple workstation functions together through one host connection. Check the latest WAVLINK WL-UG69PD8 Pro price and availability at IT Source Bangladesh.
The WAVLINK WL-UG69PD8 Pro is a universal docking station designed to expand laptop connectivity beyond the capabilities of a conventional USB-C hub. It uses the DisplayLink DL6910 solution to provide advanced external monitor support alongside high-speed USB, networking, charging, audio and memory card connections.

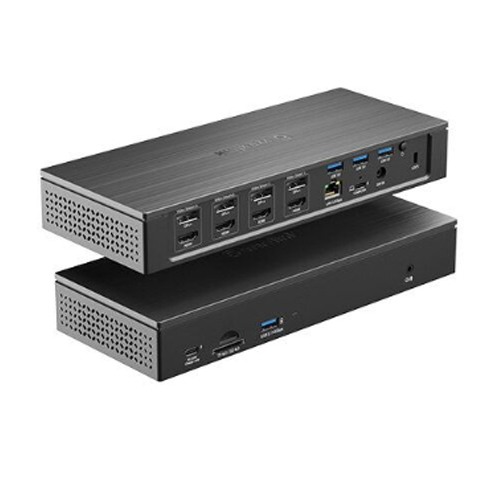

The docking station includes four HDMI outputs and four DisplayPort outputs. These connectors are organized into four display groups, allowing users to select HDMI or DisplayPort for each active display connection. Up to four external monitors can operate simultaneously at resolutions up to 3840 × 2160 at 60Hz with supported equipment.
For compatible 5K monitors, the dock also supports 5120 × 2880 at 60Hz using two DisplayPort connections for one display. This configuration is different from connecting two independent 5K monitors.
Beyond video, the WL-UG69PD8 Pro provides one USB-A 10Gbps port and three USB-A 5Gbps ports for external storage and everyday peripherals. Its 2.5GbE RJ45 port offers wired networking beyond standard Gigabit Ethernet when used with suitable network equipment.
The dock supports up to 100W charging to a compatible laptop through the USB-C host connection and provides a separate USB-C Power Delivery output rated up to 30W for a supported device. A dedicated 180W power adapter supplies the docking station.
Additional connections include SD and microSD card readers supporting UHS-II transfer rates up to 312MB/s and a combined 3.5mm audio/microphone connection.
DisplayLink software is required for the external display functions. On macOS, the DisplayLink Manager application also requires Screen Recording permission to capture the desktop image for transmission to the external displays.
The WAVLINK WL-UG69PD8 Pro is designed as a centralized connection point for laptops used with several monitors and desktop peripherals.
Its housing measures approximately 230 × 85 × 28mm and is constructed from black ABS material according to WAVLINK's published specifications.
The dock includes a power switch and power indicator, allowing users to control and identify its powered state.
A Kensington-style security lock connection is provided for compatible security cables, which may be useful in shared offices and workspaces.
The docking station uses a dedicated DC 20V/9A power supply rated at 180W to support its display, data and charging functions.
Its arrangement of display outputs, USB connections, network port, audio interface and card readers makes it suitable for users who want to keep their workstation equipment connected through a single dock.
The WL-UG69PD8 Pro uses DisplayLink DL6910 technology to support up to four external monitors at 4K resolution and 60Hz simultaneously.
The dock provides four HDMI and four DisplayPort connectors, but these eight connectors represent four selectable display channels rather than eight independent monitor outputs.
For each display group, users select the appropriate HDMI or DisplayPort connection. The dock supports a maximum of four simultaneously active external displays.
This configuration can be useful for financial analysts, software developers, researchers and office professionals who need several applications visible at once.
Unlike a basic USB-C video hub, DisplayLink uses software to transmit desktop display information over the USB connection. The correct DisplayLink software must be installed and supported by the host operating system.
On macOS, DisplayLink Manager requires Screen Recording permission to operate. This is a macOS permission requirement for the display technology, not an indication that the dock independently records or uploads user activity.
Actual display performance depends on the computer, operating system, software version, connected monitors and workload.
In addition to its quad-4K capability, the WL-UG69PD8 Pro supports a 5K display mode up to 5120 × 2880 at 60Hz.
This mode requires a compatible 5K monitor that accepts two DisplayPort connections for a single display image.
Both DisplayPort connections work together to deliver the required image information to that monitor.
This can be useful for high-resolution design work, photo editing and other tasks where fine visual detail is important.
The dual-DisplayPort requirement is important because the 5K specification should not be interpreted as support for two separate 5K monitors at the same time.
Users should verify that their monitor supports the required dual-DisplayPort 5K connection method before purchasing the dock for this purpose.
For most users, the dock's four independent 4K@60Hz display channels will be the more practical workstation configuration.
The WAVLINK WL-UG69PD8 Pro supports USB-C Power Delivery charging to a compatible laptop at up to 100W through its host connection.
This allows supported users to connect their computer to the dock for data and display functions while also receiving charging power.
The docking station includes a separate downstream USB-C port providing up to 30W Power Delivery for compatible devices.
This additional charging connection can be useful for smartphones and other supported USB-C devices that accept USB Power Delivery.
The downstream 30W USB-C connection is specified for charging and should not be treated as an additional high-speed USB data port or video output.
The included 180W-rated power system supports the dock's overall power requirements. It does not mean that the laptop receives 180W.
Actual charging power depends on the connected device, cable, supported USB PD profiles and operating conditions.
The WL-UG69PD8 Pro includes four USB-A data ports with two different performance levels.
One USB-A 3.2 Gen 2 port supports data transfer up to 10Gbps, making it useful for compatible high-speed external storage.
Three additional USB-A 3.0 ports support up to 5Gbps for flash drives, storage accessories and other USB peripherals.
The 10Gbps USB-A connection also supports BC1.2 charging functionality for compatible devices.
For wired networking, the docking station includes an RJ45 Ethernet port supporting 10/100/1000/2500Mbps connections.
Its 2.5GbE capability is useful for compatible local networks, network storage and other situations where standard Gigabit Ethernet may be a limiting factor.
Actual USB and Ethernet performance depends on the connected devices, host USB connection, network equipment and shared bandwidth.
The WAVLINK WL-UG69PD8 Pro provides SD and microSD/TF memory card slots based on the SD 4.0 interface.
The card reader supports a theoretical UHS-II bus speed up to 312MB/s when used with compatible cards and equipment.
WAVLINK also advertises simultaneous access to the SD and microSD interfaces, making the dock useful for workflows involving more than one card format.
Photographers, videographers and office users can access compatible removable media without carrying a separate card reader.
The dock also includes a four-pole 3.5mm combined audio and microphone jack for compatible headsets and other supported audio accessories.
This can be useful for online meetings, voice communication and desktop audio connections.
Together, the card readers and audio interface complete a workstation setup that also includes multiple displays, USB storage and wired networking.
The WAVLINK WL-UG69PD8 Pro is suitable for professionals who need up to four external 4K displays from a compatible laptop.
Financial analysts, traders and researchers can use multiple monitors to view dashboards, spreadsheets, reports and reference information simultaneously.
Software developers and office professionals may benefit from distributing applications across several screens.
Creative users who work with supported SD and microSD cards can use the integrated UHS-II readers for convenient file access.
It is also useful for users who need 2.5 Gigabit Ethernet, several USB-A connections and laptop charging through a centralized desktop dock.
Before purchasing, confirm operating-system support, DisplayLink installation permissions and any application-specific display requirements.
IT Source offers docking stations, USB connectivity accessories and workstation equipment for customers in Bangladesh.
Customers can check the latest WAVLINK WL-UG69PD8 Pro price and product availability before ordering.
Because this dock uses DisplayLink technology, confirming software compatibility and the intended number of external displays is especially important.
Contact IT Source Bangladesh for current stock information, product details and ordering assistance.
No. Although it has four HDMI and four DisplayPort connectors, they are organized into four display groups. It supports up to four external monitors simultaneously, not eight.
Yes. WAVLINK specifies up to four simultaneous external displays at 3840 × 2160 and 60Hz with supported host systems, monitors and DisplayLink software.
Yes. Its external display functions use DisplayLink technology. Install the appropriate DisplayLink software for the host operating system. On macOS, DisplayLink Manager also requires Screen Recording permission.
Yes. It supports up to 100W charging through the USB-C host connection and provides a separate downstream USB-C Power Delivery output rated up to 30W.
Yes. It supports up to 5120 × 2880 at 60Hz when two DisplayPort connections are used together with a compatible dual-input 5K monitor.
Yes. It includes a 2.5GbE RJ45 network port and SD/microSD readers with a theoretical UHS-II bus speed up to 312MB/s.
