| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | USB-C / USB-A Universal DisplayLink Docking Station |
| Display Technology | DisplayLink (DL6950 Chipset) |
| Host Interface | USB 3.0 Type-C (Compatible with USB-C and USB-A) |
| Video Outputs | 2 × HDMI 2.0 2 × DisplayPort 1.2 (DP++) |
| Display Resolution | Dual: Up to 4096 × 2160 @ 60Hz Single 5K: 5120 × 2880 @ 60Hz |
| USB Ports | 6 × USB 3.0 (Up to 5Gbps) |
| Networking | 1 × RJ45 Gigabit (10/100/1000Mbps) |
| Audio | 1 × 3.5mm Audio Output 1 × 3.5mm Microphone Input |
| Power | DC 20V/2A (40W Adapter) Laptop Power Delivery: Not supported |
| Physical Specs | Dimensions: 228 × 80 × 26mm Material: ABS Color: Black |
| Special Features | Power Switch: Yes LED Indicator: Blue Operating Systems: Windows, macOS Driver Requirement: DisplayLink driver HDCP Support: No Display Modes: Extend and Mirror |
| Warranty Information | |
| Warranty | N/A |

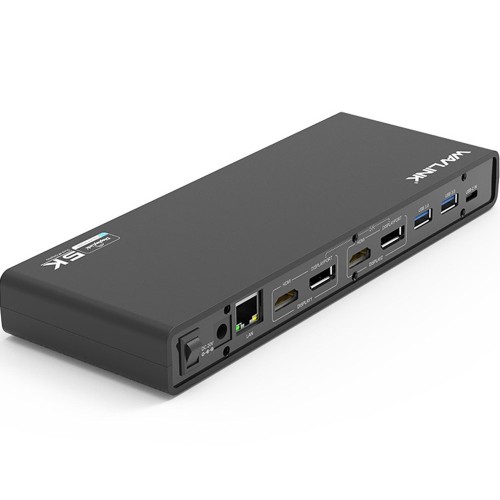

The WAVLINK WL-UG69DK1 is a USB-C universal DisplayLink docking station designed for users who need multiple external monitors, additional USB ports and reliable wired networking. It supports two external 4K@60Hz displays or one compatible 5K@60Hz display using a dual-DisplayPort connection.
Featuring six USB 3.0 ports, Gigabit Ethernet, separate audio and microphone connections, and support for compatible USB-A and USB-C computers, the WL-UG69DK1 helps create a flexible desktop workstation. Check the latest WAVLINK WL-UG69DK1 price in Bangladesh at IT Source.
The WAVLINK WL-UG69DK1 is a universal DisplayLink docking station designed to add external monitors and essential desktop connections to compatible computers.
Unlike a conventional USB-C video hub that depends entirely on native DisplayPort Alternate Mode, this dock uses an integrated DisplayLink USB graphics solution. With the appropriate driver, it can provide external display functionality over supported USB 3.0 host connections.
It includes two HDMI 2.0 ports and two DisplayPort 1.2 ports, arranged in two video output groups. Each group can drive one active external monitor, allowing a maximum of two external displays simultaneously.
Supported dual-monitor configurations reach 4096 × 2160 at 60Hz per display, while a single compatible 5K monitor can operate at 5120 × 2880 at 60Hz when both DisplayPort outputs are used together.
The dock also provides six USB-A 3.0 ports with interface speeds up to 5Gbps, a Gigabit Ethernet connection, and separate headphone and microphone jacks.
Its host USB-C connection supports compatible USB-C and USB-A computers when used with the appropriate USB 3.0 cable.
A dedicated DC 20V/2A adapter powers the docking station. The device does not support charging the connected laptop through its USB host connection.
For office professionals, developers and users who work with multiple applications, the WL-UG69DK1 provides an organized way to connect monitors and everyday peripherals.
The WAVLINK WL-UG69DK1 uses a horizontal desktop enclosure measuring approximately 228 × 80 × 26mm.
Its black ABS housing is designed to accommodate multiple connections while maintaining a relatively low profile on a desk.
The docking station features a USB-C host interface that can connect to compatible USB-C computers or USB-A computers through an appropriate USB 3.0 cable.
This flexibility is useful for work environments with a mix of older USB-A laptops and newer USB-C computers.
The dock includes a physical power switch and a blue LED indicator to show its operating state.
With monitor cables, network connections, USB peripherals and audio accessories attached to the dock, users can reduce the number of separate adapters connected directly to a laptop.
The WL-UG69DK1 is an externally powered docking station and requires its DC power adapter for normal operation.
The WL-UG69DK1 uses an integrated DisplayLink USB graphics solution to support external displays through a compatible USB 3.0 computer connection.
It provides two HDMI 2.0 and two DisplayPort 1.2 connectors, allowing users to select suitable video outputs for their monitors.
Its maximum supported simultaneous display configuration is two external monitors at up to 4096 × 2160 resolution and 60Hz each.
These displays can be configured in extended or mirrored modes according to the operating system and DisplayLink software.
The four physical video connectors do not mean four independent monitors can operate simultaneously. The dock has two video output groups, with one active monitor per group.
If HDMI and DisplayPort are connected within the same output group, the DisplayPort connection takes priority according to the model-specific technical documentation.
For compatible Mac computers, DisplayLink Manager may require Screen Recording permission to enable external display operation.
The dock is designed primarily for office and productivity workloads. Graphics-intensive gaming and protected video playback may be limited by DisplayLink technology and HDCP restrictions.
In addition to dual 4K operation, the WAVLINK WL-UG69DK1 supports a single 5K display at 5120 × 2880 resolution and 60Hz.
This configuration requires both DisplayPort outputs to connect to one compatible monitor that supports dual-DisplayPort 5K input.
The two DisplayPort connections work together to provide the bandwidth required for the supported 5K mode.
This is useful for users who need a high-resolution desktop for detailed documents, design work or applications with large amounts of on-screen information.
The single 5K configuration is different from connecting two independent 5K monitors. The docking station does not support two separate 5K displays.
A suitable dual-input 5K monitor and compatible DisplayPort cables are required.
Actual display operation depends on the monitor, host computer, operating system and installed DisplayLink driver.
The WL-UG69DK1 provides six USB-A 3.0 ports for connecting compatible storage devices and computer peripherals.
Each USB 3.0 port supports a maximum interface signaling rate of 5Gbps and is backward compatible with suitable USB 2.0 accessories.
Users can connect USB flash drives, external HDDs, supported SSD enclosures, keyboards, mice and other USB accessories.
The multiple USB ports make the docking station useful for users who frequently switch between storage devices or keep several peripherals attached to their workstation.
For office use, this reduces the need for a separate USB hub when connecting common desktop accessories.
The six USB ports share the bandwidth of the docking station's USB host connection, so simultaneous high-speed transfers may reduce available throughput.
Actual file transfer performance depends on the connected device, cable, computer and other active docking functions.
The 5Gbps figure refers to the USB 3.0 interface rating and does not guarantee an equivalent file-copy speed.
The WAVLINK WL-UG69DK1 includes an RJ45 Gigabit Ethernet port supporting 10/100/1000Mbps wired networking.
This provides a convenient wired network connection for compatible laptops that do not have a built-in Ethernet port.
Users can connect to office networks, routers and supported local storage systems without carrying a separate USB Ethernet adapter.
The dock also includes a dedicated 3.5mm headphone or audio output jack and a separate 3.5mm microphone input.
These independent connections are useful for compatible wired headsets, speakers and microphones used in meetings or desktop audio setups.
Supported DisplayPort audio output can also provide multichannel audio through suitable external display equipment.
The combination of Gigabit Ethernet and audio connections makes the WL-UG69DK1 a practical workstation accessory for communication, productivity and everyday multimedia use.
Actual network performance depends on the connected router, switch, Ethernet cable and network service.
The WL-UG69DK1 relies on DisplayLink technology for its external video outputs, so the correct DisplayLink software is required for reliable display operation.
WAVLINK provides model-specific driver resources for supported Windows and macOS systems, with additional driver listings covering Linux and Android environments.
On macOS, users may need to install DisplayLink Manager and grant the required Screen Recording permission.
The docking station connects to the computer through USB 3.0, meaning a compatible USB-A host can be used with the appropriate cable without requiring a native USB-C DisplayPort Alternate Mode connection.
The dock uses a dedicated DC 20V/2A external power adapter, supplying up to 40W to the docking system.
This power input is intended for the docking station itself and should not be confused with USB-C Power Delivery laptop charging.
The WL-UG69DK1 does not provide laptop charging through its host connection. Users should continue using their laptop's own charger.
Before installation, confirm the exact model and hardware revision on the device label and download the appropriate DisplayLink driver from WAVLINK or Synaptics.
The WAVLINK WL-UG69DK1 is suitable for office professionals who need two external monitors and additional USB connections from a compatible laptop.
Software developers can use extended displays for coding, documentation and testing tools.
Business users can organize spreadsheets, reports, communication applications and web-based workflows across supported monitors.
Users with USB-A laptops may benefit from its DisplayLink-based video expansion without needing a dedicated native USB-C video output.
Home-office users can connect wired Ethernet, USB peripherals and separate audio devices through one powered docking station.
It is not intended as a laptop charging dock or a high-performance gaming graphics solution.
IT Source offers WAVLINK docking stations, USB connectivity accessories and workstation equipment for customers in Bangladesh.
Customers can check the latest WAVLINK WL-UG69DK1 price and availability before ordering.
Because DisplayLink docks require suitable software and may have restrictions for protected video playback, users should verify their operating system and intended applications before purchasing.
Contact IT Source Bangladesh for current product information and ordering assistance.
No. Although it has two HDMI and two DisplayPort connectors, they form two display groups. The dock supports a maximum of two independent external monitors simultaneously.
Yes. It supports up to two external displays at 4096 × 2160 resolution and 60Hz with compatible monitors and DisplayLink software.
Both DisplayPort outputs must connect to one compatible dual-input 5K monitor. This is a single-monitor configuration, not two independent 5K displays.
Yes. DisplayLink software is required for the dock's external video functions. Mac users may also need to grant Screen Recording permission to DisplayLink Manager.
Yes. The docking station supports compatible USB-A and USB-C computers through the appropriate USB 3.0 host cable.
No. The DC 20V/2A adapter powers the docking station, but the USB host connection does not provide laptop Power Delivery charging.
Buy WAVLINK WL-UG69DK1 USB-C Dual 4K DisplayLink Docking Station from IT Source Bangladesh
Check the latest price and confirm DisplayLink driver, operating system and monitor compatibility before ordering.
