| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Wireless USB-C to HDMI Transmitter and Receiver |
| Maximum Resolution | 1920 × 1080 @ 60Hz |
| Wireless Frequency | 5GHz |
| Maximum Transmission Distance | Up to 50m (Open Environment) |
| Transmitter Interface | USB-C Male + USB-C Female |
| Transmitter Input Rating | 5V/3A |
| Receiver Interface | HDMI Female + USB-C Female |
| Receiver Power Input | 5V/2A |
| Screen Mirroring | Supported |
| Pairing | TX/RX Function Buttons |
| Installation | Plug and Play |
| Material | ABS |
| Connector Finish | Nickel-Plated |
| Length | 0.1m |
| Compatible Source Devices | USB-C Devices Supporting Video Output |
| Compatible Displays | HDMI Monitors, TVs and Projectors |
| Warranty Information | |
| Warranty | N/A |
The VENTION ADS Portable Wireless USB-C to HDMI Transmitter and Receiver provides a convenient way to share a compatible USB-C device's screen with an HDMI display. It supports Full HD 1080P@60Hz video transmission over a 5GHz wireless connection, with a maximum stated range of 50 meters in open space.
Its compact transmitter and receiver design is suitable for meetings, classrooms, presentations and home multimedia setups. Check the latest VENTION ADS price in Bangladesh at IT Source.

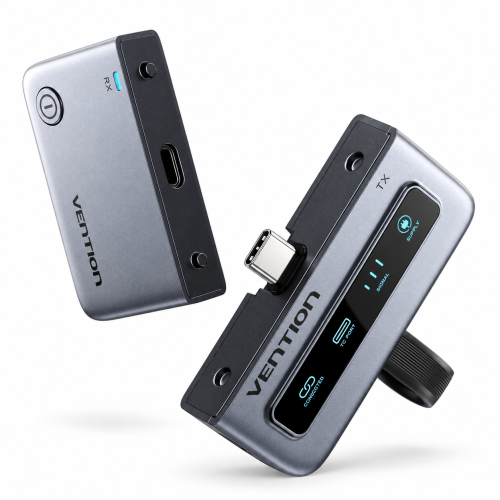

The VENTION ADS is a portable wireless video transmission kit consisting of a USB-C transmitter (TX) and an HDMI receiver (RX). It allows compatible USB-C source devices to display content on HDMI monitors, TVs and projectors without a long video cable between the source and display.
With Full HD 1080P@60Hz support and 5GHz wireless transmission, the system is designed for presentations, video playback and everyday screen sharing. Its maximum stated operating range is 50 meters in an unobstructed environment.
The transmitter includes a USB-C male connector and USB-C female power connection. The receiver provides an HDMI female connection and USB-C power input, making it suitable for a range of portable display setups.
The VENTION ADS supports video transmission at up to 1920 × 1080 resolution with a 60Hz refresh rate. This provides a practical display format for presentations, documents, videos and screen sharing.
Actual display performance depends on the source device, display and wireless conditions. This model should not be advertised as a 4K wireless transmitter.
The transmitter and receiver communicate over a 5GHz wireless connection, reducing the need for a long HDMI cable between the source device and the display.
Wireless performance may be affected by walls, obstacles, interference and the distance between the units. A clear signal path generally provides better results.
The VENTION ADS has a manufacturer-stated maximum effective transmission distance of 50 meters in an open environment. This offers flexible positioning for conference rooms and presentation spaces.
The 50-meter figure is a maximum under suitable conditions, not a guaranteed indoor distance. Actual range may decrease significantly through walls or other obstructions.
The transmitter features a USB-C male connector for compatible source devices and a USB-C female connection for power pass-through. The documented transmitter input rating is 5V/3A.
Source devices must support the required USB-C video output. The 5V/3A rating should not be confused with the 60W USB-C PD specification of the separate VENTION ADOBB model.
The receiver provides an HDMI female port for connecting a suitable HDMI cable to a monitor, TV or projector. It also includes a USB-C female power input rated at 5V/2A.
The receiver must receive adequate power for normal operation. Use a compatible HDMI cable and select the correct input on the connected display.
The compact transmitter and receiver use an ABS housing with nickel-plated connector construction. The documented adapter length is 0.1 meter, helping keep the connection practical around portable devices.
The system supports plug-and-play screen mirroring and includes pairing controls for reconnecting the transmitter and receiver when necessary. No dedicated display-driver installation is normally required.
Office Professionals: Share presentations on conference room displays. Teachers: Show educational content on classroom projectors. Business Presenters: Connect compatible USB-C laptops to HDMI screens wirelessly. Home Users: Mirror supported devices on larger televisions. Meeting Organizers: Reduce long video cable runs between presentation devices and displays.
IT Source offers VENTION display connectivity products and computer accessories for customers in Bangladesh. Check the latest VENTION ADS Wireless USB-C to HDMI Transmitter and Receiver price, availability and applicable warranty before ordering. Confirm that your source device supports USB-C video output and that the display provides an HDMI input.
Buy VENTION ADS Wireless USB-C to HDMI Transmitter and Receiver from IT Source Bangladesh
Enjoy portable Full HD wireless screen sharing with 5GHz transmission and a maximum 50-meter open-space range.
