| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 9-in-1 USB-C DisplayLink Docking Station |
| Number of Ports | 9 |
| Host Connection | USB-C |
| Video Outputs | 2× HDMI 2.0, 2× DisplayPort 1.2 |
| Maximum Resolution | 4K (3840 × 2160) @ 60Hz |
| Dual Display Support | Up to 2 external monitors |
| USB-A Ports | 2× USB-A 10Gbps |
| USB-C Data Port | 1× USB-C 10Gbps |
| USB Data Speed | Up to 10Gbps |
| Ethernet Port | RJ45 Gigabit Ethernet |
| Ethernet Speed | Up to 1000Mbps |
| Power Delivery | PD 3.0, up to 100W input |
| Maximum Laptop Charging | Up to 85W |
| Display Technology | DisplayLink |
| Operating Systems | Windows and macOS (supported versions) |
| Driver Requirement | DisplayLink driver required |
| Dimensions | 166.5 × 79.5 × 24.95mm |
| Weight | 512.9g |
| Warranty Information | |
| Warranty | N/A |

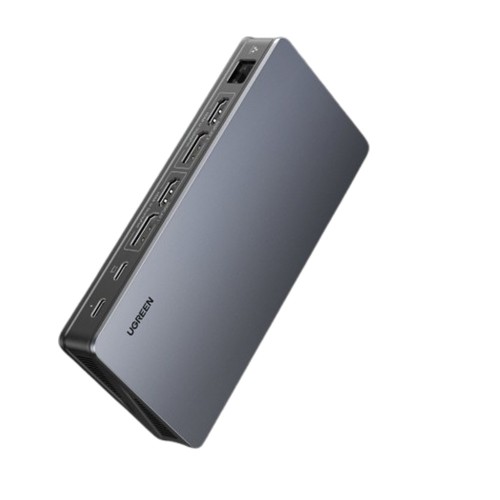

The UGREEN CM615 (90912) Revodok Pro 209 is a 9-in-1 USB-C DisplayLink docking station designed to expand compatible laptop connectivity. It combines dual 4K@60Hz external display support, three 10Gbps USB data ports, Gigabit Ethernet and a dedicated 100W USB-C Power Delivery input.
With flexible HDMI and DisplayPort connections, it is suitable for professional dual-monitor workstations, office multitasking and desktop productivity. Check the latest UGREEN CM615 (90912) price in Bangladesh at IT Source.
The UGREEN CM615 Revodok Pro 209 expands a compatible USB-C computer connection into nine interfaces. It combines display connectivity, USB data expansion, wired networking and laptop charging in a single docking station.
Two HDMI 2.0 and two DisplayPort 1.2 connectors provide flexible video connection options. DisplayLink technology supports a maximum of two external monitors at up to 4K@60Hz each.
The docking station also includes two 10Gbps USB-A ports, one 10Gbps USB-C data port, Gigabit Ethernet and a dedicated USB-C PD input supporting up to 85W laptop charging with a suitable power source.
The CM615 supports two external monitors at resolutions up to 3840 × 2160 and 60Hz. It provides additional screen space for spreadsheets, documents, office applications and professional multitasking.
DisplayLink software installation is required for video functionality. Actual resolution and display performance depend on the host computer, operating system and connected monitors.
The docking station features two HDMI 2.0 and two DisplayPort 1.2 outputs. These allow users to select suitable video connections according to their monitors.

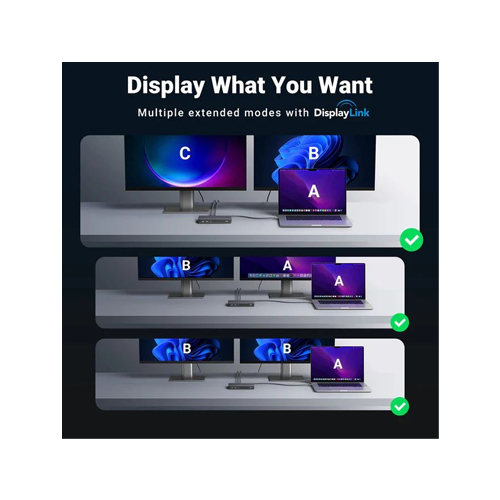

The four video connectors are organized into two display channels. Each channel supports either HDMI or DisplayPort at one time, so the maximum simultaneous external display count is two.
Two USB-A ports and one USB-C data port support transfer speeds up to 10Gbps. They are useful for compatible external SSDs, flash drives and other USB peripherals.
Actual transfer speeds depend on the host connection, connected storage and available bandwidth. The USB-C data interface is separate from the dedicated USB-C charging input.
The integrated RJ45 Ethernet port supports 10/100/1000Mbps wired networking. It provides a practical network connection for compatible laptops without a built-in Ethernet port.
Wired connectivity is useful for office networks, online meetings and large downloads. Actual network performance depends on the router, Ethernet cable and internet service.
The dedicated USB-C Power Delivery input supports up to 100W from a compatible USB-C charger. UGREEN specifies a maximum charging output of 85W to a supported laptop.
A suitable external power adapter is required. Charging performance depends on the laptop and power source, while the PD input does not function as an additional USB data or video port.
The Revodok Pro 209 uses DisplayLink technology to support dual-monitor expansion on compatible Windows and macOS computers. Its desktop-oriented design includes a power button and LED indicator.
The appropriate DisplayLink software must be installed before using external displays. Certain protected video streaming services may not work through DisplayLink-connected monitors, making the dock especially suitable for productivity applications.
Office Professionals: Build an efficient dual-monitor workstation. Remote Workers: Connect external displays, USB devices and wired internet. Business Users: Manage several applications across two screens. Laptop Users: Expand limited desktop connectivity. IT Teams: Set up compatible Windows and Mac workstations with a versatile docking solution.
IT Source offers UGREEN docking stations and computer connectivity accessories for customers in Bangladesh. Check the latest UGREEN CM615 (90912) price, stock availability and applicable warranty before ordering. Confirm DisplayLink compatibility with your computer and arrange a suitable USB-C PD charger if laptop charging is required.
Buy UGREEN CM615 (90912) Revodok Pro 209 from IT Source Bangladesh
Expand your workstation with dual 4K@60Hz displays, 10Gbps USB connectivity, Gigabit Ethernet and 100W PD charging input.
