| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 10-in-1 USB-C Docking Station |
| Number of Ports | 10 |
| Host Interface | USB-C |
| Video Outputs | 2× HDMI |
| HDMI 1 | Up to 4K@60Hz |
| HDMI 2 | Up to 4K@30Hz |
| Dual Display Support | Yes, with compatible host and driver |
| USB-C Data Port | 1× 10Gbps |
| USB-A Data Ports | 2× 10Gbps, 1× 5Gbps |
| Ethernet Port | RJ45 Gigabit Ethernet |
| Ethernet Speed | Up to 1000Mbps |
| Card Reader | SD and TF |
| Power Delivery Input | Up to 100W |
| Maximum Laptop Charging | Up to 85W |
| Display Driver | Silicon Motion |
| Operating Systems | Compatible Windows and macOS systems |
| Warranty Information | |
| Warranty | N/A |
The UGREEN U700 (15963) Revodok Pro 2101 is a 10-in-1 USB-C docking station designed to expand laptop connectivity with dual HDMI outputs, USB-A and USB-C data ports, Gigabit Ethernet, SD/TF card readers and 100W USB-C Power Delivery input.
With 4K@60Hz video output and USB transfer speeds up to 10Gbps, it helps create a practical desktop workstation. Check the latest UGREEN U700 (15963) price in Bangladesh at IT Source.

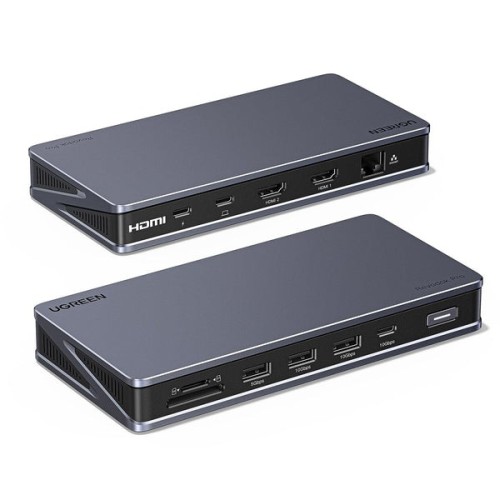

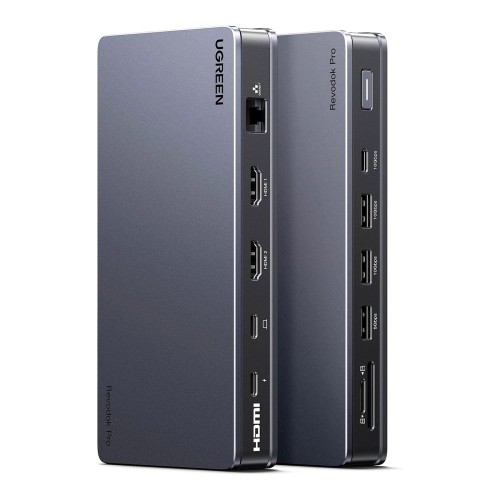

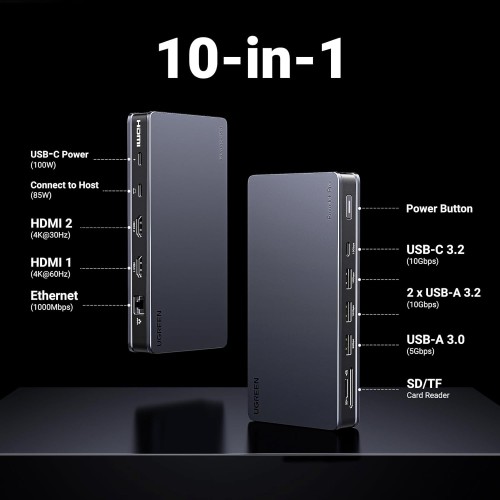

The UGREEN U700 Revodok Pro 2101 expands one compatible USB-C host connection into ten interfaces. It combines display, data, networking, memory card and charging functions in a single docking station.
Its two HDMI outputs support different maximum resolutions: HDMI 1 reaches 4K@60Hz, while HDMI 2 reaches 4K@30Hz. The dock also provides three 10Gbps USB data ports and an additional 5Gbps USB-A port.
Gigabit Ethernet provides wired network access, while SD and TF slots support compatible memory cards. The dedicated USB-C PD input accepts up to 100W and supports up to 85W laptop charging with a suitable power adapter.
The U700 provides two HDMI outputs for connecting compatible monitors, televisions or projectors. HDMI 1 supports up to 3840 × 2160 at 60Hz, while HDMI 2 supports up to 3840 × 2160 at 30Hz.
HDMI 1 relies on compatible USB-C video output, while HDMI 2 uses Silicon Motion technology. Display resolution and extended-monitor functionality depend on the host computer, HDMI cables and software configuration.
Two USB-A data ports and one USB-C data port support transfer speeds up to 10Gbps. These interfaces are useful for compatible external SSDs, flash drives and high-speed USB storage devices.
Actual data speeds depend on the connected devices and available host bandwidth. The 10Gbps specification represents the maximum theoretical interface speed.
One additional USB-A data port supports speeds up to 5Gbps. It provides convenient connectivity for flash drives, keyboards, mice and other compatible USB peripherals.
This additional port helps keep the 10Gbps interfaces available for faster storage devices. Actual performance depends on the connected USB accessories.
The integrated RJ45 Ethernet port supports wired network speeds up to 1000Mbps. It is useful for connecting compatible laptops to routers, switches and office networks.
Separate SD and TF card slots provide convenient access to supported memory cards. Users can transfer photos, videos and documents without carrying a separate card reader.
The dedicated USB-C PD input accepts up to 100W from a compatible charger. According to the UGREEN user manual, the dock reserves approximately 15W for its operation and can provide up to 85W charging power to the host laptop.
A suitable USB-C PD power adapter is required. The laptop must support USB-C charging, and actual charging performance depends on the charger, cable and connected computer.
The U700 uses Silicon Motion technology for its driver-based HDMI output. This supports additional external display functionality on compatible Windows and macOS computers.
The appropriate driver must be installed for the driver-based display connection. For full video, data and charging functionality, the host USB-C port should support the required features, including video output and Power Delivery.
Office Professionals: Build a dual-monitor workstation. Remote Workers: Connect displays, USB accessories and wired internet. Content Creators: Access SD/TF cards and high-speed external storage. Business Users: Manage multiple applications across external screens. Laptop Users: Expand limited USB-C connectivity with a single docking station.
IT Source offers UGREEN docking stations and computer connectivity accessories for customers in Bangladesh. Check the latest UGREEN U700 (15963) price, availability and applicable warranty before ordering. Confirm your laptop's USB-C video and charging capabilities and install the required Silicon Motion driver for supported display functions.
Buy UGREEN U700 (15963) Revodok Pro 2101 from IT Source Bangladesh
Expand your workstation with dual HDMI, 10Gbps USB data, Gigabit Ethernet, SD/TF card readers and 100W PD input.
