| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 11-in-1 USB-C Docking Station |
| Host Connection | USB-C Male (Integrated Cable) |
| Number of Ports | 11 |
| Ports | 2 × HDMI, 2 × USB-A 10Gbps, 1 × USB-A 5Gbps, 1 × USB-C 10Gbps, 1 × RJ45, 1 × SD, 1 × microSD/TF, 1 × 3.5mm Audio, 1 × USB-C PD |
| USB Data Speed | Up to 10Gbps |
| HDMI 1 Resolution | 4K@60Hz |
| HDMI 2 Resolution | 8K@30Hz (Single Display) |
| Dual Display Support | Up to Dual 4K@60Hz (Windows/DP 1.4 Host) |
| macOS Dual Display | External HDMI Outputs Mirror Each Other |
| Ethernet Speed | 10/100/1000Mbps |
| Card Reader | SD and microSD/TF (Up to 104MB/s) |
| Audio Interface | 3.5mm Audio/Microphone Jack |
| Power Delivery | 100W Input / Up to 85W Pass-Through |
| Host Requirement | USB-C DisplayPort Alt Mode; DP 1.4 |
| Compatibility | Windows, macOS, Linux |
| Color | Gray |
| Warranty Information | |
| Warranty | N/A |
The UGREEN Revodok Pro 211 CM681 (15965) is an 11-in-1 USB-C docking station designed to expand compatible laptops with dual HDMI display outputs, high-speed USB ports, Gigabit Ethernet, SD and microSD card readers, 3.5mm audio and USB-C Power Delivery.
Supporting dual 4K@60Hz displays on suitable Windows computers, USB data speeds up to 10Gbps and 100W PD input, the CM681 is a practical solution for connected workstations. Check the latest UGREEN CM681 (15965) price in Bangladesh at IT Source.

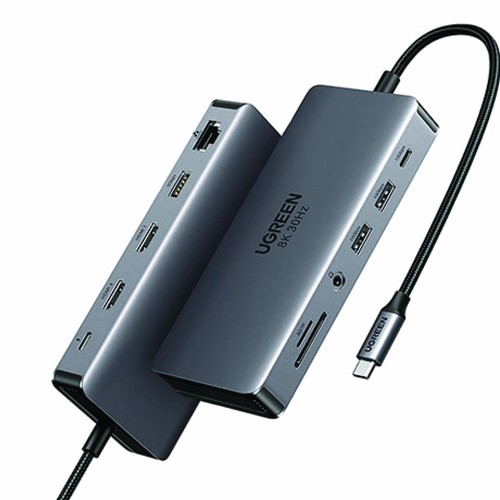

The UGREEN Revodok Pro 211 CM681 combines eleven useful connections into one USB-C docking station. It is designed for compatible laptops and computers that need external displays, USB storage, wired networking, memory card access and audio connectivity.

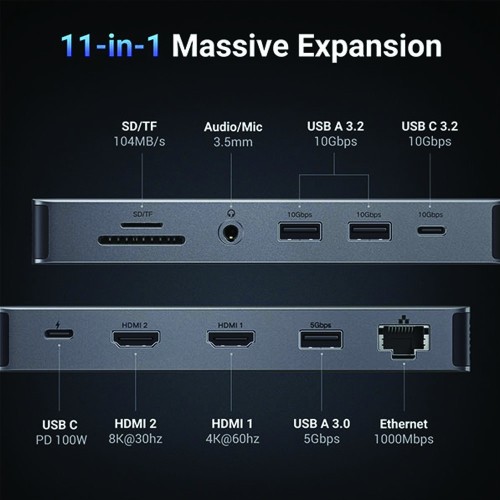

The docking station includes two HDMI outputs, two 10Gbps USB-A ports, one 5Gbps USB-A port, one 10Gbps USB-C data port, Gigabit Ethernet, SD and microSD card slots, a 3.5mm audio jack and a 100W USB-C PD input.
Its integrated USB-C host connection simplifies workstation setup. Display capabilities depend on the computer's USB-C video output and operating system, while PD charging requires a compatible external USB-C charger.
The CM681 includes two HDMI outputs for connecting external monitors, televisions or projectors. HDMI 1 supports up to 4K at 60Hz, while HDMI 2 supports up to 8K at 30Hz when used individually with suitable equipment.

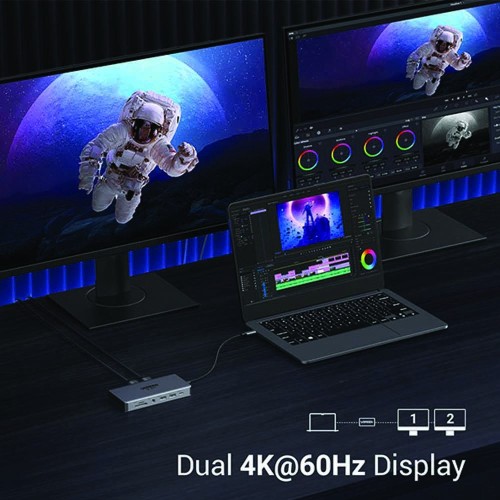

On compatible Windows computers with DisplayPort 1.4 capabilities, both HDMI outputs can support up to 4K at 60Hz simultaneously. Actual resolution depends on the host's graphics capabilities, available bandwidth, display and HDMI cable.
Dual HDMI connectivity helps users work across larger desktop spaces, making it easier to manage documents, spreadsheets, editing tools and presentations. Compatible Windows systems can support separate extended external displays.
On macOS, the two external HDMI screens may show the same image because of the docking station's display architecture. Users who need two independently extended external monitors should verify their exact computer and operating system compatibility.

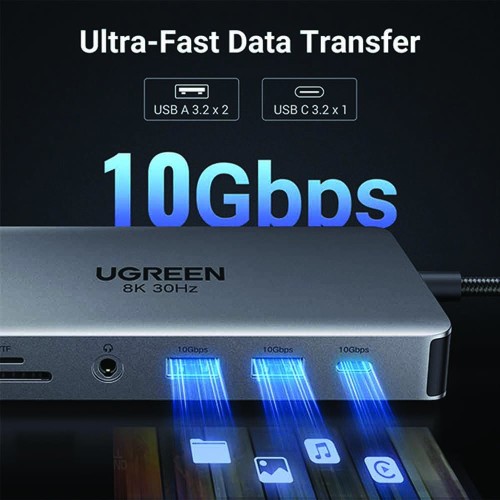

The CM681 provides two USB-A 3.2 Gen 2 ports and one USB-C 3.2 Gen 2 data port, each supporting up to 10Gbps. An additional USB-A 3.0 port supports up to 5Gbps for compatible peripherals.
These connections are suitable for external SSDs, flash drives, keyboards and other USB accessories. Actual transfer speeds depend on the computer, storage device and simultaneous use of the dock's shared connection.
The RJ45 Ethernet port supports 10/100/1000Mbps wired networking. It provides a practical alternative to wireless networking for compatible office, home and workstation setups.
A 3.5mm audio jack supports compatible headphones, speakers and microphone connections. This adds a convenient audio connection when the laptop's built-in audio port is occupied or unavailable.
The docking station includes separate SD and microSD/TF card slots for transferring photos, videos and documents from compatible memory cards. The card reader supports transfer speeds up to 104MB/s with suitable cards.
UGREEN lists support for simultaneous SD and microSD access. Card performance is separate from the 10Gbps USB data-port specification and depends on the memory card, file system and host computer.
The CM681 features a USB-C Power Delivery input supporting up to 100W from a compatible charger. UGREEN specifies up to 85W pass-through charging to the connected host after reserving power for docking station operation.
Its integrated USB-C host cable reduces the need for an additional computer connection cable. A compatible USB-C host port is required, and HDMI output specifically needs DisplayPort Alt Mode or another supported USB-C video connection.
Office Professionals: Build a workstation with multiple monitors and peripherals. Content Creators: Connect high-speed external storage and SD or microSD cards. Remote Workers: Use wired Ethernet, external displays and laptop charging. Students: Expand limited USB-C laptop connections. Business Users: Connect monitors, USB accessories and audio equipment through one docking station.
The UGREEN CM681 requires a compatible USB-C computer. Dual independent external displays depend on the operating system and graphics capabilities. The USB-C data port is not a second video output, and the USB-C PD port is dedicated to power input rather than general data transfer.
IT Source offers UGREEN USB-C docking stations, hubs and computer connectivity accessories for customers in Bangladesh. Check the current UGREEN Revodok Pro 211 CM681 (15965) price, stock availability and applicable local warranty before ordering. Confirm your laptop's USB-C video capability, external monitor requirements and Power Delivery support to select the right docking station.
Buy UGREEN Revodok Pro 211 CM681 (15965) from IT Source Bangladesh
Expand your laptop with dual HDMI displays, 10Gbps USB, Gigabit Ethernet, card readers, audio and 100W PD input.
