UGREEN Revodok Max 213 U710 (25054) 13-in-1 Thunderbolt 4 Docking Station

UGREEN Revodok Max 213 (25054) Price in Bangladesh

Top Highlights

• 40Gbps Thunderbolt 4Connect high-bandwidth storage, displays and accessories.
• Dual 4K@60Hz or Single 8KBuild a high-resolution workstation on compatible hosts.
• 90W Laptop ChargingKeep a supported laptop powered through one host cable.
• 2.5GbE and UHS-II ReadersAccess fast wired networks and compatible memory cards.

About the UGREEN Revodok Max 213 (25054)

The UGREEN Revodok Max 213 is a 13-in-1 Thunderbolt 4 docking station designed for users who need more connectivity than a conventional USB-C hub can provide.

Its Thunderbolt 4 host interface supports up to 40Gbps and brings together external display connectivity, data transfer, laptop charging and desktop peripherals through a single compatible host connection.

The docking station includes two downstream Thunderbolt 4 ports and one DisplayPort 1.4 output. These connections support up to two simultaneous 4K@60Hz external displays on suitable computers, while a single 8K@30Hz display is also supported on compatible Windows systems.

For everyday connectivity, the dock provides one USB-C 10Gbps data port, two USB-A 10Gbps ports and two USB-A 5Gbps ports. These connections are useful for external SSDs, USB storage and common computer accessories.

A 2.5GbE RJ45 port provides faster wired networking than standard Gigabit Ethernet when connected to suitable network equipment.

SD 4.0 and microSD/TF 4.0 card readers support compatible UHS-II memory cards, while a 3.5mm audio connection provides additional headset or audio connectivity.

The supplied 180W power adapter supports up to 90W charging to a compatible laptop, with separate accessory charging capabilities on selected downstream ports.

Its upright desktop design and integrated cooling features make the Revodok Max 213 suitable for demanding office, development and creative workflows.

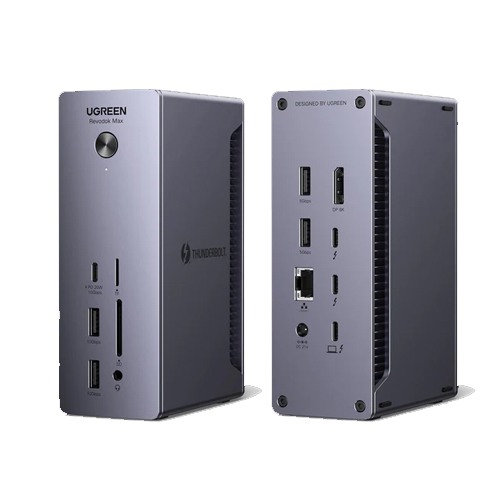

Design & Performance

13-in-1 Vertical Docking Design with Enhanced Cooling

The UGREEN Revodok Max 213 features an upright desktop docking design that brings multiple workstation connections into one device.

Its dimensions are approximately 148.5 × 96.2 × 52mm, giving the dock a compact footprint for placement alongside a laptop or monitor.

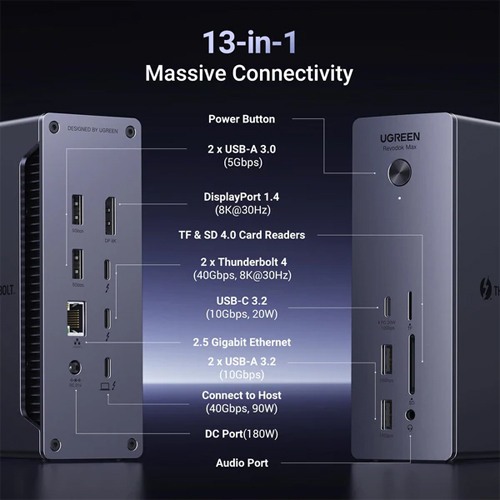

The docking station combines Thunderbolt, DisplayPort, USB, Ethernet, memory card and audio connections in a centralized layout.

This helps users keep frequently used peripherals connected while simplifying the process of attaching or removing a laptop from a desk setup.

UGREEN highlights its aluminum cooling structure, internal thermal materials and raised base design as part of the product's heat management system.

These features help the dock manage heat during demanding use involving several connected devices.

The Revodok Max 213 is a powered desktop dock and requires its external power adapter for normal operation.

Its vertical form factor is particularly useful for workstations where desk space and cable organization are important.

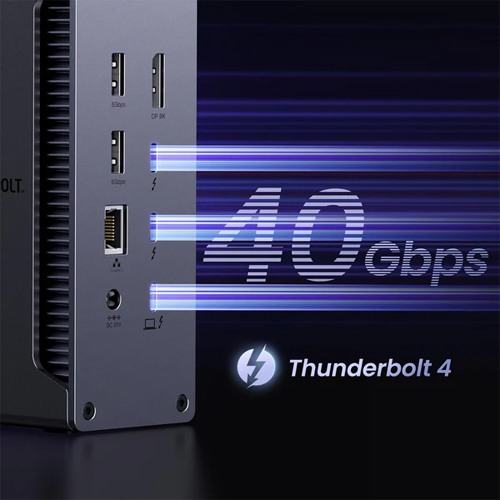

40Gbps Thunderbolt 4 with Two Downstream Thunderbolt Ports

The Revodok Max 213 connects to a compatible laptop through a Thunderbolt 4 host connection rated up to 40Gbps.

It provides two additional downstream Thunderbolt 4 ports, each supporting up to 40Gbps link speed with suitable connected equipment.

These ports can be used for compatible Thunderbolt SSDs, external displays and other high-performance Thunderbolt accessories.

Each downstream Thunderbolt 4 port supports up to 15W accessory power.

Users working with large project files can connect compatible high-speed storage while retaining additional USB ports for everyday accessories.

The downstream Thunderbolt ports can also provide display connectivity, subject to the host's supported display modes and available bandwidth.

Thunderbolt 4 is useful for consolidating multiple functions into one high-bandwidth laptop connection.

The 40Gbps figure is the Thunderbolt link rate rather than a guaranteed file transfer speed. Actual performance depends on the computer, cable, peripheral and simultaneous dock activity.

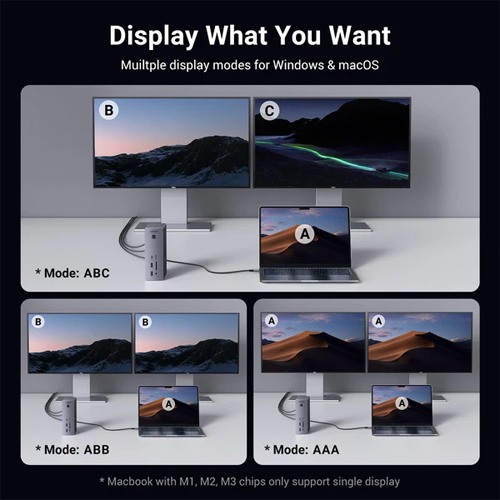

Dual 4K@60Hz and Single 8K Display Connectivity

The UGREEN Revodok Max 213 supports external display output through its DisplayPort 1.4 connection and downstream Thunderbolt 4 ports.

On compatible Windows systems, users can connect two external monitors at up to 4K resolution and 60Hz simultaneously.

It also supports a single display at up to 8K resolution and 30Hz with suitable host graphics hardware, monitor and cables.

The DisplayPort 1.4 and Thunderbolt video connections also support selected high-refresh-rate modes, including 4K@120Hz, when the complete display chain is compatible.

Dual-monitor support can be useful for programming, financial analysis, office productivity and content editing.

Mac users should verify the external display capabilities of their specific processor. Base M1, M2 and M3 Mac computers are generally limited to one external display through this native Thunderbolt dock.

Compatible higher-tier Mac processors can support additional external displays according to the computer's hardware limits.

This docking station does not include a dedicated HDMI output. HDMI monitors require a suitable Thunderbolt/USB-C-to-HDMI or DisplayPort-to-HDMI connection.

10Gbps USB-C and USB-A Ports for Data and Accessories

The Revodok Max 213 provides one USB-C data port supporting up to 10Gbps for compatible USB-C peripherals and external storage devices.

This USB-C port also supports accessory charging up to 20W, making it useful for charging a compatible smartphone or other supported device.

Two USB-A 3.1 data ports support transfer speeds up to 10Gbps for compatible high-speed USB storage accessories.

Two additional USB-A 3.0 ports support up to 5Gbps, providing connectivity for flash drives and everyday peripherals.

This mix of USB-A and USB-C ports allows users to connect newer storage devices alongside existing computer accessories.

For users handling large files, the 10Gbps ports are useful for compatible external SSDs, while the 5Gbps connections can handle general storage and peripherals.

The 20W USB-C accessory charging function is separate from the 90W laptop charging available through the host connection.

Actual transfer performance depends on connected devices, cables and available shared Thunderbolt bandwidth.

180W Power Adapter with 90W Laptop Charging

The UGREEN Revodok Max 213 uses a dedicated 180W external power adapter to supply the docking station and its connected functions.

Through its Thunderbolt host connection, it can deliver up to 90W charging power to a compatible laptop.

This allows users to connect their laptop to external displays, storage devices and wired networking while receiving charging power.

The dock also provides up to 20W charging through its designated USB-C downstream port.

Each downstream Thunderbolt 4 port supports up to 15W accessory power for compatible connected devices.

The 180W adapter rating should not be confused with laptop charging output. Maximum advertised laptop charging is 90W.

Actual charging power depends on the laptop's charging requirements, the supported USB Power Delivery profiles and the connected cable.

For laptops requiring more than 90W under heavy workloads, users should verify whether the dock's available charging power meets their needs.

2.5GbE Ethernet, UHS-II SD/TF and 3.5mm Audio

The Revodok Max 213 includes a 2.5 Gigabit Ethernet RJ45 port supporting wired network speeds up to 2500Mbps.

When used with compatible 2.5GbE network equipment, this provides greater available network bandwidth than a standard 1Gbps Ethernet connection.

It is useful for compatible NAS systems, local network transfers and workstation environments where fast wired networking is important.

The dock also includes SD 4.0 and microSD/TF 4.0 memory card readers supporting UHS-II transfer rates up to 312MB/s with suitable cards.

These card readers are convenient for photographers, video editors and users who regularly transfer data from removable media.

A 3.5mm audio connection supports compatible audio accessories for meetings, multimedia and everyday desktop use.

The Ethernet, card reader and audio connections reduce the need for additional individual adapters.

Actual network and card transfer performance depends on the connected equipment, media and shared host bandwidth.

Who It's For

The UGREEN Revodok Max 213 (25054) is suitable for professionals who need high-speed Thunderbolt connectivity and an organized desktop workstation.

Software developers and office professionals can use supported dual-monitor setups for coding, documents, spreadsheets and communication tools.

Content creators can connect high-speed external storage and use the integrated UHS-II SD/microSD readers to manage project files.

Users with compatible 2.5GbE network infrastructure can benefit from faster wired access to network storage and local resources.

It is particularly useful for Thunderbolt-equipped laptop users who want external displays, USB peripherals, wired networking and charging through a centralized docking station.

Before purchasing, confirm the laptop's Thunderbolt support, external display capabilities and charging requirements.

Why Buy From IT Source?

IT Source offers Thunderbolt docking stations, USB connectivity accessories and workstation equipment for customers in Bangladesh.

Customers can check the latest UGREEN Revodok Max 213 (25054) price and availability before ordering.

Because Thunderbolt functionality and external display support vary by laptop, confirming host compatibility is important before purchasing.

Contact IT Source Bangladesh for current product details and ordering assistance.

Frequently Asked Questions
