UGREEN Revodok Max 313 U709 (25085) 13-in-1 Thunderbolt 4 Docking Station

UGREEN Revodok Max 313 (25085) Price in Bangladesh

Top Highlights

• 40Gbps Thunderbolt 4High-bandwidth connectivity for compatible displays and storage.
• Triple 4K@60Hz DisplayExpand your workspace across up to three compatible monitors.
• 60W Laptop ChargingPower a supported laptop using the supplied 140W GaN adapter.
• 13-in-1 ConnectivityAccess USB, Ethernet, SD/TF cards, audio and video connections.

About the UGREEN Revodok Max 313 (25085)

The UGREEN Revodok Max 313, also identified as model U709, is a 13-in-1 Thunderbolt 4 docking station designed to expand the connectivity of compatible laptops.

Its Thunderbolt 4 host connection supports a maximum link rate of 40Gbps, bringing together display output, USB data transfer and laptop charging through one connection.

The docking station includes one HDMI 2.1 output, one DisplayPort 1.4 output and one downstream Thunderbolt 4 port. Together, these connections support advanced external display configurations on suitable host computers.

Compatible Windows systems can use up to three 4K monitors at 60Hz or a single 8K display at 30Hz. The available display modes on Mac computers depend on the processor and supported external monitor configuration.

For storage and everyday accessories, the dock provides two USB-C 10Gbps data ports, USB-A data connectivity and UHS-II SD/microSD card readers.

A Gigabit Ethernet connection supports wired networking, while a 3.5mm audio jack provides an additional connection for compatible audio devices.

The supplied 140W GaN adapter powers the dock and enables up to 60W charging to a compatible laptop. This makes the Revodok Max 313 suitable for organized desk setups that require multiple connections throughout the working day.

Design & Performance

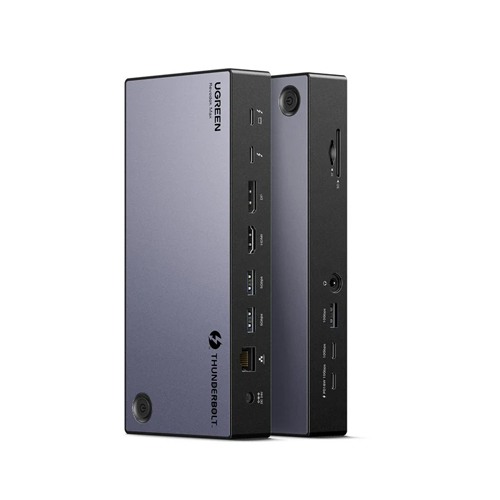

Premium 13-in-1 Aluminum Desktop Docking Design

The UGREEN Revodok Max 313 uses a substantial desktop docking design with an aluminum housing and a dark-grey finish.

Its approximate dimensions are 190 × 85 × 28.5mm, making it suitable for placement beside a laptop or external monitor.

The dock combines video, Thunderbolt, USB, networking, card reading and audio connections into one workstation accessory.

Rather than carrying several separate adapters, users can keep their monitor cables, USB devices and wired network connection attached to the docking station.

The aluminum enclosure supports heat dissipation during normal operation, which is important for a dock handling several high-bandwidth functions simultaneously.

The Revodok Max 313 requires its external power adapter to operate. It is designed as a powered desktop dock rather than an unpowered travel hub.

For users who regularly move a laptop between different workspaces, the dock can simplify reconnecting a complete desktop setup.

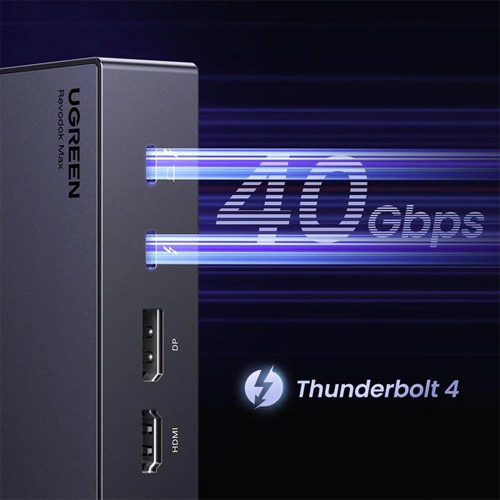

40Gbps Thunderbolt 4 with Downstream Expansion

The Revodok Max 313 supports Thunderbolt 4 with a maximum link rate of 40Gbps on compatible host computers.

Its upstream Thunderbolt connection links the laptop to the docking station, while a separate downstream Thunderbolt 4 port supports compatible high-performance accessories.

The downstream port can be used with suitable Thunderbolt storage devices, external displays and supported Thunderbolt peripherals.

UGREEN specifies up to 15W accessory power through the downstream Thunderbolt 4 connection.

This connection is useful for users who need a high-bandwidth device alongside conventional USB peripherals and external monitors.

Thunderbolt 4 also supports compatible daisy-chain arrangements, subject to the capabilities and power requirements of the connected devices.

The advertised 40Gbps represents the maximum Thunderbolt link rate, not a guaranteed file transfer speed. Available bandwidth is shared across the dock's active functions, and actual throughput depends on the host and peripherals.

Triple 4K@60Hz Displays and Single 8K Video Output

The UGREEN Revodok Max 313 provides HDMI 2.1, DisplayPort 1.4 and downstream Thunderbolt 4 display connectivity.

On compatible Windows laptops, the docking station supports up to three external displays at 4K resolution and 60Hz.

It also supports a single display at up to 8K@30Hz when the host graphics hardware, connection and monitor support the required display mode.

The HDMI 2.1 output supports advertised modes including 8K@30Hz, 4K@120Hz and 2K@144Hz with suitable equipment.

Multiple displays are useful for programming, spreadsheet analysis, content editing and working with several applications simultaneously.

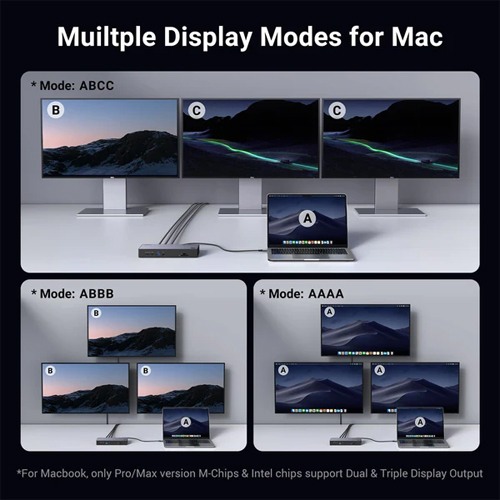

Mac compatibility requires particular attention. Base M1, M2 and M3 Mac computers generally support only one external display through this dock, while supported higher-tier Mac configurations may provide additional display options.

Actual monitor count, resolution and refresh rate depend on the host processor, Thunderbolt or USB-C capabilities, operating system, monitor and cable.

This is a native Thunderbolt display dock and does not use DisplayLink software to bypass the host's external display limitations.

10Gbps USB-C and USB-A Connectivity for Storage and Peripherals

The Revodok Max 313 provides two USB-C 3.2 data ports supporting transfer rates up to 10Gbps.

These connections are suitable for compatible external SSDs, USB-C storage devices and other data accessories.

One USB-C port also supports accessory charging up to 18W, allowing a suitable device to receive power while connected.

The dock includes a USB-A 3.2 data port rated up to 10Gbps and two USB-A 3.0 ports rated up to 5Gbps each.

These connections allow users to attach existing USB-A storage devices, keyboards, mice and other everyday accessories.

Users handling large files can choose the higher-speed ports for compatible storage, while the 5Gbps USB-A connections are useful for general peripherals.

Actual transfer performance depends on the storage device, host computer, cable and available shared Thunderbolt bandwidth.

The 18W USB-C accessory charging capability is separate from the dock's laptop charging function.

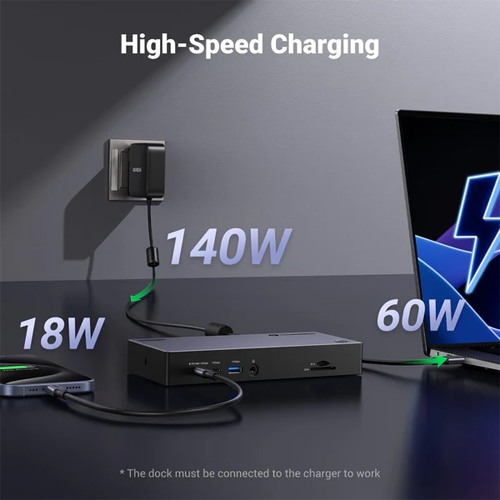

140W GaN Power System with Up to 60W Laptop Charging

The UGREEN Revodok Max 313 uses a dedicated 140W GaN power adapter to supply power to the docking station.

Through the Thunderbolt host connection, the dock can deliver up to 60W charging power to a compatible laptop.

This allows supported users to keep their computer connected to external monitors, USB devices and wired networking while receiving power.

The difference between the 140W adapter rating and the 60W laptop output is important. The adapter supplies the complete docking system, including the dock itself and connected accessories.

The downstream Thunderbolt 4 connection can provide up to 15W to a suitable accessory, while a designated USB-C port supports up to 18W charging.

The dock must be connected to its external power adapter for normal operation.

Actual laptop charging depends on the computer's supported USB-C or Thunderbolt charging profile and its power requirements.

For laptops that require substantially more than 60W, users should confirm whether the available charging output is sufficient during demanding workloads.

Gigabit Ethernet, UHS-II SD/TF Readers and Audio Connectivity

The Revodok Max 313 includes a Gigabit Ethernet RJ45 connection supporting wired network speeds up to 1000Mbps.

This is useful for office networks, network storage and situations where a wired connection is preferred over Wi-Fi.

The docking station also provides SD 4.0 and microSD/TF 4.0 card readers with support for compatible UHS-II memory cards.

The UHS-II interface supports theoretical transfer rates up to approximately 312MB/s, helping users access compatible high-speed memory cards.

Photographers and video editors can use the card slots for importing photographs, video clips and other project files without carrying a separate card reader.

A 3.5mm audio connection provides an additional option for compatible headphones, speakers or audio accessories.

These connections complement the dock's Thunderbolt, display and USB functions to create a practical workstation hub.

Actual Ethernet and card reader performance depends on the connected network equipment, memory cards and host bandwidth.

Who It's For

The UGREEN Revodok Max 313 (25085) is suitable for professionals who need multiple external displays and high-speed peripheral connections from a compatible laptop.

Software developers can use additional monitors for coding, documentation and testing workflows.

Office professionals and financial analysts can organize spreadsheets, reports and communication applications across supported external displays.

Content creators can connect compatible Thunderbolt storage, USB devices and UHS-II memory cards for managing project files.

Home-office users may appreciate its combination of laptop charging, wired networking, external monitors and everyday USB accessories.

Users should confirm their laptop's Thunderbolt capabilities and external display limits before choosing this model.
