UGREEN CM512 (60515) Revodok 107 7-in-1 USB-C Hub

UGREEN CM512 (60515) 7-in-1 USB-C Hub Price in Bangladesh

Top Highlights

• 4K@60Hz HDMI 2.0Connect one compatible high-resolution external display.
• Two 5Gbps USB-A PortsAttach USB storage and everyday computer peripherals.
• Gigabit RJ45 EthernetAdd wired 10/100/1000Mbps network connectivity.
• 100W PD + SD/TFConnect a USB-C charger and access memory cards.

About the UGREEN CM512 (60515)

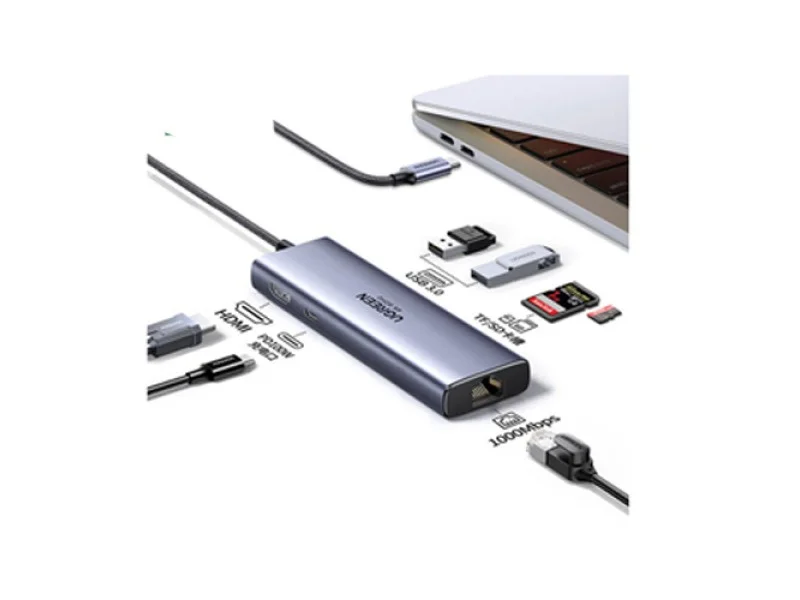

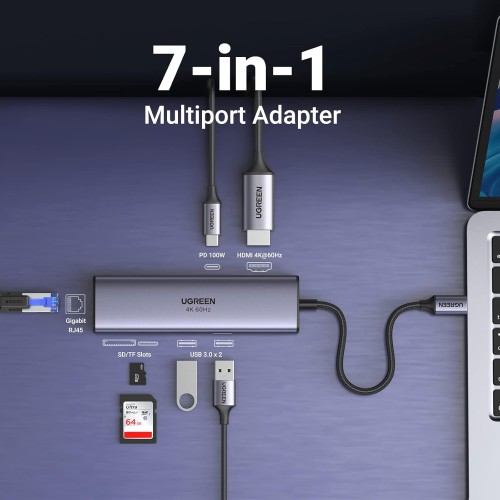

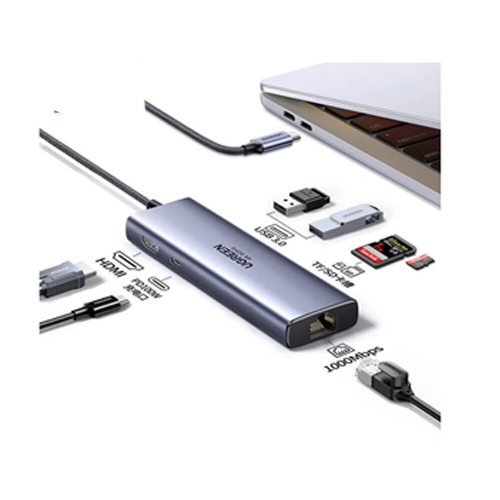

The UGREEN CM512 (60515) Revodok 107 is a multifunction USB-C hub designed to extend the connectivity of compatible laptops and tablets. Modern portable computers often have limited built-in ports, making it difficult to connect an external monitor, wired internet, USB accessories and memory cards together. This 7-in-1 adapter brings these connections into a single compact accessory.

Its HDMI 2.0 output supports a maximum resolution of 3840 × 2160 at 60Hz when connected to a suitable display through a compatible USB-C host. Two USB-A 3.0 ports provide data connectivity up to 5Gbps for flash drives, external storage and other USB peripherals. A Gigabit Ethernet port adds wired networking, while the separate SD and TF/microSD slots provide convenient access to camera and mobile-device storage cards.

The USB-C Power Delivery input accepts up to 100W from a compatible USB-C PD charger. This allows supported laptops to receive charging power while the hub is connected, although actual power delivered to the host may be lower because the hub consumes some power. The PD connector is intended for charging input, not as an additional USB-C data or video output.

With its gray aluminum-alloy housing and portable form factor, the CM512 is suitable for workstations, shared desks, classrooms and travel. UGREEN lists Windows, macOS and Linux compatibility, with specific functions depending on the host's USB-C capabilities. The HDMI feature requires a USB-C port capable of video output rather than a data-only USB-C connection.

Design & Performance

4K@60Hz HDMI 2.0 Output for Clear External Displays

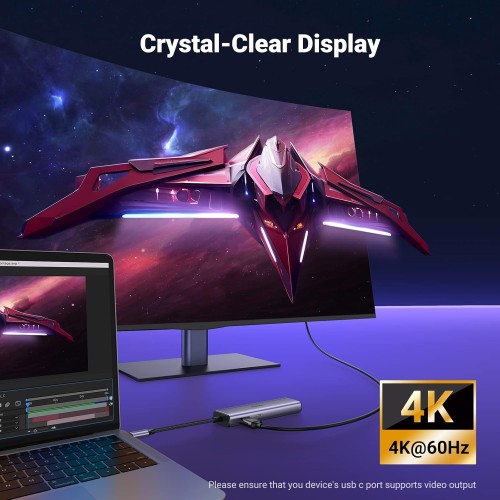

The UGREEN CM512 (60515) includes one HDMI 2.0 output supporting resolutions up to 4K at 60Hz. It provides a convenient way to connect a compatible laptop or tablet to an external monitor, television or projector for office presentations, spreadsheets, documents and multimedia viewing. A single external screen can help users organize their workspace or share content with others more comfortably.

To achieve 4K@60Hz, the connected computer must support video output through USB-C with sufficient DisplayPort capability, and the HDMI cable and display must also support the required resolution and refresh rate. UGREEN specifies a DP 1.4-capable USB-C host for its advertised maximum 4K@60Hz performance. A device with a lower-capability video connection may operate at a reduced resolution or refresh rate.

The CM512 has one physical HDMI port and supports one external display through the hub. The connected computer determines whether the screen can mirror or extend the desktop. The adapter does not create video output from a USB-C port that supports data transfer only, and it is not a DisplayLink docking station.

Dual USB-A 3.0 Ports with Up to 5Gbps Data Transfer

The CM512 provides two USB-A 3.0 ports, each supporting a maximum theoretical USB data rate of 5Gbps. These ports allow users to connect USB flash drives, external storage, keyboards, mice and other compatible peripherals without needing separate adapters. They are especially useful for laptops that have only USB-C ports or a limited number of traditional USB-A connections.

The available 5Gbps interface bandwidth is suitable for everyday file transfers, external storage access and connecting common office accessories. Users can attach a storage device alongside another USB peripheral, helping maintain a practical desktop setup. USB-A connectivity also makes it easier to continue using existing accessories when upgrading to a newer USB-C laptop.

The stated speed is the maximum theoretical USB link rate, not a guaranteed file-transfer result. Actual performance depends on the connected storage device, host port, cable and simultaneous activity across the hub. USB, Ethernet, card-reader and display functions share the host connection, so combined workloads can affect available bandwidth.

Gigabit RJ45 Ethernet for Reliable Wired Network Access

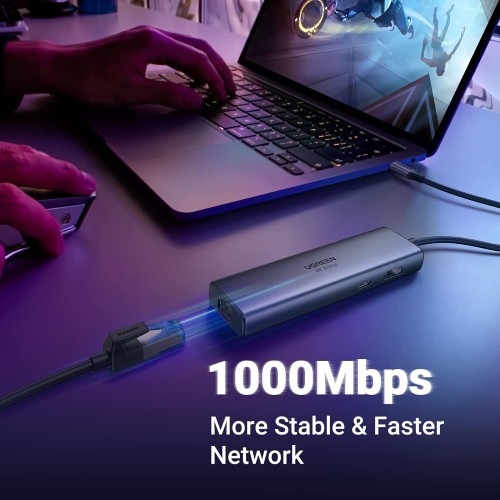

The built-in RJ45 Ethernet port supports automatic negotiation at 10, 100 and 1000Mbps, allowing a compatible USB-C computer to connect directly to a wired local network. This is useful for offices, classrooms and home workstations where an Ethernet connection is preferred or where the laptop does not include a built-in LAN port.

Gigabit Ethernet can provide a consistent physical network connection for file sharing, online meetings, remote work and access to network-connected devices. It is also useful in locations with crowded wireless networks or when a user wants to connect directly to a router or network switch. The RJ45 connector accepts a standard compatible Ethernet cable.

To obtain a 1000Mbps Ethernet link, the router or switch port and network cable must support Gigabit operation. Actual internet speed depends on the broadband connection, network hardware and traffic conditions. UGREEN's manual notes that Windows 8/8.1/10 and macOS can use the Ethernet function without a separate driver in the listed configurations, while Windows 7 may require a driver.

100W USB-C Power Delivery Input for Laptop Charging

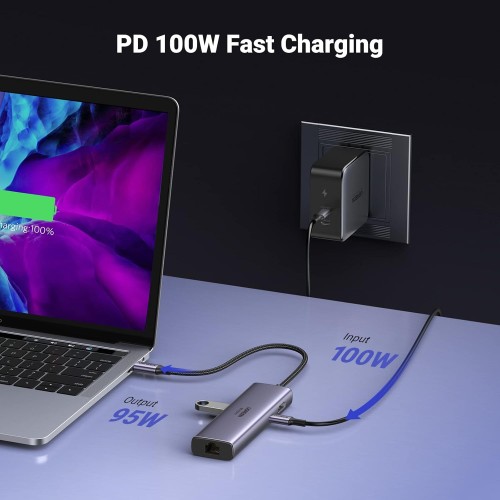

The UGREEN CM512 includes a dedicated USB-C Power Delivery input rated for up to 100W. Users can connect a compatible USB-C PD charger to the hub while the main USB-C cable remains connected to a laptop or tablet. This arrangement helps keep the computer powered during desk work, presentations and other activities that require multiple connected accessories.

Power Delivery pass-through is particularly convenient for laptops with a limited number of USB-C ports, because a single host connection can support the hub's data, display and network functions while also providing charging power. The connected charger must supply a compatible PD profile, and the laptop must support charging through its USB-C port.

The 100W rating refers to the maximum PD input supported by the hub, not a guarantee that the laptop receives the full 100W. Some power is used by the hub, and the actual host charging level depends on the charger, computer and power negotiation. The PD input is not an extra USB-C data port, video output or standalone phone-charging connector.

SD and microSD Card Readers for Convenient Media Access

The CM512 includes separate SD and TF/microSD card slots, allowing users to access files from compatible memory cards without carrying an additional card reader. This is helpful for photographers, content creators, students and office users who regularly transfer photos, videos, documents or other files from cameras and portable devices.

UGREEN's manual confirms that the SD and TF card slots can operate simultaneously. This provides additional flexibility when working with files stored on different card formats. Users can connect a memory card while keeping the hub's HDMI, USB-A and Ethernet connections available for other tasks.

UGREEN advertises card-reader performance up to approximately 104MB/s under suitable conditions. Actual transfer speeds depend on the card's performance class, file sizes, operating system and other active hub functions. Memory cards should be safely ejected before removal when data is being written to avoid possible file corruption.

Portable Aluminum Design and Broad USB-C Host Compatibility

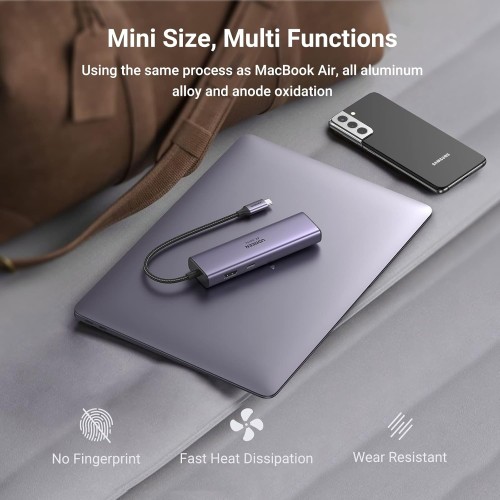

The UGREEN CM512 (60515) uses a compact gray aluminum-alloy housing designed for portable everyday use. Its lightweight construction makes it practical for carrying with a laptop, while the integrated USB-C host connector reduces the need for a separate docking station. The combination of display, network, charging and storage connections is useful for workstations where desk space is limited.

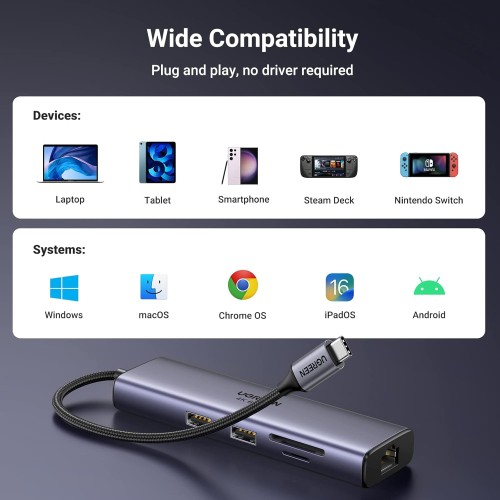

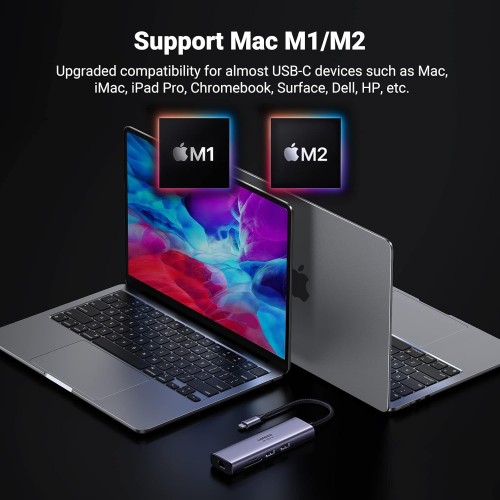

UGREEN lists compatibility with Windows, macOS and Linux systems. The hub can be used with compatible USB-C laptops and tablets, but individual functions depend on the capabilities of the connected device. For example, HDMI output requires USB-C video support, and Power Delivery charging requires a compatible charging-capable USB-C host.

The CM512 is a multifunction expansion hub rather than a Thunderbolt dock or an independent graphics adapter. It does not provide multiple HDMI outputs, an M.2 SSD enclosure or a separate USB-C data output. Users should confirm the host's video and charging capabilities before ordering to ensure the hub supports their intended setup.

Who It's For

Office Professionals: Connect an external monitor, Ethernet network and USB accessories through one hub. Remote Workers: Build a practical laptop workstation with wired internet and charging support. Students and Teachers: Use HDMI for presentations and USB ports for classroom accessories. Photographers: Access SD and microSD files without a separate reader. Traveling Professionals: Carry essential USB-C connectivity in one portable adapter.

The CM512 is particularly suitable for users who need one 4K@60Hz HDMI output, Gigabit Ethernet, two USB-A data ports, SD/TF readers and USB-C PD input in a single 7-in-1 hub.

Why Buy From IT Source?

IT Source offers UGREEN USB-C hubs, docking stations and computer connectivity accessories for customers in Bangladesh. Check the latest UGREEN CM512 (60515) price, product availability and applicable warranty terms before ordering. For best compatibility, verify that your laptop or tablet supports USB-C video output and Power Delivery charging if you intend to use those functions.
