| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 6-in-1 USB-C Docking Station |
| Color | Space Grey |
| Host Interface | USB-C Male |
| Number of Ports | 6 |
| HDMI Output | 1 × HDMI |
| Maximum Resolution | 3840 × 2160 @ 60Hz |
| USB-A Data Ports | 2 |
| USB-C Data Port | 1 |
| USB Data Speed | Up to 10Gbps |
| Power Delivery Input | Up to 100W |
| Ethernet | 1 × RJ45 Gigabit |
| Ethernet Speed | 10/100/1000Mbps |
| Material | Aluminum Housing |
| Card Reader | Not included |
| Product Code | 45000 |
| Warranty Information | |
| Warranty | N/A |

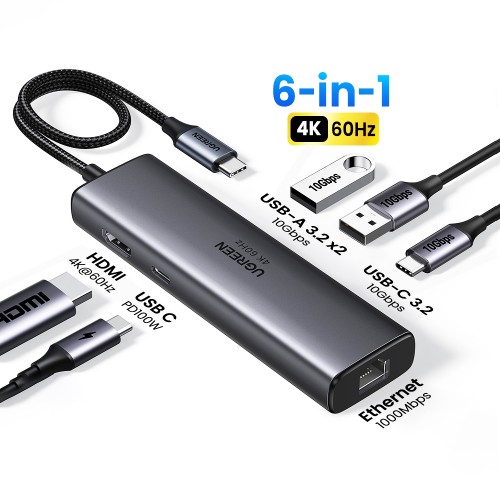

Looking for the UGREEN CM512 (45000) price in Bangladesh? This 6-in-1 USB-C docking station expands a compatible laptop with a 4K@60Hz HDMI output, three high-speed USB data ports, Gigabit Ethernet and 100W USB-C Power Delivery input.
The UGREEN CM512 is designed for users who need a practical way to connect an external monitor, USB storage and a wired network through one compact hub. Check the latest UGREEN CM512 price and availability at IT Source Bangladesh.
The UGREEN CM512 (45000) is a six-port USB-C docking station designed to make modern laptop connectivity more convenient. It combines essential display, data, network and power connections in a single device.
Many slim laptops have limited built-in ports. Connecting a monitor, external SSD, mouse and network cable can quickly occupy the available connections. The CM512 helps by providing multiple interfaces through one USB-C host connection.
The docking station features two USB-A data ports and one USB-C data port, with supported USB transfer speeds up to 10Gbps. This makes it useful for connecting compatible flash drives, external SSDs and other data accessories.
Its HDMI connection supports output up to 3840 × 2160 at 60Hz when the host computer and display support the required video mode. This can provide a larger workspace for spreadsheets, presentations and everyday applications.
The integrated Gigabit Ethernet connection is useful for laptops without an RJ45 port, while the dedicated USB-C Power Delivery input allows compatible laptop charging through the hub.
With its aluminum housing and practical port arrangement, the CM512 is a compact alternative to carrying several individual adapters.

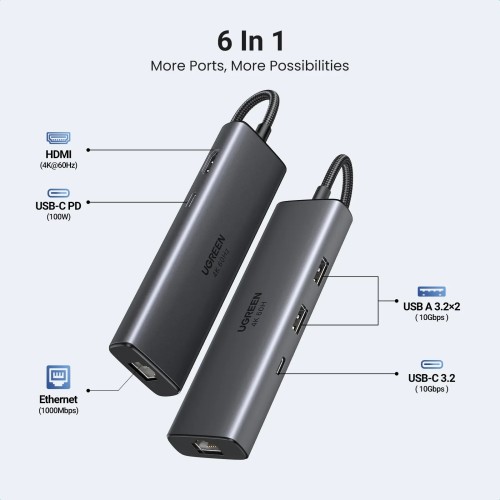

The UGREEN CM512 combines six functional ports in a compact aluminum housing intended for desktop and portable use.
Its layout includes two USB-A data connections, one USB-C data connection, one HDMI output, one Gigabit Ethernet port and one USB-C Power Delivery input.
These connections address common laptop expansion needs without adding ports that some users may never use.
The hub can remain connected to a monitor, Ethernet cable and USB accessories at a desk, reducing the number of separate adapters needed for a workstation.
Its integrated USB-C host connection makes it convenient to connect and disconnect a compatible laptop when moving between work locations.
For users who want a compact accessory rather than a large docking station, the CM512 offers a focused selection of useful connections.
The CM512 includes an HDMI output supporting up to 4K resolution at 60Hz with compatible equipment.
This allows users to connect a supported external monitor, television or projector to their laptop through the hub.
A larger display can make it easier to review documents, edit spreadsheets, prepare presentations and work across multiple application windows.
The 60Hz refresh rate provides smoother everyday desktop movement than a 30Hz display mode when the full resolution and refresh rate are supported.
For video output, the host laptop must support display transmission through its USB-C port, such as DisplayPort Alternate Mode. A data-only USB-C port cannot supply the required HDMI video signal.
Actual output depends on the host graphics hardware, USB-C video capabilities, HDMI cable and connected display. The CM512 has one HDMI output and does not provide two independent HDMI connections.
The UGREEN CM512 provides two USB-A data ports supporting high-speed USB connections up to 10Gbps with compatible devices.
These ports are useful for connecting external SSDs, USB flash drives and other storage accessories that benefit from a faster data interface.
Users can move documents, photos, project files and other content between their laptop and connected USB storage.
The USB-A ports can also be used with supported keyboards, mice and USB receivers, helping maintain compatibility with existing accessories.
Actual file transfer speeds depend on the connected device, storage performance, cable and host computer.
When several devices are used simultaneously, their total performance is limited by the bandwidth available through the shared host connection.
Alongside its two USB-A connections, the CM512 includes one USB-C data port supporting transfer speeds up to 10Gbps.
This is useful for connecting compatible USB-C external SSDs, storage enclosures and other USB-C data accessories without a separate adapter.
It gives users a convenient way to work with both traditional USB-A devices and newer USB-C peripherals.
The USB-C data connection is separate from the dedicated USB-C Power Delivery input.
The data port is intended for compatible USB data devices and should not be treated as an additional HDMI video output or a dedicated laptop charging connection.
As with other USB interfaces, the maximum advertised speed is a theoretical link rate. Real-world transfer performance depends on the connected equipment.
The UGREEN CM512 includes a dedicated USB-C Power Delivery input rated up to 100W.
When connected to a suitable USB-C PD charger, the hub can provide charging passthrough to a compatible laptop while the HDMI, USB and Ethernet connections remain available.
This is especially convenient for laptops with a limited number of USB-C ports, as one host connection can handle accessories and charging support.
The 100W specification describes the maximum supported PD input, not a guaranteed 100W charging output to the laptop.
Some incoming power is used by the hub and connected accessories, so the charging power available to the computer may be lower.
Actual charging performance depends on the laptop, charger, USB-C cable and supported Power Delivery profiles. Check your laptop's charging requirements before selecting a power adapter.
The CM512 features an RJ45 Ethernet port supporting 10/100/1000Mbps network connections.
This provides a wired networking option for laptops that do not have a built-in Ethernet socket.
A wired connection can be useful in offices, shared workspaces and home networks where users prefer connecting directly to a router or network switch.
It can support video meetings, online learning, network file access and other activities that benefit from a stable local connection.
Users can connect an Ethernet cable to the docking station while keeping their USB storage and external monitor attached.
Actual network speed depends on the Ethernet cable, router, switch, network configuration and internet service. The CM512 supports Gigabit Ethernet rather than 2.5GbE.
The UGREEN CM512 (45000) is suitable for office professionals who want an external monitor, fast USB storage and wired networking from a compatible USB-C laptop.
Students can use it to connect a larger display, USB accessories and an Ethernet cable for study and online classes.
Home users with limited laptop ports may find it useful for a compact desktop workstation.
Users working with external SSDs can benefit from the hub's 10Gbps USB data connections, provided their devices support the required speeds.
It is also a practical option for laptop owners who need USB-C charging passthrough without giving up their display and peripheral connections.
IT Source offers USB-C hubs, docking stations and computer connectivity accessories for customers in Bangladesh.
Customers can check the latest UGREEN CM512 (45000) price and product availability before ordering.
Choosing the correct USB-C hub is important because different product codes under the CM512 model name can have different ports and functions.
Contact IT Source Bangladesh to confirm SKU 45000, laptop compatibility and current ordering information.
Yes. Its HDMI output supports up to 4K at 60Hz with compatible equipment. The host computer must support video output through USB-C, and the display and HDMI cable must support the required mode.
It has three USB data ports: two USB-A connections and one USB-C connection. The supported maximum data transfer speed is up to 10Gbps with compatible devices.
Yes. It includes a dedicated USB-C Power Delivery input supporting up to 100W. Actual charging power supplied to the laptop depends on the charger, cable and computer.
Yes. SKU 45000 includes an RJ45 Gigabit Ethernet port supporting network connections up to 1000Mbps.
No. The six-port CM512 (45000) configuration has HDMI, two USB-A data ports, one USB-C data port, Gigabit Ethernet and USB-C Power Delivery input. It does not include SD or microSD card slots.
Buy UGREEN CM512 (45000) 6-in-1 USB-C Docking Station from IT Source Bangladesh
Check the latest price and confirm USB-C video, data and charging compatibility before ordering.
