| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | Dual-Bay SATA HDD/SSD Docking Station |
| Number of Bays | 2 |
| Compatible Drives | 2.5-inch / 3.5-inch SATA HDD & SSD |
| Internal Interface | SATA |
| External Interface | USB 3.0 Type-B |
| USB Standard | USB 3.0 |
| Maximum USB Speed | Up to 5Gbps |
| UASP Support | Yes |
| Offline Cloning | Yes |
| Cloning Requirement | Target capacity ≥ source capacity |
| Power Supply | DC 12V/3A |
| Cable Length | 1 Meter |
| Dimensions | 162 × 112 × 61.5mm |
| Color | Black |
| Installation | Tool-Free |
| Warranty Information | |
| Warranty | N/A |
The UGREEN CM198 (50742) USB 3.0 Dual-Bay SATA HDD/SSD Docking Station provides a convenient way to connect two compatible SATA storage drives to a computer. With USB 3.0 connectivity rated for up to 5Gbps, support for 2.5-inch and 3.5-inch drives, and standalone offline cloning, it is designed for file transfers, backups and drive migration.
Its tool-free top-loading design and dedicated power supply make it suitable for regular desktop storage tasks. Explore the UGREEN CM198 (50742) price in Bangladesh at IT Source.
The UGREEN CM198 (50742) is a dual-bay SATA docking station designed to provide external access to compatible 2.5-inch and 3.5-inch HDDs and SSDs. Its USB 3.0 interface, UASP support and offline cloning functionality make it useful for computer upgrades, backup preparation and storage maintenance. The open docking design allows users to insert or remove compatible drives without a traditional external enclosure.
The CM198 (50742) uses a USB 3.0 interface with theoretical bandwidth up to 5Gbps. This allows compatible computers to access installed SATA drives for transferring documents, media files and backup data.
Actual transfer speed depends on the installed drive, USB host connection and operating conditions.
Two top-loading SATA bays accommodate compatible 2.5-inch and 3.5-inch hard drives and solid-state drives. Users can access two drives through one docking station when connected to a supported computer.
The dock is intended for SATA storage and does not support M.2 NVMe, M.2 SATA modules, SAS or IDE/PATA drives.

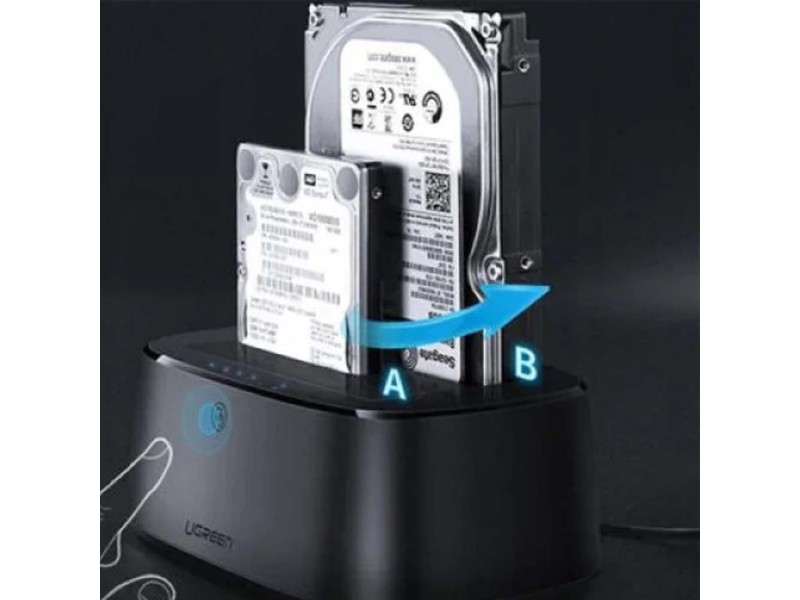

The offline cloning function enables drive-to-drive duplication without a computer connection. This is useful when migrating data to a replacement SATA drive or preparing a duplicate of an existing disk.
The target drive must have capacity equal to or greater than the source drive. Cloning overwrites the target drive, so back up its existing files before starting.
UASP support helps improve USB storage communication efficiency on compatible computers. This can benefit file access and transfer operations when the connected system and installed storage support the feature.
The docking station is useful for routine drive access, backup preparation and computer maintenance.
The CM198 uses a dedicated 12V/3A external power adapter to operate compatible SATA storage devices, including desktop hard drives that require more power than a USB port alone can provide.
Use an adapter with the correct electrical rating and connector. Check the power plug configuration of your specific package.
The top-loading bays allow compatible drives to be installed without mounting screws or a traditional drive enclosure. LED indicators provide operating and cloning status information.
Keep the docking station on a stable surface, avoid moving spinning hard drives and safely eject storage before removing an installed drive.
IT Technicians: Access and clone SATA drives during computer servicing. Desktop Users: Connect internal HDDs and SSDs externally. Office Professionals: Manage backup drives and archived documents. Computer Upgraders: Migrate data to replacement SATA storage. Content Creators: Transfer files between compatible drives. Home Users: Reuse existing SATA hard drives without installing them inside a computer.
IT Source offers UGREEN storage accessories and computer connectivity solutions for customers in Bangladesh. Check the latest UGREEN CM198 (50742) price, stock availability and applicable local warranty before ordering. Confirm your drive interface, physical size and cloning requirements to choose a compatible docking station.
Buy UGREEN CM198 (50742) Dual-Bay SATA Docking Station from IT Source Bangladesh
Connect two compatible SATA drives and perform standalone offline cloning with convenient USB 3.0 connectivity.
