| Product Specifications | |
|---|---|
| Tech Specs | |
| Product Type | 5-in-1 USB-C Hub |
| Number of Ports | 5 |
| Host Interface | USB-C Male |
| Port & Slot | 1× HDMI, 1× USB-A 3.0, 2× USB-A 2.0, 1× USB-C PD |
| HDMI Version | HDMI 1.4 |
| Maximum Resolution | 3840 × 2160 (4K) |
| Maximum Refresh Rate | 30Hz at 4K |
| USB-A 3.0 Speed | Up to 5Gbps |
| USB-A 2.0 Speed | Up to 480Mbps |
| Power Delivery (PD) | Up to 100W Input |
| Maximum Host Charging | Up to 95W |
| Material | Aluminum Alloy |
| Color | Gray |
| Cable Length | Approximately 20cm |
| Supported Display | Single External HDMI Display |
| Operating Systems | Windows, macOS, Linux; mobile support device-dependent |
| Compatible Devices | USB-C Laptops, Tablets and Phones Supporting Required Host Functions |
| Warranty Information | |
| Warranty | N/A |

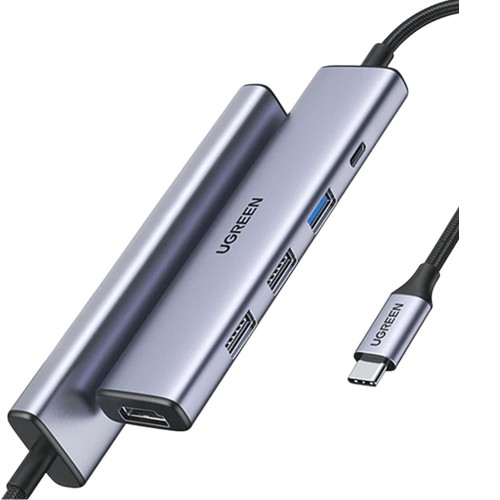

The UGREEN CM478 (15495) Revodok 105 is a 5-in-1 USB-C hub designed to expand the connectivity of compatible laptops and tablets. It combines 4K@30Hz HDMI output, three USB-A data ports and a dedicated 100W USB-C Power Delivery input.
Its compact aluminum design is useful for connecting monitors, external storage and everyday USB accessories. Check the latest UGREEN CM478 (15495) price in Bangladesh at IT Source.
The UGREEN CM478 Revodok 105 expands one compatible USB-C host connection into five interfaces. It provides HDMI video, USB-A data connectivity and USB-C charging input in a portable adapter.
The HDMI output supports up to 4K@30Hz, while the USB-A 3.0 port supports data transfer up to 5Gbps. Two additional USB-A 2.0 ports are suitable for keyboards, mice and other everyday peripherals.
The dedicated USB-C PD port accepts up to 100W from a compatible charger and can deliver up to 95W to the host device. Its aluminum body is designed for convenient daily use.
The CM478 includes an HDMI output supporting up to 3840 × 2160 resolution at 30Hz. It allows compatible USB-C devices to connect to an external monitor, television or projector.
The host USB-C connection must support video output, such as DisplayPort Alt Mode. Actual display resolution depends on the source device, HDMI cable and connected display.
One USB-A 3.0 port supports data transmission up to 5Gbps. It is useful for compatible USB flash drives, external SSDs and other high-speed USB storage devices.
Actual file transfer speeds depend on the connected storage device, computer and available bandwidth. The 5Gbps rating is the interface's theoretical maximum.
Two additional USB-A 2.0 ports support data transmission up to 480Mbps. They provide convenient connections for keyboards, mice and other compatible USB accessories.
These ports are not rated for 5Gbps USB 3.0 transfer speeds. For faster storage transfers, use the dedicated USB-A 3.0 port.
The dedicated USB-C Power Delivery input supports up to 100W from a compatible USB-C charger. This enables supported laptops to receive charging power while other hub connections are in use.
Up to 95W can be passed through to the host, with approximately 5W reserved for hub operation. Actual charging power depends on the charger, cable and host device.
The hub combines one HDMI output, one USB-A 3.0 port, two USB-A 2.0 ports and one USB-C PD input. This configuration supports common display, storage and charging requirements.
The USB-C female port is for Power Delivery input only. It does not provide an additional USB-C data port or video output.
The Revodok 105 features an aluminum enclosure with a slim profile, making it convenient to carry with a laptop or tablet. Its compact construction helps keep desktop connections organized.
Standard USB functions operate through compatible host systems without a dedicated docking-station driver. Display and charging features depend on the connected device's hardware support.
Laptop Users: Add HDMI and USB-A connections to a compatible USB-C computer. Office Professionals: Connect an external display and everyday peripherals. Students: Use USB storage, keyboards and presentation displays. Content Creators: Transfer files through the 5Gbps USB-A port. Travelers: Carry one compact adapter for display, data and charging connections.
IT Source offers UGREEN USB-C hubs and computer connectivity accessories for customers in Bangladesh. Check the latest UGREEN CM478 (15495) price, availability and applicable warranty before ordering. Confirm that your host device supports USB-C video output and Power Delivery charging if you plan to use those functions.
Buy UGREEN CM478 (15495) Revodok 105 from IT Source Bangladesh
Expand your USB-C connectivity with 4K HDMI, three USB-A data ports and 100W PD charging input.
