| General Information | ||
| Power | RF output power: ≤10 mW | |
| Weight | 162g (without batteries) | |
| Dimensions (W x D x H) | 5.7×4.55×11.7cm | |
| Others Info | ||
| Others | Channel group: A or B Carrier Frequency Range: 556.71 MHz-575.98 MHz (Transmitter A) 576.39 MHz-595.66 MHz (Transmitter B) Channels: 48 Audio input connector: XLR Spurious emission: 250nW or less Reference deviation: ±5 kHz (–60 dBV, 1 kHz input) Input frequency range: 20Hz-20KHz Distortion: 0.5% or less |
|

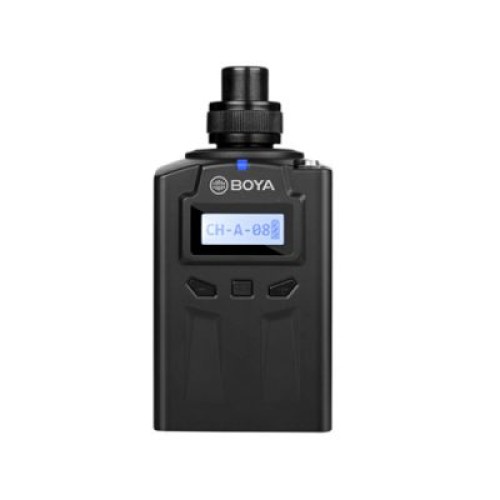

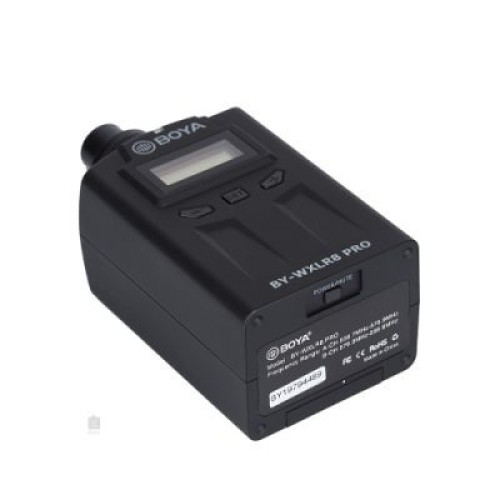

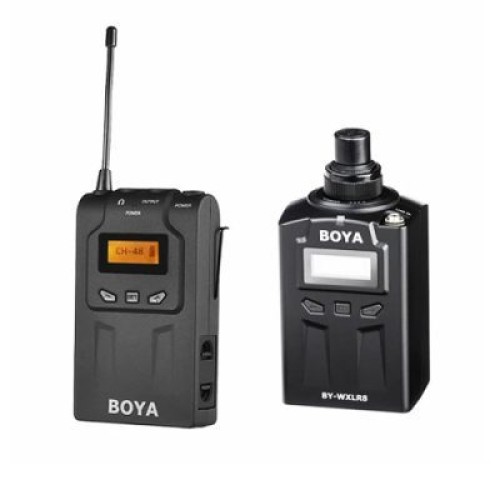

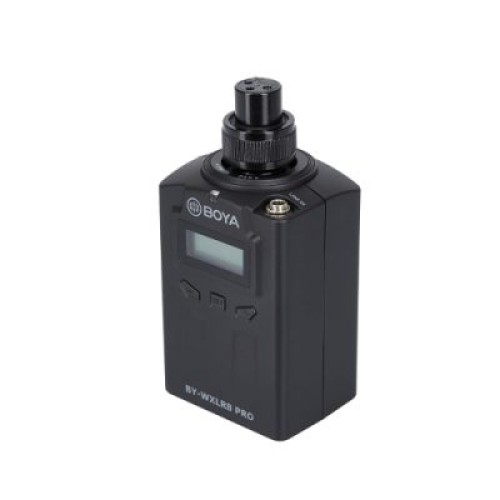

BOYA BY-WXLR8 plug-on XLR audio transmitter can be used with XLR mic and audio mixer. It works well with BOYA BY-WM8 BY-WM6 wireless lavalier microphone system. Features: Compatible for XLR microphone and audio mixer. Work well with BOYA BY-WM8 BY-WM6 wireless lavalier microphone system. Wide frequency range effectively avoid signal interference. With A, B channel, 48 each. Support Mono/ Stereo tone. Easy to operate, with LCD display. With light indicator for battery power and working status. Powered by 2pcs LR6 AA batteries. (Not included. )Specifications: BOYA Model: BY-WXLR8 Frequency: A-CH 576.4MHz – 599.9MHz B-CH 568.6MHz – 592.1MHz Channel Number: 1 – 48 Vol: 1 – 32 Mute: Support Tone: Mono / Stereo Audio Input Jack: for Microphone or XLR Cable Battery Type: 2 * LR6 AA Batteries (Not included) Item Size: 11.6 * 5.6 * 4.4Cm / 4.6 * 2.2 * 1.7″ Item Weight: 165g / 5.8Oz Package Size: 14.7 * 10 * 8.8Cm / 5.8 * 3.9 * 3.5″ Package Weight: 276g / 9.7OzPackage List: 1 * Mic 1 * Bag 1 * Cleaning Cloth 1 * User Manual Series (English) Battery is not included.
