ACASIS M002Pro Mac mini M4 Docking Station Price in Bangladesh
The ACASIS M002Pro 40Gbps Mac mini M4 Docking Station combines a desktop stand, high-speed connectivity and dual M.2 NVMe SSD storage expansion. Designed for the Mac mini M4 and M4 Pro, it helps create an organised workstation with additional storage, display outputs and USB connections.
Its 40Gbps host interface connects the dock to the Mac mini, while two NVMe SSD slots support up to 16TB total storage. Dual DisplayPort 1.3 outputs support up to 4K 144Hz on a single compatible display or dual 4K 60Hz monitors, subject to the computer's capabilities.
Three 10Gbps USB-A ports, SD 4.0 and microSD/TF 4.0 readers and a 30W PD power input complete the expansion options. Buy the ACASIS M002Pro in Bangladesh from IT Source for convenient Mac mini storage and peripheral expansion.
Top Highlights
40Gbps Host InterfaceHigh-speed Mac mini M4 workstation connectivity.
Dual NVMe SSD SlotsSupports up to 16TB combined external storage.
Dual DisplayPort OutputsUp to 4K 144Hz single or dual 4K 60Hz display support.
USB & Card ExpansionThree 10Gbps USB-A ports and SD/TF 4.0 readers.

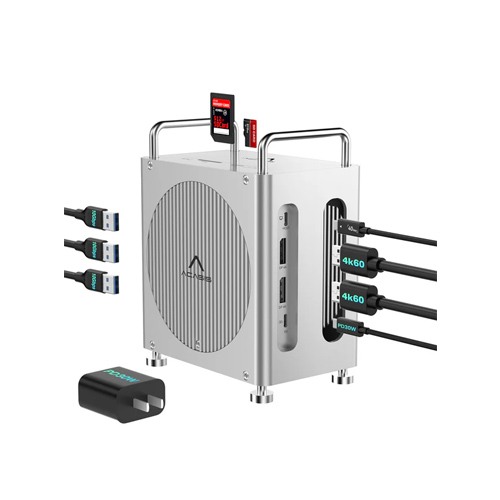

About the ACASIS M002Pro Mac mini M4 Docking Station

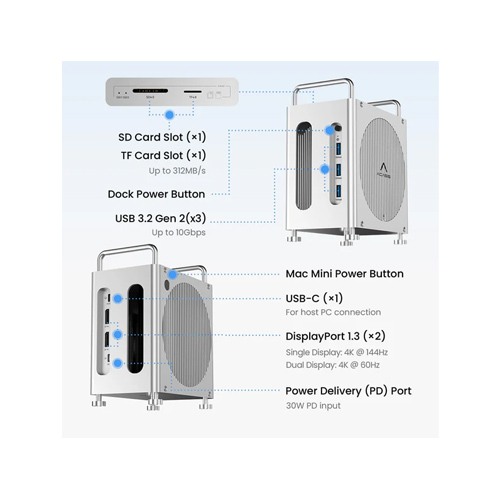

The ACASIS M002Pro is a 40Gbps workstation dock designed for Mac mini M4 and M4 Pro computers. It combines a Mac mini stand with two M.2 NVMe SSD slots supporting up to 16TB total storage, two DisplayPort 1.3 outputs, three 10Gbps USB-A ports and SD/TF 4.0 card readers. The dock supports up to 4K 144Hz single-display or dual 4K 60Hz output on compatible systems. A 30W PD input powers the dock and its accessories, while the aluminum alloy construction provides a practical desktop setup.
Design & Performance
40Gbps High-Speed Host Connection
The M002Pro connects to a compatible Mac mini through a USB-C host interface rated up to 40Gbps. This connection carries data between the computer, integrated SSD storage and connected peripherals.
Actual transfer speeds depend on the installed SSDs, connected devices and available shared bandwidth.
Dual M.2 NVMe SSD Enclosure
Two integrated M.2 NVMe SSD slots let users expand their Mac mini storage without separate external drive enclosures. The dock supports compatible M.2 2230, 2242, 2260 and 2280 NVMe drives.
Each SSD slot has a theoretical bandwidth of up to 20Gbps. M.2 SATA SSDs are not supported.
Up to 16TB Storage Expansion
The M002Pro supports up to 8TB per SSD slot, providing a combined capacity of up to 16TB with two compatible NVMe drives.
This capacity is useful for video projects, photography libraries, backups and large working files. SSDs must be purchased separately.

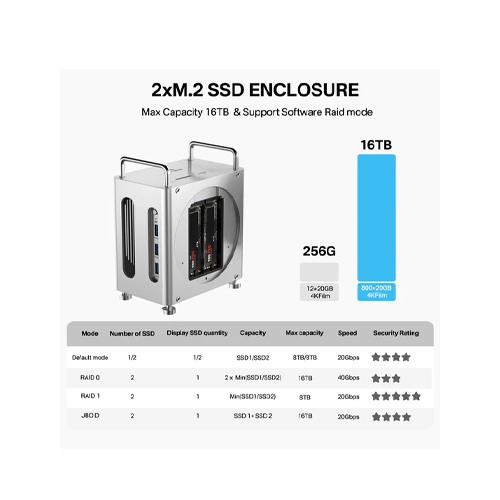

Software RAID Storage Options
The dual-drive configuration supports software-based RAID arrangements, including RAID 0 for users who prioritise sequential storage performance.
RAID 0 combines drives for performance but increases the risk of losing data if either drive fails. Maintain a separate backup of important files.

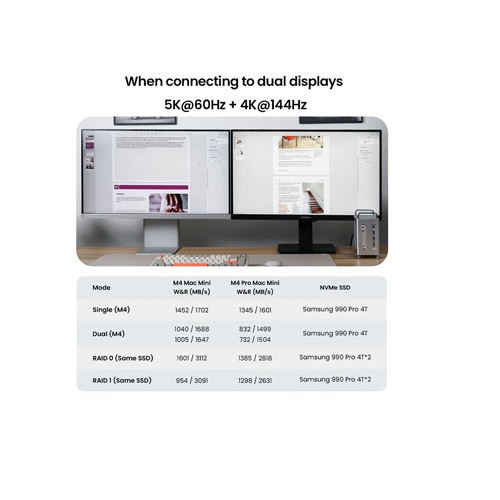

Dual DisplayPort 1.3 Outputs
Two DisplayPort 1.3 connections support external monitor expansion. The dock is rated for up to 4K 144Hz with one compatible display or dual 4K 60Hz output with a supported host configuration.
Display capabilities depend on the Mac mini model, monitor specifications, cable quality and macOS display settings.
Three 10Gbps USB-A Ports
Three USB-A ports rated up to 10Gbps provide connections for compatible external drives, keyboards, mice and other USB accessories.
Using the integrated USB connections helps reduce the number of adapters attached directly to the Mac mini.
SD 4.0 and MicroSD 4.0 Card Readers
Integrated SD and microSD/TF 4.0 readers provide convenient access to compatible memory cards, with supported UHS-II transfer rates up to 312MB/s.
These readers are useful for importing camera files and managing photography or video content.
30W USB-C PD Power Input
The dock includes a 30W USB-C Power Delivery input to provide supplemental power for the docking station and connected accessories.
This input does not replace the Mac mini's own power supply and should not be described as 30W Mac mini charging.

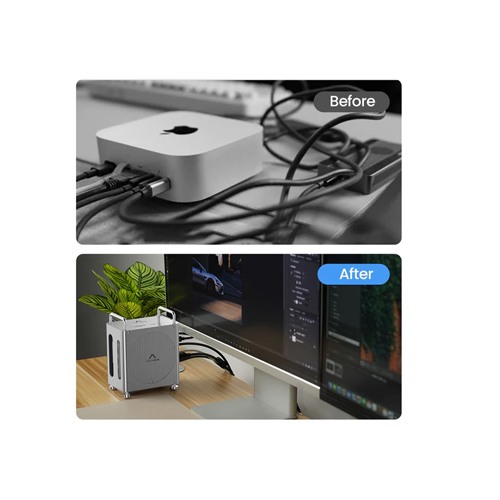

Mac mini Workstation Stand
The M002Pro is designed to hold a compatible Mac mini M4-series computer in a desktop workstation arrangement while exposing additional connectivity.
Its integrated stand design can help organise cables and storage accessories around the computer.

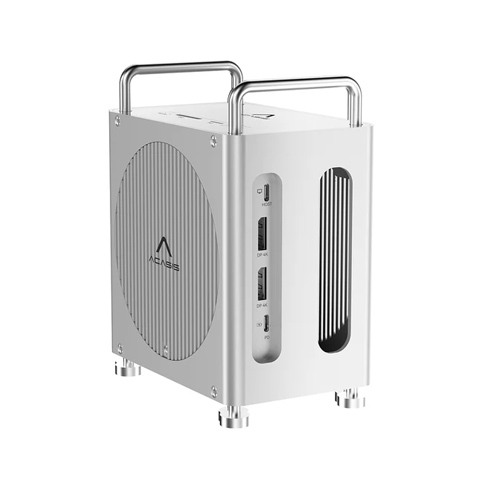

Aluminum Alloy Construction
The aluminum alloy body provides a sturdy enclosure for the integrated expansion hardware. The stand design also allows ventilation around the Mac mini and installed SSDs.
For reliable operation, keep the dock's ventilation areas unobstructed and follow the recommended SSD installation instructions.
Who It's For
The ACASIS M002Pro is suitable for Mac mini M4 and M4 Pro owners who need more external storage, display connections and USB expansion. It is especially useful for video editors, photographers, designers, developers and office professionals building a compact desktop workstation.
Simple Buying Guide
Choose the M002Pro if you need the dual-SSD configuration rather than the single-slot M002Plus version. Confirm that your Mac mini is a supported model and that your SSDs use the NVMe protocol in a compatible M.2 size. Check your monitors' DisplayPort inputs and supported refresh rates. For RAID storage, plan a separate backup strategy before combining drives.
Easy Steps to Check Before You Order
Verify the M002Pro model, two NVMe SSD slots, 40Gbps host connection, dual DisplayPort outputs, three USB-A ports and SD/TF 4.0 readers. Confirm your Mac mini model, SSD sizes, monitor compatibility and the required power adapter. Check the current price, stock and warranty terms with IT Source Bangladesh.
Why Buy From IT Source?
Explore the ACASIS M002Pro Mac mini M4 Docking Station at IT Source Bangladesh for integrated storage and desktop connectivity. Its dual NVMe SSD slots, high-speed USB ports, dual monitor outputs and dedicated Mac mini stand make it a practical accessory for professional and everyday workflows. Contact IT Source to confirm product availability, pricing and warranty coverage.
Frequently Asked Questions
How many SSDs does the ACASIS M002Pro support?
It supports two compatible M.2 NVMe SSDs, with up to 8TB per slot and 16TB total capacity. SSDs are sold separately.
Can the ACASIS M002Pro connect two 4K monitors?
Yes. Its two DisplayPort outputs support dual 4K 60Hz displays on compatible Mac mini systems. A single display can support up to 4K 144Hz.
Does the M002Pro's 30W PD input power the Mac mini?
No. The 30W PD input is for the docking station. The Mac mini still requires its normal power connection.
Check the ACASIS M002Pro Docking Station price in Bangladesh at IT Source.
Expand your Mac mini workstation with dual NVMe storage.
